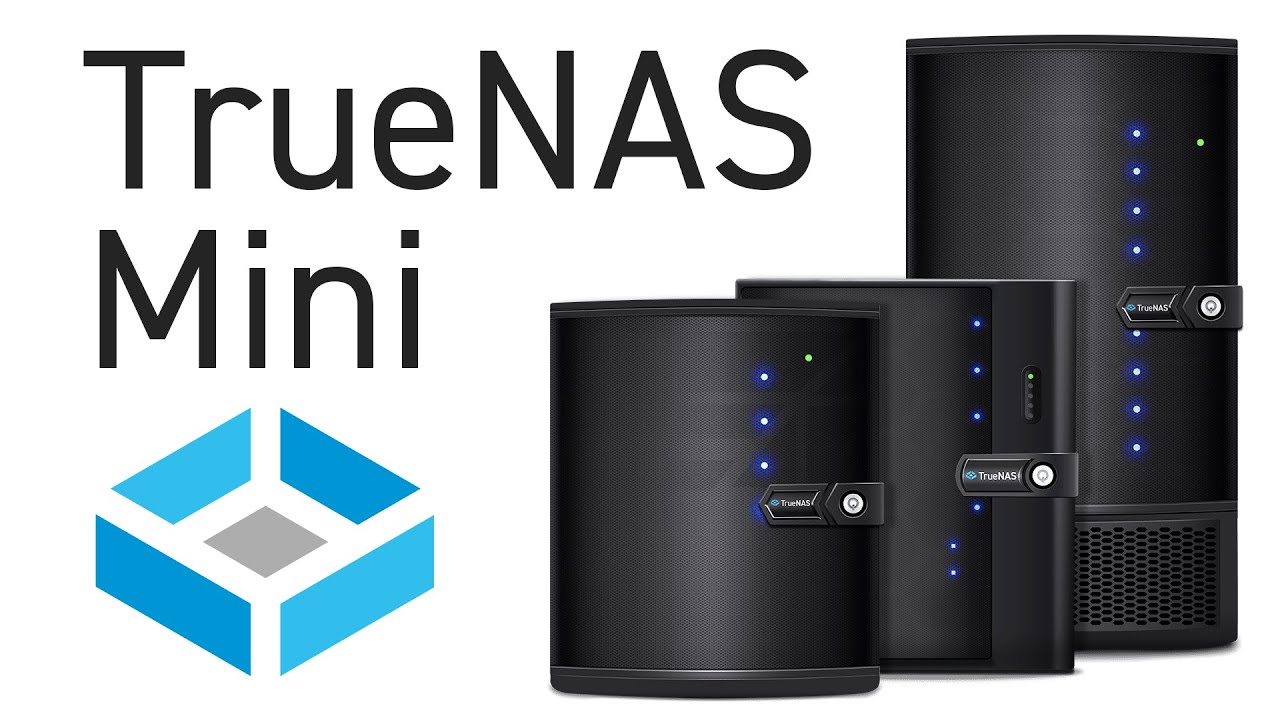

TrueNAS Mini

TrueNAS Mini Family

Mini but Mighty Storage

TrueNAS Minis allow you to easily store and manage your important data using any storage protocol, including NFS, SMB, AFP, iSCSI, S3, and many others. Minis can also be managed from the easy-to-use FreeNAS web interface using any computer or mobile device on your home or business network.

All Minis are backed by the OpenZFS (ZFS) enterprise-class file system that provides software RAID to protect your data from drive failure, data corruption, file deletion, and even malware attacks.

TrueNAS Minis are built with professional-grade components including ECC RAM and IPMI for remote management. Whisper-quiet fans and low power footprints make them ideal for a quiet office environment

TrueNAS Minis can ship with either the latest Stable version of FreeNAS or TrueNAS CORE. All Minis are TrueNAS CORE Ready and can be easily updated.

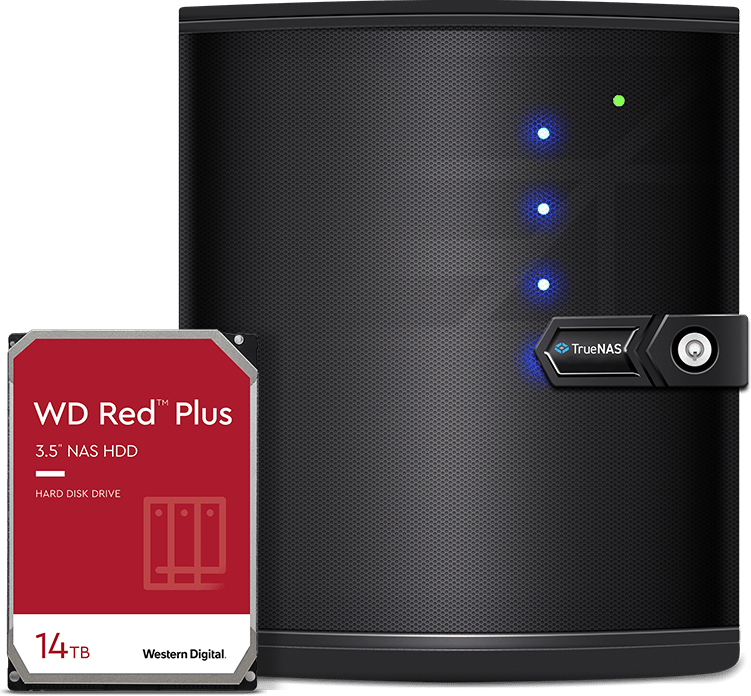

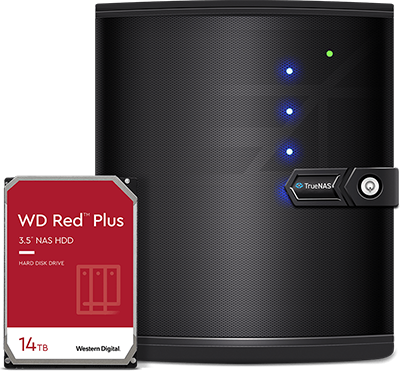

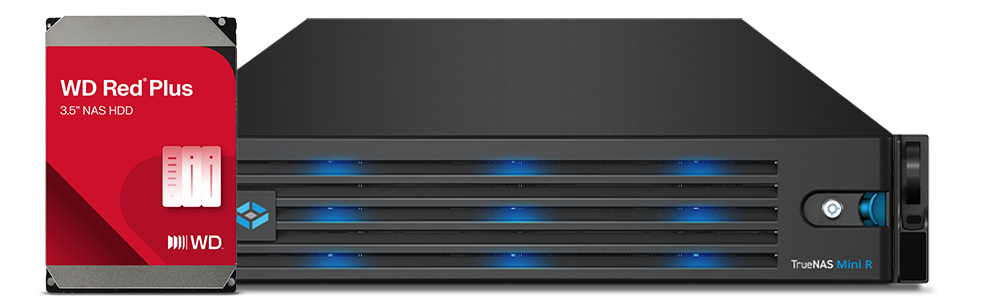

Western Digital Red Plus and TrueNAS Mini

Western Digital – The Preferred Drives of TrueNAS

All TrueNAS Minis come standard with Western Digital™ hard drives. Western Digital drives are specifically designed to handle the rigors of 24×7 TrueNAS workloads, offering excellent data protection and the highest level of performance possible.

*Regardless of which drives you choose for your system, purchase drives with traditional CMR technology and avoid ones using SMR technology.

IDEAL FOR MANY APPLICATIONS

Multimedia Icon
Multimedia

Stream audio and video to multiple clients.

FileSharing Icon
File Sharing

Use permission controls to manage access to files.

Backups Icon
Backup

Back up desktops and laptops over your network.

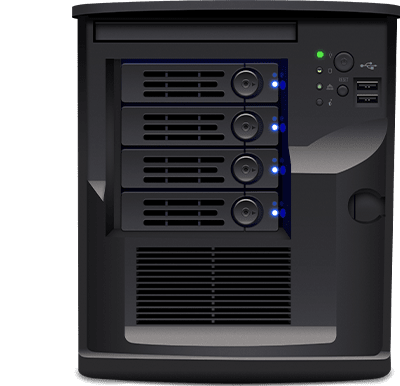

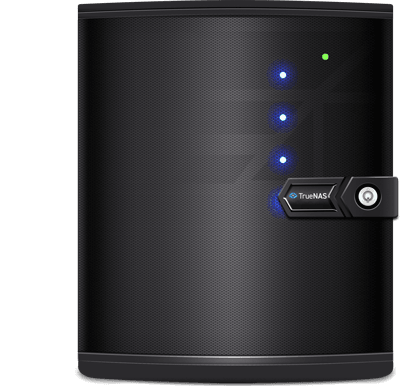

TrueNAS Mini E

TrueNAS Mini E

Starting at $748

4 Hot-Swap Bays
Dual-core C3338 Intel CPU
8 GB ECC RAM
Cost Effective
Quad 1GbE
Configure and Buy CTA

TrueNAS Mini X

TrueNAS Mini X

Starting at $1048

5 + 2 Hot-Swap Bays
Quad-core C3558 Intel CPU
16 GB ECC RAM
Efficient Design
Quad 1GbE

Configure and Buy CTA

TrueNAS Mini X+

TrueNAS Mini X+

Starting at $1248

5 + 2 Hot-Swap Bays
Octa-core C3758 Intel CPU
32GB ECC RAM
Great Performance
Dual 1/10GbE

 Configure and Buy CTA

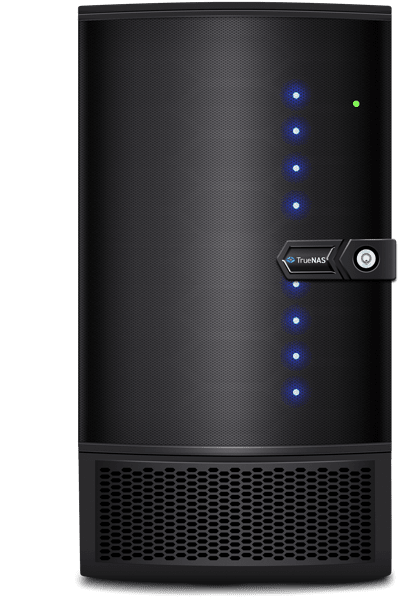

TrueNAS MiniXL

TrueNAS Mini XL+

Starting at $1448

8 + 1 Hot-Swap Bays
Octa-core C3758 Intel CPU
32GB ECC RAM
Maximum Capacity
Dual 1/10GbE

Configure and Buy CTA

Full Specifications

FEATURES TrueNAS Mini E TrueNAS Mini X TrueNAS Mini X+ TrueNAS Mini XL+
Chassis 4 Bay Enclosure – Super Quiet Design 5+2 Bay Enclosure – Super Quiet Design 8+1 Bay Enclosure – Super Quiet Design
Hard Drive Bays 4 x SATA 3.5” Hot-Swappable Drive Bays
2 x SATA 2.5” Internal SSD Bays
5 x SATA 3.5” Hot-Swappable Drive Bays
2 x SATA 2.5” Hot-Swappable SSD Bays
8 x SATA 3.5” Hot-Swappable Drive Bays
1 x SATA 2.5” Hot-Swappable SSD Bay
1x SATA 2.5” Internal SSD Bay
Maximum Raw Capacity Up to 56 TB Up to 70 TB Up to 85 TB Up to 127 TB
CPU Dual-core C3338 Intel CPU Quad-core C3558 Intel CPU Octa-core C3758 Intel CPU Octa-core C3758 Intel CPU
Memory 8 GB DDR4 with ECC
(Upgradeable to 16GB)
16 GB DDR4 with ECC
(Upgradeable to 32GB)
32 GB DDR4 with ECC
(Upgradeable to 64GB)
32 GB DDR4 with ECC
(Upgradeable to 64GB)
RAID OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe)
Disk Management Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T
ISO Mounting Support, Hardware-Accelerated Disk Encryption
Network Standard: 4 x 1 Gigabit Ethernet LAN ports (10/100/1000)
Dedicated RJ45 IPMI Port (Remote Hardware Management)
Standard: 4 x 1 Gigabit Ethernet LAN ports (10/100/1000)
Dedicated RJ45 IPMI Port (Remote Hardware Management)
Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports
Dedicated RJ45 IPMI Port (Remote Hardware Management)
2 x SFP+ 10G Add On Card (Optional)
Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports
Dedicated RJ45 IPMI Port (Remote Hardware Management)
2 x SFP+ 10G Add On Card (Optional)
USB Ports 2 x USB 2.0 Ports (Front)
1 x USB 3.0 Port (Rear)
2 x USB 2.0 Ports (Front)
1 x USB 3.0 Port (Rear)
1 x USB 3.0 Port (Front)
1 x USB 2.0 Port (Front)
2 x USB 2.0 Ports (Rear)
1 x USB 3.0 Port (Front)
1 x USB 2.0 Port (Front)
2 x USB 2.0 Ports (Rear)
Read/Write Cache (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)
PCIe Expansion N/A 1 x PCI Express 3.0 x 4 1 x PCI Express 3.0 x 4
Power Supply 100V to 240V AC, 50/60 HZ, Single Phase
Power Consumption (Maximum) Diskless: 16.5W,
With drives: 56.5W
Diskless: 24W
With drives: 84W
“Diskless: 40W
With drives & 10G Add-on-card: 111W”
Diskless: 40W,
With drives & 10G Add-on-card: 130W
Power Management Remote Power-On/Off (IPMI), UPS Signal Response and Alerts
User Control Interface Web Browser and Remote Hardware Management (IPMI)
Dimensions
(W x D x H)
8.25” x 11.2” x 9.5” / 210 x 284 x 241mm 8.25″ x 10.5″ x 9.5″ / 210 x 267 x 241mm 8.4” × 11” × 15.1” / 213 × 279 × 384mm
Weight
(no drives)
10.8lbs / 4.9Kg 13lbs / 5.9Kg 23.15lbs / 10.5Kg
Limited Warranty 1 Year
Package
Contents
TrueNAS Mini E, Power Cord, Quick Start Guide, 2 x Case Door Keys,4 Removable Disk Trays, bag of HDD screws, 2 x 7 ft copper cable TrueNAS Mini X, Power Cord, Quick Start Guide, 2 x Case Door Keys,7 Removable Disk Trays, bag of HDD screws, 2 x 7 ft copper cable TrueNAS Mini X+, Power Cord, Quick Start Guide, 2 x Case Door Keys,7 Removable Disk Trays, bag of HDD screws, 2 x 7 ft copper cable TrueNAS Mini XL+, Power Cord, Quick Start Guide, 2 x Case Door Keys, 9 Removable Disk Trays, bag of HDD screws, 2 x 7 ft copper cable

TrueNAS Mini Series Datasheet

Operating System and Boot Device are Included
Platform none
...
Configurations E none
...
Configurations X none
...
Configurations XL+ none
...
3.5″ Hot Swap Bay #0 E none
...
3.5″ Hot Swap Bay #1 E none
...
3.5″ Hot Swap Bay #2 E none
...
3.5″ Hot Swap Bay #3 E none
...
3.5″ Hot Swap Bay #0 X none
...
3.5″ Hot Swap Bay #1 X none
...
3.5″ Hot Swap Bay #2 X none
...
3.5″ Hot Swap Bay #3 X none
...
3.5″ Hot Swap Bay #4 X none
...
2.5″ Hot Swap Bay #0 X none
...
2.5″ Hot Swap Bay #1 X none
...
2.5″ Hot Swap Bay #0 XL none
...
3.5″ Hot Swap Bay #0 XL none
...
3.5″ Hot Swap Bay #1 XL none
...
3.5″ Hot Swap Bay #2 XL none
...
3.5″ Hot Swap Bay #3 XL none
...
3.5″ Hot Swap Bay #4 XL none
...
3.5″ Hot Swap Bay #5 XL none
...
3.5″ Hot Swap Bay #6 XL none
...
3.5″ Hot Swap Bay #7 XL none
...
2.5″ Internal Bay #0 none
...
2.5″ Internal Bay #1 none
...
Warranty none
...
Total:

Drive Compatibility List

Drive Compatibility List

Brand Type Part Number Description Capacity Status
Western Digital 3.5″ HD WD10EFRX 1TB WD Red Plus Hard Drive 1 TB Qualified
Western Digital 3.5″ HD WD20EFRX 2TB WD Red Plus Hard Drive 2 TB Qualified
Western Digital 3.5″ HD WD20EFZX 2TB WD Red Plus Hard Drive 2 TB Qualified
Western Digital 3.5″ HD WD40EFRX 4TB WD Red Plus Hard Drive 4 TB Qualified
Western Digital 3.5″ HD WD40EFZX 4TB WD Red Plus Hard Drive 4 TB Qualified
Western Digital 3.5″ HD WD60EFRX 6TB WD Red Plus Hard Drive 6 TB Qualified
Western Digital 3.5″ HD WD60EFZX 6TB WD Red Plus Hard Drive 6 TB Qualified
Western Digital 3.5″ HD WD100EFAX 10TB WD Red Plus Hard Drive 10 TB Qualified
Western Digital 3.5″ HD WD101EFAX 10TB WD Red Plus Hard Drive 10 TB Qualified*
Western Digital 3.5″ HD WD101EFBX 10TB WD Red Plus Hard Drive 10 TB Qualified*
Western Digital 3.5″ HD WD120EFAX 12TB WD Red Plus Hard Drive 12 TB Qualified
Western Digital 3.5″ HD WD120EFBX 12TB WD Red Plus Hard Drive 12 TB Qualified
Western Digital 3.5″ HD WD140EFFX 14TB WD Red Plus Hard Drive 14 TB Qualified
Western Digital 3.5″ HD WD140EFGX 14TB WD Red Plus Hard Drive 14 TB Qualified
Western Digital 3.5″ HD WD2002FFSX 2TB WD Red Pro Hard Drive 2 TB Qualified
Western Digital 3.5″ HD WD4003FFBX 4TB WD Red Pro Hard Drive 4 TB Qualified
Western Digital 3.5″ HD WD6003FFBX 6TB WD Red Pro Hard Drive 6 TB Qualified
Western Digital 3.5″ HD WD121KFBX 12TB WD Red Pro Hard Drive 12 TB Qualified
Western Digital 3.5″ HD WD40PURZ 4TB WD Purple Hard Drive 4 TB Qualified
Seagate 3.5″ HD ST2000VN004 2TB Seagate Ironwolf Hard Drive 2 TB Qualified
Seagate 3.5″ HD ST4000VN008 4TB Seagate Ironwolf Hard Drive 4 TB Qualified
Seagate 3.5″ HD ST6000VN001 6TB Seagate Ironwolf Hard Drive 6 TB Qualified
Micron 2.5″ SSD MTFDDAK480TDC-1AT16ABYY 480GB Micron 5200 ECO SSD 480 GB Qualified
Micron 2.5″ SSD MTFDDAK960TDC-1AT16ABYY 960GB Micron 5200 ECO SSD 960 GB Qualified
Micron 2.5″ SSD MTFDDAK1T9TDC-1AT16ABYY 1.9TB Micron 5200 ECO SSD 1.9 TB Qualified
Micron 2.5″ SSD MTFDDAK3T8TDC-1AT16ABYY 3.8TB Micron 5200 ECO SSD 3.8 TB Qualified
Micron 2.5″ SSD MTFDDAK7T6TDC-1AT16ABYY 7.6TB Micron 5200 ECO SSD 7.6 TB Qualified
Micron 2.5″ SSD MTFDDAK1T9QDE-2AV16ABYY 1.9TB Micron 5210 SSD 1.9 TB Qualified
Micron 2.5″ SSD MTFDDAK3T8QDE-2AV16ABYY 3.8TB Micron 5210 SSD 3.8 TB Qualified
Micron 2.5″ SSD MTFDDAK7T6QDE-2AV16ABYY 7.6TB Micron 5210 SSD 7.6 TB Qualified
Micron 2.5″ SSD MTFDDAK480TDS-1AW16ABYY 480GB Micron 5300 PRO SSD 480 GB Qualified
Micron 2.5″ SSD MTFDDAK960TDS-1AW16ABYY 960GB Micron 5300 PRO SSD 960 GB Qualified
Micron 2.5″ SSD MTFDDAK1T9TDS-1AW16ABYY 1.9TB Micron 5300 PRO SSD 1.9 TB Qualified
Micron 2.5″ SSD MTFDDAK3T8TDS-1AW16ABYY 3.8TB Micron 5300 PRO SSD 3.8 TB Qualified
Micron 2.5″ SSD MTFDDAK7T6TDS-1AW16ABYY 7.6TB Micron 5300 PRO SSD 7.6 TB Qualified

* Not recommended for Mini XL+, use WD100EFAX for Mini XL+
