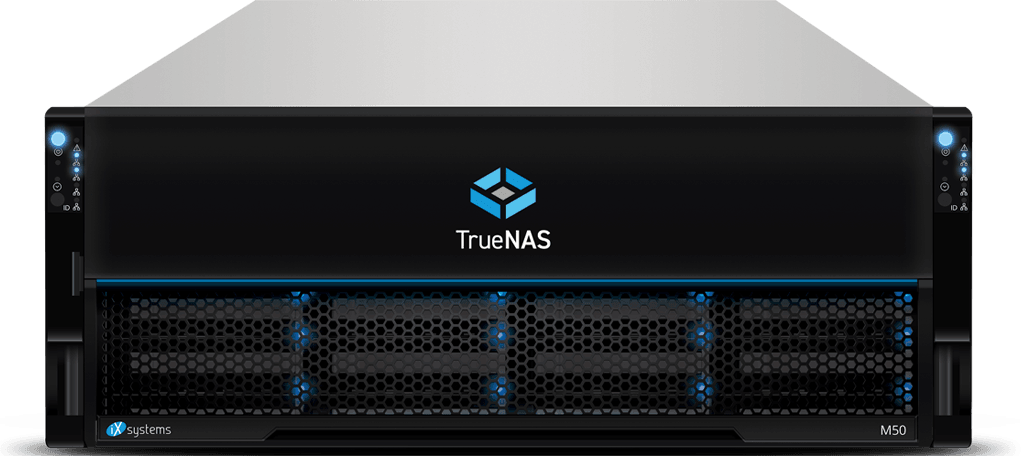

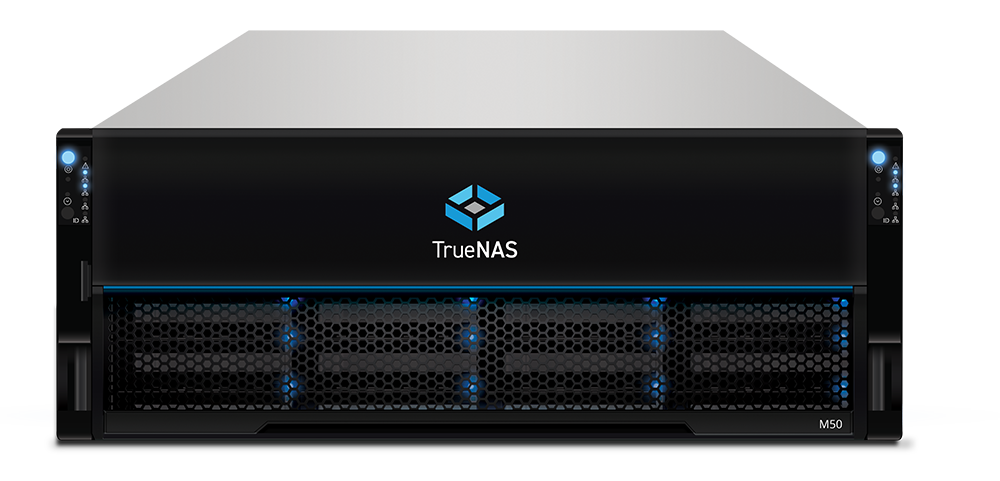

TrueNAS M-Series

M-Series

  • Flagship Performance & Scalability
  • All-Flash or Hybrid Disk/Flash
  • High Availability Options
  • Raw Capacity Up to 20 PB
  • Simple Upgrades & Serviceability
  • Enterprise Support

Overview

Enterprise-Grade Open Storage

Built to maximize storage capacity, performance, and uptime, the M-Series is the TrueNAS® flagship line of appliances designed with the flexibility to address an array of demanding storage requirements and adapt as needs change over time. With high-availability options and advanced data management tools, the TrueNAS M-Series safeguards data for mission-critical operations where downtime is not an option.

Performance & Scale without Compromise

All-flash or hybrid disk and flash? The M-Series can be both. Combining vast system RAM, NVDIMM, and NVMe flash as layered cache provides industry-leading read and write efficiency and optimizes the performance of the primary storage media. Flash pools are supercharged, and high-density disk pools deliver low latency flash performance at disk capacity and cost. Fusion Pools, comprised of both disk and flash together, deliver the best of both worlds. With up to four 100Gb/s network ports per controller, the TrueNAS M-Series is designed to move terabytes at maximum speed.

Storage You Can Rely On

The TrueNAS M-Series offers unmatched data reliability in both software and hardware. The OpenZFS file system is the last word in data protection with copy-on-write and bit-rot detection ensuring the integrity of your data from write to read. Dual controllers and high- availability options ensure over 99.999% uptime to maintain business operations and keep applications running around the clock.

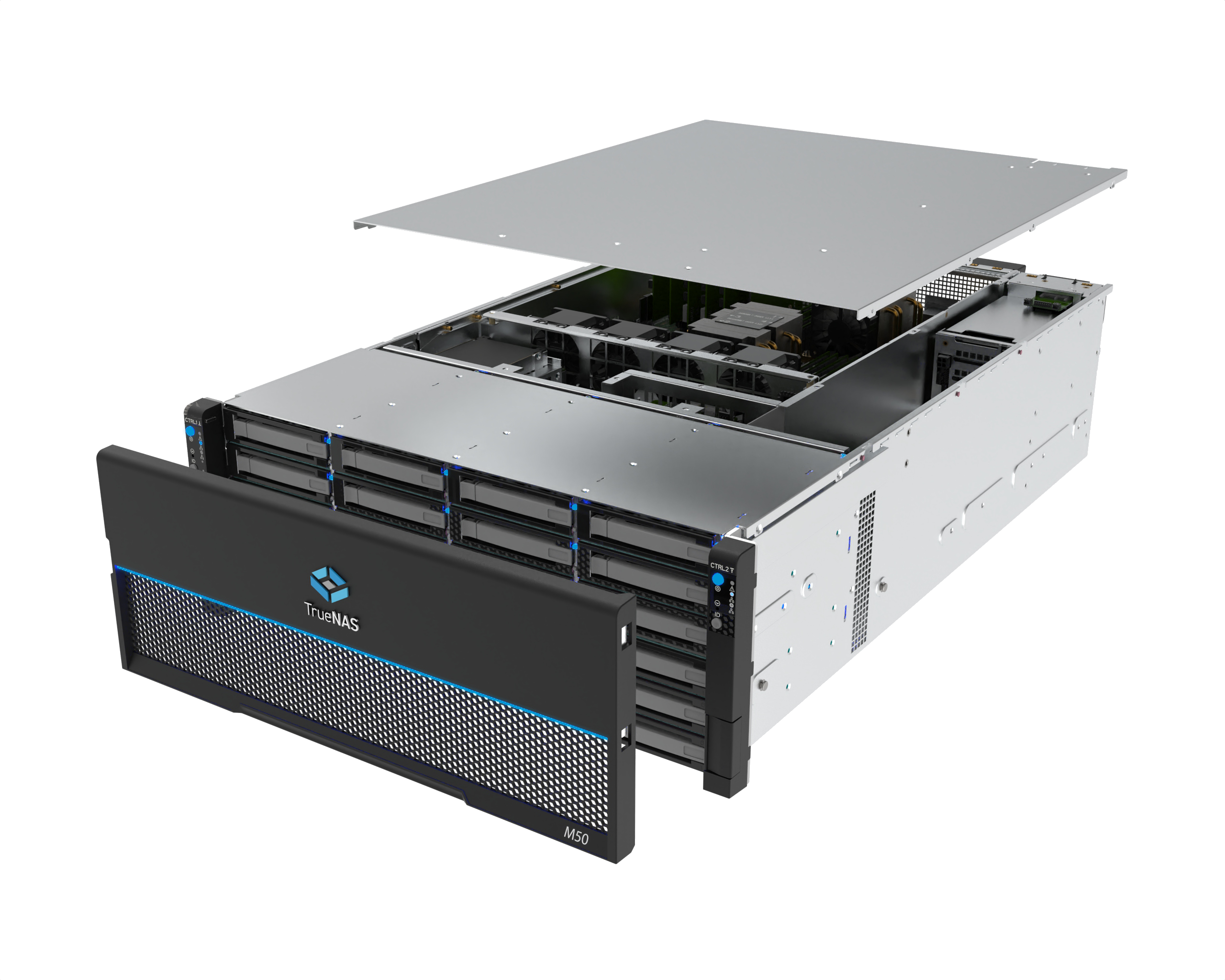

Hardware Management & Upgrades, Simplified

Servicing an M-Series system is made easy by the modular, tool-less hardware design. Additional integrated enclosure management capabilities save time and effort by providing graphical visualization of the system in the UI, making it easy to monitor the state of your system from a single screen. If performance or capacity needs change over time, it’s as simple as a non-disruptive upgrade to higher-end M-Series controllers.

Scale Up or “SCALE” Out

Begin building the foundation of your scale-out, hyper-converged virtualization infrastructure with SCALE or use Enterprise for high-performance, ultra-reliable local HA storage. Expand to over 20 PB on a single M60 head unit with support for up to 12 expansion shelves, or use TrueNAS SCALE to cluster over 100 systems together for massive capacity and performance.

Professional White-Glove Support

In the unlikely event that a failure does happen, you can rest easy knowing that all TrueNAS M-Series systems are fully backed by our US-based professional support team. Whether you need 24×365 support or on-site repair, flexible Bronze, Silver, and Gold support options are available to help you meet your goals.

Architecture

The M-Series is a 4U system with dual controllers. Each controller has NVDIMMs for extremely low latency write caching and there is a high bandwidth PCIe interconnect between controllers to synchronize the NVDIMMs. The controllers share access to 24 x 3.5” drives (HDD, SSD, RI-SSD) and also can share 4 low latency NVMe drives which can be used for metadata or persistent read cache.
Architecture MSeries

Models

TrueNAS M30 TrueNAS M40 TrueNAS M50 TrueNAS M60
TrueNAS M30 TrueNAS M40 TrueNAS M50 TrueNAS M60
Dual Controllers (HA) Optional Optional Optional Optional
DRAM Per Controller 64 GB 128 GB - 192 GB 256 GB - 384 GB 768 GB
Write Cache Optional 16 GB SAS SSD(s) 16 GB NVDIMM 16 GB NVDIMM 2 x 32 GB NVDIMM
Max Ethernet Speed 2x 40 GbE 2x 40 GbE 2x 100 GbE 4x 100 GbE
Fibre Channel (option) 2x 16 Gb 4x 16 Gb 4x 16 Gb or 2x 32 Gb 4x 32 Gb
Max Expansion Shelves 0 2 8 12
Max Drives Supported 24 144 504 1248
Max IOPS 250K 500K 800K 1.2M
Max Throughput 2 GB/s 5 GB/s 10 GB/s 20 GB/s
Hybrid Storage (HDD + Flash)
Max Read Cache 800 GB SAS 2x 1.6 TB NVMe 4x 3.2 TB NVMe 4x 3.2 TB NVMe
Max Capacity 432 TB 2 PB 9 PB 20 PB
Max Effective Capacity* 1 PB 5 PB 22.5 PB 50 PB
All-Flash Storage
Max Capacity 182 TB 1 PB 2 PB 4 PB
Max Effective Capacity* 912 TB 5 PB 10 PB 20 PB
All Models
Certifications Citrix Ready, VMware Ready, Veeam Ready, Asigra Integrated
Pricing Starting at $7,000. Grow HDD capacity starting at less than $80/TB and All-Flash starting at less than $395/TB
Datasheets TrueNAS M-Series Datasheet, TrueNAS Expansion Shelf Datasheet
* Maximum effective capacity assumes typical data reduction through compression and deduplication.
The M-Series is designed for maximum ZFS performance and five 9’s availability while keeping the storage affordable. With advanced read and write caching and expansion to over 1200 drives, the M-Series is ideal for multi-PB storage. For performance applications, all-flash storage with TLC or QLC flash can provide low latency and very high IOPS at industry-leading prices. Contact us for a system design and quote that will fit within your budget.
