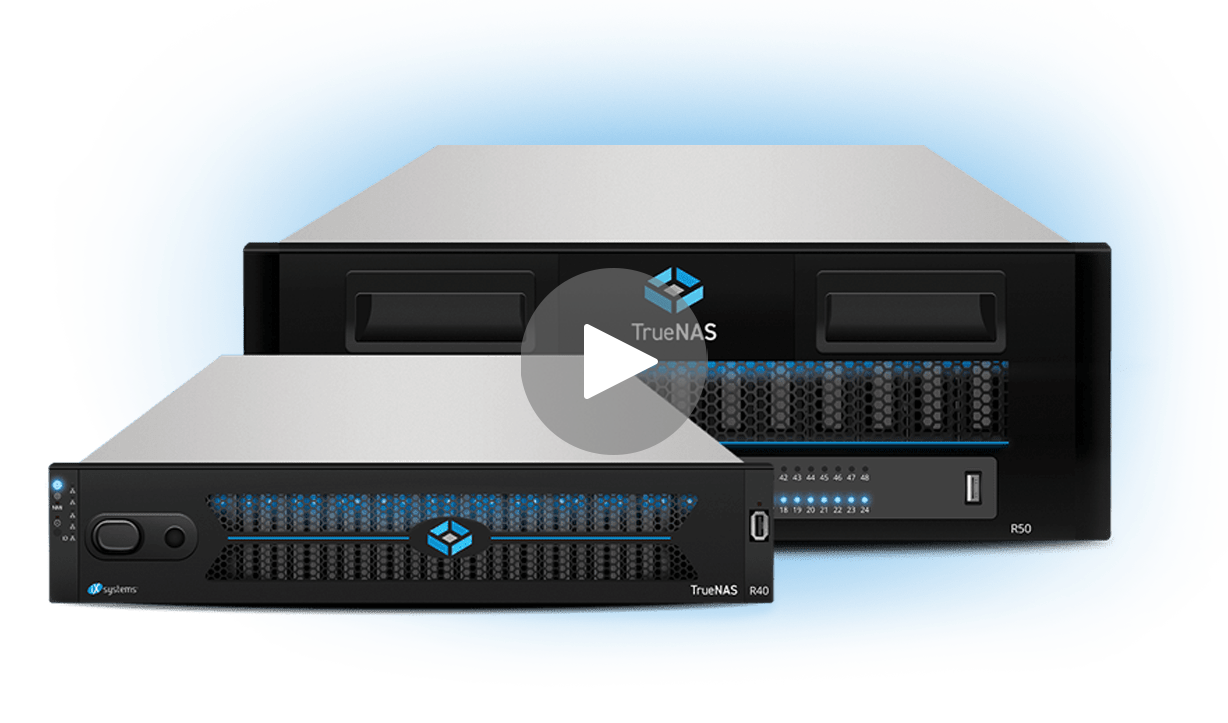

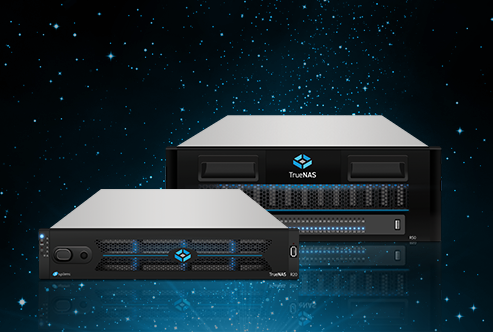

R-Series
- Single-Controller Storage Appliances
- General Purpose or Scale-Out Storage
- All-Flash & Disk + Flash Options
- Raw capacity Up to 2 PB
- Enterprise Support Available
Overview
High-Density Unified Storage Appliances
The TrueNAS® R-Series line of storage appliances combines the powerful features of OpenZFS with value-oriented, single controller hardware. Available in both all-flash and hybrid models, these systems feature excellent density and price-performance. The TrueNAS R-Series is available in three editions: CORE, Enterprise, and SCALE with Bronze and Silver support options available for Enterprise installations.
Get More for Your Storage Budget
The R-Series appliance line is designed for storage requirements that need to optimize for per-dollar performance and scalability. Whether used as a single NAS/SAN/object target, or as nodes in a scale-out cluster, the R-Series is versatile storage that maximizes value.
Data Management: Simplified.
Simplify your data management with powerful features including data protection, snapshots, replication, scrubbing, data reduction, and security. Integrated enclosure management capabilities save time and effort by making it easy to monitor the state of your drives from a single screen.
Proven Data Protection
Built on the self-healing OpenZFS file system, the TrueNAS R-Series features powerful data protection tools like copy-on-write and automatic bit-rot detection to prevent corruption. Built-in RAID protection, unlimited snapshots, and resilient replication protect your data and make it easy to restore data in the event of hardware failures or malware attacks.
Scale Up or “SCALE” Out
The TrueNAS R-Series appliance can be installed with any edition of TrueNAS. Choose TrueNAS CORE or Enterprise to use the R-Series for conventional, general-purpose storage or install SCALE to start laying the foundation for a scale-out storage cluster. Start with a single R-Series node and build out as your needs grow.
Flexible Integration
Integrating TrueNAS into your workload is easy with support for block, file, and object storage protocols as well as integrated support for all major virtualization hypervisors and cloud sync services. Additionally, all TrueNAS systems are fully compatible and allow secure data replication and migration between each other.
Models
 TrueNAS R10 |
 TrueNAS R20 |
 TrueNAS R40 |
 TrueNAS R50 |
 TrueNAS R30 |
|
|---|---|---|---|---|---|
| Height | 1U | 2U-10U | 2U-6U | 4U-12U | 1U |
| Chassis Depth | 27”, 686mm | 26”, 660mm | 26”, 660mm | 39”, 990mm | 33”, 840mm |
| Controllers | Single | Single | Single | Single | Single |
| Drive Bays | 16 x 2.5" 7mm | 12 x 3.5", 2 x 2.5" | 48 x 2.5" 7mm | 48 x 3.5", 4 x 2.5" (NVMe) | 16 x NVMe |
| CPU per Controller | 6 - 10 Cores | 6 -16 Cores | 6 - 16 Cores | 6 - 16 Cores | 16 - 64 Cores |
| DRAM per Controller | 32 GB - 96 GB | 32 GB - 192 GB | 64 GB - 192 GB | 64 GB - 192 GB | up to 1024 GB |
| Read & Write Cache | 2 x 960 GB SATA SSDs | 4 x 3.2 TB NVMe SSD | |||
| Networking | 2x 10/25/40/100GbE | 2x 10/25/40/100GbE | 2x 10/25/40/100GbE | 2x 10/25/40/100GbE | 2 or 4x 10/25/40/100 Gbe |
| 2 or 6 x 10GBaseT or SR | 2 or 6 x 10GBaseT or SR | 2 or 6 x 10GBaseT or SR | 2 or 6 x 10GBaseT or SR | 2x 10GBase-T | |
| Fibre Channel (option) | 2 x 32 Gb | 2 x 32 Gb | 2 x 32 Gb | 2 x 32 Gb | |
| Expansion Shelves Supported | 0 | 2 x ES60 | 2 x ES24F | 2 x ES102 | |
| Max Drives Supported | 16 | 132 | 96 | 252 | 16 |
| Max Throughput | 3 GB/s | 8 GB/s | 10 GB/s | 10 GB/s | 20 GB/s |
| Storage | All-Flash | Hybrid | All-Flash | Hybrid | All-NVMe |
| Max Raw Capacity | 120 TB | 1.5 PB | 720 TB | 5 PB | 240 TB |
| Max Effective Capacity* | 400 TB | 4 PB | 2 PB | 10 PB | 300 TB |
| Read & Write Cache | 2 x 960 GB SATA SSDs | 4 x 3.2 TB NVMe SSD | |||
| Certifications | Veeam Ready | ||||
| Performance | Varies based on configuration. Contact Us. | ||||
| Pricing Guidance | Starting at $4,000 with 1yr Bronze Support | Starting at $4,700 with 1yr Bronze Support | Starting at $7,000 with 1yr Bronze Support | Starting at $14,000 with 1yr Bronze Support | Starting at $12,000 with 1yr Bronze Support |
| Guidance of approximately $50/TB for Hard Drive capacity and approximately $300-350/TB for Flash capacity. Prices vary based on configuration. | |||||
| Datasheets | TrueNAS R-Series Datasheet, TrueNAS R30 Datasheet, TrueNAS Expansion Shelf Datasheet | ||||
