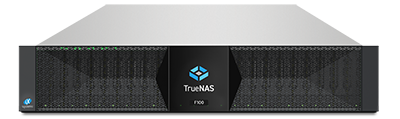

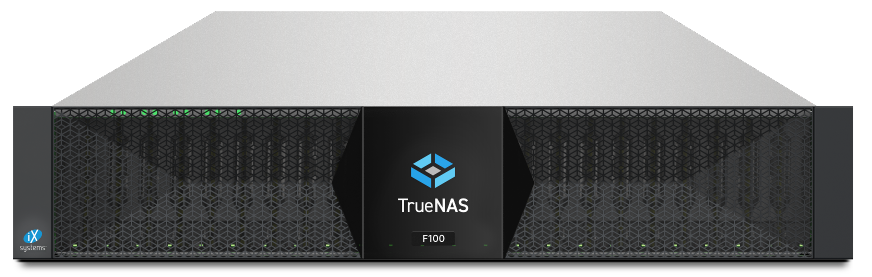

TrueNAS F-Series
Experience True Performance
All-Flash NVMe Performance and Legendary ZFS Reliability.
Never Compromise.
Overview
NVMe Performance & Density Without Compromise
Ultimate performance, reliability, and density? You now can choose all three. With built-in high-availability and NVMe Gen4 SSDs for the fastest possible throughput, the TrueNAS F-Series safeguards data for mission-critical, high-performance operations where downtime is not an option. The F-Series delivers performance up to 30 GB/s, while packing 720 TB of space into a dense 2U form factor – expandable up to 5 PB.
Built for High Performance Workloads
The TrueNAS F-Series boasts top-of-the-line performance for the most demanding workloads, including post-production, data analytics, virtualization, and many more. It is the industry’s fastest OpenZFS appliance available, with all of the data protection and workload optimization capabilities that come with OpenZFS. Dual controllers and high-availability ensure over 99.999% uptime to maintain business operations and keep applications running around the clock.
Hardware Management & Upgrades, Simplified

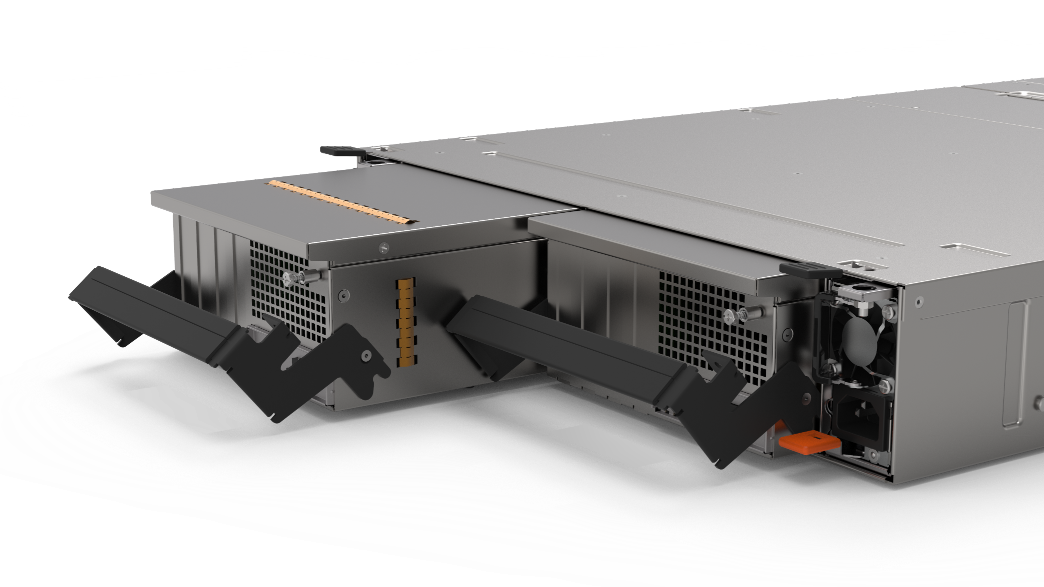

The TrueNAS F-Series modular hardware architecture conserves power, space, and cooling while supporting multiple applications with its ultra-performant NVMe Flash. High Availability (HA) ensures storage services are not disrupted, while Intelligent Storage Optimization maximizes storage efficiency with typical data reduction ratios of greater than 2.5x.
Professional White-Glove Support
In the unlikely event that a failure does happen, you can rest easy knowing that all TrueNAS F-Series systems are fully backed by our US-based professional support team. Whether you need 24×365 support or on-site repair, flexible Bronze, Silver, and Gold support options are available to help you meet your goals.
Architecture
Models
 |
 |
|
|---|---|---|
| F60 | F100 | |
| Height | 2U | |
| Chassis Depth | 27”, 686mm | |
| Dual Controllers | Yes | |
| DRAM Per Controller | 512 GB | |
| Networking | Up to 4x 40/100 GbE (optical) | Up to 6x 40/100 GbE (optical) |
| 2x 10G Base-T | ||
| Max Drives Supported | 24 | |
| Max Expansion Shelves | 2 | 6 |
| Max Throughput | 20 GByte/s | 30 GByte/s |
| NVMe Storage/All-Flash | ||
| Max Capacity (2024) | 2.1 PB | 5 PB |
| Max Effective Capacity* | 4 PB | 10 PB |
| All Models | ||
| Performance | Varies based on configuration.Contact Us. | |
| Pricing Guidance | Starting at $40,000 with dual controllers and 1 year Bronze Support | Starting at $70,000 with dual controllers and 1 year Gold Support |
| Guidance of approximately $300/TB for Flash Capacity. Prices vary based on configuration. | ||
| Datasheets | F-Series Datasheet, TrueNAS Open Storage Product Line | |
The F-Series is designed for maximum ZFS performance and five 9’s availability. The F-Series is ideal for high density and high performance storage applications. Contact us for a system design and quote that will fit within your budget.
