What is the difference between Hybrid Flash and All Flash on the V-Series?

The Hybrid Flash configuration supports up to 40 PB capacity and 30 GB/s throughput with 14× ES102 expansion shelves. The All Flash configuration supports up to 20 PB and 40 GB/s throughput with 6× ES24N expansion shelves, optimized for NVMe storage workloads.

Is the TrueNAS V-Series suitable for mission-critical environments?

Yes. The TrueNAS V-Series is designed for mission-critical storage environments, featuring dual-controller high availability (32 Core / 64 Threads), enterprise data protection, and immutable backup capabilities.

What networking options does the TrueNAS V-Series support?

The V-Series supports 2× 10/25/40/100/200 GbE and 1× 400 GbE, providing flexible network attached storage connectivity for enterprise environments.

Performance, Scale, and Versatility

Up to 400 Gb/s. Up to 35 PB of storage. Your choice of media.

Get A Quote Get In Touch

Home » TrueNAS Enterprise » V-Series

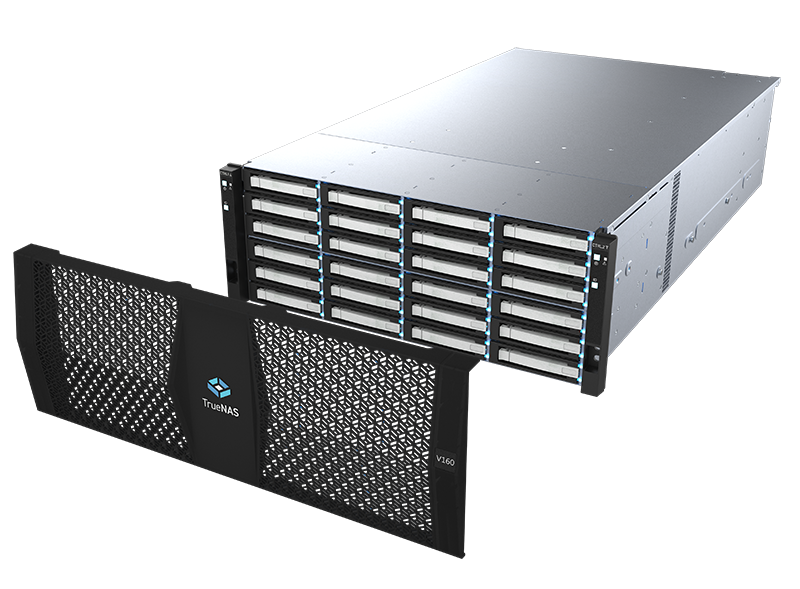

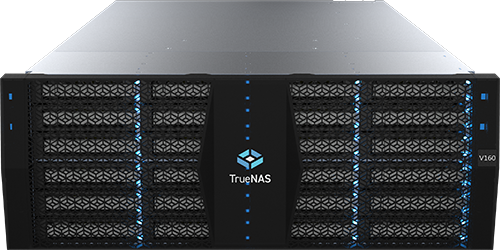

The TrueNAS V-Series: For Every IT Workflow

Networking & Storage Media Versatility

Easily Scale with Capacity Demands

Mission-Critical Storage

Award-Winning Support

The TrueNAS V-Series is a platform engineered to maximize versatility – delivering performance and scale without sacrificing simplicity.

Designed for Mission Critical environments, this is the big brother of the H-Series – delivering multiple storage media options at larger scales and higher performance for the modern enterprise.

Powered by the TrueNAS Enterprise Data Platform

Performance and Scale to Meet Your Demands

Explore Hybrid Cache up to 16 PB up to 15 GB/s

Max Capacity	16 PB
Max Throughput	15 GB/s
Max Drives Supported	16 PB (Raw HDD)
Max Expansion Shelves	6× ES102 or 2x ES24N
Appliance Height	4U
High Availability	Dual Controller (16 Core / 32 Threads)
Networking	4x 10/25/40/100 GbE

Explore Hybrid Flash up to 40 PB up to 30 GB/s

Max Capacity	40 PB
Max Throughput	30 GB/s
Max Drives Supported	40 PB (Raw HDD) / 14 PB (Raw NVMe)
Max Expansion Shelves	14× ES102 or 4x ES24N
Appliance Height	4U
High Availability	Dual Controller (32 Core / 64 Threads)
Networking	4x 10/25/40/100/200 GbE or 2x 400 GbE

Explore All Flash up to 20 PB up to 60 GB/s

Max Capacity	20 PB
Max Throughput	60 GB/s
Max Drives Supported	20 PB (Raw NVMe)
Max Expansion Shelves	6× ES24N
Appliance Height	4U
High Availability	Dual Controller (32 Core / 64 Threads)
Networking	4x 10/25/40/100/200 GbE or 2x 400 GbE
