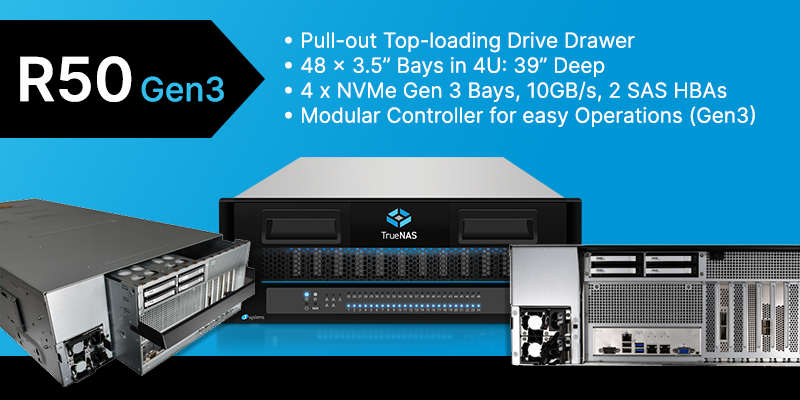

The Modular TrueNAS R50 Stores a Petabyte

The TrueNAS R50 Gen3 is a 4U workhorse with 48+4 drive bays, 100GbE capability, and the option of TrueNAS CORE, Enterprise, or SCALE. The 3rd generation of the TrueNAS R50 platform is now available with some major enhancements.

  • Modular architecture with easy-to-replace controller
  • Over 1PB HDD capacity in 4U
  • Up to 60TB of NVMe flash and 12GB/s
  • Super-flexible, high-speed networking
  • TrueNAS SCALE clustering and enclosure management
  • Fits in an industry standard one meter rack

Let’s dive into the details of the Gen3 TrueNAS R50 and why we are excited about it.

Modular Architecture: The new R50 chassis has been custom designed with a modular controller for easier servicing. The drive drawer at the front can accept 48 top-loaded disk drives with an internal cable management arm that makes it easy to pull out and swap drives. The storage controller at the rear is removable so that it can be serviced without unracking such a large system. Unlike the numerous other high-density storage servers (e.g. 45Drives), you can upgrade or replace the controller with ease. This significantly extends the life of the system.

Petabyte Capacity: With 22TB disk drives, the new R50 can provide over 1PB of raw storage. This capacity can scale up to 5PB with two 102-bay expansion shelves. This storage is then managed with ZFS configured with single, dual, or triple parity. Lower-capacity drives starting at 4TB are also supported for workloads with more IOPS and less capacity. These 22TB drives use the latest OptiNAND technology from Western Digital for increased performance.

Extreme NVMe Acceleration: The new R50 is extended to support four full NVMe drives, each of which can range up to 15TB. These drives can be used for caching or storage and are hot-swappable. L2ARC, SLOG, and special VDEVs can be configured or used for a dedicated all-flash pool. Database applications and deduplication tables can benefit from this incredibly fast storage.

Flexible Networking: Many user environments are going through the transition from 10GbE to 25GbE and then 100GbE.  The new R50 makes it easier to upgrade the controllers from 10GBase-T all the way to 25/40/100GbE optical through the easy-to-upgrade modular controller.

Scale-out Clustering: With TrueNAS SCALE on the R50, there is now an option to cluster these units for SMB file or S3 object services. A rack of eight R50 systems can support 8PB of HDD capacity and 480TB of NVMe flash over 1.6 Terabits/s of switched infrastructure. This is ideal for high-performing video editing and storage, or extreme analytics. If you need more capacity, you can add more racks of R50s to scale out.

With all the improvements made in Gen3, the price of the TrueNAS R50 remains the same. All new orders of the TrueNAS R50 will automatically be upgraded to the Gen3 modular version. For use-cases that need more capacity or flexibility, the Gen3 version offers more configuration choices. The new TrueNAS R50 has already begun shipping.

The TrueNAS R-Series datasheet includes the updated R50 specs. The system fits in a 1-meter-deep industry-standard rack and does not require an external cable management arm. The typical power draw is under 800W for 1PB.

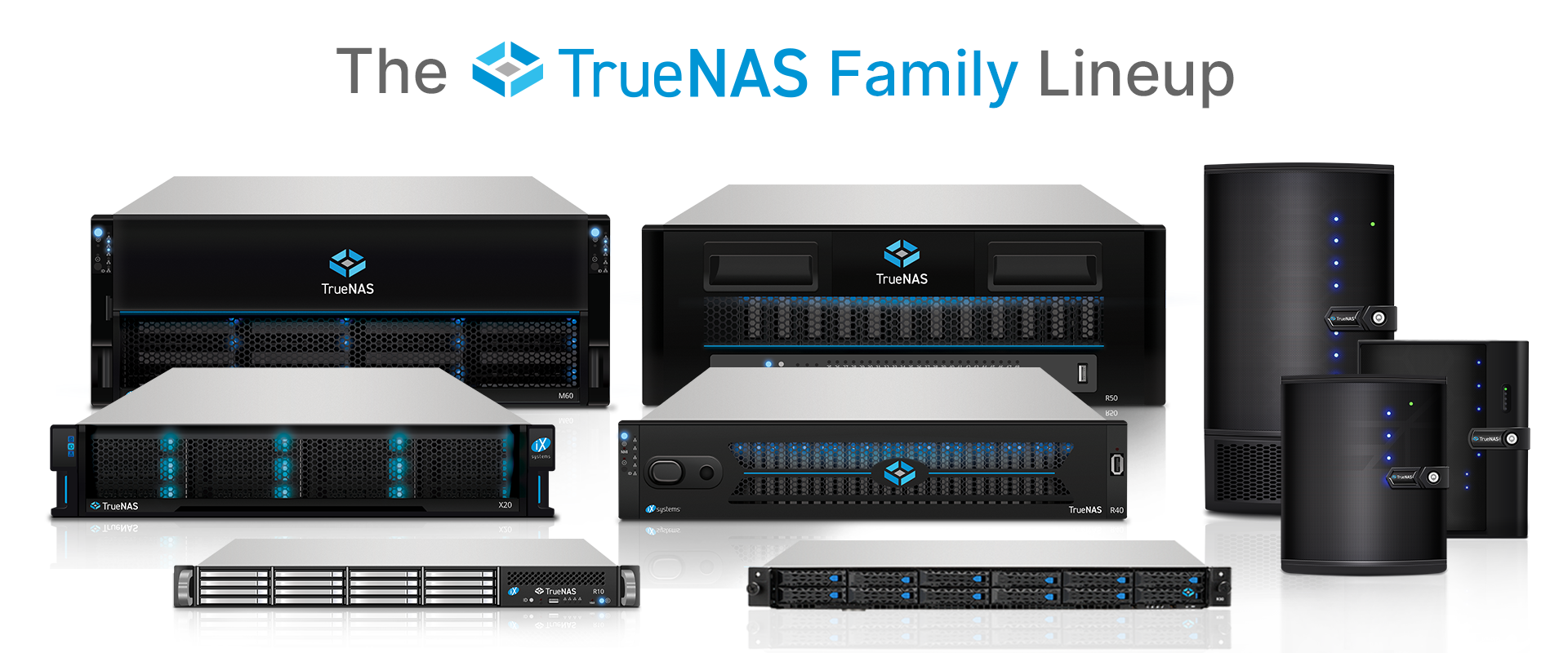

The TrueNAS R50 is just one of the many TrueNAS Enterprise platform choices. Shown below in the middle of the back row, R50 Gen3 is ideal for mid-size deployments and clustering. For High Availability (HA) and larger systems, the TrueNAS M-Series is recommended and scales to over 25PB per system. For small deployments, the 2U TrueNAS R20 is recommended.

For more information on this or other TrueNAS appliances or our software, please contact iX.
