All drives passed. No errorssmartctl -a /dev/adax
That's not what you have to look. Please provide the output.All drives passed. No errors
That's not what you have to look. Please provide the output.

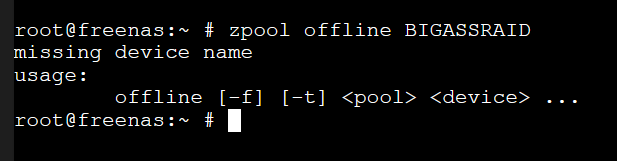

Just in case, are you able tozpool offline BIGASSRAID
?
Try Ctrl + Shift + C.I am taking a screenshot of my Shell. How can I copy it from windows web interface? It doesnt like ctr-C
brings up HTML console of web browserTry Ctrl + Shift + C
Disk 7 root@freenas:~ # smartctl -a /dev/ada7 smartctl 7.2 2021-09-14 r5236 [FreeBSD 13.1-RELEASE-p9 amd64] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red Device Model: WDC WD80EFZX-68UW8N0 Serial Number: VK1EH4BY LU WWN Device Id: 5 000cca 3b7d4392a Firmware Version: 83.H0A83 User Capacity: 8,001,563,222,016 bytes [8.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Dec 24 17:43:58 2023 EST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x80) Offline data collection activity was never started. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 101) seconds. Offline data collection capabilities: (0x5b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: (1209) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0 2 Throughput_Performance 0x0005 132 132 054 Pre-fail Offline - 112 3 Spin_Up_Time 0x0007 175 175 024 Pre-fail Always - 355 (Average 398) 4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 54 5 Reallocated_Sector_Ct 0x0033 100 100 005 Pre-fail Always - 0 7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0 8 Seek_Time_Performance 0x0005 128 128 020 Pre-fail Offline - 18 9 Power_On_Hours 0x0012 093 093 000 Old_age Always - 55389 10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 54 22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100 192 Power-Off_Retract_Count 0x0032 099 099 000 Old_age Always - 2336 193 Load_Cycle_Count 0x0012 099 099 000 Old_age Always - 2336 194 Temperature_Celsius 0x0002 176 176 000 Old_age Always - 34 (Min/Max 18/52) 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 55377 - # 2 Short offline Completed without error 00% 55356 - # 3 Short offline Completed without error 00% 55332 - # 4 Short offline Completed without error 00% 55308 - # 5 Short offline Completed without error 00% 55296 - # 6 Short offline Completed without error 00% 55284 - # 7 Extended offline Completed without error 00% 55260 - # 8 Short offline Completed without error 00% 55212 - # 9 Short offline Completed without error 00% 55164 - #10 Short offline Completed without error 00% 55140 - #11 Short offline Completed without error 00% 55116 - #12 Short offline Completed without error 00% 55092 - #13 Short offline Completed without error 00% 55068 - #14 Short offline Completed without error 00% 55044 - #15 Short offline Completed without error 00% 55020 - #16 Short offline Completed without error 00% 54996 - #17 Short offline Completed without error 00% 54972 - #18 Short offline Completed without error 00% 54948 - #19 Short offline Completed without error 00% 54924 - #20 Extended offline Completed without error 00% 54890 - #21 Short offline Completed without error 00% 54852 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing
Disk 6 root@freenas:~ # smartctl -a /dev/ada6 smartctl 7.2 2021-09-14 r5236 [FreeBSD 13.1-RELEASE-p9 amd64] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red Device Model: WDC WD80EFZX-68UW8N0 Serial Number: VK1EBZTY LU WWN Device Id: 5 000cca 3b7d42d59 Firmware Version: 83.H0A83 User Capacity: 8,001,563,222,016 bytes [8.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Dec 24 17:49:59 2023 EST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x80) Offline data collection activity was never started. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 101) seconds. Offline data collection capabilities: (0x5b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: (1150) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0 2 Throughput_Performance 0x0005 129 129 054 Pre-fail Offline - 124 3 Spin_Up_Time 0x0007 174 174 024 Pre-fail Always - 356 (Average 398) 4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 55 5 Reallocated_Sector_Ct 0x0033 100 100 005 Pre-fail Always - 0 7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0 8 Seek_Time_Performance 0x0005 128 128 020 Pre-fail Offline - 18 9 Power_On_Hours 0x0012 093 093 000 Old_age Always - 55389 10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 55 22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100 192 Power-Off_Retract_Count 0x0032 099 099 000 Old_age Always - 2350 193 Load_Cycle_Count 0x0012 099 099 000 Old_age Always - 2350 194 Temperature_Celsius 0x0002 181 181 000 Old_age Always - 33 (Min/Max 18/49) 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 55376 - # 2 Short offline Completed without error 00% 55356 - # 3 Short offline Completed without error 00% 55332 - # 4 Short offline Completed without error 00% 55308 - # 5 Short offline Completed without error 00% 55296 - # 6 Short offline Completed without error 00% 55284 - # 7 Extended offline Completed without error 00% 55249 - # 8 Short offline Completed without error 00% 55212 - # 9 Short offline Completed without error 00% 55164 - #10 Short offline Completed without error 00% 55140 - #11 Short offline Completed without error 00% 55116 - #12 Short offline Completed without error 00% 55092 - #13 Short offline Completed without error 00% 55068 - #14 Short offline Completed without error 00% 55044 - #15 Short offline Completed without error 00% 55020 - #16 Short offline Completed without error 00% 54996 - #17 Short offline Completed without error 00% 54972 - #18 Short offline Completed without error 00% 54948 - #19 Short offline Completed without error 00% 54924 - #20 Extended offline Completed without error 00% 54889 - #21 Short offline Completed without error 00% 54852 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing
elective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. root@freenas:~ # smartctl -a /dev/ada5 smartctl 7.2 2021-09-14 r5236 [FreeBSD 13.1-RELEASE-p9 amd64] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red Device Model: WDC WD80EFZX-68UW8N0 Serial Number: VK1EXGGY LU WWN Device Id: 5 000cca 3b7d46b30 Firmware Version: 83.H0A83 User Capacity: 8,001,563,222,016 bytes [8.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Dec 24 17:52:22 2023 EST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x80) Offline data collection activity was never started. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 101) seconds. Offline data collection capabilities: (0x5b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: (1083) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0 2 Throughput_Performance 0x0005 132 132 054 Pre-fail Offline - 112 3 Spin_Up_Time 0x0007 172 172 024 Pre-fail Always - 361 (Average 404) 4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 55 5 Reallocated_Sector_Ct 0x0033 100 100 005 Pre-fail Always - 0 7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0 8 Seek_Time_Performance 0x0005 128 128 020 Pre-fail Offline - 18 9 Power_On_Hours 0x0012 093 093 000 Old_age Always - 55389 10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 55 22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100 192 Power-Off_Retract_Count 0x0032 099 099 000 Old_age Always - 2338 193 Load_Cycle_Count 0x0012 099 099 000 Old_age Always - 2338 194 Temperature_Celsius 0x0002 181 181 000 Old_age Always - 33 (Min/Max 18/50) 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 55377 - # 2 Short offline Completed without error 00% 55356 - # 3 Short offline Completed without error 00% 55332 - # 4 Short offline Completed without error 00% 55308 - # 5 Short offline Completed without error 00% 55296 - # 6 Short offline Completed without error 00% 55284 - # 7 Extended offline Completed without error 00% 55250 - # 8 Short offline Completed without error 00% 55212 - # 9 Short offline Completed without error 00% 55164 - #10 Short offline Completed without error 00% 55140 - #11 Short offline Completed without error 00% 55116 - #12 Short offline Completed without error 00% 55092 - #13 Short offline Completed without error 00% 55068 - #14 Short offline Completed without error 00% 55044 - #15 Short offline Completed without error 00% 55020 - #16 Short offline Completed without error 00% 54996 - #17 Short offline Completed without error 00% 54972 - #18 Short offline Completed without error 00% 54948 - #19 Short offline Completed without error 00% 54924 - #20 Extended offline Completed without error 00% 54888 - #21 Short offline Completed without error 00% 54852 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing
root@freenas:~ # smartctl -a /dev/ada4 smartctl 7.2 2021-09-14 r5236 [FreeBSD 13.1-RELEASE-p9 amd64] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red Device Model: WDC WD80EFZX-68UW8N0 Serial Number: VK1GJA0Y LU WWN Device Id: 5 000cca 3b7d4b1f9 Firmware Version: 83.H0A83 User Capacity: 8,001,563,222,016 bytes [8.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Dec 24 17:53:54 2023 EST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x80) Offline data collection activity was never started. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 101) seconds. Offline data collection capabilities: (0x5b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: (1376) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0 2 Throughput_Performance 0x0005 131 131 054 Pre-fail Offline - 116 3 Spin_Up_Time 0x0007 170 170 024 Pre-fail Always - 365 (Average 409) 4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 54 5 Reallocated_Sector_Ct 0x0033 100 100 005 Pre-fail Always - 0 7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0 8 Seek_Time_Performance 0x0005 128 128 020 Pre-fail Offline - 18 9 Power_On_Hours 0x0012 093 093 000 Old_age Always - 55389 10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 54 22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100 192 Power-Off_Retract_Count 0x0032 099 099 000 Old_age Always - 2347 193 Load_Cycle_Count 0x0012 099 099 000 Old_age Always - 2347 194 Temperature_Celsius 0x0002 187 187 000 Old_age Always - 32 (Min/Max 19/49) 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 55377 - # 2 Short offline Completed without error 00% 55356 - # 3 Short offline Completed without error 00% 55332 - # 4 Short offline Completed without error 00% 55308 - # 5 Short offline Completed without error 00% 55296 - # 6 Short offline Completed without error 00% 55284 - # 7 Extended offline Completed without error 00% 55253 - # 8 Short offline Completed without error 00% 55212 - # 9 Short offline Completed without error 00% 55164 - #10 Short offline Completed without error 00% 55140 - #11 Short offline Completed without error 00% 55116 - #12 Short offline Completed without error 00% 55092 - #13 Short offline Completed without error 00% 55068 - #14 Short offline Completed without error 00% 55044 - #15 Short offline Completed without error 00% 55020 - #16 Short offline Completed without error 00% 54996 - #17 Short offline Completed without error 00% 54972 - #18 Short offline Completed without error 00% 54948 - #19 Short offline Completed without error 00% 54924 - #20 Extended offline Completed without error 00% 54893 - #21 Short offline Completed without error 00% 54852 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing
smartctl -a /dev/adaxCode:root@freenas:~ # smartctl -a /dev/ada4 smartctl 7.2 2021-09-14 r5236 [FreeBSD 13.1-RELEASE-p9 amd64] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red Device Model: WDC WD80EFZX-68UW8N0 Serial Number: VK1GJA0Y LU WWN Device Id: 5 000cca 3b7d4b1f9 Firmware Version: 83.H0A83 User Capacity: 8,001,563,222,016 bytes [8.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Dec 24 17:53:54 2023 EST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x80) Offline data collection activity was never started. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 101) seconds. Offline data collection capabilities: (0x5b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: (1376) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0 2 Throughput_Performance 0x0005 131 131 054 Pre-fail Offline - 116 3 Spin_Up_Time 0x0007 170 170 024 Pre-fail Always - 365 (Average 409) 4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 54 5 Reallocated_Sector_Ct 0x0033 100 100 005 Pre-fail Always - 0 7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0 8 Seek_Time_Performance 0x0005 128 128 020 Pre-fail Offline - 18 9 Power_On_Hours 0x0012 093 093 000 Old_age Always - 55389 10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 54 22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100 192 Power-Off_Retract_Count 0x0032 099 099 000 Old_age Always - 2347 193 Load_Cycle_Count 0x0012 099 099 000 Old_age Always - 2347 194 Temperature_Celsius 0x0002 187 187 000 Old_age Always - 32 (Min/Max 19/49) 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 55377 - # 2 Short offline Completed without error 00% 55356 - # 3 Short offline Completed without error 00% 55332 - # 4 Short offline Completed without error 00% 55308 - # 5 Short offline Completed without error 00% 55296 - # 6 Short offline Completed without error 00% 55284 - # 7 Extended offline Completed without error 00% 55253 - # 8 Short offline Completed without error 00% 55212 - # 9 Short offline Completed without error 00% 55164 - #10 Short offline Completed without error 00% 55140 - #11 Short offline Completed without error 00% 55116 - #12 Short offline Completed without error 00% 55092 - #13 Short offline Completed without error 00% 55068 - #14 Short offline Completed without error 00% 55044 - #15 Short offline Completed without error 00% 55020 - #16 Short offline Completed without error 00% 54996 - #17 Short offline Completed without error 00% 54972 - #18 Short offline Completed without error 00% 54948 - #19 Short offline Completed without error 00% 54924 - #20 Extended offline Completed without error 00% 54893 - #21 Short offline Completed without error 00% 54852 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing
If Selective self-test is pending on power-up, resume after 0 minute delay. root@freenas:~ # smartctl -a /dev/ada1 smartctl 7.2 2021-09-14 r5236 [FreeBSD 13.1-RELEASE-p9 amd64] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red Device Model: WDC WD80EFZX-68UW8N0 Serial Number: VK1GHX4Y LU WWN Device Id: 5 000cca 3b7d4b06a Firmware Version: 83.H0A83 User Capacity: 8,001,563,222,016 bytes [8.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Dec 24 17:56:35 2023 EST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x80) Offline data collection activity was never started. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 101) seconds. Offline data collection capabilities: (0x5b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: (1083) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0 2 Throughput_Performance 0x0005 131 131 054 Pre-fail Offline - 116 3 Spin_Up_Time 0x0007 175 175 024 Pre-fail Always - 354 (Average 396) 4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 55 5 Reallocated_Sector_Ct 0x0033 100 100 005 Pre-fail Always - 1 7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0 8 Seek_Time_Performance 0x0005 128 128 020 Pre-fail Offline - 18 9 Power_On_Hours 0x0012 093 093 000 Old_age Always - 55389 10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 55 22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100 192 Power-Off_Retract_Count 0x0032 099 099 000 Old_age Always - 2336 193 Load_Cycle_Count 0x0012 099 099 000 Old_age Always - 2336 194 Temperature_Celsius 0x0002 157 157 000 Old_age Always - 38 (Min/Max 19/57) 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 1 197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 55376 - # 2 Short offline Completed without error 00% 55356 - # 3 Short offline Completed without error 00% 55332 - # 4 Short offline Completed without error 00% 55308 - # 5 Short offline Completed without error 00% 55296 - # 6 Short offline Completed without error 00% 55284 - # 7 Extended offline Completed without error 00% 55249 - # 8 Short offline Completed without error 00% 55212 - # 9 Short offline Completed without error 00% 55164 - #10 Short offline Completed without error 00% 55140 - #11 Short offline Completed without error 00% 55116 - #12 Short offline Completed without error 00% 55092 - #13 Short offline Completed without error 00% 55068 - #14 Short offline Completed without error 00% 55044 - #15 Short offline Completed without error 00% 55020 - #16 Short offline Completed without error 00% 54996 - #17 Short offline Completed without error 00% 54972 - #18 Short offline Completed without error 00% 54948 - #19 Short offline Completed without error 00% 54924 - #20 Extended offline Completed without error 00% 54888 - #21 Short offline Completed without error 00% 54852 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing
If Selective self-test is pending on power-up, resume after 0 minute delay. root@freenas:~ # smartctl -a /dev/ada0 smartctl 7.2 2021-09-14 r5236 [FreeBSD 13.1-RELEASE-p9 amd64] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red Device Model: WDC WD80EFZX-68UW8N0 Serial Number: VK1EX8HY LU WWN Device Id: 5 000cca 3b7d46a77 Firmware Version: 83.H0A83 User Capacity: 8,001,563,222,016 bytes [8.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Dec 24 17:57:22 2023 EST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x80) Offline data collection activity was never started. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 101) seconds. Offline data collection capabilities: (0x5b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: (1083) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0 2 Throughput_Performance 0x0005 130 130 054 Pre-fail Offline - 120 3 Spin_Up_Time 0x0007 173 173 024 Pre-fail Always - 358 (Average 401) 4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 55 5 Reallocated_Sector_Ct 0x0033 100 100 005 Pre-fail Always - 0 7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0 8 Seek_Time_Performance 0x0005 128 128 020 Pre-fail Offline - 18 9 Power_On_Hours 0x0012 093 093 000 Old_age Always - 55390 10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 55 22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100 192 Power-Off_Retract_Count 0x0032 099 099 000 Old_age Always - 2343 193 Load_Cycle_Count 0x0012 099 099 000 Old_age Always - 2343 194 Temperature_Celsius 0x0002 176 176 000 Old_age Always - 34 (Min/Max 18/53) 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 55378 - # 2 Short offline Completed without error 00% 55357 - # 3 Short offline Completed without error 00% 55333 - # 4 Short offline Completed without error 00% 55309 - # 5 Short offline Completed without error 00% 55297 - # 6 Short offline Completed without error 00% 55285 - # 7 Extended offline Completed without error 00% 55250 - # 8 Short offline Completed without error 00% 55213 - # 9 Short offline Completed without error 00% 55165 - #10 Short offline Completed without error 00% 55141 - #11 Short offline Completed without error 00% 55117 - #12 Short offline Completed without error 00% 55093 - #13 Short offline Completed without error 00% 55069 - #14 Short offline Completed without error 00% 55045 - #15 Short offline Completed without error 00% 55021 - #16 Short offline Completed without error 00% 54997 - #17 Short offline Completed without error 00% 54973 - #18 Short offline Completed without error 00% 54949 - #19 Short offline Completed without error 00% 54925 - #20 Extended offline Completed without error 00% 54889 - #21 Short offline Completed without error 00% 54853 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing
root@freenas:~ # smartctl -a /dev/ada2 smartctl 7.2 2021-09-14 r5236 [FreeBSD 13.1-RELEASE-p9 amd64] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red Device Model: WDC WD80EFZX-68UW8N0 Serial Number: VJH5RDPX LU WWN Device Id: 5 000cca 261d0b17b Firmware Version: 83.H0A83 User Capacity: 8,001,563,222,016 bytes [8.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Dec 24 18:00:20 2023 EST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x80) Offline data collection activity was never started. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 101) seconds. Offline data collection capabilities: (0x5b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: (1150) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0 2 Throughput_Performance 0x0005 128 128 054 Pre-fail Offline - 128 3 Spin_Up_Time 0x0007 174 174 024 Pre-fail Always - 357 (Average 400) 4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 50 5 Reallocated_Sector_Ct 0x0033 100 100 005 Pre-fail Always - 0 7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0 8 Seek_Time_Performance 0x0005 128 128 020 Pre-fail Offline - 18 9 Power_On_Hours 0x0012 093 093 000 Old_age Always - 55389 10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 50 22 Helium_Level 0x0023 100 100 025 Pre-fail Always - 100 192 Power-Off_Retract_Count 0x0032 099 099 000 Old_age Always - 2332 193 Load_Cycle_Count 0x0012 099 099 000 Old_age Always - 2332 194 Temperature_Celsius 0x0002 157 157 000 Old_age Always - 38 (Min/Max 18/54) 196 Reallocated_Event_Count 0x0032 100 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0022 100 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 55376 - # 2 Short offline Completed without error 00% 55356 - # 3 Short offline Completed without error 00% 55332 - # 4 Short offline Completed without error 00% 55308 - # 5 Short offline Completed without error 00% 55296 - # 6 Short offline Completed without error 00% 55284 - # 7 Extended offline Completed without error 00% 55249 - # 8 Short offline Completed without error 00% 55212 - # 9 Short offline Completed without error 00% 55164 - #10 Short offline Completed without error 00% 55140 - #11 Short offline Completed without error 00% 55116 - #12 Short offline Completed without error 00% 55092 - #13 Short offline Completed without error 00% 55068 - #14 Short offline Completed without error 00% 55044 - #15 Short offline Completed without error 00% 55020 - #16 Short offline Completed without error 00% 54996 - #17 Short offline Completed without error 00% 54972 - #18 Short offline Completed without error 00% 54948 - #19 Short offline Completed without error 00% 54924 - #20 Extended offline Completed without error 00% 54889 - #21 Short offline Completed without error 00% 54852 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing
root@freenas:~ # smartctl -a /dev/ada3 smartctl 7.2 2021-09-14 r5236 [FreeBSD 13.1-RELEASE-p9 amd64] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: SandForce Driven SSDs Device Model: SanDisk SDSSDA120G Serial Number: 172773801991 LU WWN Device Id: 5 001b44 8b404ebe5 Firmware Version: Z33130RL User Capacity: 120,034,123,776 bytes [120 GB] Sector Size: 512 bytes logical/physical Rotation Rate: Solid State Device Form Factor: 2.5 inches TRIM Command: Available, deterministic, zeroed Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2 T13/2015-D revision 3 SATA Version is: SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Sun Dec 24 18:01:12 2023 EST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x00) Offline data collection activity was never started. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 120) seconds. Offline data collection capabilities: (0x11) SMART execute Offline immediate. No Auto Offline data collection support. Suspend Offline collection upon new command. No Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. No Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 10) minutes. SMART Attributes Data Structure revision number: 1 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 5 Retired_Block_Count 0x0032 100 100 000 Old_age Always - 0 9 Power_On_Hours_and_Msec 0x0032 000 100 000 Old_age Always - 54108h+00m+00.000s 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 56 165 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 21478965297 166 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0 167 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0 168 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 1 169 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0 170 Reserve_Block_Count 0x0032 100 100 000 Old_age Always - 0 171 Program_Fail_Count 0x0032 100 100 000 Old_age Always - 0 172 Erase_Fail_Count 0x0032 100 100 000 Old_age Always - 0 173 Unknown_SandForce_Attr 0x0032 100 100 000 Old_age Always - 0 174 Unexpect_Power_Loss_Ct 0x0032 100 100 000 Old_age Always - 33 187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0 188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0 194 Temperature_Celsius 0x0022 070 053 000 Old_age Always - 30 (Min/Max 0/47) 199 SATA_CRC_Error_Count 0x0032 100 100 000 Old_age Always - 0 230 Life_Curve_Status 0x0032 100 100 000 Old_age Always - 68719607824 232 Available_Reservd_Space 0x0033 100 100 004 Pre-fail Always - 100 233 SandForce_Internal 0x0032 100 100 000 Old_age Always - 20 234 SandForce_Internal 0x0032 100 100 000 Old_age Always - 227 241 Lifetime_Writes_GiB 0x0030 253 253 000 Old_age Offline - 88 242 Lifetime_Reads_GiB 0x0030 253 253 000 Old_age Offline - 2523 244 Unknown_Attribute 0x0032 000 100 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged
