SOLVED Degraded disk help

[Davvo]

Just wanted to make sure. You shouldn't experience any issues from now on, hardware wise... just take note of the drive you connected to the port multiplier as it's the most likely to cause issues.

If you haven't already scheduled frequent smart tests and scrubs, do so; scripts such as multi_report can help you monitor your drives and your pools.



[Etorix]

Wasnt a cheap setup :( -

With brand new DDR5 RAM and Zen4 CPU I can believe it. Yet the build could have been both cheaper and more reliable with an older CPU, an older motherboard with at least 6 SATA ports to match your SATA bays, and second-hand DDR4 ECC RAM.

and i bottlenecked it like a moron with that garbage controller

And we would have found the solution earlier if you had just listed your hardware to begin with.
"Gigabyte B650I with Ryzen 7600X in Jonsbo N1 case" (or N2?)
Even without mention of the crappy controller, 5 drives on a 4-port motherboard was a give-away there was something fishy…

By the way, my nod to LTT was not meant as endorsement or praise—far, very far, from it.

Hopefully your issue may be closed with no data loss and no permanent damage. But that could have been a close call.
Losing even a single drive from a raidz1 is a dangerous situation, and large drives only means that there's potentially a lot of data at risk. Raidz2 is highly recommended.



[nothing]

You should either use the ports on your motherboard or an HBA, but you could try using a SATA controller (not a port multiplier).

Good news is your drives are healthy.


I believe it would solve the issue as long as you use only a single port on that port multiplier.

Do the port switching, then zpool clear, replace the external USB drive with the old (internal) drive and run a scrub. You should be fine.

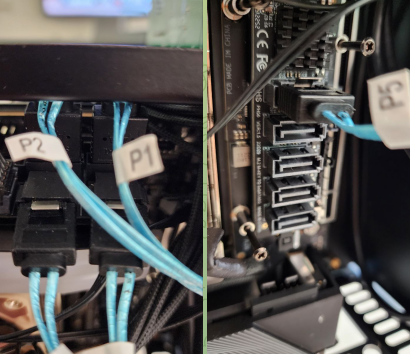

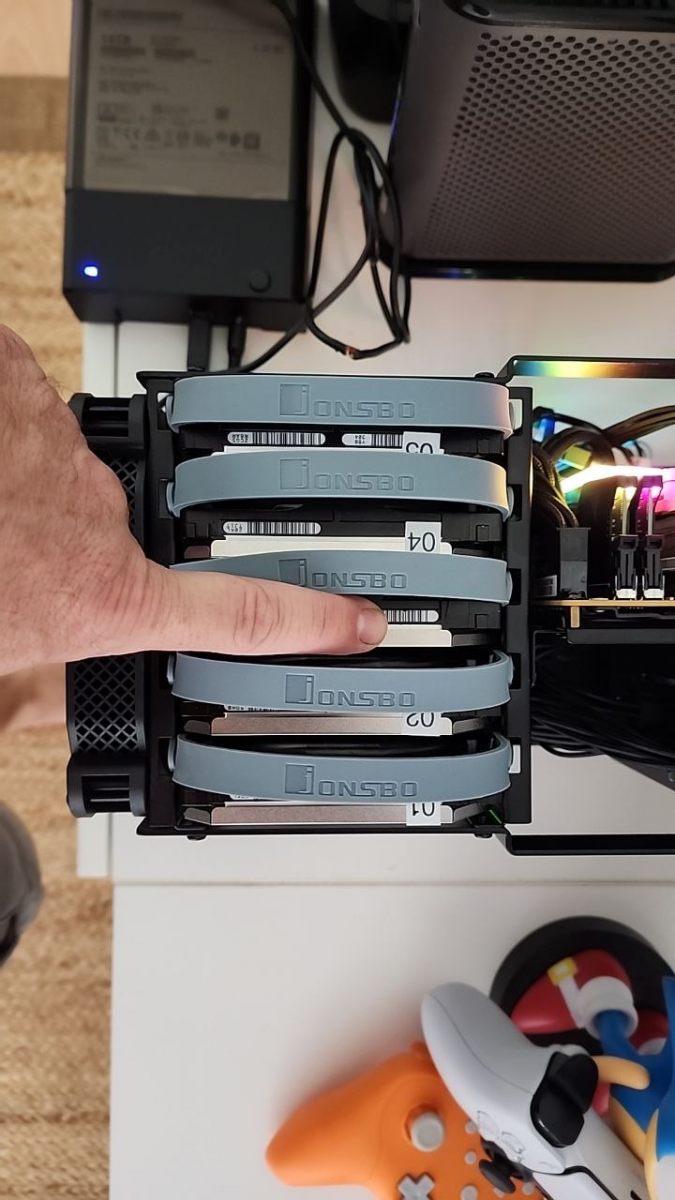

1) physically moved all the devices to the mobo as instructed :

2) moved the former external enclosure drive that I mistakenly used to replace a degraded drive marked #03 HDD in pictures before

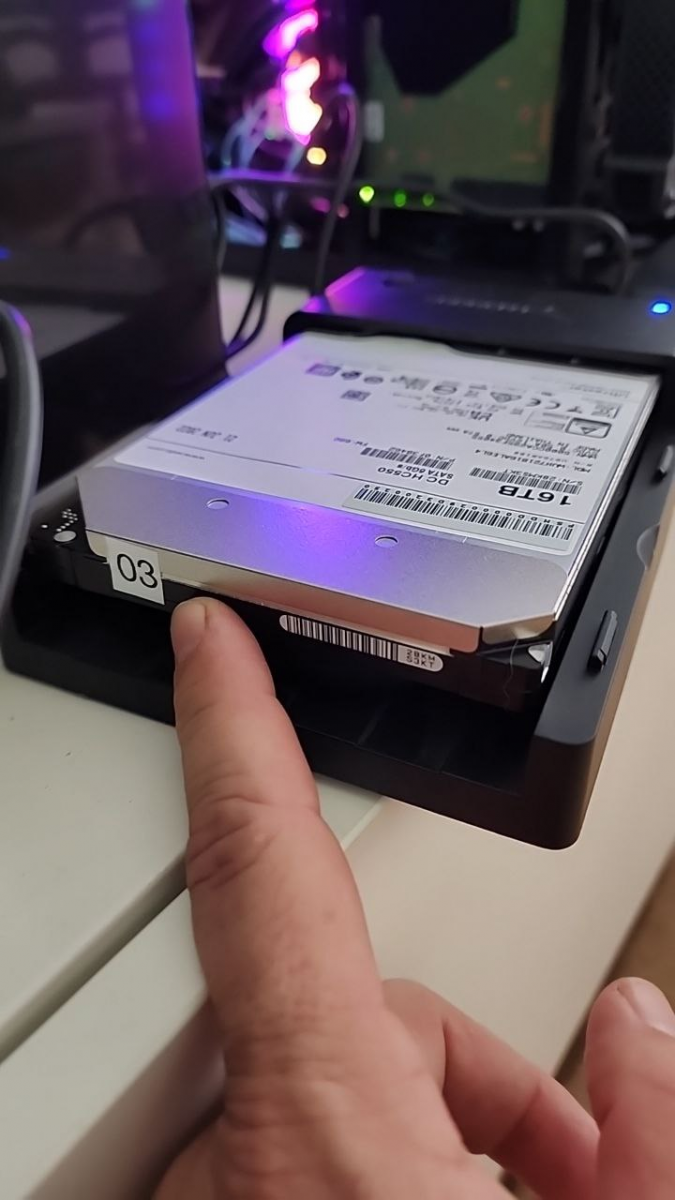

and placed the degraded #03 drive into the enclosure

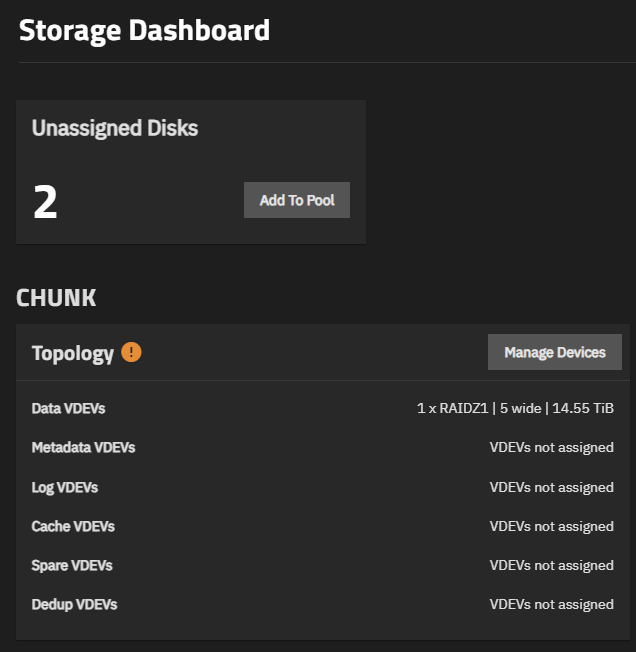

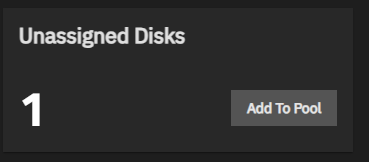

3) booted up to 2 "Unassigned disks" in the dashboard and (check update below there is only one now)

4) ran sudo zpool clear CHUNK

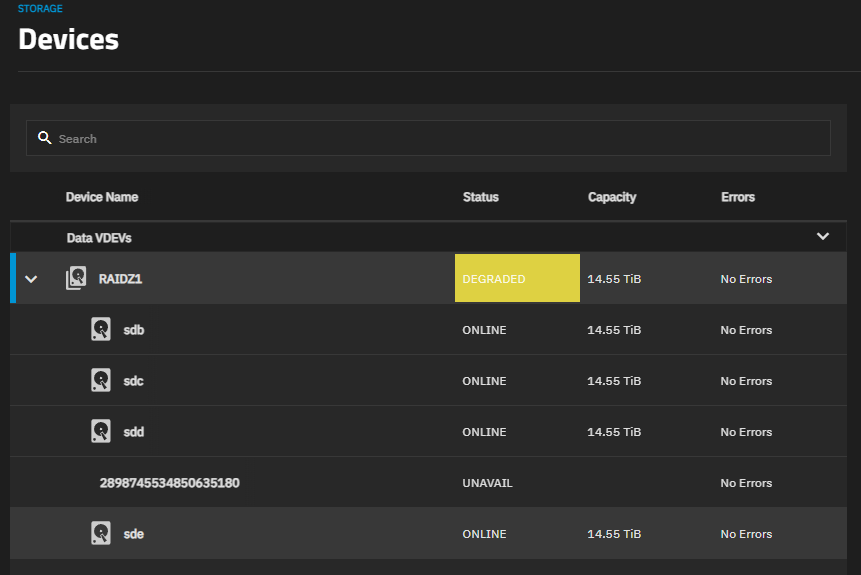

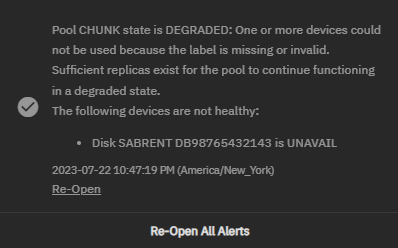

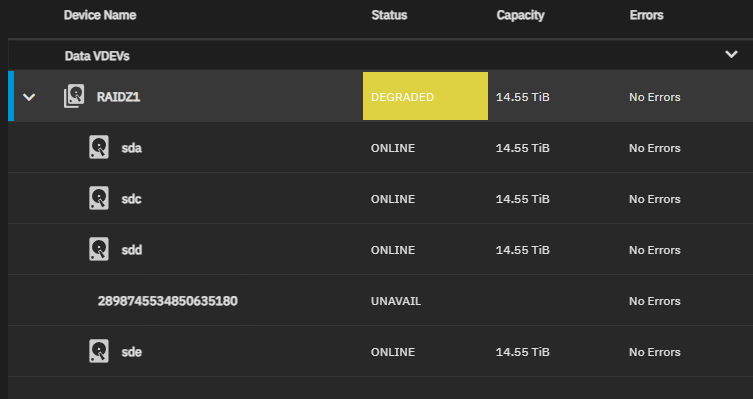

As you can see it does not appear to like it when you use a usb external enclosure to run a zpool replace a HDD as it marks it UNAVAIL
having said this - 4 drives are online and CHUNK is accessible, shouldnt I be able get rid of this UNAVAIL, add a disk to the pool and call it a day?

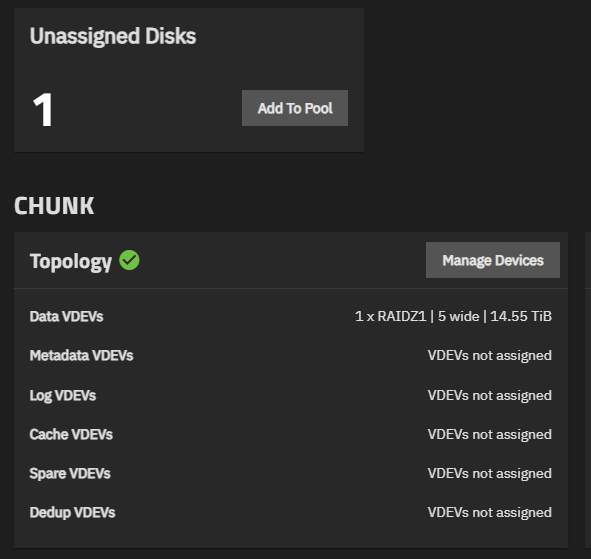

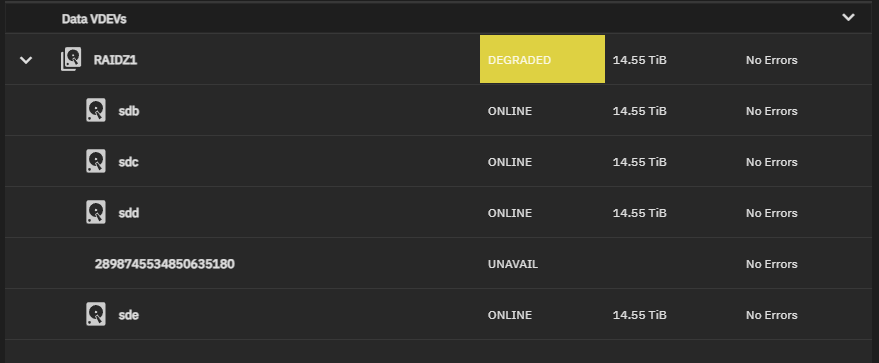

*UPDATE* this UNAVAIL is the external (former replaced drive

Ive since turned the external off and its still showing up

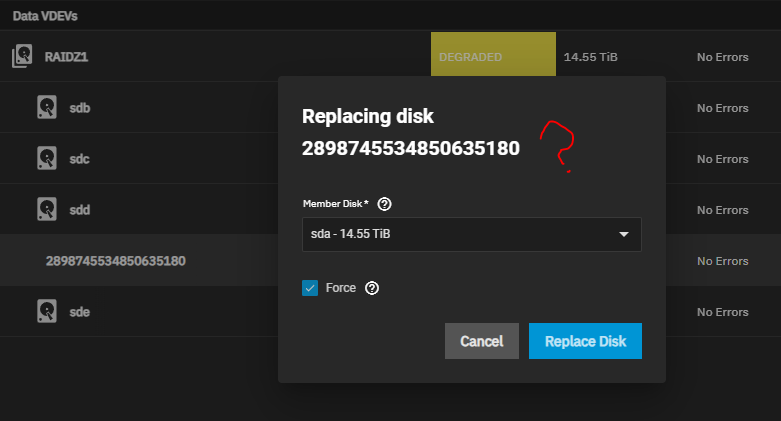

can i just replace it with the 1 unassigned disk i have?

(no, i have not hit replace disk, just showing for clarity , wont do anything without advice)



[nothing]

With brand new DDR5 RAM and Zen4 CPU I can believe it. Yet the build could have been both cheaper and more reliable with an older CPU, an older motherboard with at least 6 SATA ports to match your SATA bays, and second-hand DDR4 ECC RAM.


And we would have found the solution earlier if you had just listed your hardware to begin with.
"Gigabyte B650I with Ryzen 7600X in Jonsbo N1 case" (or N2?)
Even without mention of the crappy controller, 5 drives on a 4-port motherboard was a give-away there was something fishy…

By the way, my nod to LTT was not meant as endorsement or praise—far, very far, from it.

Hopefully your issue may be closed with no data loss and no permanent damage. But that could have been a close call.
Losing even a single drive from a raidz1 is a dangerous situation, and large drives only means that there's potentially a lot of data at risk. Raidz2 is highly recommended.

Yeah im sorry about that - i messed up and delayed my troubleshooting help by not including the info.

I figure you lot are annoyed by LTT folk - no problem - i would be too. while it brings people like me in, at least more people are using truenas as a result and ultimately it can get better support and features.

in the future ill give all the background - i have read the forum rules Davvo posted.



[Davvo]

I might be missing something since I am from mobile, but why did you phisically swap the external drive (former sdf) with internal #3?

You want to put back in (the vdev) your original drives since they are healthy by backtracking the steps you did to replace them.

My suggestion now is to grab the serials and check which is which (sdX can change every reboot), because I have no idea which disk the one you see is (should be either of the two you swapped).



[nothing]

I might be missing something since I am from mobile, but why did you phisically swap the external drive (former sdf) with internal #3?

You want to put back in (the vdev) your original drives since they are healthy by backtracking the steps you did to replace them.

but it was replaced - i though you wanted the former sdf (new drive) there - i can put it all back but doesnt ZFS mark it in some way once youve replaced it?

its a simple swap back then - if you think its better to put the replaced drive back in



[Davvo]

but it was replaced - i though you wanted the former sdf (new drive) there - i can put it all back but doesnt ZFS mark it in some way once youve replaced it?

its a simple swap back then - if you think its better to put the replaced drive back in

Assuming what you did was:
WebUI replace of one internal drive with and external one.

I wanted you to use the WebUI replace action to bring back the perfectly working drive (that was marked as degraded) in the pool so that we can detach the USB drive.

Assuming the drives numbered #1 to #5 are the original ones and the unlabelled is the external one, the one used for replacement, I want the numbered drives in the case and in the vdev.
Once they are in the case, assuming the USB drive is in the vdev and is acting as replacement of #3, replace it by the WebUI wity the number #3.
Then, we can offline and detach the USB drive, clear any errors in the pool and run a scrub.

Please tell me if I wasn't clear.



[nothing]

same situation:

everything is 100% back to the way it was hardware wise apart from the sata connections now

the external drive is no longer connected, didnt see your post above - i will add the new drive back into the enclosure now



[nothing]

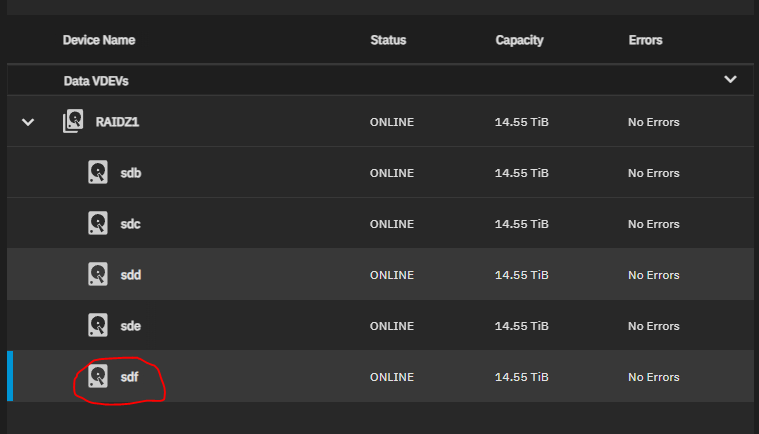

HOLY MOLY - all fixed :) only i cant run an external disk - i think we're close :)

So how do i get back to bringing in sda to replace sdf?

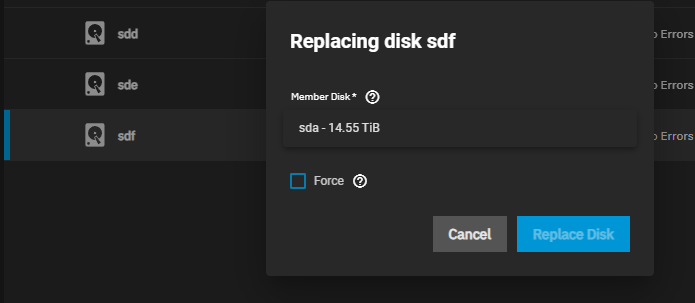

another gui zpool replace ? sdf -> sda? (again just for visuals below - ive not done it )



[Davvo]

Check by the serials that you actually have the right drives in, if so you can detach the USB drive (not sure this is possibile from the WebUI, maybe you can just disconnect the USB drive) and run a scrub on the chunk pool.

Once this ends, I am interested in your temperatures.



[nothing]

ok ill check the serials but im fairly sure sdf IS the external.. lets see

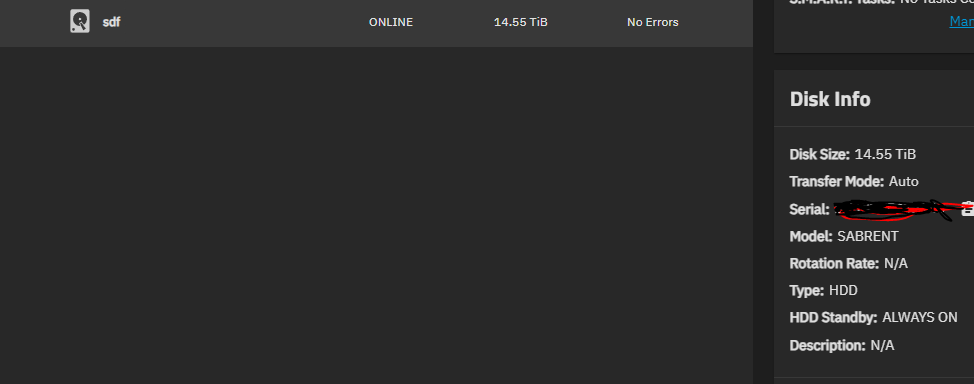

yes as i suspected sdf is the new "replacer" drive that replaced what is now marked as sda in the Unassigned Disks section



[Davvo]

another gui zpool replace ? sdf -> sda? (again just for visuals below - ive not done it )

View attachment 68626

Exactly.
You want sdf (USB drive) to be the unassigned drive so that you can disconnect it from the system.



[nothing]

You guys are the salt of the earth, having to deal with the likes of me. :)

Cheers guys! I think youve solved it!



[nothing]

is it not recommended to use the pool while resilvering op is running? or is it ok to run plex? (am i pushing my luck :D )



[Davvo]

Given your RAIDZ layout your pool performance won't be great (although your Plex app should be in the SSD, I assume your media is on the spinning rust).

Remember to run a scrub after the resilver is completed. If no errors pop up, remember to mark this thread as solved (you should get the option by editing the first message I believe).

You did good by coming here to ask, and your replacement of a faulted disk with an USB one was a good call (though not the right one).



[nothing]

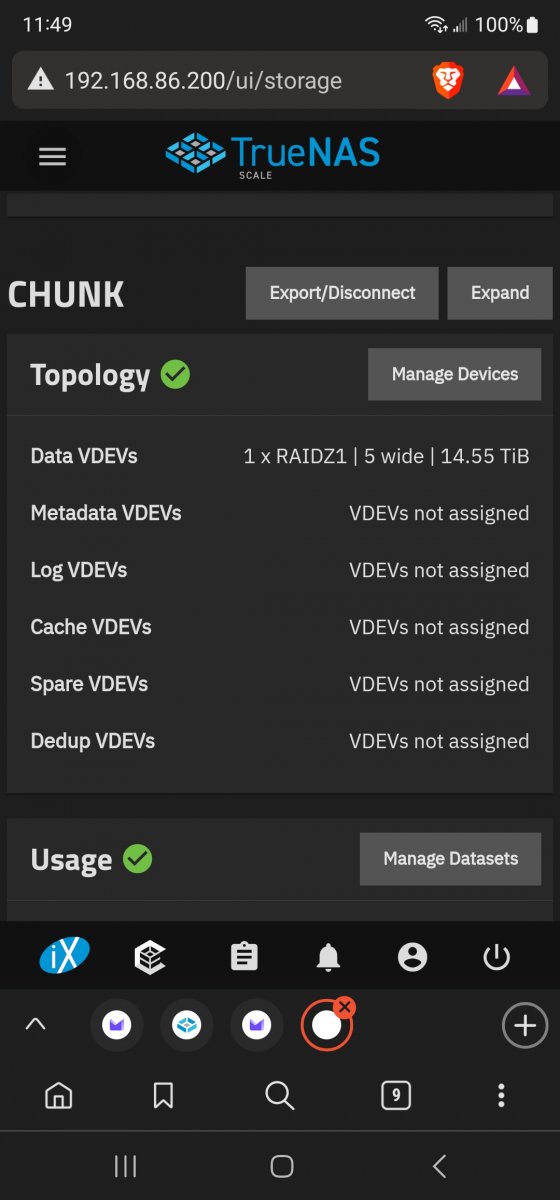

It worked. 100% recovered.

Thanks again!!
