11.2 hot spare swapping help

[TidalWave]

Hi Guys,

So we have a degraded HDD in a pool with multiple RAIDz2. We have two hot spare drives and 2xRaidz2 stripes with 10 disks each. So we have 22 hard dirves.

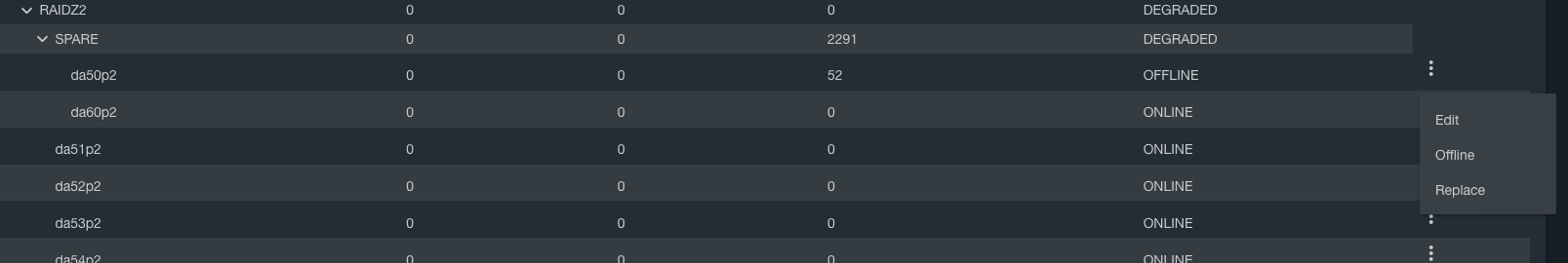

One of the drives in a Raidz2 array became degraded. I think it has auto resilvered. But I decided to right click on degraded HDD and selected offline.

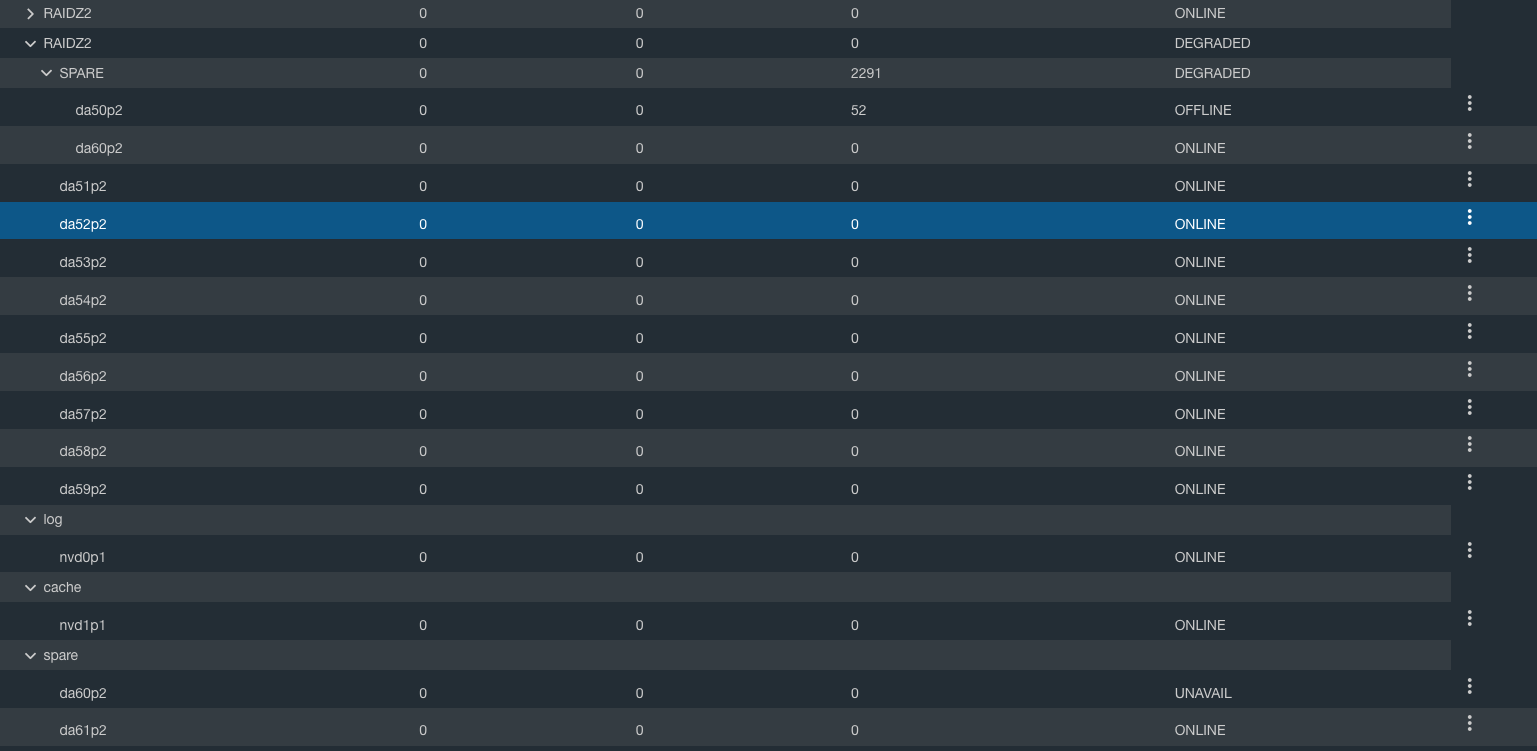

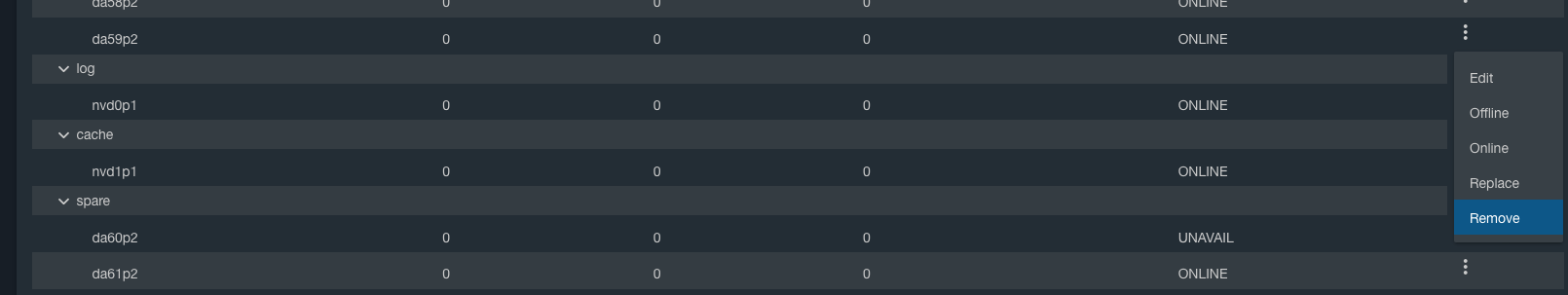

There is a spare underneath it under the same Raidz2 list of disk. But the same spare is also still listed under the spare disk list and shows as unavailable. Am I suppose to right click on the unavailable spare and click remove? Will that move the hot spare into the Raidz2 that had a degraded disk?

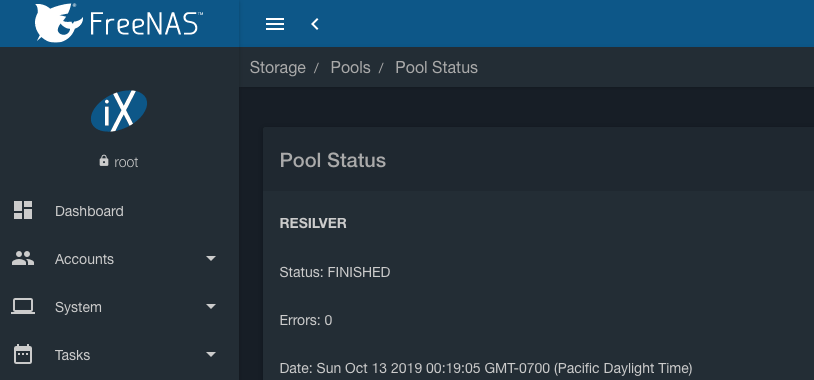

Take a look at the photos and let me know what is the best course of action, please.

-TidalWave



[dlavigne]

Is this still an issue for you? If so, please post the full output of zpool status within code tags.



[viniciusferrao]

I'm with the same issue right now. What is the correct workflow?

Code:

  pool: pool
 state: DEGRADED
status: One or more devices has been taken offline by the administrator.
    Sufficient replicas exist for the pool to continue functioning in a
    degraded state.
action: Online the device using 'zpool online' or replace the device with
    'zpool replace'.
  scan: resilvered 1.70T in 08:54:21 with 0 errors on Tue Feb  2 00:57:53 2021
config:

    NAME                                              STATE     READ WRITE CKSUM
    pool                                              DEGRADED     0     0     0
      mirror-0                                        ONLINE       0     0     0
        gptid/20b1ead9-317f-11e5-b64e-002590e396e0    ONLINE       0     0     0
        gptid/b9fc94a7-df59-11e7-8872-002590e396e0    ONLINE       0     0     0
      mirror-1                                        DEGRADED     0     0     0
        spare-0                                       DEGRADED     0     0     0
          gptid/994c609b-34f8-11e7-9af7-002590e396e0  OFFLINE      0     0     0
          gptid/e4247691-47f2-11eb-84c3-002590e396e0  ONLINE       0     0     0
        gptid/014590a3-b62b-11e5-ba25-002590e396e0    ONLINE       0     0     0
      mirror-2                                        ONLINE       0     0     0
        gptid/a3fa473d-f92b-11e6-9af7-002590e396e0    ONLINE       0     0     0
        gptid/d0be29e2-8b59-11e5-ba25-002590e396e0    ONLINE       0     0     0
      mirror-3                                        ONLINE       0     0     0
        gptid/532d0f94-4070-11e9-a369-002590e396e0    ONLINE       0     0     0
        gptid/55c35ab3-e014-11e7-8872-002590e396e0    ONLINE       0     0     0
      mirror-4                                        ONLINE       0     0     0
        gptid/76312a44-15fe-11e6-b236-002590e396e0    ONLINE       0     0     0
        gptid/f2b5a1d1-3aec-11e5-b64e-002590e396e0    ONLINE       0     0     0
      mirror-5                                        ONLINE       0     0     0
        gptid/c802a74a-e014-11e7-8872-002590e396e0    ONLINE       0     0     0
        gptid/2b7bbdb9-a5c1-11e5-ba25-002590e396e0    ONLINE       0     0     0
      mirror-6                                        ONLINE       0     0     0
        gptid/847ca319-c941-11e5-a727-002590e396e0    ONLINE       0     0     0
        gptid/35b29f73-4b02-11e7-836a-002590e396e0    ONLINE       0     0     0
      mirror-7                                        ONLINE       0     0     0
        gptid/2e0f7cb6-a812-11e5-ba25-002590e396e0    ONLINE       0     0     0
        gptid/56416be5-3f05-11e6-b254-002590e396e0    ONLINE       0     0     0
      mirror-8                                        ONLINE       0     0     0
        gptid/0c5ac0a8-fb9d-11e6-9af7-002590e396e0    ONLINE       0     0     0
        gptid/58dc66a1-729a-11e9-8733-002590e396e0    ONLINE       0     0     0
      mirror-9                                        ONLINE       0     0     0
        gptid/6185698d-0aac-11e6-b236-002590e396e0    ONLINE       0     0     0
        gptid/7e17b19a-4c79-11e7-836a-002590e396e0    ONLINE       0     0     0
      mirror-10                                       ONLINE       0     0     0
        gptid/0e9542e5-df4a-11e5-a727-002590e396e0    ONLINE       0     0     0
        gptid/bbe25df4-df58-11e7-8872-002590e396e0    ONLINE       0     0     0
    cache
      gptid/96ab6be3-8eb8-11e9-8733-002590e396e0      ONLINE       0     0     0
    spares
      gptid/e4247691-47f2-11eb-84c3-002590e396e0      INUSE     currently in use
      gptid/e752da63-47f2-11eb-84c3-002590e396e0      AVAIL

errors: No known data errors



[Etorix]

The spare has taken up duty to replace the failed drive. At this point I would select "Replace" from the 3-dot menu of the failed drive to make the change permanent and proceed to test this drive.
