SOLVED Reporting for Disk Temp doesn't update for HDDs (fixed in TrueNAS-SCALE-22.12.4.2)

[NugentS]

Mine is the same. Smartctl is reporting the correct results though - so it doesn't really bother me



[molay]

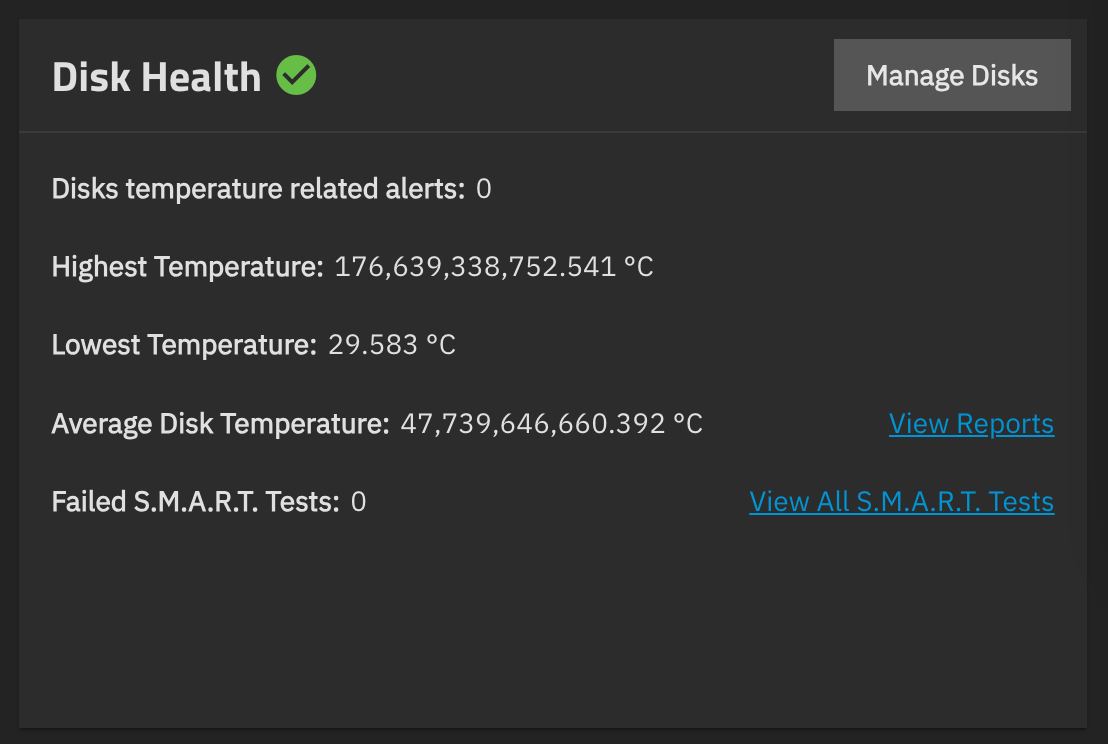

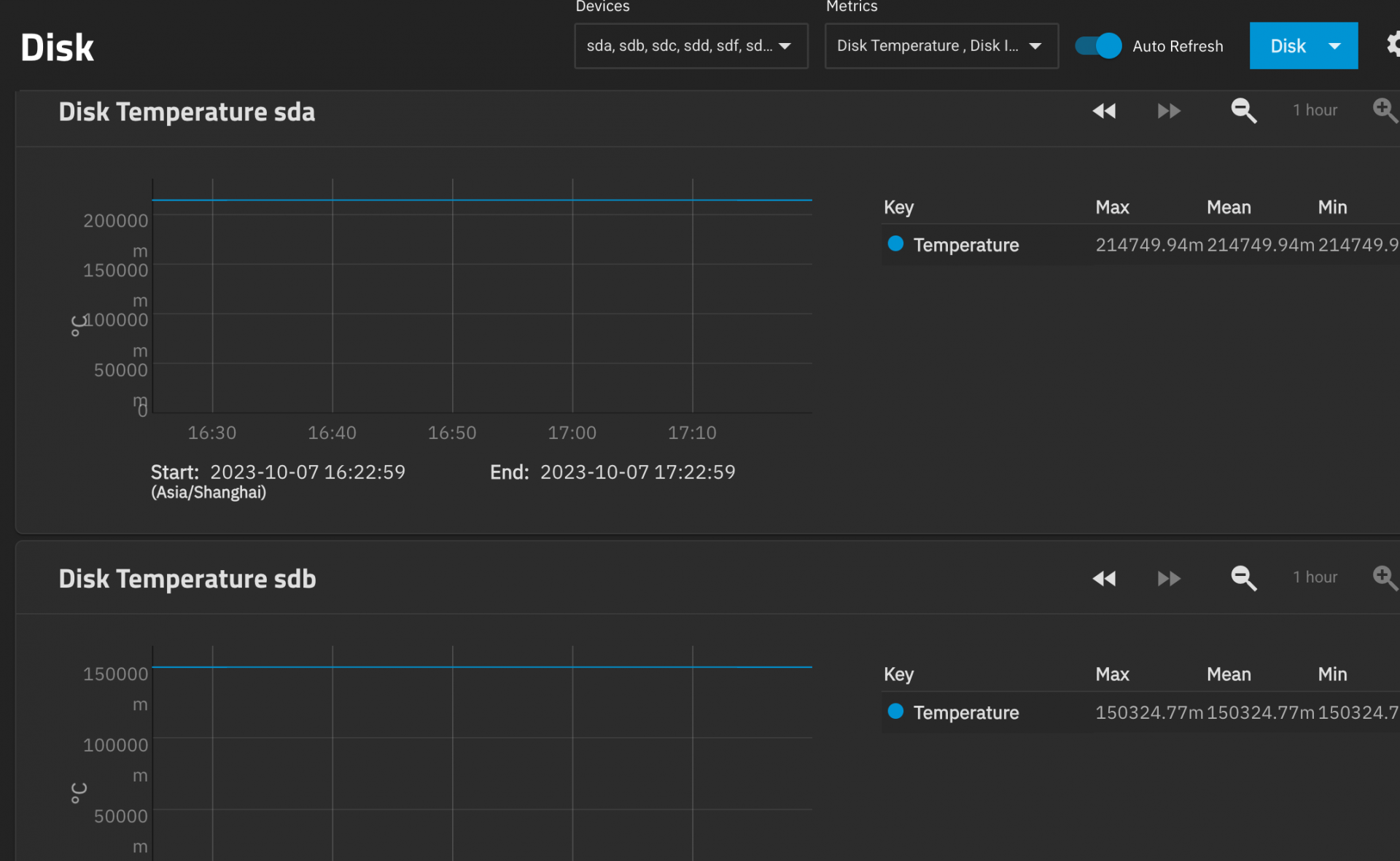

LOL, Google search found the base camp. I discovered this problem today after upgrading the system to TrueNAS-SCALE-22.12.4.
I checked with smartctl and found that the HDD temperature was normal.

If this bug is not fixed in version 22.12, can version 23.10 be upgraded directly in the interface, or do I need to reinstall it?



[Djubei]

Global warmth is much closer than anyone can thought



[Fleshmauler]

If this bug is not fixed in version 22.12, can version 23.10 be upgraded directly in the interface, or do I need to reinstall it?

Per this, you can upgrade to it specifically from 22.12.4, but no earlier. It has additional info & warnings, etc. Headsup, still in beta, etc. etc.

Only reason I'm not part of the beta yet to test if it fixes is because of this:

As part of the system reporting and debug improvements, system logs now exclusively write to the TrueNAS boot device.

I'm assuming that will be only for the beta... or hoping - otherwise I'll actually need to mirror my boot drives



[sfatula]

But beware of this:

No Disk Temperature on Reporting or Storage Dashboard in Cobia RC

Hi all, i just updated to the Cobia RC version and now no Disk Teperature is shown on the Storage Dashboard and Reporting Tab. See the attached Screenshots. I've already cleared my Browser cache and tried with chrome, firefox and edge. Has anyone else the same problem?

www.truenas.com

There are a number of bugs in Cobia so beware! That's why it's in testing.



[bklyngaucho]

I'm also experiencing this error. But only on my HDDs (that are on the HBA) and not my SSD's that aren't.



[Davvo]

I'm also experiencing this error. But only on my HDDs (that are on the HBA) and not my SSD's that aren't.

Verify your HBA firmware.



[Fleshmauler]

I'm also experiencing this error. But only on my HDDs (that are on the HBA) and not my SSD's that aren't.

I have my HDDs split between motherboard and HBA, they do the same. Still what Davvo said is fair. Make sure HBA firmware is up to date. While it is simply good practice, don't expect it to resolve this specific issue.



[Davvo]

Verify it's a IT firmware.

What's all the noise about HBAs, and why can't I use a RAID controller?

1) An HBA is a Host Bus Adapter. This is a controller that allows SAS and SATA devices to be attached to, and communicate directly with, a server. RAID controllers typically aggregate several disks into a Virtual Disk abstraction of some sort...

www.truenas.com



[Fleshmauler]

Verify it's a IT firmware.

What's all the noise about HBAs, and why can't I use a RAID controller?

1) An HBA is a Host Bus Adapter. This is a controller that allows SAS and SATA devices to be attached to, and communicate directly with, a server. RAID controllers typically aggregate several disks into a Virtual Disk abstraction of some sort...

www.truenas.com

Code:

# sas2flash -list
LSI Corporation SAS2 Flash Utility
Version 20.00.00.00 (2014.09.18)
Copyright (c) 2008-2014 LSI Corporation. All rights reserved

        Adapter Selected is a LSI SAS: SAS2008(B2)

        Controller Number              : 0
        Controller                     : SAS2008(B2)
        PCI Address                    : 00:2d:00:00
        SAS Address                    : 500605b-0-0471-9800
        NVDATA Version (Default)       : 14.01.00.08
        NVDATA Version (Persistent)    : 14.01.00.08
        Firmware Product ID            : 0x2213 (IT)
        Firmware Version               : 20.00.07.00
        NVDATA Vendor                  : LSI
        NVDATA Product ID              : SAS9211-8i
        BIOS Version                   : 07.39.02.00
        UEFI BSD Version               : N/A
        FCODE Version                  : N/A
        Board Name                     : IBM 6Gb Perf HBA
        Board Assembly                 : H3-25113-02C
        Board Tracer Number            : SP20302384

        Finished Processing Commands Successfully.
        Exiting SAS2Flash.

Naw we good on the firmware & it being IT. I think it is [~SAFE?!~] to say that this one is just a bug that some folks face on this version of Scale.



[Davvo]

Why, is there any issue with being a supernova?



[Fleshmauler]

Bad news folks; after updating to TrueNAS-SCALE-22.12.4.2 I am no longer going supernova. My temperatures are all back in spec & actually updating without manually rebooting the system!



[mareszek]

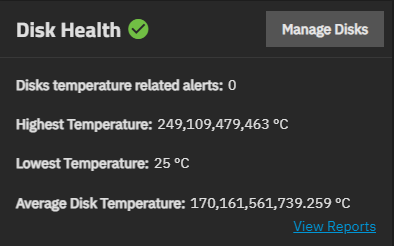

Hi, my truenas also came back from the sun surface after updating the system ;) However, I have a question - how to remove/reset Average Disk Temperature and Highest Temperature? I would like to see normal values here :) I can't find information about this anywhere. Thanks a lot!



[Davvo]

Hi, my truenas also came back from the sun surface after updating the system ;) However, I have a question - how to remove/reset Average Disk Temperature and Highest Temperature? I would like to see normal values here :) I can't find information about this anywhere. Thanks a lot! View attachment 71385

Rebuild the graph/restart the reporting service. Should be System > Reporting or something similar.



[Fleshmauler]

Hi, my truenas also came back from the sun surface after updating the system ;) However, I have a question - how to remove/reset Average Disk Temperature and Highest Temperature? I would like to see normal values here :) I can't find information about this anywhere. Thanks a lot! View attachment 71385

Easiest way I could find how to do it was go to Reporting> Cpu> Settings> (MAKE ANY CHANGE AT ALL, DOESN'T MATTER)> SAVE > back to settings> Reset to Defaults> Save

This'll reset saved reporting for everything. Wait 5-30 minutes; season to taste.



[mareszek]

Easiest way I could find how to do it was go to Reporting> Cpu> Settings> (MAKE ANY CHANGE AT ALL, DOESN'T MATTER)> SAVE > back to settings> Reset to Defaults> Save

This'll reset saved reporting for everything. Wait 5-30 minutes; season to taste.

Working perfectly! Thank you :D



[chri5]

My Average Disk Temperature is still: 123,113,506,603.143 °C after the TrueNAS-SCALE-22.12.4.2 update.



[Fleshmauler]

My Average Disk Temperature is still: 123,113,506,603.143 °C after the TrueNAS-SCALE-22.12.4.2 update.

Did you try these steps to reset the charts & averages?

Easiest way I could find how to do it was go to Reporting> Cpu> Settings> (MAKE ANY CHANGE AT ALL, DOESN'T MATTER)> SAVE > back to settings> Reset to Defaults> Save

This'll reset saved reporting for everything. Wait 5-30 minutes; season to taste.



[chri5]

Did you try these steps to reset the charts & averages?

Thanks, yes that worked!



[Saoshen]

there does not appear to be any 'settings' menu on cobia?
