Disck activity falls to zero if there are file deletions

[Davvo]

As far as I know, none that retains data integrity.



[vaschthestampede]

Very slow: it's at least twice the operations per entry on a low-iops HDD.

I guess because it will have to read and rewrite every file in the entire Dataset.

As far as I know, none that retains data integrity.

Data integrity is definitely something I want to maintain.



[asap2go]

As far as I know, none that retains data integrity.

Why not? As I've understood it:
Add dedup VDEV.
Dedup data is still on spinning rust.
Delete all blocks that cause the dedup data on spinning rust and reupload them.
That will cause all dedup data being written to the new and free dedup VDEV.
I'm sure there is a script for that. Just like for rebalancing data VDEVs.



[Davvo]

Why not? As I've understood it:
Add dedup VDEV.
Dedup data is still on spinning rust.
Delete all blocks that cause the dedup data on spinning rust and reupload them.
That will cause all dedup data being written to the new and free dedup VDEV.
I'm sure there is a script for that. Just like for rebalancing data VDEVs.

There are no other ways to proceed if they don't want to act in a distructive way (wipe everything, including the DDT table :D).
At least, none that I know of; admittedly, I know very little about dedup.



[HoneyBadger]

To be honest, I didn't understand this part.

Are you telling me that this operation is not enough?
Or just that it will be slow?
Or both?

It will just be very slow, as you're observing from the disk I/O "basically falling to 0" - I guarantee there's a lot of "disk activity" going on behind the scenes in the form of the heads seeking to mostly-random locations and handling small writes.

Assuming additional dedup SSDs are installed, new writes and updates to the DDT will go there, but until all data that has its deduplication hash stored on the HDDs is either deleted from the system, or a new copy is copied to it (thus incrementing the refcnt value) there remains the risk of suddenly slowing down.



[vaschthestampede]

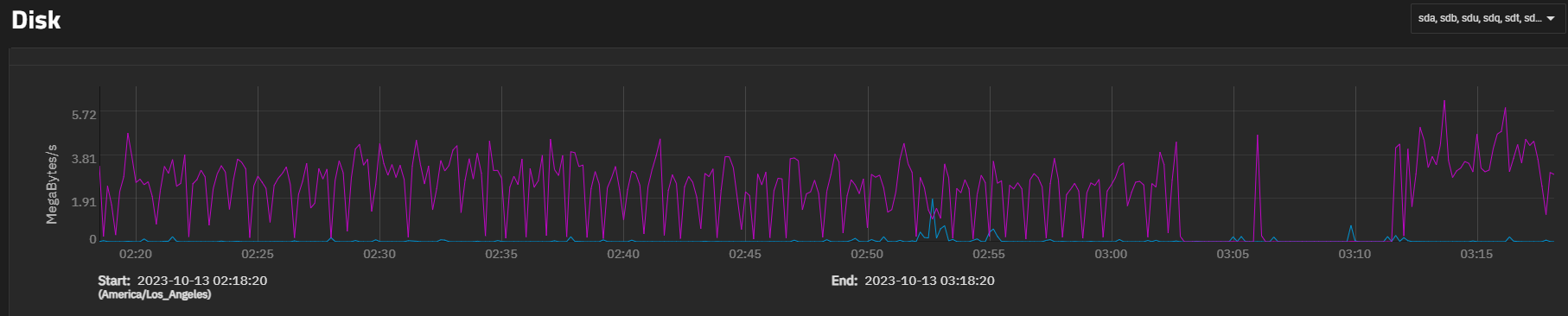

This is a report showing the disk activity, only one but the others were the same, during the issue.

I say the activity falls to zero because the report shows no read or write activity.

I don't question that there's a lot of disk activity going on behind the scenes, but it is not reported.



[Davvo]

I don't question that there's a lot of disk activity going on behind the scenes, but it is not reported.

You are looking at the wrong graph: in the "Disk operations detailed" tab the file deletion activity is shown.



[vaschthestampede]

in the "Disk operations detailed" tab the file deletion activity is shown.

Where is thi report?



[asap2go]

Where is thi report?

It shall appear in thy reporting tab if thou lookest at reporting -> disks -> disk I/O.
Or via shell zpool iostat -v 2



[vaschthestampede]

It shall appear in thy reporting tab if thou lookest at reporting -> disks -> disk I/O.
Or via shell zpool iostat -v 2

It's the report I shared.

It shall appear in thy reporting tab if thou lookest at reporting -> disks -> disk I/O.
Or via shell zpool iostat -v 2

If, or rather when, it happens again I will try to execute this command.



[vaschthestampede]

Very slow: it's at least twice the operations per entry on a low-iops HDD.

Do you think that if I run this procedure there will be the same problems and therefore the volume will not be available?



[Davvo]

Do you think that if I run this procedure there will be the same problems and therefore the volume will not be available?

I'm not sure I follow what you mean... it has been explained your situation and how doing certain things will impact your system.



[vaschthestampede]

I'll try to explain myself better.
If, once I added other disks for dedup, I run the VDEV Rebalancing script, could the problem of disk activity dropping to zero arise?
I have this doubt precisely because I think that this script deletes and rewrites all the files.

I apologize for my poor English.



[asap2go]

I'll try to explain myself better.
If, once I added other disks for dedup, I run the VDEV Rebalancing script, could the problem of disk activity dropping to zero arise?
I have this doubt precisely because I think that this script deletes and rewrites all the files.

I apologize for my poor English.

Yes. You will need to go through the bottleneck once to remove all the dedup data stored in the HDDs.



[vaschthestampede]

I'm afraid that wouldn't work at all.

GitHub - markusressel/zfs-inplace-rebalancing: Simple bash script to rebalance pool data between all mirrors when adding vdevs to a pool.

Simple bash script to rebalance pool data between all mirrors when adding vdevs to a pool. - markusressel/zfs-inplace-rebalancing

github.com



[asap2go]

I'm afraid that wouldn't work at all.

GitHub - markusressel/zfs-inplace-rebalancing: Simple bash script to rebalance pool data between all mirrors when adding vdevs to a pool.

Simple bash script to rebalance pool data between all mirrors when adding vdevs to a pool. - markusressel/zfs-inplace-rebalancing

github.com

Why not?



[vaschthestampede]

The link has the following text highlighted:

No Deduplication
Due to the working principle of this script, which essentially creates a duplicate file on purpose, deduplication will most definitely prevent it from working as intended. If you use deduplication you probably have to resort to a more expensive rebalancing method that involves additional drives.

EDIT:
The new drives arrived today and I just set them up.
I let them work for a while and test, on newly copied files, that the problem does not occur.

EDIT2:
I'm noticing that it seems to be doing some sort of rebalancing!

This is the situation as soon as the disks are configured:

Code:

dedup                                         -      -      -      -      -      -
  mirror-2                                3.47T  16.8G  4.44K  16.2K  18.5M   118M
    d8c51d4c-1dd3-4648-a990-fdf7d6972333      -      -  2.22K  8.11K  9.23M  58.9M
    abf1aa23-632f-4042-9490-103aa8529599      -      -  2.22K  8.10K  9.24M  58.9M
  mirror-7                                9.29G  3.48T      0  1.40K    278   149M
    e0944b41-cc69-4380-b1a3-971d19a47b49      -      -      0    713    139  74.6M
    b7ce854b-f262-4c93-aed2-ac92f1846aa3      -      -      0    717    139  74.6M

This a few minutes later:

Code:

dedup                                         -      -      -      -      -      -
  mirror-2                                3.40T  89.8G  4.44K  16.2K  18.5M   118M
    d8c51d4c-1dd3-4648-a990-fdf7d6972333      -      -  2.22K  8.10K  9.23M  58.9M
    abf1aa23-632f-4042-9490-103aa8529599      -      -  2.22K  8.10K  9.24M  58.9M
  mirror-7                                83.8G  3.40T    216  2.62K   865K   113M
    e0944b41-cc69-4380-b1a3-971d19a47b49      -      -    108  1.31K   432K  56.5M
    b7ce854b-f262-4c93-aed2-ac92f1846aa3      -      -    108  1.31K   432K  56.5M



[vaschthestampede]

The problem is appearing again even if the available space on the disks for the dedup is high.

Code:

dedup                                         -      -      -      -      -      -
  mirror-2                                2.68T   819G  3.25K  9.73K  14.1M  70.7M
    d8c51d4c-1dd3-4648-a990-fdf7d6972333      -      -  1.63K  4.86K  7.04M  35.3M
    abf1aa23-632f-4042-9490-103aa8529599      -      -  1.63K  4.86K  7.04M  35.3M
  mirror-7                                2.67T   829G  2.25K  4.26K  10.3M  33.8M
    e0944b41-cc69-4380-b1a3-971d19a47b49      -      -  1.12K  2.13K  5.16M  16.9M
    b7ce854b-f262-4c93-aed2-ac92f1846aa3      -      -  1.12K  2.13K  5.15M  16.9M

Code:

 dedup: DDT entries 10111421243, size 582B on disk, 188B in core

bucket              allocated                       referenced
______   ______________________________   ______________________________
refcnt   blocks   LSIZE   PSIZE   DSIZE   blocks   LSIZE   PSIZE   DSIZE
------   ------   -----   -----   -----   ------   -----   -----   -----
     1    7.98G   1018T    921T    928T    7.98G   1018T    921T    928T
     2    1.37G    176T    164T    164T    2.89G    370T    345T    347T
     4    64.3M   6.62T   6.33T   6.43T     315M   29.5T   28.1T   28.8T
     8    1000K   83.7G   61.0G   64.1G    10.5M    771G    537G    579G
    16    1.23M    156G   15.9G   21.8G    30.8M   3.82T    375G    524G
    32    1.45M    186G   23.4G   30.1G    61.9M   7.72T   1019G   1.27T
    64     114K   13.9G   4.05G   4.46G    8.65M   1.05T    319G    351G
   128    10.9K    995M    284M    338M    1.80M    156G   41.6G   51.0G
   256    7.00K    171M   17.5M   72.7M    2.64M   59.3G   5.92G   26.9G
   512    1.33K   15.9M   3.38M   14.3M     722K   11.1G   2.32G   8.01G
    1K      837    101M   3.81M   8.16M    1.23M    153G   5.59G   12.1G
    2K       83   8.28M    556K   1.02M     261K   26.6G   1.66G   3.13G
    4K       50   5.27M    196K    494K     278K   28.6G   1.03G   2.64G
    8K       58   6.51M    469K    777K     551K   61.5G   4.64G   7.48G
   16K       43    562K   57.5K    393K     964K   12.5G   1.27G   8.61G
   32K       15    651K    283K    384K     579K   24.9G   11.2G   14.9G
   64K        3    130K   89.5K    110K     201K   8.76G   6.05G   7.36G
  128K        3    260K   11.5K   27.4K     486K   40.6G   1.82G   4.34G
  256K        3    256K   8.50K   27.4K    1.21M   95.8G   3.22G   11.1G
  512K       32      4M    128K    292K    17.4M   2.17T   69.4G    159G
    1M       15   1.75M   57.5K    137K    16.7M   1.88T   62.6G    152G
 Total    9.42G   1.17P   1.07P   1.07P    11.3G   1.40P   1.27P   1.28P

Are there any other checks I can do?



[HoneyBadger]

Comparing to your initial post here:

https://www.truenas.com/community/t...-there-are-file-deletions.113608/#post-786375

Code:

 dedup: DDT entries 5605103970, size 605B on disk, 195B in core

your table now sits at

Code:

dedup: DDT entries 10111421243, size 582B on disk, 188B in core

Your deduplication table has nearly doubled in size to ~1.7T (in RAM) and 5.35T across your two disks, which is overflowing the dedup SSDs again.



[vaschthestampede]

Help me understand how these numbers are calculated.

I'm having trouble figuring out how to anticipate needing new disks for dedup.
