SOLVED Cannot get Samba Share to work no matter what

[Vexorify]

I've recently just installed TrueNAS (13.0-U1.1) on an old PC for storage purposes. I imported my ZFS pool from a previous FreeBSD installation and there was no issue. I setup a new share within that pool, setup a user and made the user the owner of that new share. I can access the main directory of the TrueNAS just fine, but trying to access the share itself does not work at all. I tried searching multiple threads, but none of the solutions have worked so far. I've tried updating to 13.0-U2 as I saw there was a fix for SMB shares, it still didn't work. I've tried downgrading to 12.0-U8.1 via fresh install and still does not work.

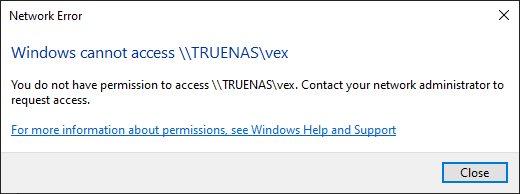

(I've also tried via the IP and it still gives me this error)

Does anyone have a clue as to why this isn't working?



[Davvo]

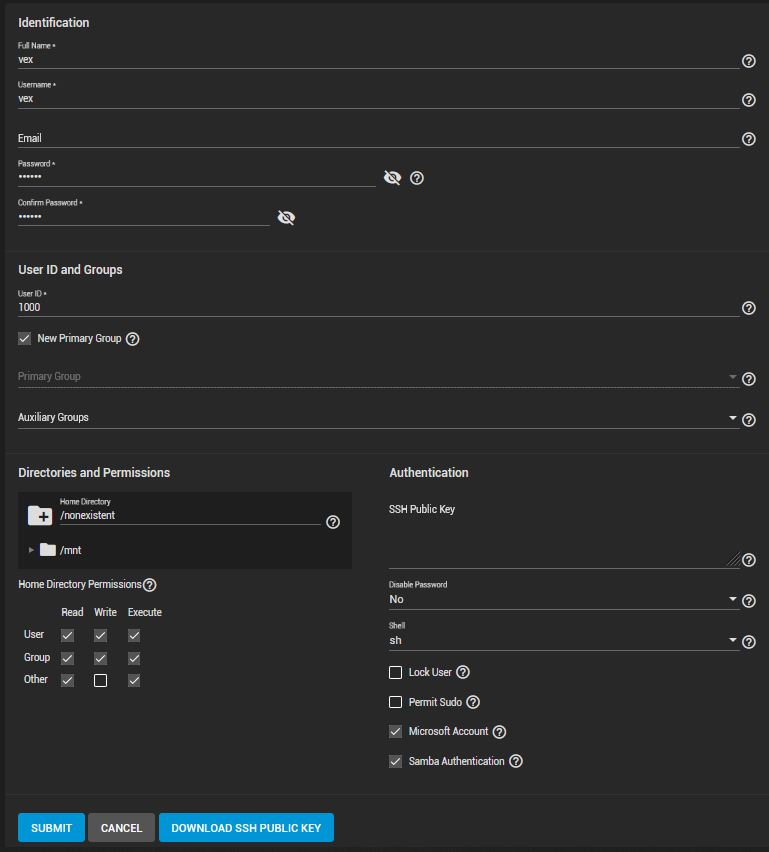

Is your Windows username and password the same as the user you created?
If not, disabiling Windows Account should fix it.



[Vexorify]

Is your Windows username and password the same as the user you created?
If not, disabiling Windows Account should fix it.

I had the same user but different password before, but I did create that new account above which is different than my windows user.



[Vexorify]

I had the same user but different password before, but I did create that new account above which is different than my windows user.

Forgot to add, I did attempt disabling Microsoft Account and same error pops up



[Davvo]

Forgot to add, I did attempt disabling Microsoft Account and same error pops up

Did you reboot your Windows machine?



[Vexorify]

Did you reboot your Windows machine?

Yep, tried two different Windows machines. Are my permissions wrong somewhere?



[Davvo]

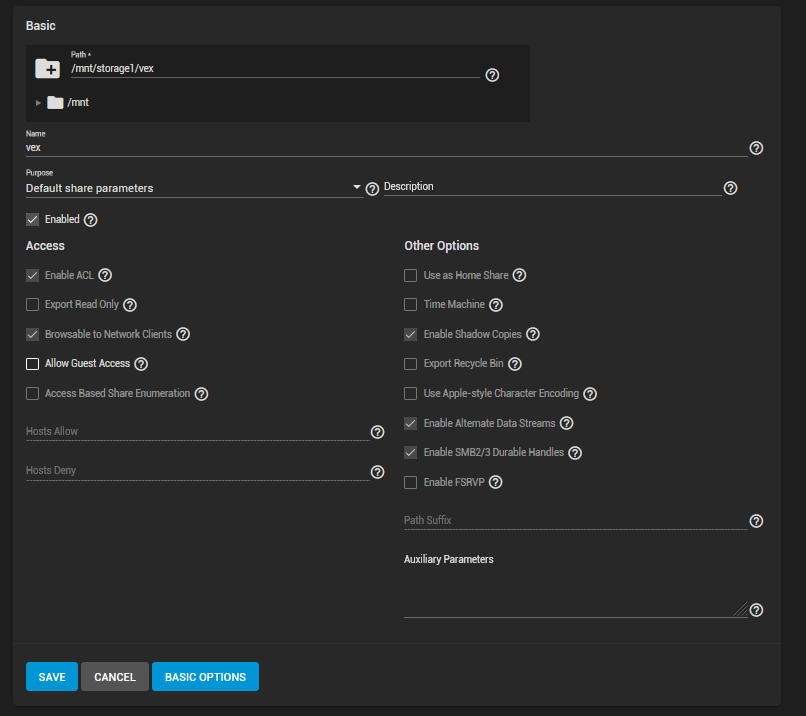

Can you post a screenshot of your Share Config? It's under Shares -> Windows Share (SMB)

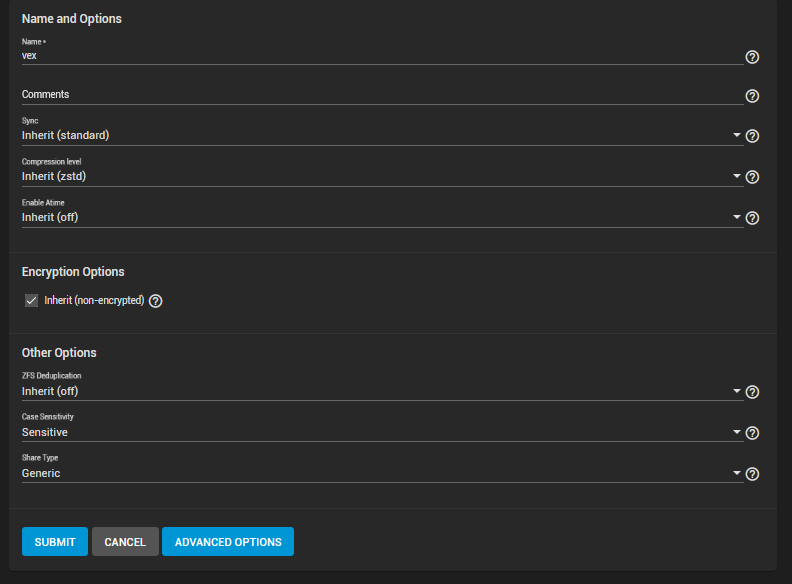

Edit: is it the second picture? I am not used to basic options view.



[LarsR]

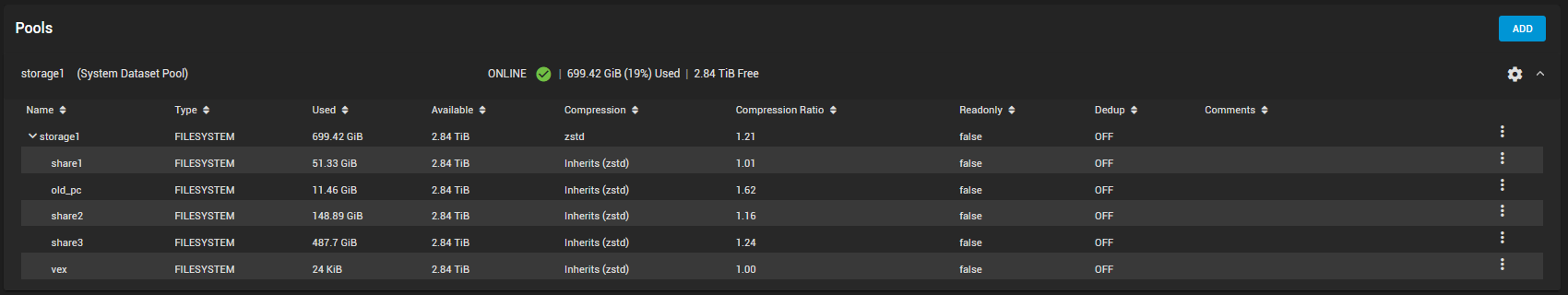

A Screenshot of the Datasets ACL's would also be good. If you've never edited the ACL's of the Dataset it's expected to not allow acces to it.



[Vexorify]

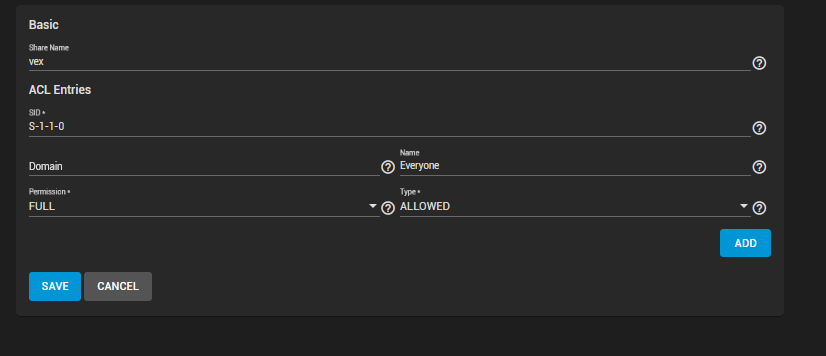

Can you post a screenshot of your Share Config? It's under Shares -> Windows Share (SMB)
Edit: is it the second picture? I am not used to basic options view.



[Vexorify]

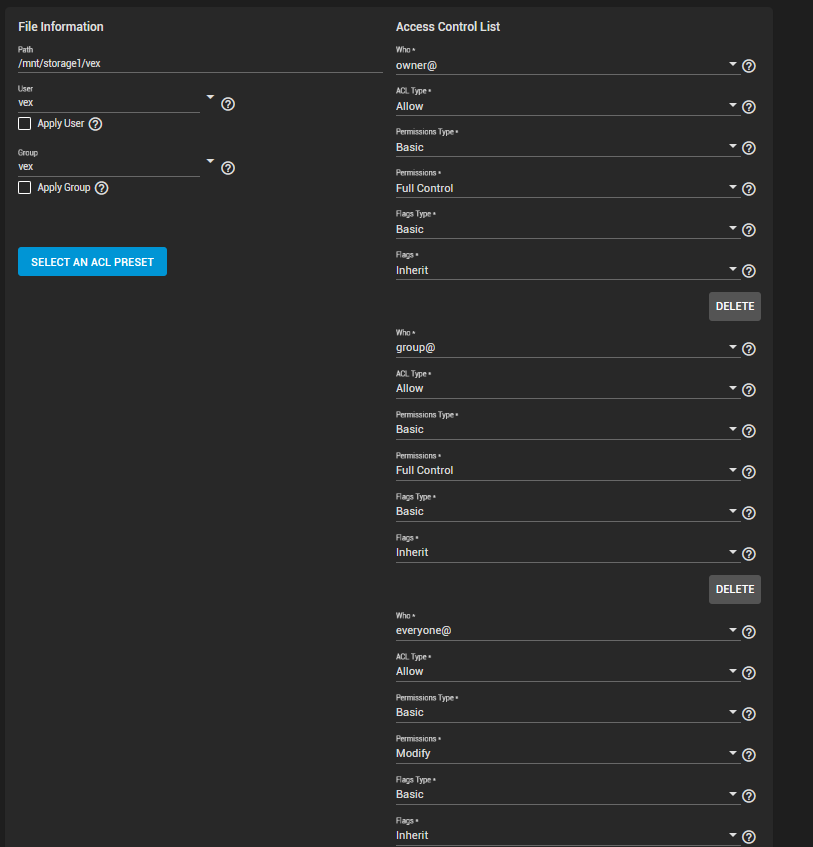

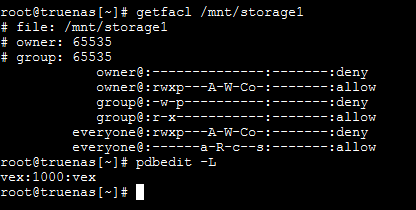

A Screenshot of the Datasets ACL's would also be good. If you've never edited the ACL's of the Dataset it's expected to not allow acces to it.



[Vexorify]

Here is my output when I run the testparm command

Code:

Welcome to TrueNAS

Warning: settings changed through the CLI are not written to
the configuration database and will be reset on reboot.

root@truenas[~]# testparm -s -v
Load smb config files from /usr/local/etc/smb4.conf
Loaded services file OK.
Weak crypto is allowed
Server role: ROLE_STANDALONE

# Global parameters
[global]
        abort shutdown script =
        add group script =
        additional dns hostnames =
        add machine script =
        addport command =
        addprinter command =
        add share command =
        add user script =
        add user to group script =
        ads dns update = Yes
        afs token lifetime = 604800
        afs username map =
        aio max threads = 2
        algorithmic rid base = 1000
        allow dataset creation = Yes
        allow dcerpc auth level connect = No
        allow dns updates = secure only
        allow insecure wide links = No
        allow nt4 crypto = No
        allow trusted domains = Yes
        allow unsafe cluster upgrade = No
        apply group policies = No
        async smb echo handler = No
        auth event notification = No
        auto services =
        binddns dir = /var/run/samba4/bind-dns
        bind interfaces only = Yes
        browse list = Yes
        cache directory = /var/run/samba4
        change notify = Yes
        change share command =
        check password script =
        cldap port = 389
        client ipc max protocol = default
        client ipc min protocol = default
        client ipc signing = default
        client lanman auth = No
        client ldap sasl wrapping = sign
        client max protocol = default
        client min protocol = SMB2_02
        client NTLMv2 auth = Yes
        client plaintext auth = No
        client schannel = Yes
        client signing = default
        client use spnego principal = No
        client use spnego = Yes
        cluster addresses =
        clustering = No
        config backend = file
        config file =
        create krb5 conf = Yes
        ctdbd socket =
        ctdb locktime warn threshold = 0
        ctdb timeout = 0
        cups connection timeout = 30
        cups encrypt = No
        cups server =
        dcerpc endpoint servers = epmapper, wkssvc, rpcecho, samr, netlogon, lsarpc, drsuapi, dssetup, unixinfo, browser, eventlog6, backupkey, dnsserver
        deadtime = 10080
        debug class = No
        debug encryption = No
        debug hires timestamp = Yes
        debug pid = No
        debug prefix timestamp = No
        debug uid = No
        dedicated keytab file =
        default service =
        defer sharing violations = Yes
        delete group script =
        deleteprinter command =
        delete share command =
        delete user from group script =
        delete user script =
        dgram port = 138
        disable netbios = No
        disable spoolss = Yes
        dns forwarder =
        dns proxy = No
        dns update command = /usr/local/sbin/samba_dnsupdate
        dns zone scavenging = No
        domain logons = No
        domain master = Auto
        dos charset = CP850
        dsdb event notification = No
        dsdb group change notification = No
        dsdb password event notification = No
        enable asu support = No
        enable core files = Yes
        enable privileges = Yes
        enable web service discovery = Yes
        encrypt passwords = Yes
        enhanced browsing = Yes
        enumports command =
        eventlog list =
        get quota command =
        getwd cache = Yes
        gpo update command = /usr/local/sbin/samba-gpupdate
        guest account = nobody
        homedir map = auto.home
        host msdfs = Yes
        hostname lookups = No
        idmap backend = tdb
        idmap cache time = 604800
        idmap gid =
        idmap negative cache time = 120
        idmap uid =
        include system krb5 conf = Yes
        init logon delay = 100
        init logon delayed hosts =
        interfaces =
        iprint server =
        keepalive = 300
        kerberos encryption types = all
        kerberos method = default
        kernel change notify = No
        kpasswd port = 464
        krb5 port = 88
        lanman auth = No
        large readwrite = Yes
        ldap admin dn =
        ldap connection timeout = 2
        ldap debug level = 0
        ldap debug threshold = 10
        ldap delete dn = No
        ldap deref = auto
        ldap follow referral = Auto
        ldap group suffix =
        ldap idmap suffix =
        ldap machine suffix =
        ldap max anonymous request size = 256000
        ldap max authenticated request size = 16777216
        ldap max search request size = 256000
        ldap page size = 1000
        ldap passwd sync = no
        ldap replication sleep = 1000
        ldap server require strong auth = Yes
        ldap ssl = start tls
        ldap suffix =
        ldap timeout = 15
        ldap user suffix =
        lm announce = Auto
        lm interval = 60
        load printers = No
        local master = Yes
        lock directory = /var/run/samba4
        lock spin time = 200
        log file =
        logging = file
        log level = 1
        log nt token command =
        logon drive =
        logon home = \\%N\%U
        logon path = \\%N\%U\profile
        logon script =
        log writeable files on exit = No
        lpq cache time = 30
        lsa over netlogon = No
        machine password timeout = 604800
        mangle prefix = 1
        mangling method = hash2
        map to guest = Never
        max disk size = 0
        max log size = 5120
        max mux = 50
        max open files = 466605
        max smbd processes = 0
        max stat cache size = 512
        max ttl = 259200
        max wins ttl = 518400
        max xmit = 16644
        mdns name = netbios
        message command =
        min domain uid = 1000
        min receivefile size = 0
        min wins ttl = 21600
        mit kdc command =
        multicast dns register = Yes
        name cache timeout = 660
        name resolve order = lmhosts wins host bcast
        nbt client socket address = 0.0.0.0
        nbt port = 137
        ncalrpc dir = /var/run/samba4/ncalrpc
        netbios aliases =
        netbios name = TRUENAS
        netbios scope =
        neutralize nt4 emulation = No
        NIS homedir = No
        nmbd bind explicit broadcast = Yes
        nsupdate command = /usr/local/bin/samba-nsupdate -g
        ntlm auth = ntlmv2-only
        nt pipe support = Yes
        ntp signd socket directory = /var/run/samba4/ntp_signd
        nt status support = Yes
        null passwords = No
        obey pam restrictions = No
        old password allowed period = 60
        oplock break wait time = 0
        os2 driver map =
        os level = 20
        pam password change = No
        panic action =
        passdb backend = tdbsam
        passdb expand explicit = No
        passwd chat = *new*password* %n\n *new*password* %n\n *changed*
        passwd chat debug = No
        passwd chat timeout = 2
        passwd program =
        password hash gpg key ids =
        password hash userPassword schemes =
        password server = *
        perfcount module =
        pid directory = /var/run/samba4
        preferred master = Auto
        prefork backoff increment = 10
        prefork children = 4
        prefork maximum backoff = 120
        preload modules =
        printcap cache time = 750
        printcap name =
        private dir = /var/db/system/samba4/private
        raw NTLMv2 auth = No
        read raw = Yes
        realm =
        registry shares = Yes
        reject md5 clients = No
        reject md5 servers = No
        remote announce =
        remote browse sync =
        rename user script =
        require strong key = Yes
        reset on zero vc = No
        restrict anonymous = 2
        root directory =
        rpc big endian = No
        rpc server dynamic port range = 49152-65535
        rpc server port = 0
        samba kcc command = /usr/local/sbin/samba_kcc
        security = AUTO
        server max protocol = SMB3
        server min protocol = SMB2_02
        server multi channel support = No
        server role = standalone server
        server schannel = Yes
        server services = s3fs, rpc, nbt, wrepl, ldap, cldap, kdc, drepl, winbindd, ntp_signd, kcc, dnsupdate, dns
        server signing = default
        server string = Samba 4.13.17
        set primary group script =
        set quota command =
        share backend = classic
        show add printer wizard = Yes
        shutdown script =
        smb2 disable lock sequence checking = No
        smb2 disable oplock break retry = No
        smb2 leases = Yes
        smb2 max credits = 8192
        smb2 max read = 8388608
        smb2 max trans = 8388608
        smb2 max write = 8388608
        smbd profiling level = off
        smb passwd file = /var/db/system/samba4/private/smbpasswd
        smb ports = 445 139
        socket options = TCP_NODELAY
        spn update command = /usr/local/sbin/samba_spnupdate
        stat cache = Yes
        state directory = /var/db/system/samba4
        svcctl list =
        syslog = 1
        syslog only = No
        template homedir = /home/%D/%U
        template shell = /bin/false
        time server = No
        timestamp logs = Yes
        tls cafile = tls/ca.pem
        tls certfile = tls/cert.pem
        tls crlfile =
        tls dh params file =
        tls enabled = Yes
        tls keyfile = tls/key.pem
        tls priority = NORMAL:-VERS-SSL3.0
        tls verify peer = as_strict_as_possible
        truenas passive controller = No
        unicode = Yes
        unix charset = UTF-8
        unix extensions = No
        unix password sync = No
        use mmap = Yes
        username level = 0
        username map =
        username map cache time = 0
        username map script =
        usershare allow guests = No
        usershare max shares = 0
        usershare owner only = Yes
        usershare path = /var/db/system/samba4/usershares
        usershare prefix allow list =
        usershare prefix deny list =
        usershare template share =
        utmp = No
        utmp directory =
        winbind cache time = 300
        winbindd socket directory = /var/run/samba4/winbindd
        winbind enum groups = No
        winbind enum users = No
        winbind expand groups = 0
        winbind max clients = 200
        winbind max domain connections = 1
        winbind nested groups = Yes
        winbind netbios alias spn = Yes
        winbind normalize names = No
        winbind nss info = template
        winbind offline logon = No
        winbind reconnect delay = 30
        winbind refresh tickets = No
        winbind request timeout = 60
        winbind rpc only = No
        winbind scan trusted domains = Yes
        winbind sealed pipes = Yes
        winbind separator = \
        winbind status fifo = No
        winbind use default domain = No
        winbind use krb5 enterprise principals = No
        wins hook =
        wins proxy = No
        wins server =
        wins support = No
        workgroup = WORKGROUP
        write raw = Yes
        wtmp directory =
        zeroconf name =
        idmap config *: range = 90000001-100000000
        idmap config * : backend = tdb
        access based share enum = No
        acl allow execute always = No
        acl check permissions = Yes
        acl group control = No
        acl map full control = Yes
        administrative share = No
        admin users =
        afs share = No
        aio read size = 1
        aio write behind =
        aio write size = 1
        allocation roundup size = 0
        available = Yes
        blocking locks = Yes
        block size = 1024
        browseable = Yes
        case sensitive = Auto
        check parent directory delete on close = No
        comment =
        copy =
        create mask = 0744
        csc policy = manual
        cups options =
        default case = lower
        default devmode = Yes
        delete readonly = No
        delete veto files = No
        dfree cache time = 0
        dfree command =
        directory mask = 0755
        directory name cache size = 0
        dmapi support = No
        dont descend =
        dos filemode = Yes
        dos filetime resolution = No
        dos filetimes = Yes
        durable handles = Yes
        ea support = Yes
        fake directory create times = No
        fake oplocks = No
        follow symlinks = Yes
        force create mode = 0000
        force directory mode = 0000
        force group =
        force printername = No
        force unknown acl user = No
        force user =
        fstype = NTFS
        guest ok = No
        guest only = No
        hide dot files = Yes
        hide files =
        hide new files timeout = 0
        hide special files = No
        hide unreadable = No
        hide unwriteable files = No
        hosts allow =
        hosts deny =
        include =
        inherit acls = No
        inherit owner = no
        inherit permissions = No
        invalid users =
        kernel dosmodes = No
        kernel oplocks = No
        kernel share modes = Yes
        level2 oplocks = Yes
        locking = Yes
        lppause command =
        lpq command = lpq -P'%p'
        lpresume command =
        lprm command = lprm -P'%p' %j
        magic output =
        magic script =
        mangled names = illegal
        mangling char = ~
        map acl inherit = No
        map archive = Yes
        map hidden = No
        map readonly = no
        map system = No
        max connections = 0
        max print jobs = 1000
        max reported print jobs = 0
        min print space = 0
        msdfs proxy =
        msdfs root = No
        msdfs shuffle referrals = No
        nt acl support = Yes
        ntvfs handler = unixuid, default
        oplocks = Yes
        path =
        posix locking = Yes
        postexec =
        preexec =
        preexec close = No
        preserve case = Yes
        printable = No
        print command = lpr -r -P'%p' %s
        printer name =
        printing = bsd
        printjob username = %U
        print notify backchannel = No
        queuepause command =
        queueresume command =
        read list =
        read only = Yes
        root postexec =
        root preexec =
        root preexec close = No
        short preserve case = Yes
        smbd async dosmode = No
        smbd getinfo ask sharemode = Yes
        smbd max async dosmode = 0
        smbd max xattr size = 2097152
        smbd search ask sharemode = Yes
        smb encrypt = default
        spotlight = No
        spotlight backend = noindex
        store dos attributes = Yes
        strict allocate = No
        strict locking = Auto
        strict rename = No
        strict sync = Yes
        sync always = No
        use client driver = No
        use sendfile = No
        valid users =
        veto files =
        veto oplock files =
        vfs objects =
        volume =
        wide links = No
        write list =


[vex]
        ea support = No
        kernel share modes = No
        path = /mnt/storage1/vex
        posix  locking = No
        read only = No
        vfs objects = streams_xattr shadow_copy_zfs ixnas aio_fbsd
        nfs4:chown = true
        wide links = No



[anodos]

What is output of

Code:

getfacl /mnt/storage1
pdbedit -L



[Vexorify]

What is output of

Code:

getfacl /mnt/storage1
pdbedit -L



[anodos]

okay. The issue is your permissions on /mnt/storage1. It looks like you may have manually run chmod 770 on that path, which breaks access to everything on your pool.

chmod 755 /mnt/storage1 should fix your SMB shares.



[Vexorify]

okay. The issue is your permissions on /mnt/storage1. It looks like you may have manually run chmod 770 on that path, which breaks access to everything on your pool.

chmod 755 /mnt/storage1 should fix your SMB shares.

This fixed it, thank you very much!
