Here at iX, we’re big fans of open-source alternatives to commercial software - so when we heard that LinusTechTips was featuring the open-source media library manager Jellyfin on their YouTube channel, we were excited to check it out. Unfortunately, there’s one piece missing from the puzzle -...
Why use a directory structure for a dataset? After all, the dataset is mounted in /mnt. The root / directory uses the appropriate unix structure. I believe there is no need to use unix directory structure in dataset.

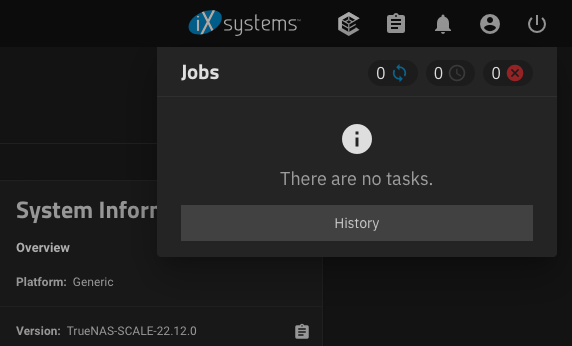

My Bluefin 22.12.0 upgrade from Angelfish 22.02.4 was flawless. I'm going to post all steps I took during my TrueNAS Scale Build upgrade, as well other improvements and optimizations I implemented, as reference for other users.
For related inquiries or questions involving formatted code, please post the output using [CODE]command[/CODE]. See more details into Linux Terminal Conventions section, below.
My Server Specs
Dell R720xd with 12x HGST Ultrastar He8 Helium (HUH728080ALE601) 8TB for default pool expandability
2x E5-2620 v2 @ 2.10GHz CPU
16x 16GB 2Rx4 PC3-12800R DDR3-1600 ECC, for a total of 256GB RAM
2x Samsung 870 EVO 500GB SATA SSD for software pool hosting Kubernetes applications
1x NetApp DS4246 enclosure with 12x HGST Ultrastar He8 Helium (HUH728080ALE601) 8TB for default pool expandability
Linux Terminal Conventions
You will find various Linux terminal commands present into this guide. Since Scale is a Debian Linux based OS, it is recommended you become familiar with the Linux command-line environment and terminal. It will help you troubleshoot several issues, a lot easier.
In a Linux command-line environment, there are two types of prompts at the beginning of an executed command:
Dollar sign ($) means you are a normal non-priviledged user
Hash (#) means you are the system administrator (root)
When an user posts into forums a command starting with the hash #, everyone understands that command was executed as root user:
Code:
$ ssh -l user uranus.lan
$ id
uid=3000(user) gid=3000(user) groups=3000(user),544(builtin_administrators),568(apps)
$ sudo su -
[sudo] password for user:
# id
uid=0(root) gid=0(root) groups=0(root),544(builtin_administrators)
When you post a terminal command into forums, it is important to use the [CODE]command[/CODE], for readability:
In the above example, the command was executed as non-root user and escalated the execution as root user with sudo.

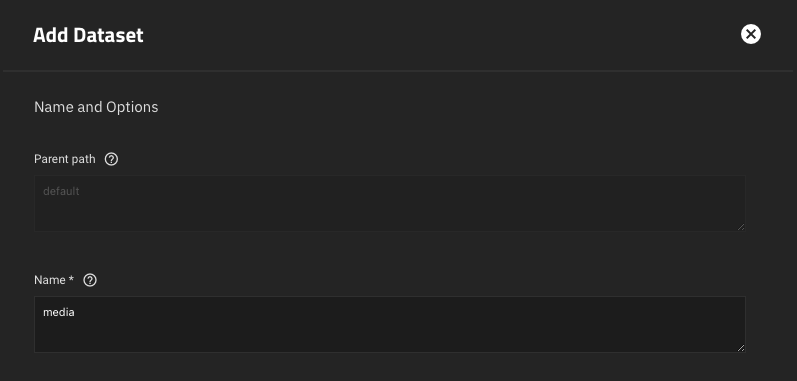

Pools and Datasets
It is strongly recommended to separate your media storage, from your applications storage. Also, is preferable that root defined pool dataset names follow the Linux standard naming conventions. Users familiar with FHS, will find this beneficial.

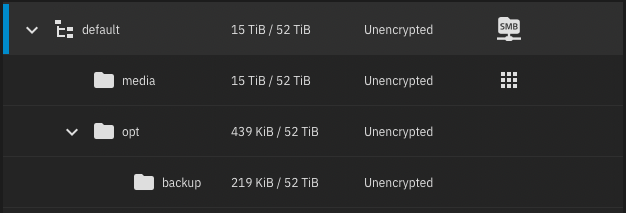

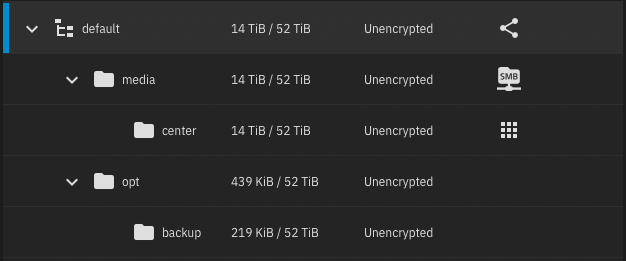

My pools and datasets setup:
default pool, using RaidZ2 CMR disks:
media dataset used for SMB share access
center dataset used for storage of media related files and accessed by multiple Kubernetes applications

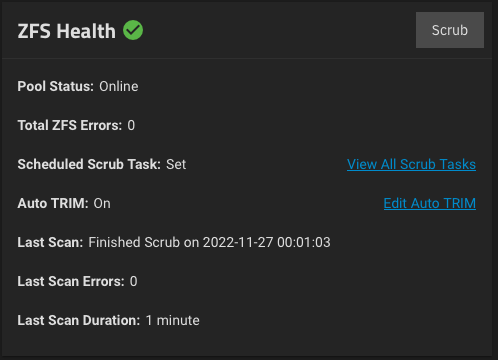

TRIM is a command that helps Scale operating system know precisely which data blocks are no longer needed and can be deleted, or marked as free for rewriting, on SSDs. Whenever a delete command is issued, TRIM immediately wipes the pages or blocks where files are stored. Next time the operating system tries to write new data in that area, it does not have to wait first to delete it.

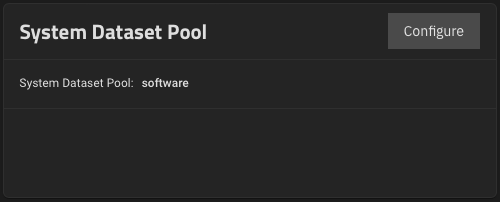

To take advantage of your SSDs speed, set the System Dataset Pool to software pool:

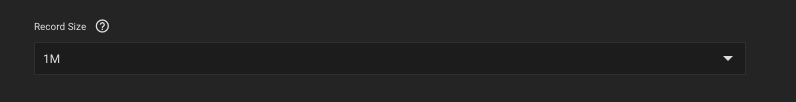

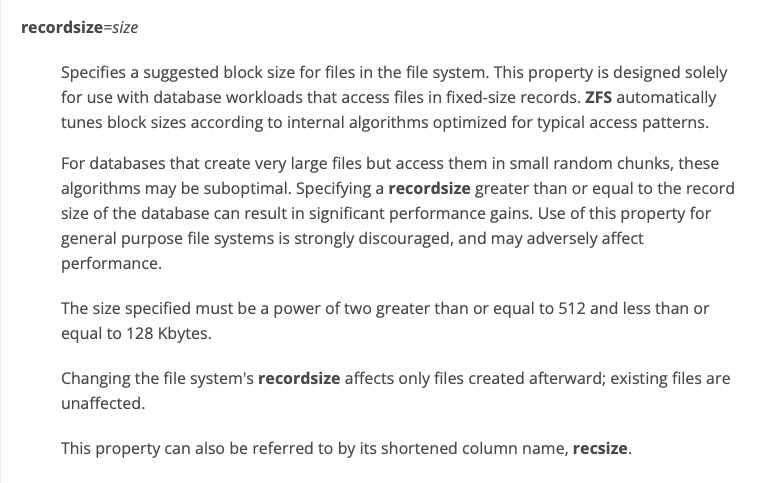

Datasets should have the recordsize set according your specific dataset usage. For example, if media files larger than 5MB are stored on a dataset, recordsize should be set to 1M:
On the other hand, a MySQL InnoDB database stored on a dataset will greatly benefit from a recordsize set to 16K. That is because InnoDB defaults to a 16KB page size, so most operations will be done in individual 16K chunks of data.
If recordsize is a lot smaller than the size of the typical storage operation within the dataset, fragmentation will be greatly increased, leading to unnecessary performance. If recordsize is much higher than the size of the typical storage operation within the dataset, latency will be greatly increased. See openzfs performance tuning, for reference.
To determine the correct recordsize, you can calculate the average file size for a specific dataset with this command:
Code:
# find /mnt/software/ix-applications -type f -ls | awk '{s+=$7} END {printf "%.0f\n", s/NR}' | numfmt --to=iec
43K
Note that changing the recordsize affects only newly created files, existing files are unaffected. Therefore, is important to move your data to a new dataset with the correct recordsize. See man zfs, for reference.
Pool Disks Swap Partition
In Bluefin, each pool storage device has a predefined Linux swap partition of 2GB, used mainly to allow the use of slightly-different disk capacities in a physical setup. For example, if a replacement disk capacity is slightly smaller than other pool disks, the swap partition can be used to allocate additional space to ZFS partition. Thank you @Arwen and @winnielinnie for the useful information.
In certain cases, it might be necessary to change the default Linux swap partition size. Default setting in Bluefin:
The replacement will trigger an automatic resilvering, this process will take several hours.
Pool Disks or Reporting DIF Warnings
Is really important to follow this detailed guide, in today's world, reliable data storage is the most valuable asset. Recent versions of Linux kernel properly detect badly formatted disks and warn you about it.
Non-Root Local User
In Bluefin, non-root local user UID starts with 3000, versus Angelfish UID 1000. It is recommended after Bluefin upgrade to delete old non-local users and re-create them with the new UID structure, to avoid future permission conflicts. Prior upgrade, make sure your root user has the password enabled into Angelfish UI. Once upgraded to Bluefin, create a non-root local user to use it as UI login. On a clean install, admin user is created with UID 950 and root user password is disabled.
Standard Linux user creation defines the same userid and groupid, then you can add additional groupids to your user. A standard Linux user also requires a /home directory defined, in your case /mnt/pool/dataset/username. Auxiliary groupid 41 is builtin_administrators and auxiliary groupid 96 is apps (needed for Plex), names showing as ids will be fixed in Bluefin 22.12.1.

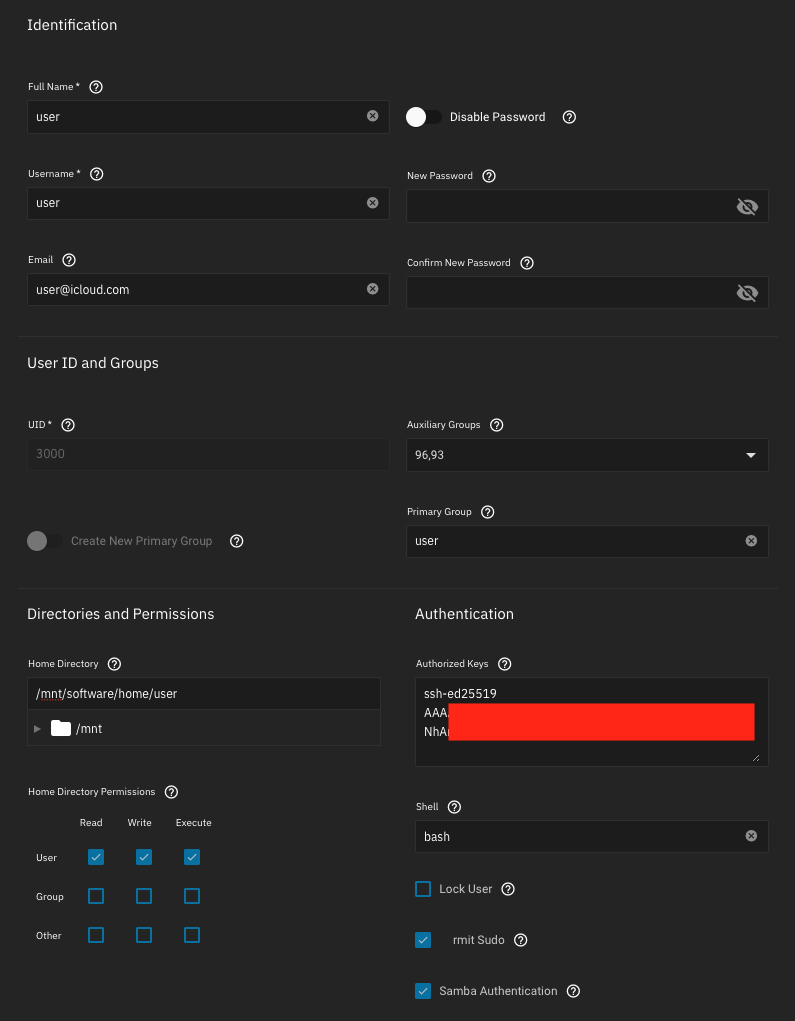

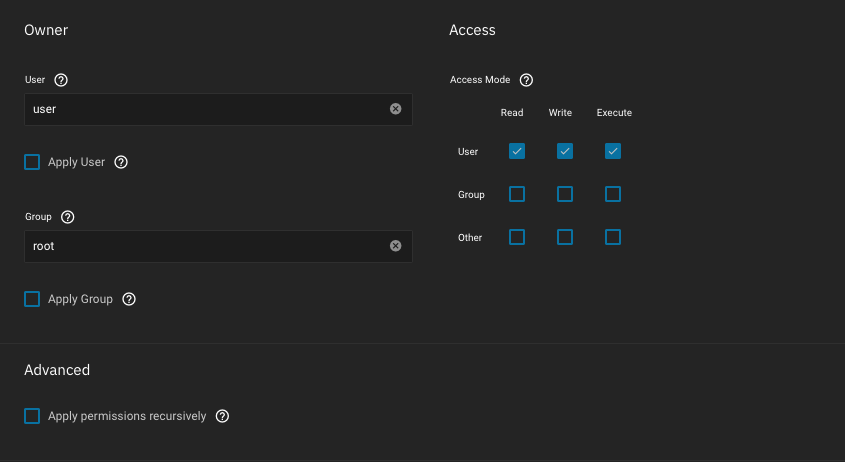

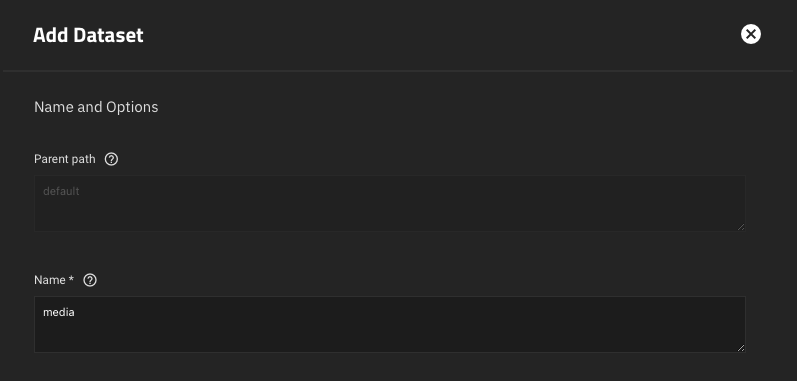

Create a /mnt/pool/dataset/username dataset (e.g. /mnt/software/home/user), where your user private information will be stored, then add a new user with following settings:
Make sure you set a valid email address, needed for testing the email alerts (see below Email Alerts section). The new UID 3000 can be used into runAsUser setting for all Scale applications, see below Kubernetes Apps Security section.
You should also generate a ssh key, login into your server as user and run the following command:
Code:
$ pwd
/mnt/software/home/user
$ ssh-keygen -t ed25519 -C 'user@icloud.com'
Generating public/private ed25519 key pair.
Enter file in which to save the key (/mnt/software/home/user/.ssh/id_ed25519): [press Enter]
Enter passphrase (empty for no passphrase): [press Enter]
Enter same passphrase again: [press Enter]
Your identification has been saved in /mnt/software/home/user/.ssh/id_ed25519
Your public key has been saved in /mnt/software/home/user/.ssh/id_ed25519.pub
The key fingerprint is:
SHA256:kpfu/eLIwWkXyujcDQfUDX/FqAX0UoJUnabz8XR9esc user@icloud.com
The key's randomart image is:
+--[ED25519 256]--+
| .o+=o.+.|
| ..+ +*..|
| . . +=o .|
| o . +o. =|
| o S . o *o|
| B + . o E|
| . X o ..|
| o = O. |
| o =.+o. |
+----[SHA256]-----+
$ mv .ssh/id_ed25519.pub .ssh/authorized_keys
Use your new id_ed25519 private key to access the server, the authorized_keys file content will automatically show into Authorized Keys UI field.

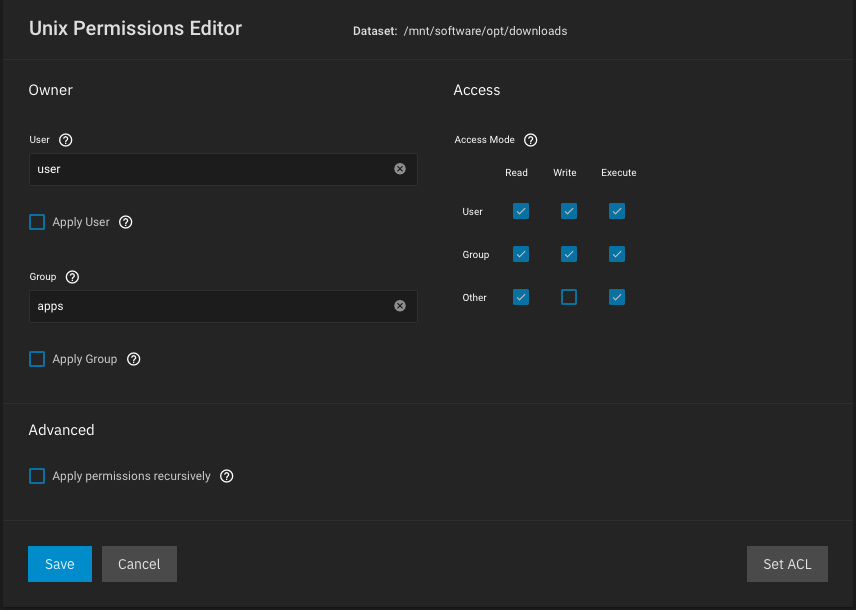

Next, recursively re-apply the correct user/group permissions to your /mnt/pool/dataset/username dataset:
Data Protection
Configure S.M.A.R.T self-tests to measure the storage devices health, predict possible device failures and provide notifications on unsafe values. S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) is a supplementary component built into modern storage devices through which devices monitor, store, and analyze the health of their operation.
There are four types of self-tests that a device can execute, all safe to user data:
SHORT - runs tests that have a high probability of detecting device problems
LONG - same as SHORT check but with no time limit and with complete device surface examination
CONVEYANCE - identifies if damage incurred during transportation of the device
OFFLINE - runs an immediate offline Short self-test, in foreground

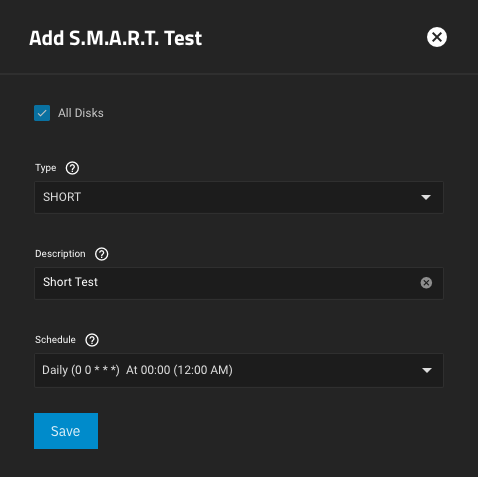

To configure a daily short SHORT self-test, go to Data Protection > S.M.A.R.T Tests:
It is recommended to run a daily SHORT self-test and a bi-monthly LONG self-test, on all your pool disks.

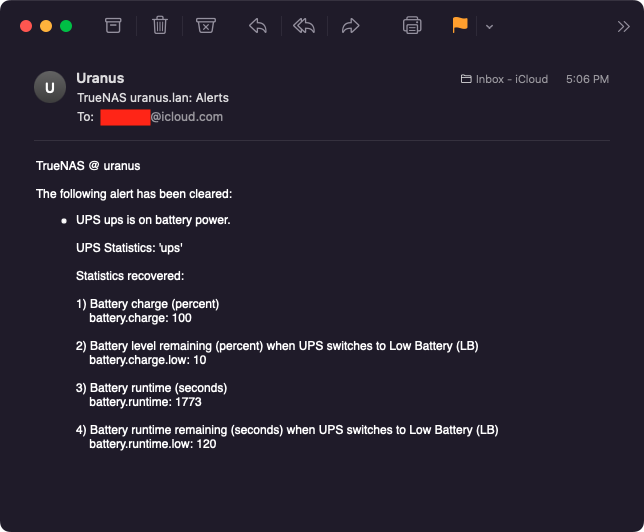

Email Alerts

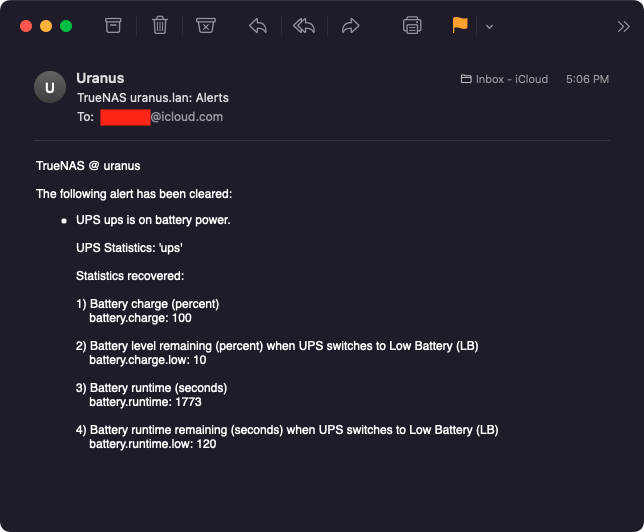

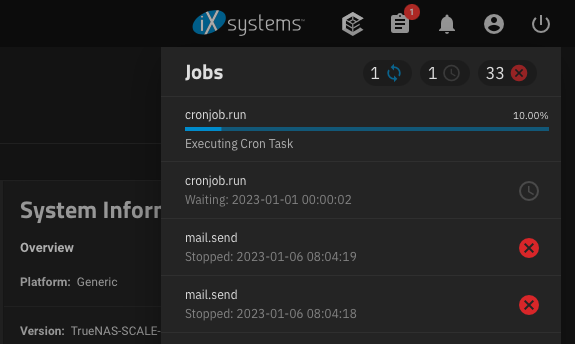

It is extremely important to have functional mail alerts in Scale, in order to receive notifications of a degraded pool or other critical errors. I personally use the Apple iCloud SMTP servers. You cannot send iCloud emails without an application password with software other than Apple products, is a two-factor security feature.

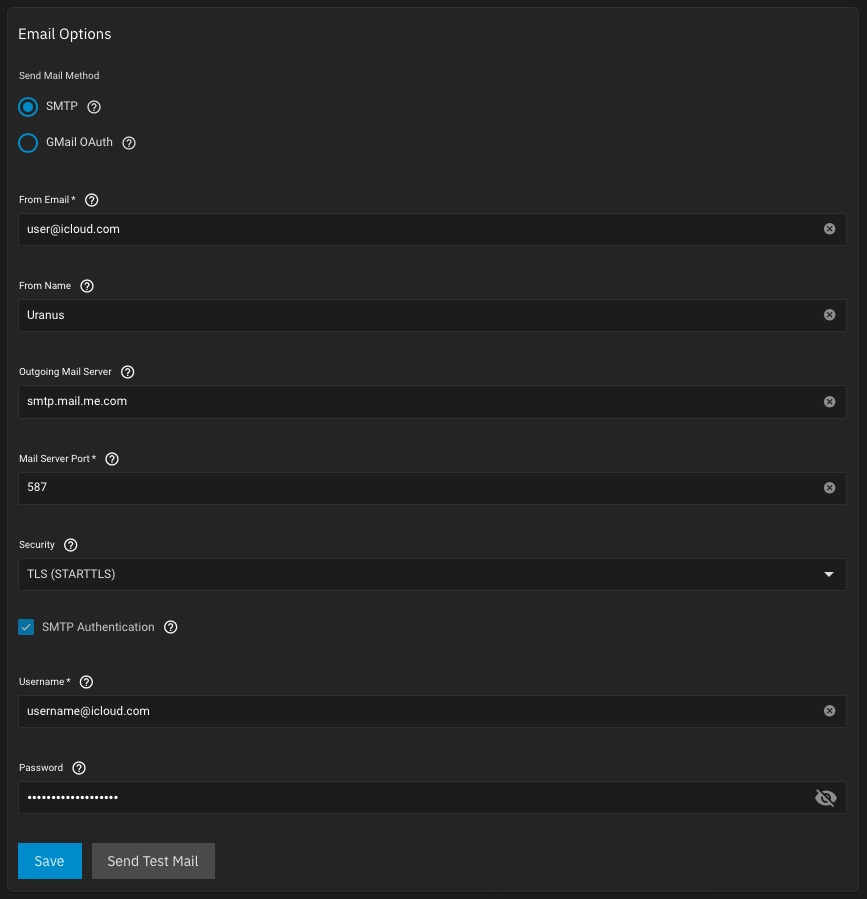

Go to Alerts and select Email from Settings dropdown menu:
The Username must be your true AppleID email account or the linked iCloud alias (which you cannot modify or delete). From Email can be any @icloud.com alias you can create, modify or delete, but must be part of your list of linked emails to main AppleID. For example, you can use user@icloud.com, which is an account alias you created into username@icloud.com AppleID account.

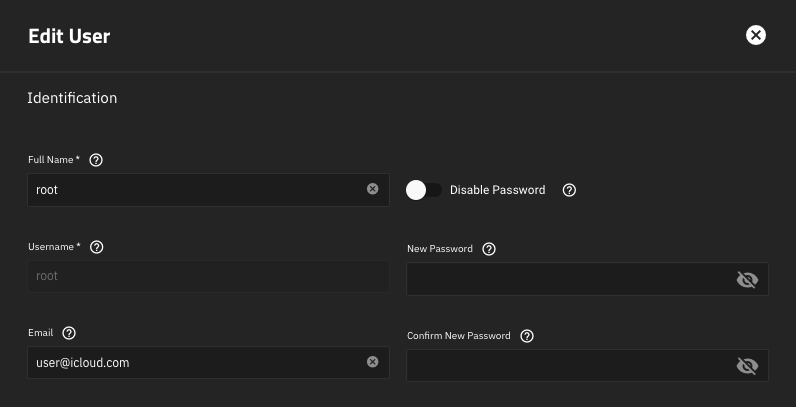

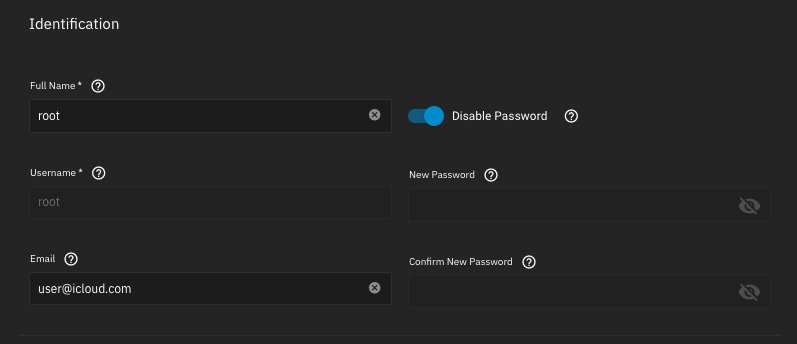

Next, go to Credentials > Local Users > root > Edit and add the email address you used into previous From Email field:
Kubernetes Service

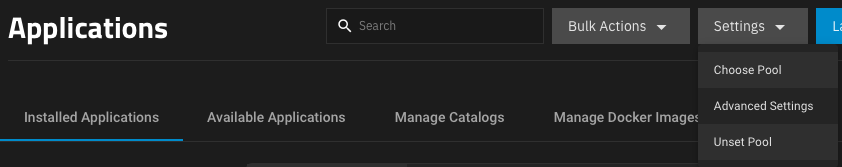

If you get an error message telling you the Kubernetes service is not running or Unable to connect to kubernetes cluster in Bluefin, go to Apps > Settings > Unset Pool. Reboot the server and Set/Choose Pool. Once the pool set, it can take up to 30 minutes until all services are reconfigured, please be patient.
Kubernetes Applications
Is recommended to use the TrueCharts applications, their development team is specialized in Kubernetes charts, the same way iXsystems team is specialized in Scale OS. Beside robust charts, the main advantage TrueCharts applications offer is an uniform installer process. You will find the same familiar settings in each application and the team offers stellar support on their Discord channel, if you have any questions. All related application settings reflected in this guide are taken from their apps, thank you @truecharts for your community support.
Make sure your apps have the following storage types set accordingly.

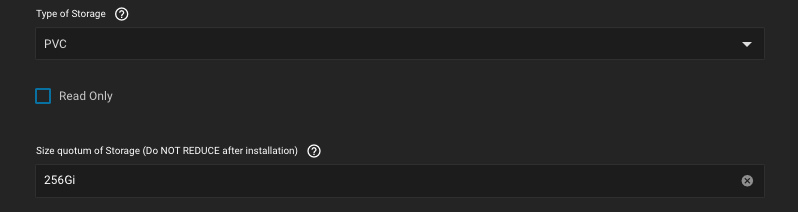

Required default app storage:

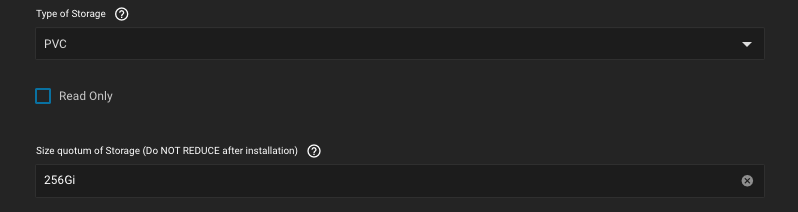

PVC, the simple type is deprecated, never change this type of storage, this is the main cause for application failures

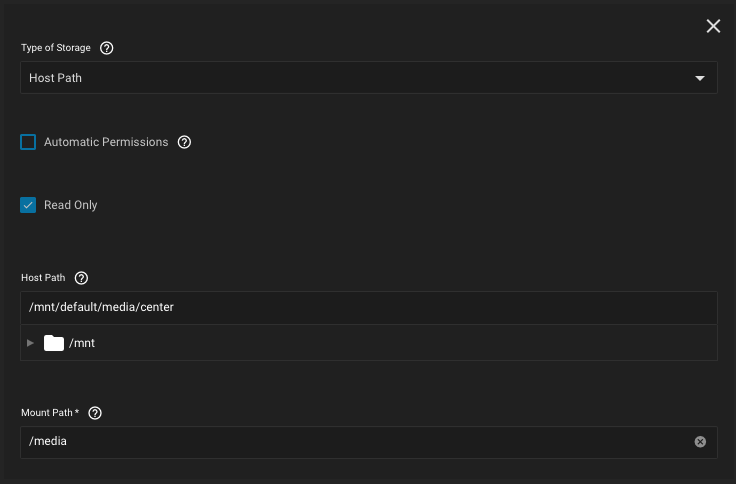

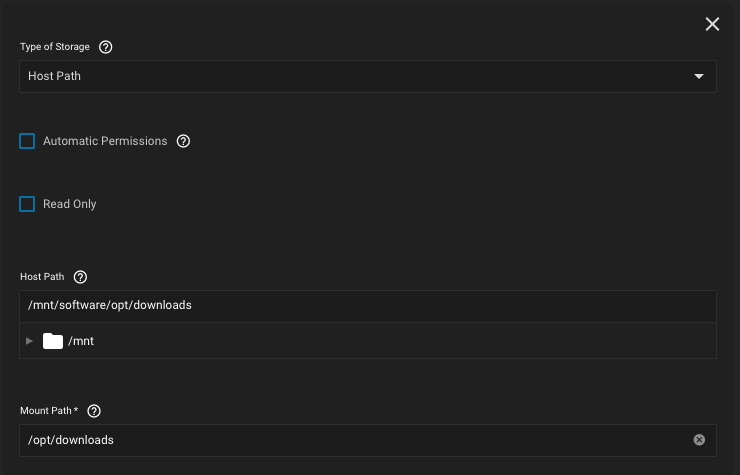

As per Kubernetes documentation, the hostPath volume must be mounted as Read Only. This will also prevent any SMB share mounted on /mnt/default/media dataset to change the file permissions inside containers.
List of directories present into internal /media container directory, which are also present inside /mnt/default/media/center dataset:
Code:
$ ls -lh /media
drwxrwxr-x 8 3000 kah 8 Mar 8 2022 Books
drwxrwxr-x 4 3000 kah 4 Aug 2 00:00 Courses
drwxrwxr-x 4 3000 kah 12 Oct 31 00:00 Documents
drwxrwxr-x 6 3000 kah 6 Dec 15 00:00 Photos
drwxrwxr-x 54 3000 kah 54 Dec 15 20:49 Trash
drwxrwxr-x 4 3000 kah 4 Dec 14 17:57 'TV Recordings'
Bluefin introduces a new non-root admin user, disabling the password for root user. This prohibits the access to application logs and shell, which will be fixed into a future Bluefin release. You can easily access to logs and shell through an ssh terminal, with root user. If you are a Kubernetes administrator, see the Kubernetes External Access section.
List all Kubernetes pods:
Code:
# k3s kubectl get pods -A
Access the TrueCharts Plex application logs:
Code:
# k3s kubectl get pods -n ix-plex
NAME READY STATUS RESTARTS AGE
plex-7d47c9cc4f-dprph 1/1 Running 0 42h
# k3s kubectl logs plex-7d47c9cc4f-dprph -n ix-plex | tail -n 3
udc input failed with 1001
udc input failed with 1011
ERROR: Error decoding audio frame (Invalid data found when processing input)

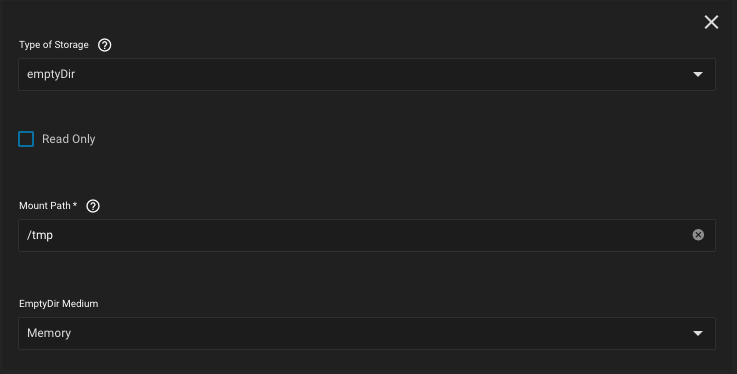

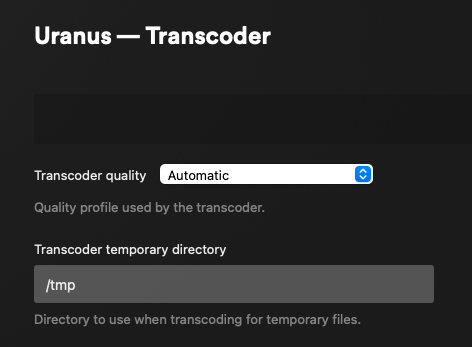

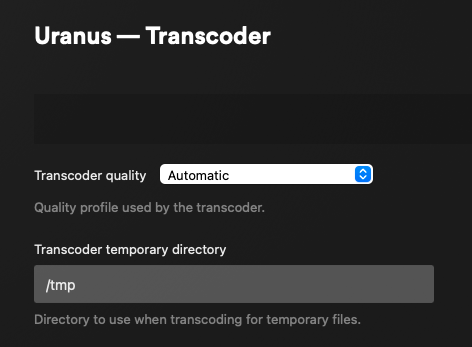

Access the TrueCharts Plex application shell and execute a command, never perform any changes through shell:
Code:
# k3s kubectl exec -it plex-7d47c9cc4f-dprph -n ix-plex -- /bin/sh
$ df -ahT /tmp
Filesystem Type Size Used Avail Use% Mounted on
tmpfs tmpfs 32G 425M 32G 2% /tmp
Kubernetes Applications Security

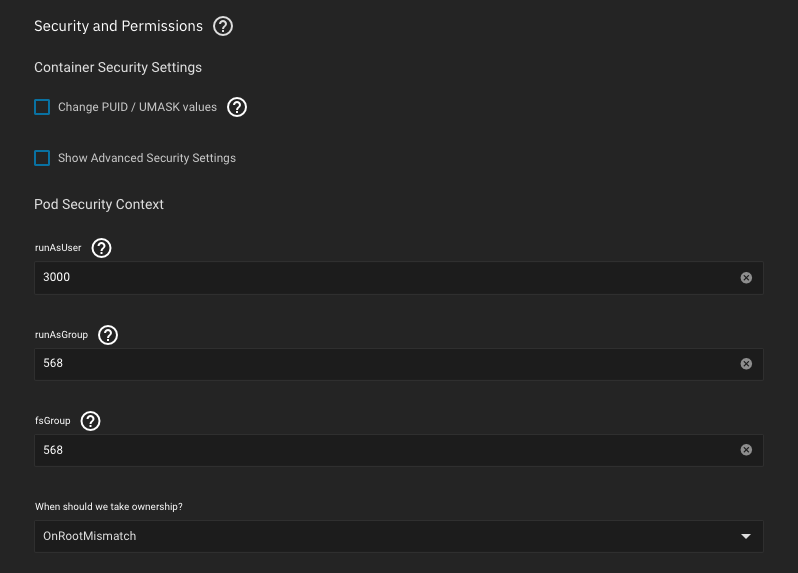

To avoid any file permission issues while sharing the same hostPath with multiple applications and a SMB share, is recommended to set the runAsUser to the non-root local user you use to access the SMB share, in my case UID 3000:
You can always use the default apps (568) user as runAsUser, but you will end-up with mixed permissions, if you manually create a directory or file through a SMB share (logged as non-root local user), which will break your apps file access. Proceed, based on your own needs.
In certain cases, the runAsUser UID change can result in failure to properly apply the UID for all container files:
2022-12-19 19:15:27.197191+00:00 Permission denied: /config/Library/Application Support/Plex Media Server/Preferences.xml
With PVC mounted locally, old UID 1000 is still assigned, instead of UID 3000:
Code:
# ls -lh /mnt/software/tmp-plex
total 512
drwxrwsr-x 3 1000 apps 3 Aug 9 16:33 Library
You have the choice to delete the app and start fresh, or execute the script listed below, to fix the permissions.
Adjust the pool (where ix-application dataset belongs to), app and username script variables (where user should be the name of your UID 3000):
Code:
# id user
uid=3000(user) gid=3000(user) groups=3000(user),568(apps),544(builtin_administrators)
The script has all required failsafe checks in place and is set to use the apps (568)usergroup, which is the default runAsGroup setting into all apps. I recommend to never change the usergroup name, into your applications. Create the script as root:
Code:
cat > ./perms.tool << 'EOF'
#!/usr/bin/env bash
pool='software'
app='plex'
usergroup='apps'
username='user'
if [ $EUID -gt 0 ]; then
echo 'Run perms.tool as root.'
exit 1
fi
if [ ! -x "$(command -v k3s)" ]; then
echo 'k3s is not installed.'
exit 1
fi
if [ ! -x "$(command -v zfs)" ]; then
echo 'zfs is not installed.'
exit 1
fi
if [ ! -d /mnt/$pool/ix-applications ]; then
echo 'Invalid pool name or ix-applications dataset not part of pool.'
exit 1
fi
if [ "$(id -g $usergroup 2>/dev/null)" == "" ]; then
echo 'Invalid user group.'
exit 1
fi
if [ "$(id -u $username 2>/dev/null)" == "" ]; then
echo 'Invalid user name.'
exit 1
fi
volume="$(k3s kubectl get pvc -n ix-$app -o json | jq -r '.items[0].spec.volumeName')"
if [ "$volume" == "null" ]; then
echo 'Invalid application name or not installed.'
exit 1
fi
if [ -d /mnt/$pool/tmp-$app ]; then
rm -rf /mnt/$pool/tmp-$app
fi
name="$pool/ix-applications/releases/$app/volumes/$volume"
zfs set mountpoint=/$pool/tmp-$app $name
if [ $? -ne 0 ]; then
echo "Failed to set local mountpoint."
exit 1
fi
echo -n "Applying $username:$usergroup permissions to $app application... "
find /mnt/$pool/tmp-$app -type d -exec chmod a+rwx,g-w,o-w,ugo-s,-t {} +
find /mnt/$pool/tmp-$app -type f -exec chmod a+rwx,u-x,g-wx,o-wx,ugo-s,-t {} +
chown -R $username:$usergroup /mnt/$pool/tmp-$app
echo 'OK'
zfs set mountpoint=legacy $name
if [ $? -ne 0 ]; then
echo "Failed to set legacy mountpoint."
exit 1
fi
rm -rf /mnt/$pool/tmp-$app
EOF

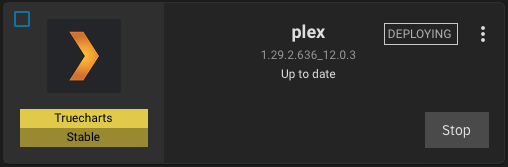

In UI, stop the application if is still showing as Deploying and execute the script:
Code:
# bash perms.tool
Applying user:apps permissions to plex application... OK
Start the application in UI.
Kubernetes Applications Shell
The UI allows you to have access to any application shell, however, you will be able to access the shell only if you login into UI with root user. This should be fixed into a future Bluefin release. Example of denied shell access into container, when logged into UI with a non-root user:
Kubernetes Cluster External Access (for Advanced Users)
If you are an experienced Kubernetes cluster administrator, you can access the Scale Kubernetes cluster remotely and troubleshoot quite easy any issues you might encounter. Thank you @blacktide for the useful information.
You can temporarily modify iptables, allowing the Kubernetes cluster to accept connections from a wider private subnet. My current iptables output:
Code:
# iptables -L INPUT -n --line-numbers
# Warning: iptables-legacy tables present, use iptables-legacy to see them
Chain INPUT (policy ACCEPT)
num target prot opt source destination
1 KUBE-ROUTER-INPUT all -- 0.0.0.0/0 0.0.0.0/0 /* kube-router netpol - 4IA2OSFRMVNDXBVV */
2 KUBE-ROUTER-SERVICES all -- 0.0.0.0/0 0.0.0.0/0 /* handle traffic to IPVS service IPs in custom chain */ match-set kube-router-service-ips dst
3 KUBE-FIREWALL all -- 0.0.0.0/0 0.0.0.0/0
4 ACCEPT tcp -- 192.168.1.8 0.0.0.0/0 tcp dpt:6443 /* iX Custom Rule to allow access to k8s cluster from internal TrueNAS connections */
5 ACCEPT tcp -- 127.0.0.1 0.0.0.0/0 tcp dpt:6443 /* iX Custom Rule to allow access to k8s cluster from internal TrueNAS connections */
6 DROP tcp -- 0.0.0.0/0 0.0.0.0/0 tcp dpt:6443 /* iX Custom Rule to drop connection requests to k8s cluster from external sources */
Modify INPUT 4 (your line number might be different) to accept a wider private subnet, instead of just the assigned Scale 192.168.1.8 private IP address:
Code:
# iptables -R INPUT 4 -s 192.168.0.0/16 -j ACCEPT
Next, copy the /etc/rancher/k3s/k3s.yaml file contents to your local ~/.kube/config and change the localhost IP address, to your required private IP address:
Code:
$ sed -i 's|127.0.0.1|192.168.1.12|' ~/.kube/config

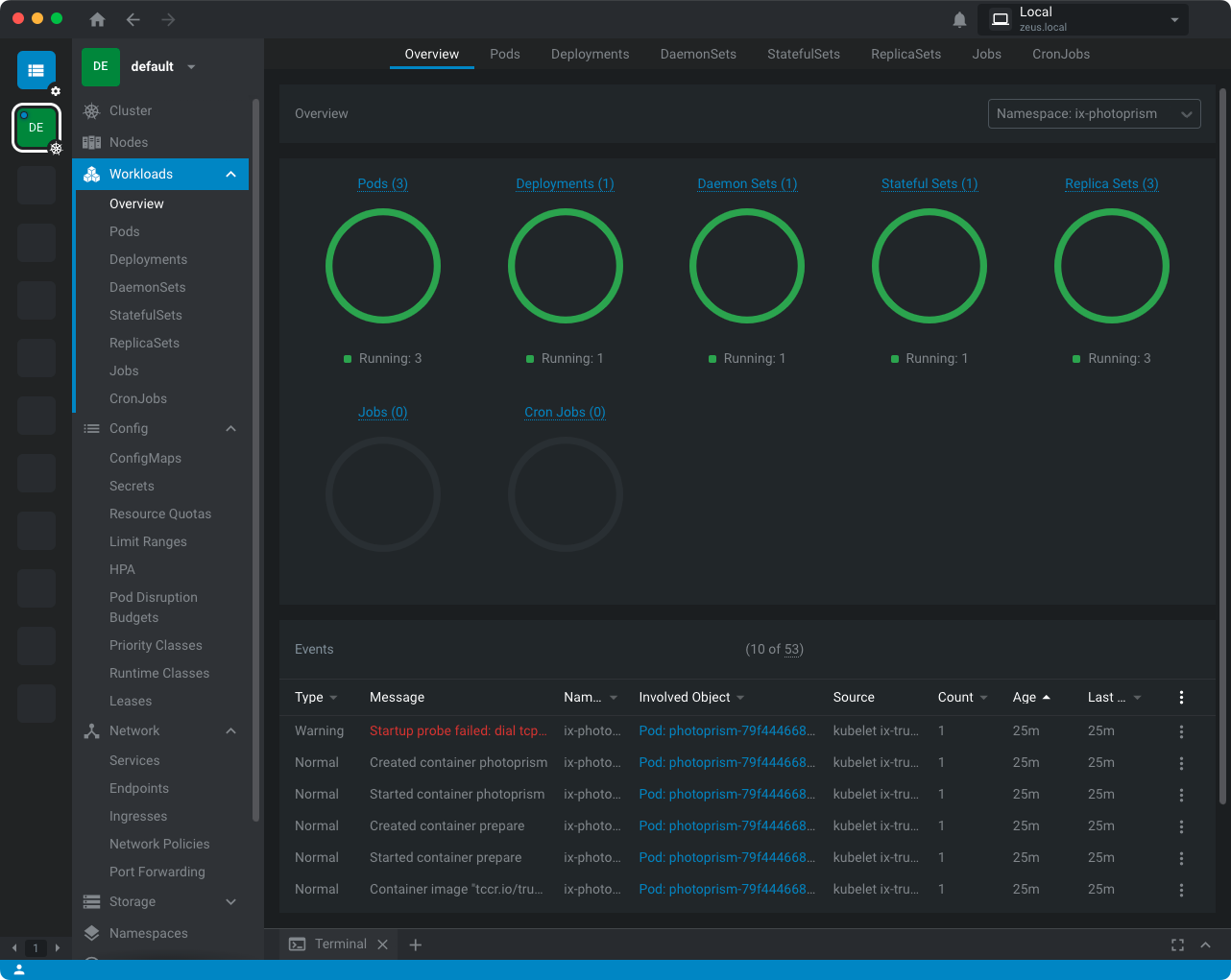

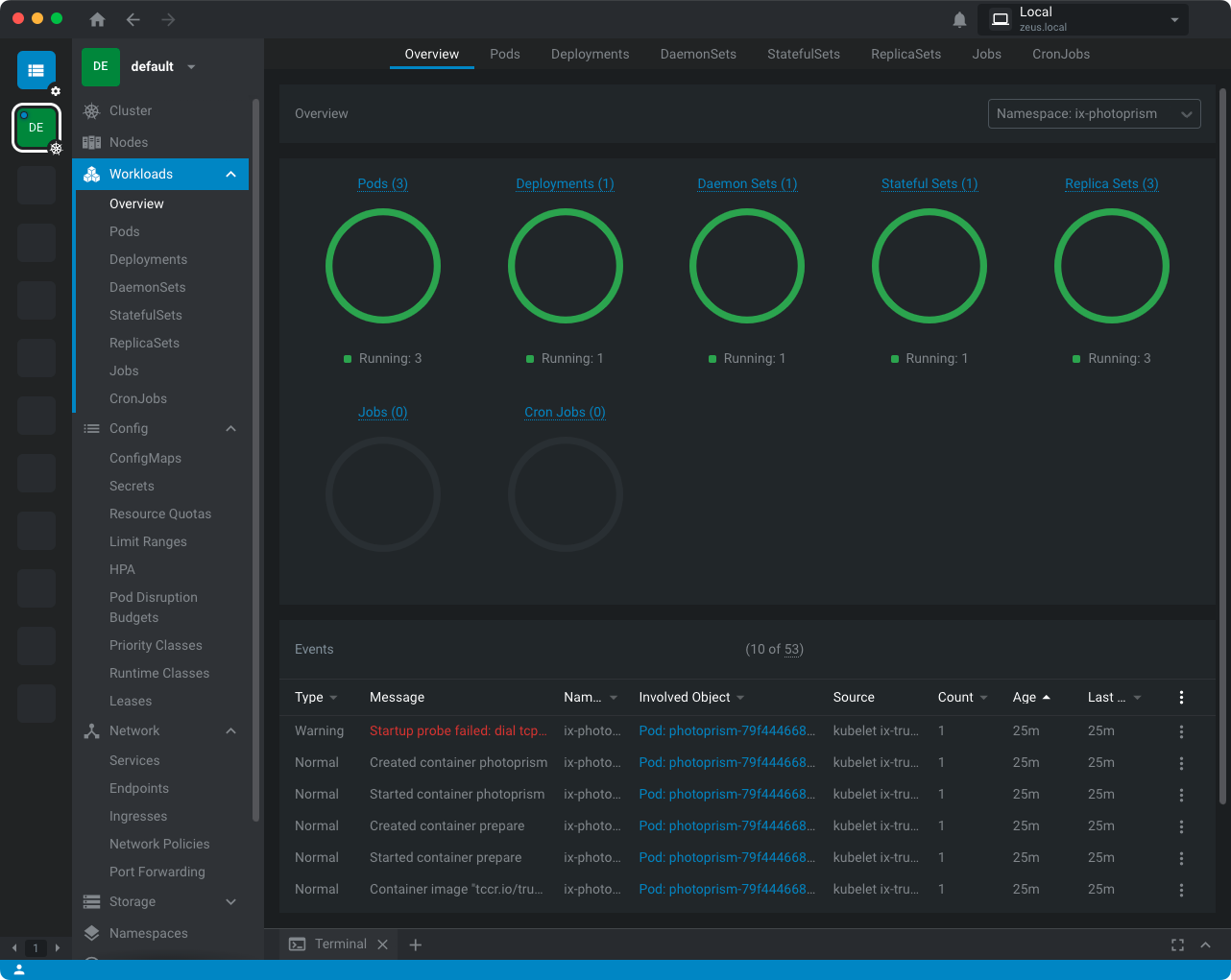

You can now access the Kubernetes cluster with Lens:
Rebooting the server will revert iptables to original configuration.
SMB Shares
New in Bluefin, shared hostPaths are considered insecure and are not recommended. That means, if you setup a dataset as SMB share and share that directory with multiple Kubernetes apps, you will get conflict warnings. This is actually a very good approach, for your data integrity and this is where dataset permissions play an important role.
iXsystems mentioned into their Release Notes: "As a last resort that can result in system and app instability, Host Path Safety Checks can be disabled in Apps > Settings > Advanced Settings." Do not disable that setting.
In simple terms, the hostPath validation prevents the use of same pool dataset for both apps and shares. From my understanding, there are a lot of apps changing file permissions without any warnings, or they simply don't work with SMB share ACLs. That's the main reason why you should not disable that setting and instead, re-organize your pool datasets properly. This also will be beneficial for future Bluefin upgrades. As a side note, @truecharts team do not offer storage related support for their applications, if you disable the hostPath validation.

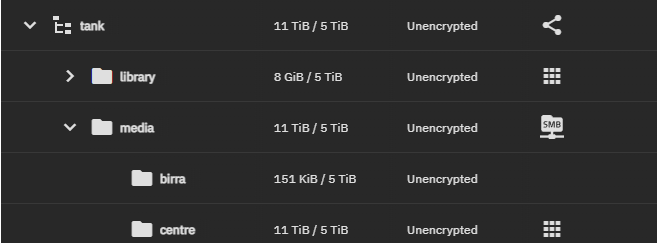

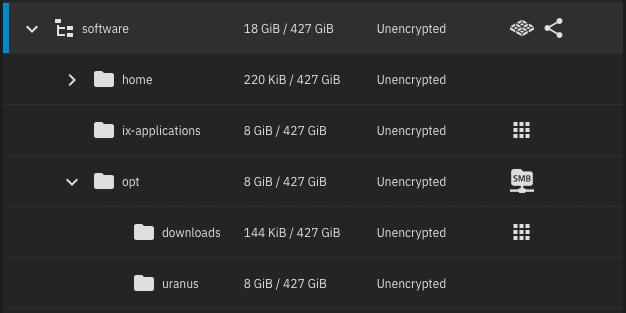

Datasets Structure Organization
You can easily organize your pool datasets structure with zfs rename command, thank you @winnielinnie for the useful information.

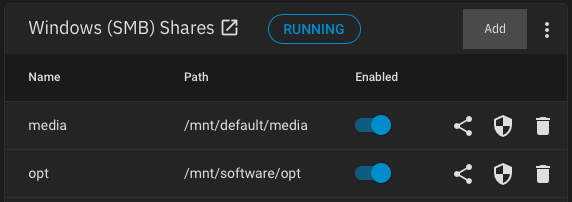

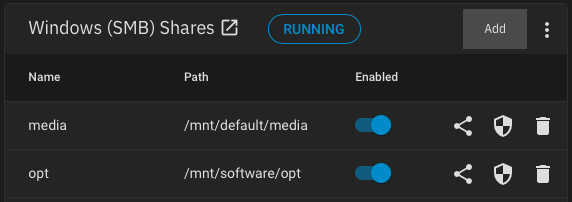

SMB Shares Configuration

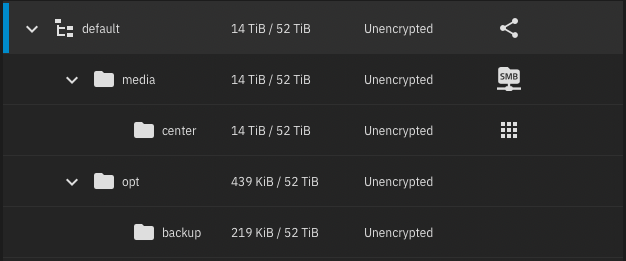

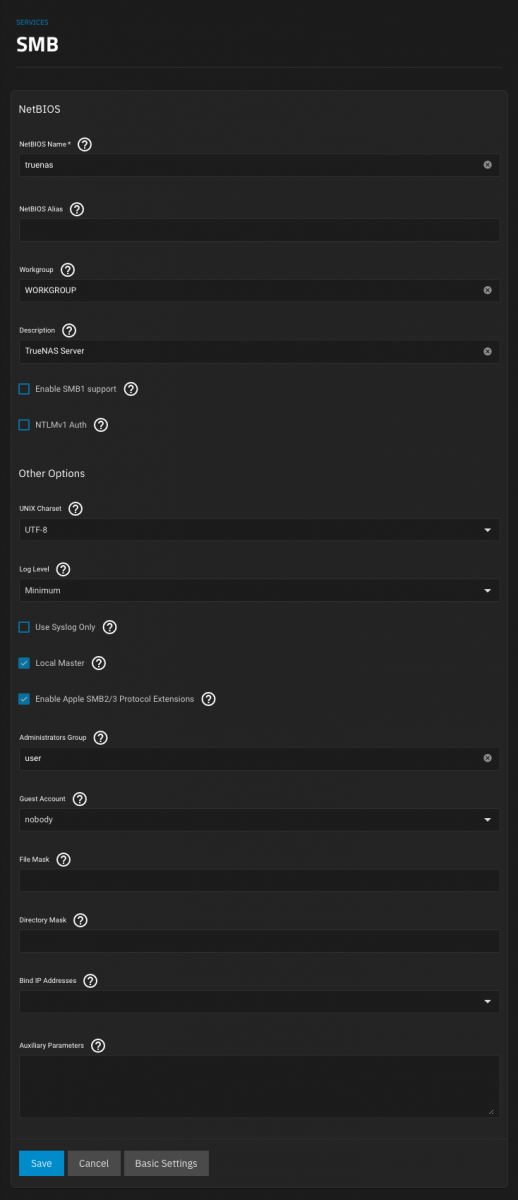

Once your datasets structure is properly organized, proceed with the SMB shares configuration.
The main concern is having ix-applications dataset isolated, it should not be accessed by anyone except root user. Currently, the ix-applications dataset is allowed to be read by anyone and permissions cannot be changed. For example, a non-root local user should:
not be able to access ix-applications dataset through an SMB share, see thread
be able to read/write data using a hostPath volume assigned to a child dataset, accessible by multiple pods
Prior setting a new SMB share, configure the service:
Enable Apple SMB2/3 Protocol Extensions, if you connect the shares to a Mac
Set the Administrators Group to user UID 3000 you created earlier
For any SMB connectivity issues, you can troubleshoot with following command:
Code:
# midclt call smb.status AUTH_LOG | jq
Organize your pool datasets, preferably following Linux standard naming conventions (read the Pools and Datasets section, for important dataset optimizations):
To avoid any hostPath conflicts, set your SMB share to /mnt/software/opt and your application hostPath to /mnt/software/opt/downloads. Assigning an SMB share directly to/mnt/softwarepool is not considered good practice.
To access your SMB shares, use the previously created UID 3000, which must have proper permissions to all your datasets (except ix-applications dataset, which should never be exposed or accessed by an end-user).

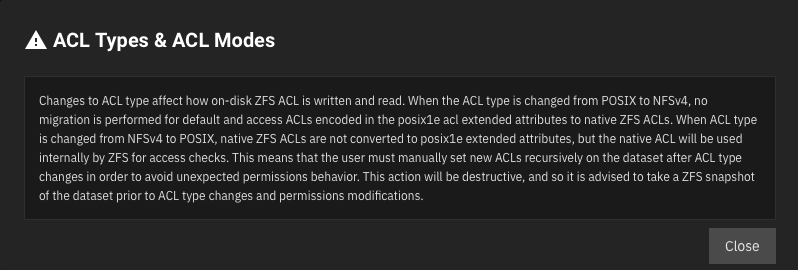

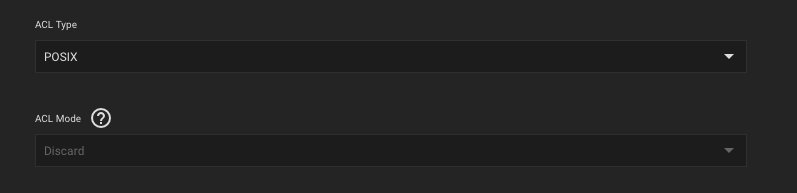

/mnt/software/opt/downloads dataset permissions, see documentation for setting POSIX ACLs:
You will not encounter any issues or warnings if you make sure the /mnt/software/opt SMB share is not directly accessed by multiple applications, the SMB share user matches the runAsUser UID and the dataset ACL Type is set to POSIX (default option), which is supported by Linux, Mac and Windows:
As per Kubernetes documentation, the hostPath volume must be mounted as Read Only. Since we are using POSIX ACLs and a single non-root local user controls the SMB share, as well all applications, an exception can be made. Example of /mnt/software/opt/downloads dataset shared with multiple applications who access the internal pod /opt/downloads directory to read/write data:
Plex Transcoding
Media that is incompatible with your device will be transcoded to a playable format. If you own a Plex compatible GPU, you can turn on Hardware-Accelerated Streaming in Plex Media Server. It is strongly recommended to create a Memory medium storage type, used specifically for transcoding.
Using a Memory medium will significantly improve the transcoding performance. In your TrueCharts Plex application, add:
Uninterruptible Power Supply
It is recommended to use an UPS, in order to avoid brief power failures, which will abruptly shutdown your server. These interruptions are known to corrupt your pool data, therefore is worth the investment.
Identify the UPS model and driver:
Code:
# nut-scanner
Neon library not found. XML search disabled.
Scanning USB bus.
No start IP, skipping SNMP
No start IP, skipping NUT bus (old connect method)
Scanning IPMI bus.
[nutdev1]
driver = "usbhid-ups"
port = "auto"
vendorid = "051D"
productid = "0002"
product = "Back-UPS NS 1500M2 FW:957.e4 .D USB FW:e4"
serial = "5B2150T61261"
vendor = "American Power Conversion"
bus = "001"
[nutdev2]
driver = "nut-ipmipsu"
port = "id1"
[nutdev3]
driver = "nut-ipmipsu"
port = "id2"
In my case, the scanner detected an UPS unit connected to USB port. The only important information you will need is the driver usbhid-ups, the product name might vary. Into UPS service, configure the settings as listed below and pay attention to:
Driver - match the found driver, in our example usbhid-ups
Port - match the found port, in our example auto
Monitor Password - set a random complex password, you will not use it as end-user
Hi i used this guide when I first updated to Bluefin and it worked great thanks, I've just updated to 22.22.2 now I'm back at the same issue as before with regard to SMB.
Only way to get apps to deploy now is by turning SMB off, you haven't stumbled across a work around by chance.
My shares and datasets match yours with a few different names but same structure, with centre containing the media directories shared by apps, and the smb share /mnt/tank/media.
Any help would be much appeciated.
Hi i used this guide when I first updated to Bluefin and it worked great thanks, I've just updated to 22.22.2 now I'm back at the same issue as before with regard to SMB.
Only way to get apps to deploy now is by turning SMB off, you haven't stumbled across a work around by chance.
My shares and datasets match yours with a few different names but same structure, with centre containing the media directories shared by apps, and the smb share /mnt/tank/media.
Any help would be much appeciated.
That setup on its own doesn't work anymore as it inadvertently relied on an oversight in TrueNAS scale. The issue you're running into is due to changes to what's know as HostPath validation. If you back up a page and just read through the posts a bit you should understand what's going on as several people asked about this in this very thread.
I have a script that automates this step, I'm waiting for @truecharts to release new app versions, so I can test it properly. This will be done through a daily cronjob, fully automated, so there is no manual intervention. Once I test that, I will update the OP.
Hi i used this guide when I first updated to Bluefin and it worked great thanks, I've just updated to 22.22.2 now I'm back at the same issue as before with regard to SMB.
Only way to get apps to deploy now is by turning SMB off, you haven't stumbled across a work around by chance.
My shares and datasets match yours with a few different names but same structure, with centre containing the media directories shared by apps, and the smb share /mnt/tank/media.
Any help would be much appeciated.
What is the “hostPathValidation” setting? With the recent release of TrueNAS SCALE "Bluefin" 22.12.1, there have been a number of reports of issues with the Kubernetes "hostPathValidation" configuration setting, and requests for clarification regarding this security measure. The...
What is this script? It sounds like you're using a validation escape again rather than disabling host path validation for this use-case. Doing things that rely on bugs in validation is very fragile and likely to break as bugs are fixed.
And you're doing this to circumvent the validation that prevents you from using App + NFS / SMB shares with "host path validation" enabled? I'm confused. Why aren't you just disabling the validation since that's evidently your goal? Apps were added some time after the original validation logic for SMB / NFS paths was written (and those plugins aren't currently validating whether those paths are consumed by currently active apps -- this is a validation escape that would probably be tricky to fix, but probably should be fixed).
Ideally, the validation would work both ways - (1) validation error on configuring host paths in apps using SMB / NFS shares unless validation is disabled and (2) validation in creating / updating SMB or NFS shares if they are consuming paths used by apps unless validation is disabled.
The idea being that if you're using same paths for both... disable validation.
And you're doing this to circumvent the validation that prevents you from using App + NFS / SMB shares with "host path validation" enabled? I'm confused.
Yes. Actually something changed into latest TrueCharts apps, I don't need to disable anymore the shares. I'm in the process of deleting the old apps and installing the fresh ones, since TrueCharts are forcing you to do this. That is where I noticed disabling the shares is not required anymore.
Hello again,
Im still on the bluefin scale 22.12.0, with the recommended settings from you. You actually did a great job a while back to help me
getting it up running.
Together we changed, my root login, pool for software only, pool for media only, no need for disable of hostpath, and im still running with this setup, and im still using smb to access my files. All is running well. (im only using Plex and Emby so far).
My question now is, if im going to update to latest bluefin version, will i then still be able to access my files like current...???
or does this again needs workaround to access media files over smb...??
Hello again,
Im still on the bluefin scale 22.12.0, with the recommended settings from you. You actually did a great job a while back to help me
getting it up running.
Together we changed, my root login, pool for software only, pool for media only, no need for disable of hostpath, and im still running with this setup, and im still using smb to access my files. All is running well. (im only using Plex and Emby so far).
My question now is, if im going to update to latest bluefin version, will i then still be able to access my files like current...???
or does this again needs workaround to access media files over smb...??
No. You will need to change your charts to access your host storage via NFS (if using truecharts) or disable host path validation (not recommended, at least not until a potential change that may be coming which will make doing so less severe).
This is mentioned in various levels of detail in the past page or two.
No. You will need to change your charts to access your host storage via NFS (if using truecharts) or disable host path validation (not recommended, at least not until a potential change that may be coming which will make doing so less severe).
This is mentioned in various levels of detail in the past page or two.
Thanks for your reply.
Yes I read about that, but im pretty new to all this, so im a little scared to loose the access to my media files,
specially since i never tried to use NFS.
So if I understand it correct, this means that I could run the update, after that I then need to share my files by setting up NFS.
Is that correct understood...???
I guess that I can follow descriptions from here how to make NFS functioning.
Thanks for your reply.
Yes I read about that, but im pretty new to all this, so im a little scared to loose the access to my media files,
specially since i never tried to use NFS.
So if I understand it correct, this means that I could run the update, after that I then need to share my files by setting up NFS.
Is that correct understood...???
I guess that I can follow descriptions from here how to make NFS functioning.
With the recent changes to TrueNAS SCALE 22.12 concerning HostPath validation (read our blog or our adding storage pages to learn more) the one way to add media storage is to mount NFS Shares to your TrueCharts applications. This process involves two parts, and this guide will demonstrate each...
truecharts.org
Additionally, there is a guide on this forum for using an NFS share with the Jellyfin chart, and although this might not be a chart you use, the NFS related steps are the same:
Here at iX, we’re big fans of open-source alternatives to commercial software - so when we heard that LinusTechTips was featuring the open-source media library manager Jellyfin on their YouTube channel, we were excited to check it out. Unfortunately, there’s one piece missing from the puzzle -...
www.truenas.com
Just make sure you disable the host path mount before hand. It's probably worth making this transition before you update just to make sure you can get it working before introducing more things that could go wrong.
Daisuke has also stated that they'll update their guide at somepoint with information relevant to performing these steps.
With the recent changes to TrueNAS SCALE 22.12 concerning HostPath validation (read our blog or our adding storage pages to learn more) the one way to add media storage is to mount NFS Shares to your TrueCharts applications. This process involves two parts, and this guide will demonstrate each...
truecharts.org
Additionally, there is a guide on this forum for using an NFS share with the Jellyfin chart, and although this might not be a chart you use, the NFS related steps are the same:
Here at iX, we’re big fans of open-source alternatives to commercial software - so when we heard that LinusTechTips was featuring the open-source media library manager Jellyfin on their YouTube channel, we were excited to check it out. Unfortunately, there’s one piece missing from the puzzle -...
www.truenas.com
Just make sure you disable the host path mount before hand. It's probably worth making this transition before you update just to make sure you can get it working before introducing more things that could go wrong.
Daisuke has also stated that they'll update their guide at somepoint with information relevant to performing these steps.
The simple version is that the actual data itself is stored within whatever dataset you're using on your server, whereas chart host path mounts, SMB, and NFS are all different protocols for accessing that data externally to truenas (which is the case even for charts installed via truenas since they're containerized). Making changes to your configuration in regards to any of these three things doesn't actually alter the dataset itself so your data isn't going anywhere.
The Windows share you see is made available via SMB, which again since you aren't touching that means the share won't be lost either.
The only thing you're doing is changing the chart's access method to your data from a Host Path mount to NFS. Under the settings for your chart under Additional App Storage you should see the host path you created earlier which you can simply remove. At this point all that will have chaged is that this one chart only will have lost access to the data temporarily. You can then follow the NFS share steps above within the same settings panel to restore the charts access to your dataset via this other method. The settings you need to apply to the NFS section will be nearly the same as those that were in the Host Path section.
You should stop each chart you need to make this change to before proceeding and then start them again after the change has been made.
This is technically unrelated but be sure not to update any of your trucharts based charts until you've fully handled making these changes and have updated to 22.12.2 as truecharts is overhauling their chart implementation at the moment and there's been some road bumps along the way so you don't want to be dealing with multiple problems at once in case you do run into issues with the updates.
This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
By continuing to use this site, you are consenting to our use of cookies.
