CAM status: Uncorrectable parity/CRC error

[Jost Wittmann]

Hello there!
I am encountering the constantly repeating error on a brand new hard drive:

Code:

Apr  8 15:54:28 Jonas (ada4:ahcich0:0:0:0): WRITE_FPDMA_QUEUED. ACB: 61 00 10 74 58 40 30 00 00 01 00 00
Apr  8 15:54:28 Jonas (ada4:ahcich0:0:0:0): CAM status: Uncorrectable parity/CRC error
Apr  8 15:54:28 Jonas (ada4:ahcich0:0:0:0): Retrying command

ada4 is a brandnew drive.

The system also sends me several emails:

Code:

The volume ext10tb state is ONLINE: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected.

and

Code:

The boot volume state is ONLINE: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected.
The volume ext10tb state is ONLINE: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected.

My System Specs:
Freenas 11.1-U4
HP N54L Microserver ProLiant Home Server 8GB RAM
AMD Turion(tm) II Neo N54L Dual-Core Processor

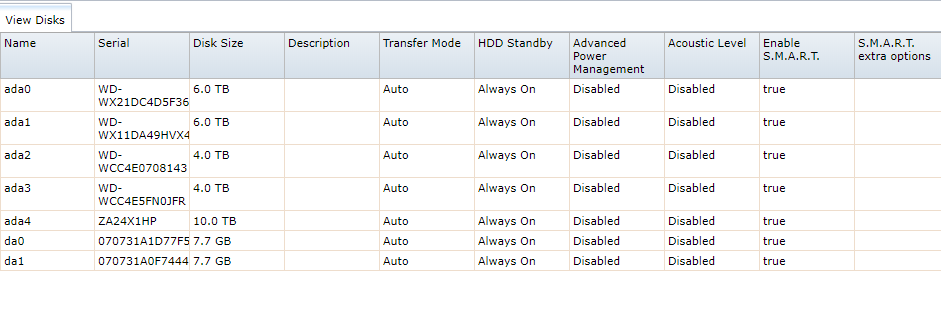

Hard drives, in a mirror RAID configuration:
1) 2 Western Digital 4TB (for NAS)
2) 2 Western Digital 6TB (for NAS)

Since the data on this NAS got a bit messy during the past years (lot's of double data that shall get deleted), I purchased a 10TB hard drive (Ironwolf, 10TB) and backup all files prior sorting out duplicates. Better safe than sorry.
The Microserver has a fifth bay for 3,5" drives. Since I wanted to have the 10tb drive readable in windows through a usb-connector, I formatted it NTFS prior plugging it into the NAS. Lot's of complications later, I decided that readability in windows isn't so important after all, and I created a new datashare based on ZVOL. However, copying data doesn't seem to work properly because of the error above.

Code:

Jonas# Jonas#  smartctl -a /dev/ada4
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate IronWolf
Device Model:	 ST10000VN0004-1ZD101
Serial Number:	ZA24X1HP
LU WWN Device Id: 5 000c50 0afc2c1c5
Firmware Version: SC60
User Capacity:	10,000,831,348,736 bytes [10.0 TB]
Sector Sizes:	 512 bytes logical, 4096 bytes physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Sun Apr  8 15:56:12 2018 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  575) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 866) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   084   065   044	Pre-fail  Always	   -	   240417432
  3 Spin_Up_Time			0x0003   088   088   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   11
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   061   060   045	Pre-fail  Always	   -	   1125775
  9 Power_On_Hours		  0x0032   100   100   000	Old_age   Always	   -	   21 (75 242 0)
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   9
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   097   019   000	Old_age   Always	   -	   365077991266
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   075   072   040	Old_age   Always	   -	   25 (Min/Max 21/25)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   32
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   1
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   20
194 Temperature_Celsius	 0x0022   025   040   000	Old_age   Always	   -	   25 (0 19 0 0 0)
195 Hardware_ECC_Recovered  0x001a   023   003   000	Old_age   Always	   -	   240417432
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   199   000	Old_age   Always	   -	   4236
200 Multi_Zone_Error_Rate   0x0023   100   100   001	Pre-fail  Always	   -	   0
240 Head_Flying_Hours	   0x0000   100   253   000	Old_age   Offline	  -	   6 (60 167 0)
241 Total_LBAs_Written	  0x0000   100   253   000	Old_age   Offline	  -	   1242940452
242 Total_LBAs_Read		 0x0000   100   253   000	Old_age   Offline	  -	   13306017

SMART Error Log Version: 1
No Errors Logged
