Sitting and playing with my first setup of FreeNAS.
But do not get write and read speed to something sensible.
Have noticed that this is the forum seem to have a good handle on it, so I wonder if you have any tips on what I should start checking for?
I have tried to read me a lot but I will not be the wiser.
My configuration looks like this, not quite by the book but it should not be so crazy anyway ..
Motherboard: Supermicro X9DRi-LN4+/X9DR3-LN4+
CPU: 2x Intel(R) Xeon(R) CPU E5-2660 @ 2.20GHz
Memory: 64GB DDR3 ECC REG
Controller1: LSI SAS 9207-8I - duallink to HP SAS EXPANDER - Backplane of my SC846TQ-R900B.
Attched to Ctrl1: Harddisk: 6xWD RED 2TB, 2xSAMSUNG F1 2TB, 8xWD RED 3TB
Controller2: LSI SAS 9240 (IBM1015) IT FIRMWARE
(for use in the future for SSD (got 8x128GB) but not figerid out how to setup them yet (need to read more first ;) )
Controlle3: HP P410 for system disk for VMware ESXi 6.0

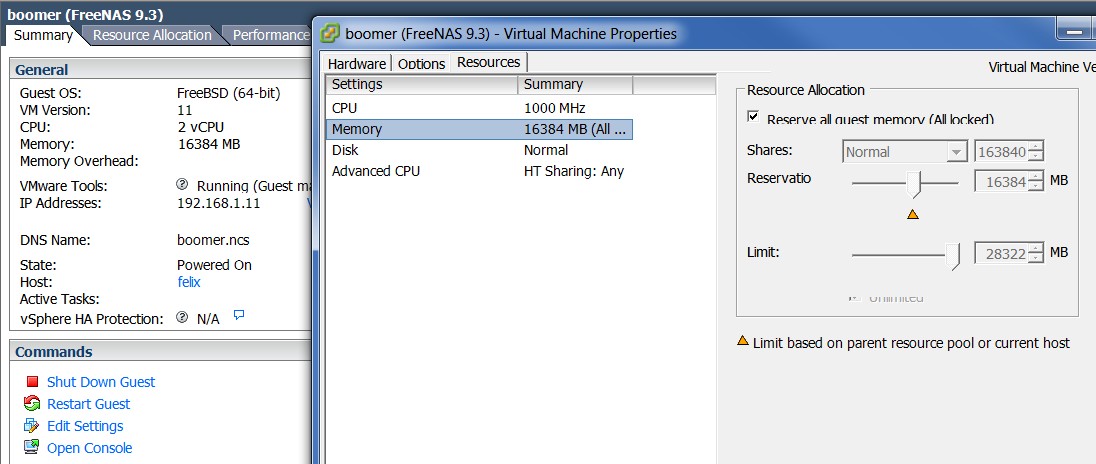

VM for FreeNAS: 12 core, 16GB Memory (waiting for another 64GB then i go 64GB for FreeNAS)
I directpath Controller1 to FreeNAS witch seams to work great this fare.
All disk are setupd as mirrors, (2 disk in each vdev) and striped to one pool.
But I could only get about 20-30MB/sec write, and about the same on read.
Could my expander card limit the speed this much?
Or could some disk be bad?
Do you have any tips?
I have orderd 2 new set on IBM1015, so tecnical i can go native when i get them, but until then i want to get everything workig.
Need to play whit my setup a bit :) It ittching in my fingers you know =)
Sorry for my bad English but I hope you will undestand me anyway ;) (swedish)
