LSI Card help needed to finish my build

Intruder11

Dabbler
Joined
Dec 20, 2017
Messages
14

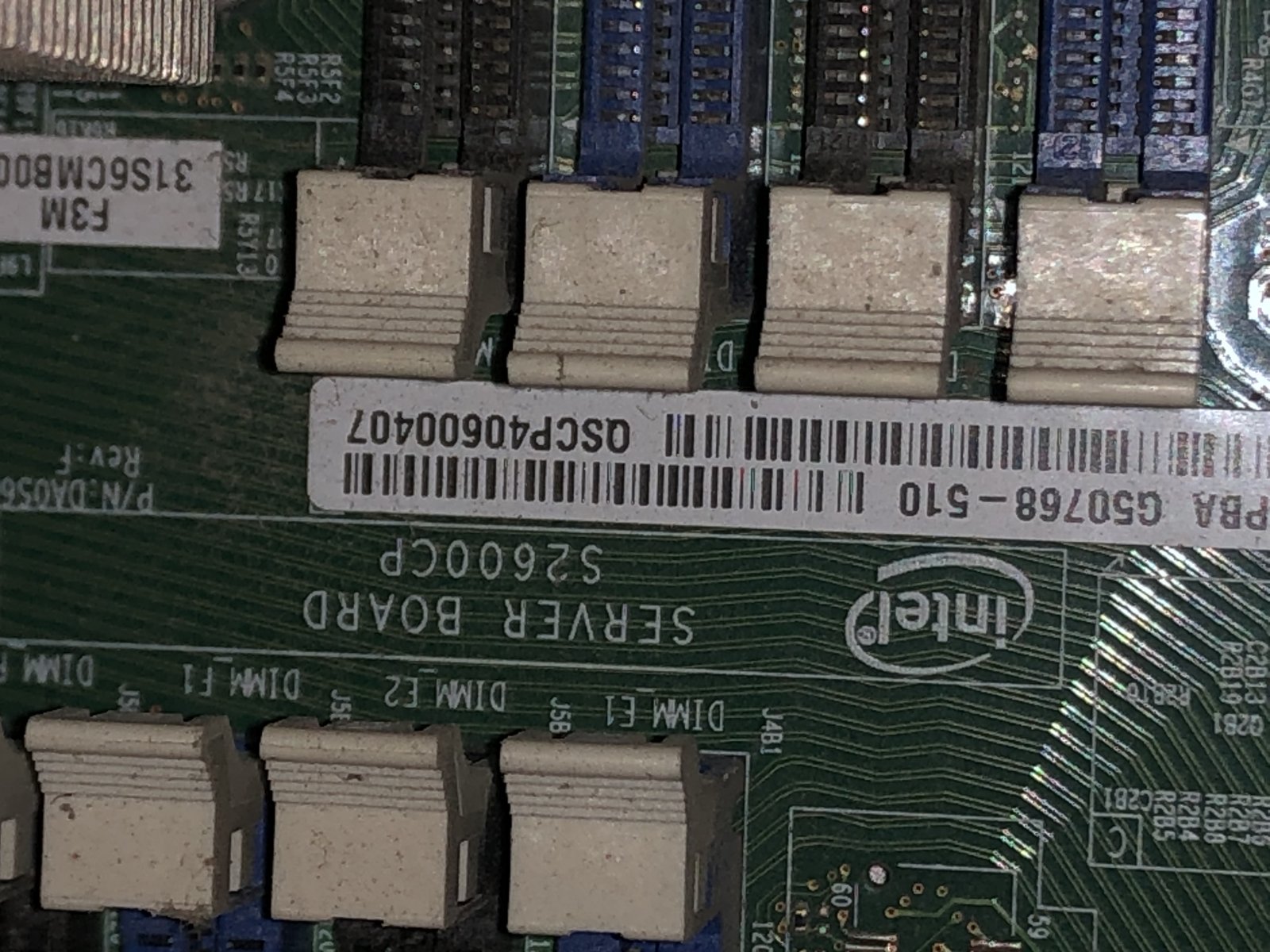

MB intel s2600cp
CPU 2 Xeon E5-2609 v2
RAM 16gb (will be upgrading with 4 32 fb chips
HARD DRIVE (s) 13 4 tb drives. 16 possible

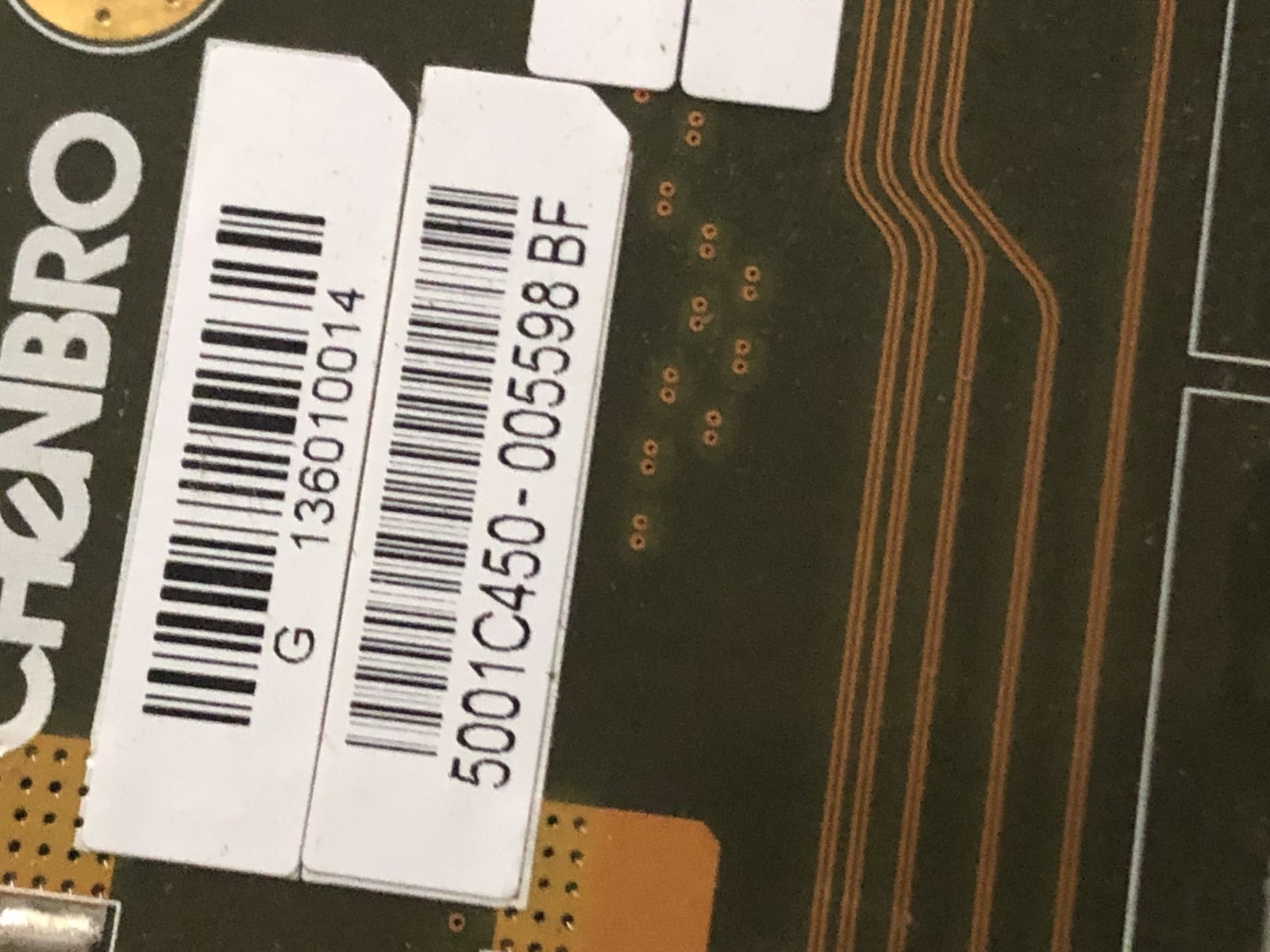

CARDS Chenbro (can not find model) sas/sata expander
(What I need to change) LSI 9260-8i

I hot this server blew the server 2012 software. Loaded trueNAS v13 (latest stable) on 250 fb Hd. Looks like the 2960 can not be put in IT Mode. I have been looking at getting an LSI 9211-8i and just connecting the cable from the expander to port 0 on the 9211 like the 9260 is currently. Funding conflicting information on weather the 9211 can do larger than 2tb and mad drives so say 12 others say 256. I am looking at some 25-70 dollar 9211-9i cards on eBay but don’t want to get one that will not work with my setup. Any and all help is welcome.

Thank you

Ps. Some of the pics are from before I blew the server software


Attachments

  • 5643E260-5544-4DBF-AA76-964598E40E30.jpeg
    276 KB · Views: 39
  • 2A2BA0CA-4D2A-41AB-A406-394BFB8F4C58.jpeg
    335.3 KB · Views: 36
  • BC54FF32-2BFC-4F08-B6B6-BCBF3F971AED.jpeg
    336.1 KB · Views: 28
  • DDAC0924-2194-49C0-9F91-00E62CAFF990.jpeg
    258 KB · Views: 38
  • 2C535A0A-41B3-4257-B25F-2B050A50E6F6.jpeg
    346.4 KB · Views: 29

HoneyBadger

Mushroom! Mushroom!
Joined
Feb 6, 2014
Messages
4,013
The 9211-8i and other cards based on the LSI SAS2008 chipset are perfectly capable of handling >2TB drives, and the expander should allow to you use more than the eight drives that can be directly connected.

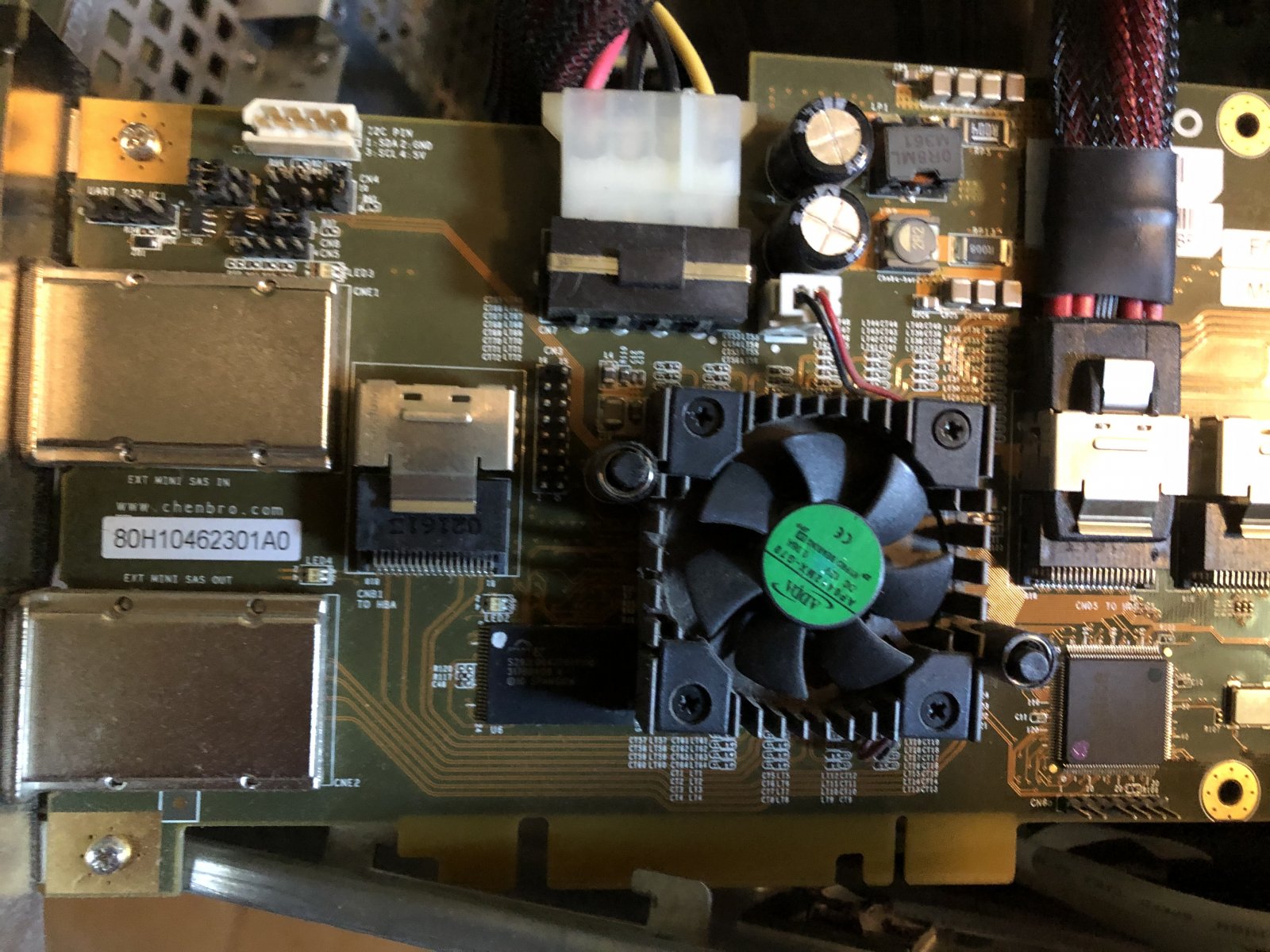

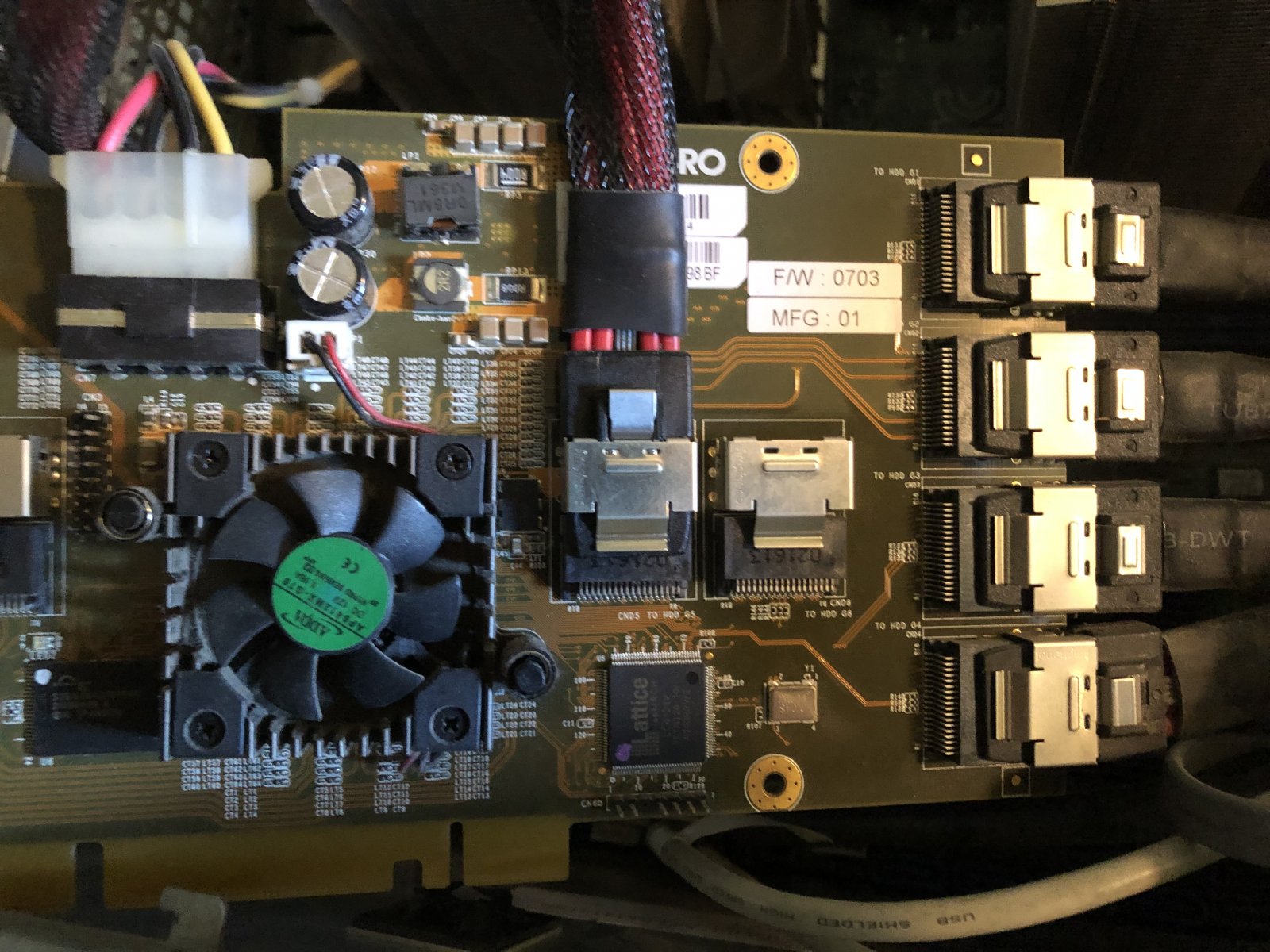

The expander looks like the CHENBRO CK23601.


Intruder11

Dabbler
Joined
Dec 20, 2017
Messages
14
The 9211-8i and other cards based on the LSI SAS2008 chipset are perfectly capable of handling >2TB drives, and the expander should allow to you use more than the eight drives that can be directly connected.

The expander looks like the CHENBRO CK23601.
I have 16 bays filled with 13 4tb drives. I ha hoping to only have to buy one card

Card I looking at


HoneyBadger

Mushroom! Mushroom!
Joined
Feb 6, 2014
Messages
4,013
I have 16 bays filled with 13 4tb drives. I ha hoping to only have to buy one card

Your expander will allow for this, as SAS expanders behave in a manner similar to a network switch.

Card I looking at

That doesn't look like any LSI PCB that I'm familiar with. I would be more comfortable with a used pull from a Dell/IBM server, or a seller with a proven track record such as ArtOfServer (I have no affiliation with this user)


Intruder11

Dabbler
Joined
Dec 20, 2017
Messages
14
The 9211-8i and other cards based on the LSI SAS2008 chipset are perfectly capable of handling >2TB drives, and the expander should allow to you use more than the eight drives that can be directly connected.

The expander looks like the CHENBRO CK23601.
I have 16 bays filled with 13 4tb drives. I ha hoping to only have to buy one card

Card I looking at
Your expander will allow for this, as SAS expanders behave in a manner similar to a network switch.



That doesn't look like any LSI PCB that I'm familiar with. I would be more comfortable with a used pull from a Dell/IBM server, or a seller with a proven track record such as ArtOfServer (I have no affiliation with this user)
can you give a part number for the dell/ibm. All my drives are sata


HoneyBadger

Mushroom! Mushroom!
Joined
Feb 6, 2014
Messages
4,013
can you give a part number for the dell/ibm. All my drives are sata

Part numbers vary unfortunately.

For Dell, look for the PERC H200 or PERC H310.
For IBM/Lenovo, look for the ServeRAID M1015.

There are other system vendors such as Fujitsu or Sun Microsystems; the risk of buying an "LSI" branded card is that it could be counterfeited. A used pull from a system vendor is likely to be legitimate.

SATA drives will work on a SAS HBA or expander.


Intruder11

Dabbler
Joined
Dec 20, 2017
Messages
14
got the card, got it in and rubbing made my pool. but when i tried to map the drive in windows (used browse to get to my pool) says it is: network name can not be found


HoneyBadger

Mushroom! Mushroom!
Joined
Feb 6, 2014
Messages
4,013
got the card, got it in and rubbing made my pool. but when i tried to map the drive in windows (used browse to get to my pool) says it is: network name can not be found

That's more of a network level error, probably that there is no DNS resolution for the system name or that your Windows system is considering your home network "public" and has disabled Network Discovery.
