mgoulet65
Explorer
- Joined
- Jun 15, 2021
- Messages
- 95
Done
-
Important Announcement for the TrueNAS Community.
The TrueNAS Community has now been moved. This forum will now become READ-ONLY for historical purposes. Please feel free to join us on the new TrueNAS Community Forums
GPU not available to Plex app
- Thread starter eroji
- Start date
Daisuke
Contributor
- Joined
- Jun 23, 2011
- Messages
- 1,041
Regardless the failed
Can someone provide some guidance how to test the card is used in Plex for transcoding? I believe the easiest way is to check the dashboard.
Dashboard with transcoding disabled/forced, I can see the

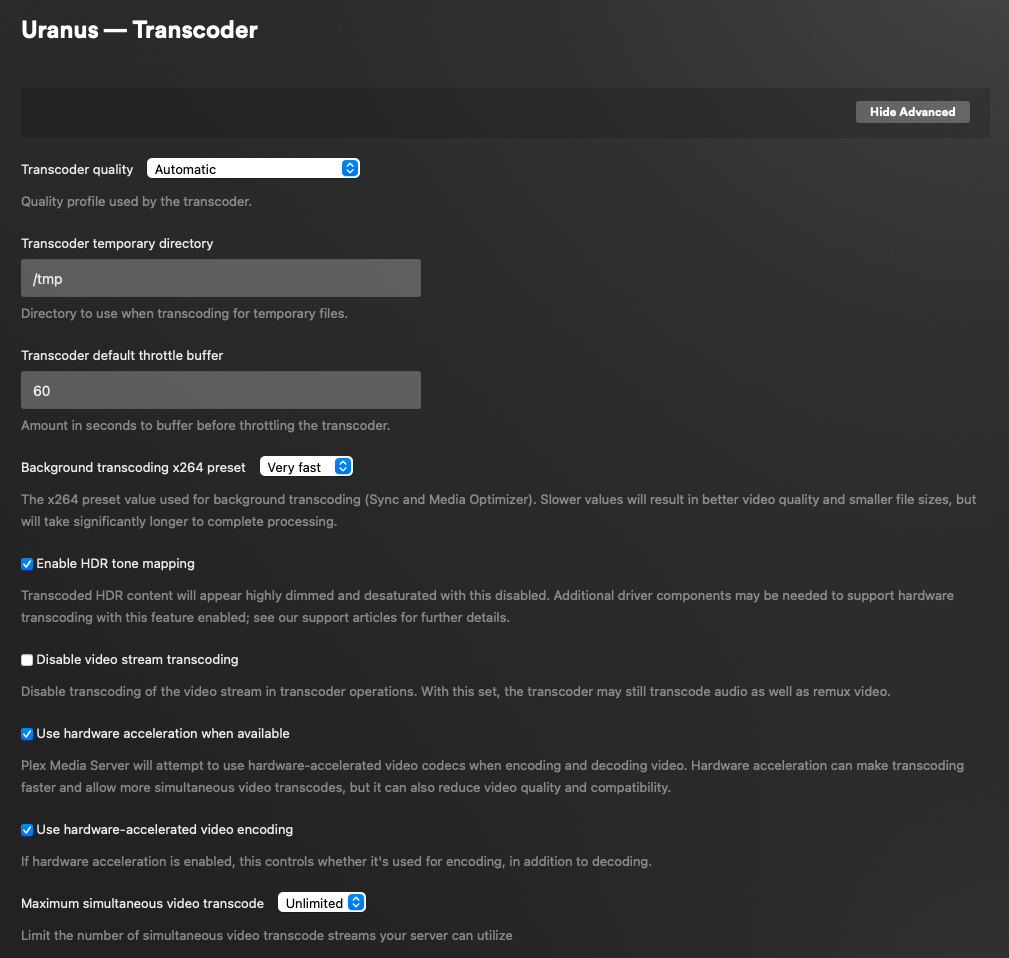

Transcoder settings:
nvidia-drm module, the Tesla P4 card is detected properly in @truecharts Plex app.Can someone provide some guidance how to test the card is used in Plex for transcoding? I believe the easiest way is to check the dashboard.
Dashboard with transcoding disabled/forced, I can see the
(hw):Transcoder settings:
Last edited:
mgoulet65
Explorer
- Joined
- Jun 15, 2021
- Messages
- 95
Mine is not recognized by Plex
Daisuke
Contributor
- Joined
- Jun 23, 2011
- Messages
- 1,041
Daisuke
Contributor
- Joined
- Jun 23, 2011
- Messages
- 1,041
@mgoulet65 did you set everything or still have issues having the GPU detected in Plex?
mgoulet65
Explorer
- Joined
- Jun 15, 2021
- Messages
- 95
Still having same issue
Daisuke
Contributor
- Joined
- Jun 23, 2011
- Messages
- 1,041
Is the card detected into OS?
Code:
# lspci | grep -i nvidia 03:00.0 3D controller: NVIDIA Corporation GP104GL [Tesla P4] (rev a1)
mgoulet65
Explorer
- Joined
- Jun 15, 2021
- Messages
- 95
Code:
# lspci | grep -i nvidia 04:00.0 3D controller: NVIDIA Corporation GK110GL [Tesla K20c] (rev a1)
I just upgraded to BlueFin last night. There were some anomolies I noticed where the driver failed to load properly but a reboot fixed the issue. A good indicator is that you can execute nvidia-smi. This will show any transcode processes running within the Plex container. If the command comes back with some sort of error then your container will not be able to use hardware transcode.
However, if the driver is properly loaded and nvidia-smi shows the GPU is seen then transcode should work properly.
Code:
Unable to determine the device handle for GPU 0000:81:00.0: Unknown Error
However, if the driver is properly loaded and nvidia-smi shows the GPU is seen then transcode should work properly.
Code:
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 515.65.01 Driver Version: 515.65.01 CUDA Version: 11.7 |
|-------------------------------+----------------------+----------------------+
| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|===============================+======================+======================|
| 0 Tesla P4 Off | 00000000:81:00.0 Off | Off |
| N/A 56C P0 26W / 75W | 239MiB / 8192MiB | 3% Default |
| | | N/A |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=============================================================================|
| 0 N/A N/A 172057 C ...diaserver/Plex Transcoder 237MiB |
+-----------------------------------------------------------------------------+
Daisuke
Contributor
- Joined
- Jun 23, 2011
- Messages
- 1,041
Thank you for that command, I did not know about it. Here's mines, using 239MiB / 8121MiB and slightly hotter at 62C, yours shows 8192MiB:
Code:
# nvidia-smi Wed Nov 30 18:47:20 2022 +-----------------------------------------------------------------------------+ | NVIDIA-SMI 470.103.01 Driver Version: 470.103.01 CUDA Version: 11.4 | |-------------------------------+----------------------+----------------------+ | GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |===============================+======================+======================| | 0 Tesla P4 Off | 00000000:03:00.0 Off | Off | | N/A 62C P0 26W / 75W | 239MiB / 8121MiB | 2% Default | | | | N/A | +-------------------------------+----------------------+----------------------+ +-----------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=============================================================================| | 0 N/A N/A 211532 C ...diaserver/Plex Transcoder 237MiB | +-----------------------------------------------------------------------------+
Do you have the card installed in a rack server? Do these Tesla P4 cards have upgradable firmware?

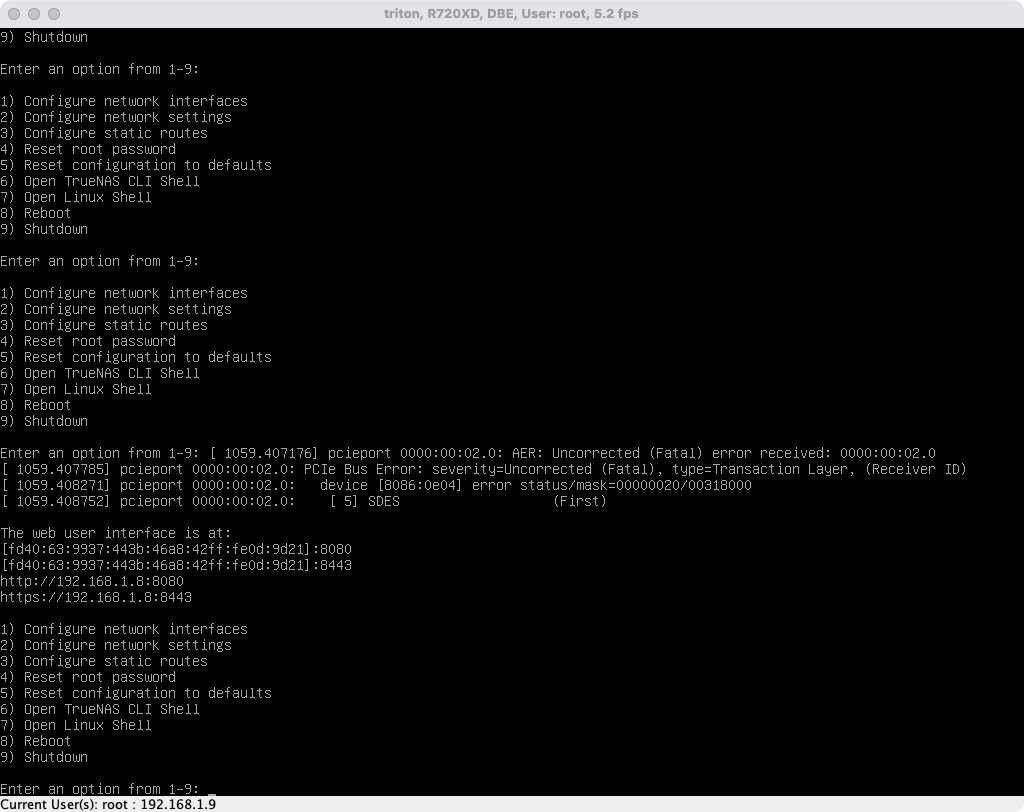

Edit: While transcoding, I just saw a crash on screen (Angelfish 22.02.04), I'm rebooting to see if I can catch it again:
Code:
# grep -i '18:57:07' -A4 /var/log/messages Nov 30 18:57:07 uranus kernel: pcieport 0000:00:02.0: AER: Uncorrected (Fatal) error received: 0000:00:02.0 Nov 30 18:57:07 uranus kernel: nvidia 0000:03:00.0: AER: can't recover (no error_detected callback) Nov 30 18:57:07 uranus kernel: NVRM: GPU at PCI:0000:03:00: GPU-ff5239ea-ba5d-4952-a55f-6ad0fc8f56bb Nov 30 18:57:07 uranus kernel: NVRM: Xid (PCI:0000:03:00): 79, pid=0, GPU has fallen off the bus. Nov 30 18:57:07 uranus kernel: NVRM: GPU 0000:03:00.0: GPU has fallen off the bus. Nov 30 18:57:07 uranus kernel: NVRM: GPU 0000:03:00.0: GPU serial number is [removed]. Nov 30 18:57:07 uranus kernel: NVRM: A GPU crash dump has been created. If possible, please run NVRM: nvidia-bug-report.sh as root to collect this data before NVRM: the NVIDIA kernel module is unloaded. Nov 30 18:57:08 uranus kernel: pcieport 0000:00:02.0: AER: Root Port link has been reset (0) Nov 30 18:57:08 uranus kernel: pcieport 0000:00:02.0: AER: device recovery failed # nvidia-smi Unable to determine the device handle for GPU 0000:03:00.0: Unknown Error
Last edited:
mgoulet65
Explorer
- Joined
- Jun 15, 2021
- Messages
- 95
Last edited:
Daisuke
Contributor
- Joined
- Jun 23, 2011
- Messages
- 1,041
@eroji I got the crash again. Streaming stopped on @truecharts Plex, this is an issue that needs to be reported. How do I pull the crash dump, so I report it to IX into a Jira ticket?
Edit: I created NAS-119223, can you report you experience the same issue in Bluefin and submit a debug file into ticket?
Edit: I created NAS-119223, can you report you experience the same issue in Bluefin and submit a debug file into ticket?
Code:
Nov 30 19:24:21 uranus kernel: pcieport 0000:00:02.0: AER: Uncorrected (Fatal) error received: 0000:00:02.0 Nov 30 19:24:21 uranus kernel: nvidia 0000:03:00.0: AER: can't recover (no error_detected callback) Nov 30 19:24:21 uranus kernel: NVRM: GPU at PCI:0000:03:00: GPU-ff5239ea-ba5d-4952-a55f-6ad0fc8f56bb Nov 30 19:24:21 uranus kernel: NVRM: Xid (PCI:0000:03:00): 79, pid=0, GPU has fallen off the bus. Nov 30 19:24:21 uranus kernel: NVRM: GPU 0000:03:00.0: GPU has fallen off the bus. Nov 30 19:24:21 uranus kernel: NVRM: GPU 0000:03:00.0: GPU serial number is [removed]. Nov 30 19:24:21 uranus kernel: NVRM: A GPU crash dump has been created. If possible, please run NVRM: nvidia-bug-report.sh as root to collect this data before NVRM: the NVIDIA kernel module is unloaded. Nov 30 19:24:22 uranus kernel: pcieport 0000:00:02.0: AER: Root Port link has been reset (0) Nov 30 19:24:22 uranus kernel: pcieport 0000:00:02.0: AER: device recovery failed
Last edited:
Daisuke
Contributor
- Joined
- Jun 23, 2011
- Messages
- 1,041
Good to know, can you please force transcoding for a while to see if the issue makes surface? In my case, after one reboot with forced transcoding, I experienced the issue again 15min later while playing from Apple TV. I'll force again transcoding to see if it happens. In Apple TV Plex app Settings, I set the Home Streaming to 10Mbps, 1080p.
Edit: The crash occurred again, 30min later.
Your versions:
Code:
NVIDIA-SMI 515.65.01 Driver Version: 515.65.01 CUDA Version: 11.7
Mines:
Code:
NVIDIA-SMI 470.103.01 Driver Version: 470.103.01 CUDA Version: 11.4
Bluefin 22.12.0 is very close of being released.
Last edited:
I'm not entirely sure what you mean by "force transcoding". Transcoding is enabled currently and it will use hardware transcode when needed. I've confirmed this. However, right now, through my testing with 2 Tesla P4s it seems like there is an issue of passing 1 GPU to container and 1 to VM. I created a post here: GPU passthrough to VM and app.
Daisuke
Contributor
- Joined
- Jun 23, 2011
- Messages
- 1,041
Say you have a 1080p 20Mbps video, you force your player to play the video at 10Mpbs or lower. It will always transcode. It looks that the devs fixed all issues in 22.12-RC.1, which explains why everything works properly for you. I'll wait for 22.12.0 release, before I upgrade.
Last edited:
So after playing around with GPU passthrough for both VM and container, now the OS is not detecting both cards as VGA controllers. They however instead show up as 3D controllers, which seems to be causing the OS not to load the nVidia drivers on boot. I have no idea why this is happening.
Code:
Dec 3 13:03:36 nas-02 kernel: nvidia-nvlink: Nvlink Core is being initialized, major device number 236 Dec 3 13:03:36 nas-02 kernel: NVRM: The NVIDIA probe routine was not called for 2 device(s). Dec 3 13:03:36 nas-02 kernel: NVRM: This can occur when a driver such as: NVRM: nouveau, rivafb, nvidiafb or rivatv NVRM: was loaded and obtained ownership of the NVIDIA device(s). Dec 3 13:03:36 nas-02 kernel: NVRM: Try unloading the conflicting kernel module (and/or NVRM: reconfigure your kernel without the conflicting
Code:
root@nas-02:~# nvidia-smi NVIDIA-SMI has failed because it couldn't communicate with the NVIDIA driver. Make sure that the latest NVIDIA driver is installed and running.
Code:
root@nas-02:~# lshw -C display
*-display
description: 3D controller
product: GP104GL [Tesla P4]
vendor: NVIDIA Corporation
physical id: 0
bus info: pci@0000:01:00.0
logical name: /dev/fb0
version: a1
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress cap_list fb
configuration: depth=32 driver=vfio-pci latency=0 mode=1280x1024 visual=truecolor xres=1280 yres=1024
resources: iomemory:3800-37ff iomemory:3800-37ff irq:11 memory:f6000000-f6ffffff memory:38060000000-3806fffffff memory:38070000000-38071ffffff
*-display
description: 3D controller
product: GP104GL [Tesla P4]
vendor: NVIDIA Corporation
physical id: 0
bus info: pci@0000:81:00.0
version: a1
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress cap_list
configuration: driver=vfio-pci latency=0
resources: iomemory:2000-1fff iomemory:2000-1fff irq:11 memory:f0000000-f0ffffff memory:20000000000-2000fffffff memory:20010000000-20011ffffff
*-display
description: VGA compatible controller
product: ASPEED Graphics Family
vendor: ASPEED Technology, Inc.
physical id: 0
bus info: pci@0000:c4:00.0
version: 41
width: 32 bits
clock: 33MHz
capabilities: pm msi vga_controller cap_list
configuration: driver=ast latency=0
resources: irq:327 memory:b6000000-b6ffffff memory:b7000000-b701ffff ioport:e000(size=128)
Daisuke
Contributor
- Joined
- Jun 23, 2011
- Messages
- 1,041
After Bluefin 22.12.0 upgrade, all transcoding issues are fixed, no more crashes. Been force transcoding for over 5 hours without issues.
Is it expected to run this hot at 93degrees while transcoding for a while? When not in use, the temperature drops to 41degrees:
Code:
# nvidia-smi Tue Dec 13 17:23:58 2022 +-----------------------------------------------------------------------------+ | NVIDIA-SMI 515.65.01 Driver Version: 515.65.01 CUDA Version: 11.7 | |-------------------------------+----------------------+----------------------+ | GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |===============================+======================+======================| | 0 Tesla P4 Off | 00000000:03:00.0 Off | Off | | N/A 93C P0 27W / 75W | 275MiB / 8192MiB | 1% Default | | | | N/A | +-------------------------------+----------------------+----------------------+ +-----------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=============================================================================| | 0 N/A N/A 155778 C ...diaserver/Plex Transcoder 273MiB | +-----------------------------------------------------------------------------+
Is it expected to run this hot at 93degrees while transcoding for a while? When not in use, the temperature drops to 41degrees:
Code:
# nvidia-smi Tue Dec 13 23:01:33 2022 +-----------------------------------------------------------------------------+ | NVIDIA-SMI 515.65.01 Driver Version: 515.65.01 CUDA Version: 11.7 | |-------------------------------+----------------------+----------------------+ | GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |===============================+======================+======================| | 0 Tesla P4 Off | 00000000:03:00.0 Off | Off | | N/A 41C P8 6W / 75W | 2MiB / 8192MiB | 0% Default | | | | N/A | +-------------------------------+----------------------+----------------------+ +-----------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=============================================================================| | No running processes found | +-----------------------------------------------------------------------------+
Last edited:
my quadro
Isn't tesla P4 relying for cooling on case air flow and den't have own fan?
BTW bluefin is totaly broken for me when it comes to GPU support.
tried P400 and rtx3070 and with both i get:
My quadro p400 runs at 52C while transcoding 4k 10bit to 1080p and 34C idle so your temps are sky high.
Isn't tesla P4 relying for cooling on case air flow and den't have own fan?
BTW bluefin is totaly broken for me when it comes to GPU support.
tried P400 and rtx3070 and with both i get:
Code:
systemd-modules-load[2523]: Failed to find module 'nvidia-drm'
Daisuke
Contributor
- Joined
- Jun 23, 2011
- Messages
- 1,041
I had to add a fan that sucks the air, now I run at 38degrees idle. I don’t think these cards have a fan, they rely purely on server ventilation. That NVIDIA-drm message is unrelated, I get it also and everything works properly.
