SOLVED An Unexpected Network Error Has Occured

[jwsl224]

we're running two TrueNas 12 instances, and both of them have an issue with "an unexpected network error has occured" when we use them with windows over SMB. nowhere ever does this issue arise with our windows machine when we're doing windows-to-windows transfers.

this is a rather vague error. how would one dig into getting more information regarding this issue? are there detailed windows or TrueNAS logs one can extract? can't really work with errors; these machines are expected to sever up several million files. file corruption is not an option.



[Samuel Tai]

Per forum rules, please provide the hardware details of your 2 TrueNAS instances.



[jwsl224]

sure.

Dell R730XD
2x Intel Xeon E5-2623 v4
128GB RAM

Dell T410
2x Intel Xeon CPU E5620
32GB RAM

let me know if i need to go more specific. do the HD's matter?



[Samuel Tai]

Are you using the onboard NICs or do you have PCI-E NICs installed?



[jwsl224]

onboard. let me know if you want me to run commands in the shell for additional info



[jgreco]

sure.

Dell R730XD
2x Intel Xeon E5-2623 v4
128GB RAM

Dell T410
2x Intel Xeon CPU E5620
32GB RAM

let me know if i need to go more specific. do the HD's matter?

Ideally, you do not want to make forum members have to research what a "Dell R730XD" is, or to guess at what configuration you ordered from Dell, so you want to include information like what sort of ethernet interfaces it has, what sort of HBA is in use, etc. Please try to remember that community members are not paid support people, and that by providing detailed information, you will be encouraging a better class of response and engagement with your issue.



[Samuel Tai]

Are these bare-metal servers, or are you running TrueNAS as VMs? What hardware are you using to supply storage to these servers?



[jwsl224]

Ideally, you do not want to make forum members have to research what a "Dell R730XD" is, or to guess at what configuration you ordered from Dell, so you want to include information like what sort of ethernet interfaces it has, what sort of HBA is in use, etc. Please try to remember that community members are not paid support people, and that by providing detailed information, you will be encouraging a better class of response and engagement with your issue.

I can supply any information needed, but I don't know what particulars are needed to troubleshoot an issue



[jwsl224]

Are these bare-metal servers, or are you running TrueNAS as VMs? What hardware are you using to supply storage to these servers?

let's focus on the new machine, the Dell R730XD. it is using an HBA330 passthrough controller, and TrueNAS is installed directly on 2 120gb PNY SSD's.



[Samuel Tai]

HBA330 passthrough controller

This is the problem. Your controller isn't flashed to IT mode, allowing TrueNAS direct access to the drives, but is only passing through the drives. It's not able to keep up under load.

What's all the noise about HBA's, and why can't I use a RAID controller?

This is relevant to FreeNAS and TrueNAS CORE. Some parts of it might also be relevant to Scale, but I don't really know how reliable the Linux drivers are. 1) An HBA is a Host Bus Adapter. This is a controller that allows SAS and SATA devices to be attached to, and communicate directly with...

www.truenas.com



[jwsl224]

This is the problem. Your controller isn't flashed to IT mode, allowing TrueNAS direct access to the drives, but is only passing through the drives. It's not able to keep up under load.

What's all the noise about HBA's, and why can't I use a RAID controller?

This is relevant to FreeNAS and TrueNAS CORE. Some parts of it might also be relevant to Scale, but I don't really know how reliable the Linux drivers are. 1) An HBA is a Host Bus Adapter. This is a controller that allows SAS and SATA devices to be attached to, and communicate directly with...

www.truenas.com

jeepers. why didn't anyone tell me that before :@

would you give me a posting how to do this?



[Samuel Tai]

ServeTheHome has a good post on how to do this:

Flash/Crossflash DELL H330 RAID Card to HBA330/12Gbps HBA IT Firmware

Success! You can now flash the Dell PERC H330 (All Models) to IT Mode (HBA330). Big Thanks to BLinux for asking if it could be done! (Inspiration!) So I initially had a super long write-up, but that's way too long, you just need the compact steps. I linked the write up at the end of the...

forums.servethehome.com



[jwsl224]

ServeTheHome has a good post on how to do this:

Flash/Crossflash DELL H330 RAID Card to HBA330/12Gbps HBA IT Firmware

Success! You can now flash the Dell PERC H330 (All Models) to IT Mode (HBA330). Big Thanks to BLinux for asking if it could be done! (Inspiration!) So I initially had a super long write-up, but that's way too long, you just need the compact steps. I linked the write up at the end of the...

forums.servethehome.com

this is for the H330 card, not the HBA330..



[jgreco]

jeepers. why didn't anyone tell me that before :@

Well, we try hard. There is resistance at iXsystems to label hardware as "incompatible" with FreeNAS, but here in the forums we try to be pretty clear about it... that's why I'm also pushy about people posting a more detailed hardware manifest. Because it matters.



[Samuel Tai]

It's the same card with different firmware.



[jwsl224]

Well, we try hard. There is resistance at iXsystems to label hardware as "incompatible" with FreeNAS, but here in the forums we try to be pretty clear about it... that's why I'm also pushy about people posting a more detailed hardware manifest. Because it matters.

i feel you. it seems the iXsystems people have an issue with transparency. people have complained about this in the past, like with their limited info on their compression. but. it's not important. i will supply whatever information needed as long as i know it's needed :)
but we do appreciate you guys. without the forums, we have nowhere to go.



[jwsl224]

It's the same card with different firmware.

ok, pardon my ignorance then, but what specifically do i need to do here. yes i'm a noobie at this. should i be looking for IT formware for an HBA330? or will IT firmware for an H330 solve the problem?



[jwsl224]

This is the problem. Your controller isn't flashed to IT mode, allowing TrueNAS direct access to the drives, but is only passing through the drives. It's not able to keep up under load.

What's all the noise about HBA's, and why can't I use a RAID controller?

This is relevant to FreeNAS and TrueNAS CORE. Some parts of it might also be relevant to Scale, but I don't really know how reliable the Linux drivers are. 1) An HBA is a Host Bus Adapter. This is a controller that allows SAS and SATA devices to be attached to, and communicate directly with...

www.truenas.com

i got the below answer from your forums. all due respect, but the information between HoneyBadger and you is conflicting.

Windows Users Getting Plagued by Errors

Our windows users accessing our TrueNAS build over the SMB are getting plagued by two errors. either "and unexpected network error occurred" (error 0x8007003B) or "handle is invalid". Our TrueNAS build (running on a Dell R730XD) is almost unusable. large file transfer operations need to be...

www.truenas.com

and according to YouTube university, the HBA330 is literally dell's answer to an IT controller; it comes with IT firmware preflashed from dell.



[Samuel Tai]

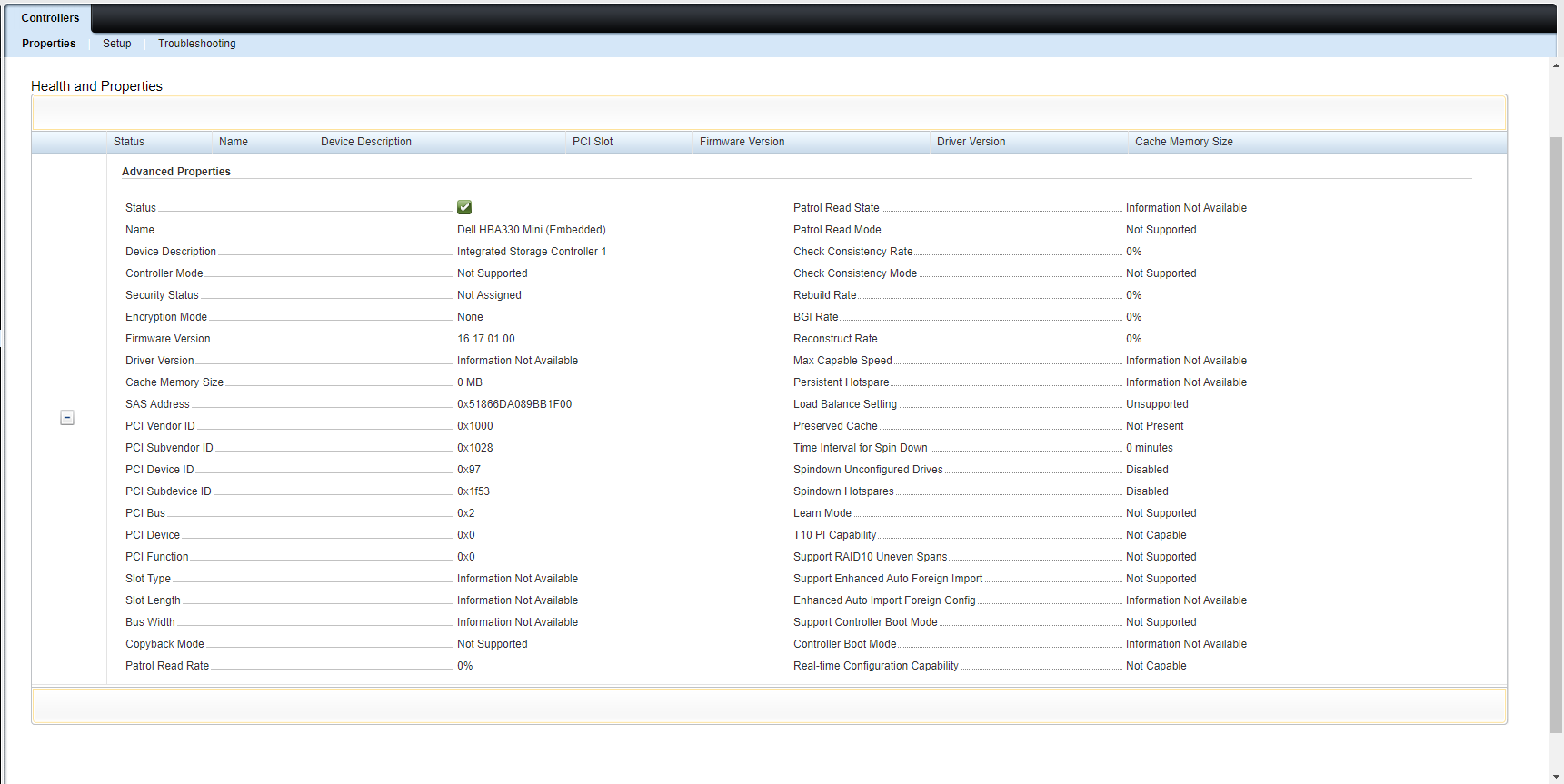

Please provide a screen shot of the BIOS screens for the HBA. That will show conclusively what it claims to be.



[jwsl224]

sure. here you go.
