Hello; first post here. I have FreeNAS-9.10.2 (a476f16) and am new to it; it’s for home use. It’s installed on a single USB key. I’m reasonably competent, software- and operations-wise, but this is my first foray into storage, FreeBSD, and ZFS. I chose ZFS for some learning experience; it hasn't been disappointing.
The mother board is an ASRock C2750d4i which has a Marvell SE9230 and a Marvell SE9172 controller. The motherboard firmware is as far as I know running the latest version; I updated it late last year.
I created a single volume of 4x3TB physical drives, set up as a pair of mirrored vdevs based on a sensible sounding post by Jim Salter. I’ve encrypted the volume following the instructions in the manual.
One of the drives has developed a fault and the volume is in a DEGRADED state and I think I’ve made a mistake when I tried to fix it.
I bought an extra drive to replace the failed one, and another to be a spare (cold, disconnected). I followed the instructions in section 8 about replacing an encrypted volume. I replaced what I thought {1} was the failed drive, but I think here is where I made an error - I think I selected the wrong adaN in the dropdown that was presented. I should have paid more attention, frankly, and double checked prior.
So, after resilvering, it’s still in a degraded state, and still one entry that shows UNAVAIL. So, add the spare drive, resilver - still DEGRADED, still the same UNAVAIL entry.
To be honest, I’m now sure a) how I got to this point, and b) how to get out of it - first to an array that is ONLINE not DEGRADED, and ideally if there’s a way to repair the corrupt files. I’m prepared to lose the plex media server jail. I’d be obliged if someone can advise me.
Also - in the UI, the console log (black area, bottom) no longer shows me any data - I assume because that is one of the files that is corrupted (sounds like `/var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/messages` et al is important, but guessing at what that console is tailing.)
Here are the diagnostics that some searching have suggested that I run (I don’t seem to be able to proceed successfully via the GUI, but I have made no changes via command line so far).

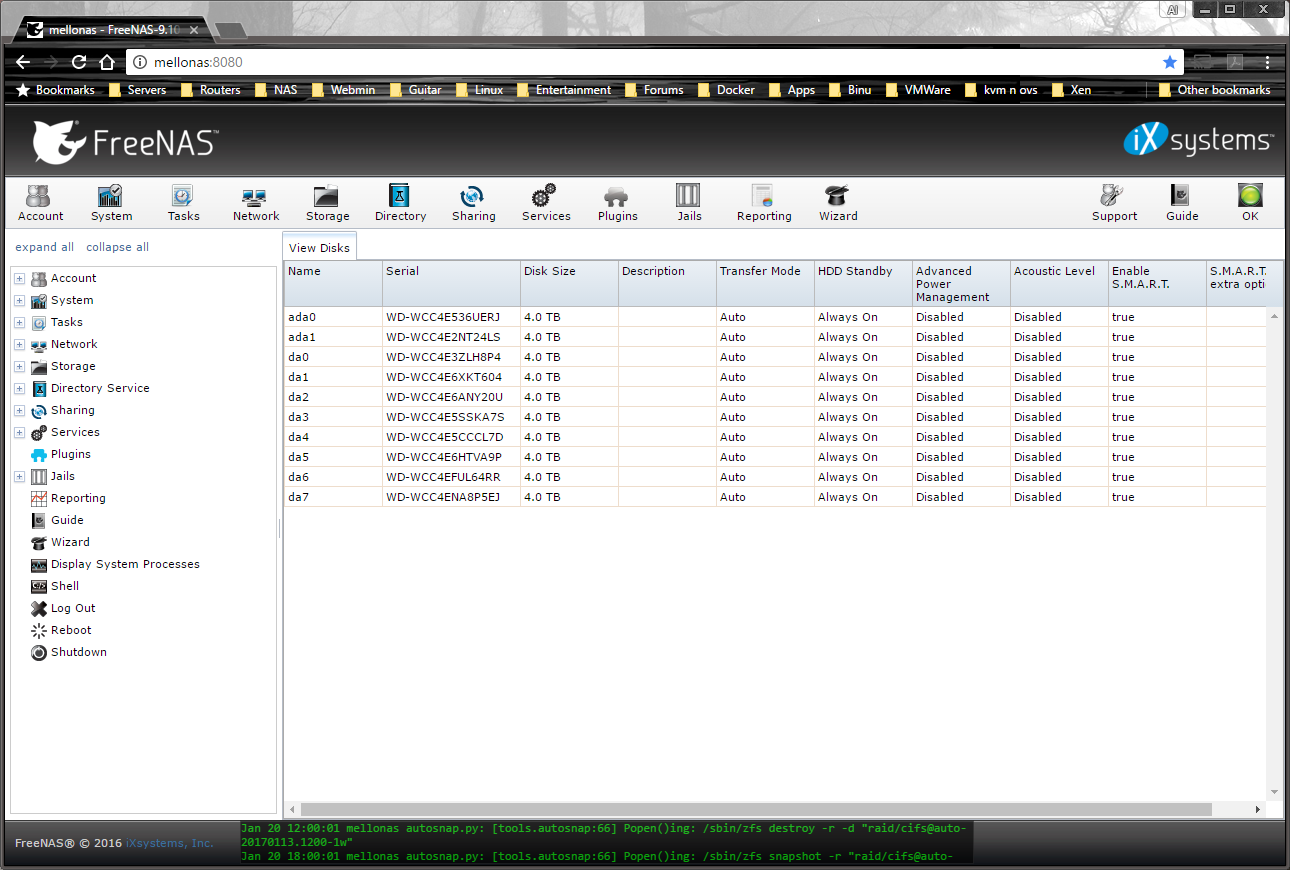

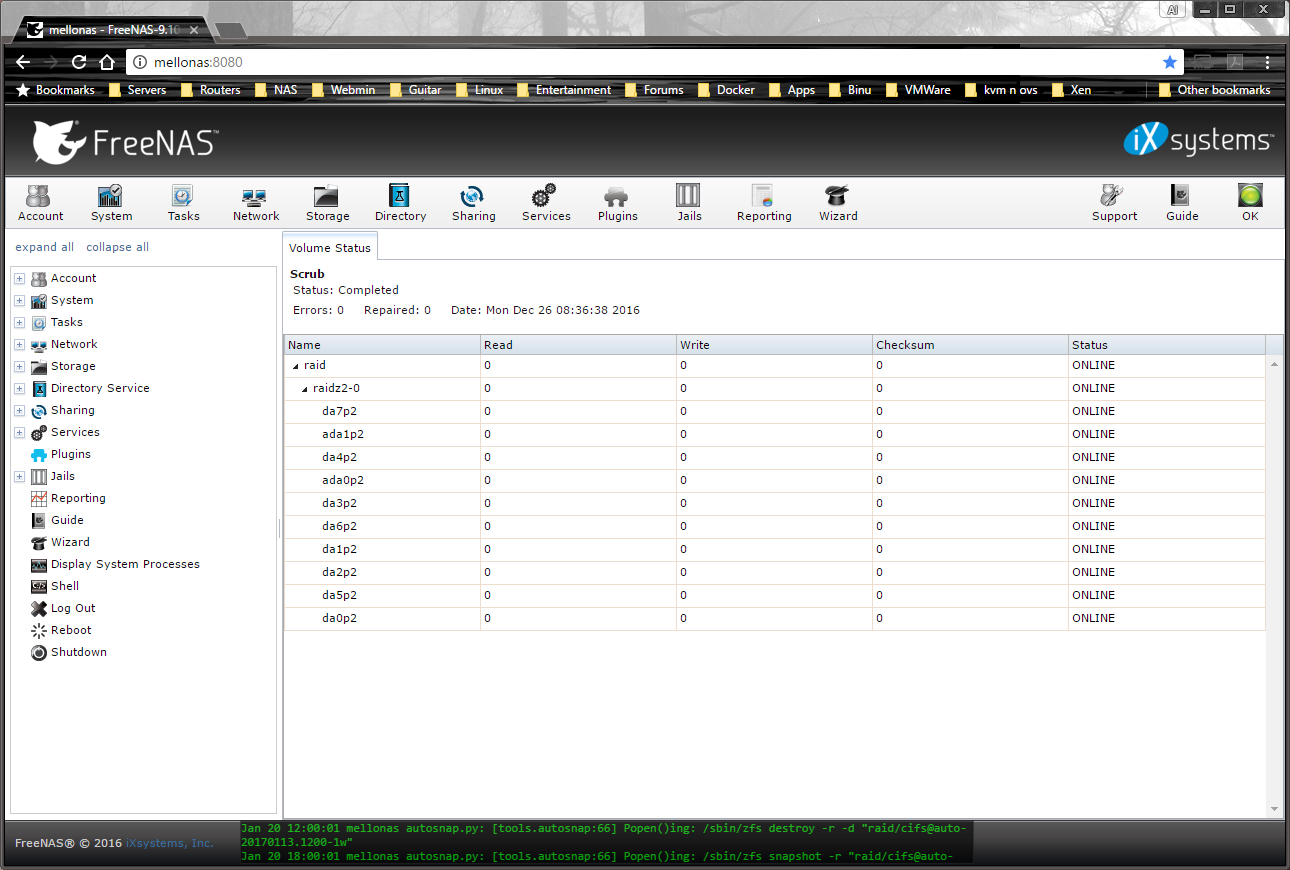

{1} - I would have found it very useful to be able to use the storage UI for view-disks and have that show which volume is in the degraded state. After reading around in the forums before building the unit, I labelled the front of each disk with the serial number, but it sounded like the device IDs (adaN) were mutable so I didn’t add those to the labels. It seems like a great feature to add, because when one loses a drive, one doesn't want to first google how to find out which one it was because it's not obvious in the UI.
The mother board is an ASRock C2750d4i which has a Marvell SE9230 and a Marvell SE9172 controller. The motherboard firmware is as far as I know running the latest version; I updated it late last year.
I created a single volume of 4x3TB physical drives, set up as a pair of mirrored vdevs based on a sensible sounding post by Jim Salter. I’ve encrypted the volume following the instructions in the manual.
One of the drives has developed a fault and the volume is in a DEGRADED state and I think I’ve made a mistake when I tried to fix it.
I bought an extra drive to replace the failed one, and another to be a spare (cold, disconnected). I followed the instructions in section 8 about replacing an encrypted volume. I replaced what I thought {1} was the failed drive, but I think here is where I made an error - I think I selected the wrong adaN in the dropdown that was presented. I should have paid more attention, frankly, and double checked prior.
So, after resilvering, it’s still in a degraded state, and still one entry that shows UNAVAIL. So, add the spare drive, resilver - still DEGRADED, still the same UNAVAIL entry.
To be honest, I’m now sure a) how I got to this point, and b) how to get out of it - first to an array that is ONLINE not DEGRADED, and ideally if there’s a way to repair the corrupt files. I’m prepared to lose the plex media server jail. I’d be obliged if someone can advise me.
Also - in the UI, the console log (black area, bottom) no longer shows me any data - I assume because that is one of the files that is corrupted (sounds like `/var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/messages` et al is important, but guessing at what that console is tailing.)
Here are the diagnostics that some searching have suggested that I run (I don’t seem to be able to proceed successfully via the GUI, but I have made no changes via command line so far).
Code:
[root@orion ~]# zpool status -v vol1 pool: vol1 state: DEGRADED status: One or more devices has experienced an error resulting in data corruption. Applications may be affected. action: Restore the file in question if possible. Otherwise restore the entire pool from backup. see: http://illumos.org/msg/ZFS-8000-8A scan: scrub repaired 445G in 1h27m with 161 errors on Wed Jan 11 02:44:34 2017 config: NAME STATE READ WRITE CKSUM vol1 DEGRADED 0 0 97.6K mirror-0 ONLINE 0 0 0 gptid/fdaefe2c-d137-11e6-a886-d05099c0adce.eli ONLINE 0 0 0 gptid/1efbebd9-88a9-11e6-9446-d05099c0adce.eli ONLINE 0 0 0 mirror-1 DEGRADED 0 0 222K replacing-0 DEGRADED 222K 0 0 10734777483274518261 UNAVAIL 0 0 0 was /dev/gptid/abedf192-4d3e-11e6-bbbe-d05 099c0adce.eli gptid/6078220f-d2cc-11e6-8cc5-d05099c0adce.eli ONLINE 0 0 222K gptid/c352b547-d467-11e6-90ee-d05099c0adce.eli ONLINE 0 0 222K gptid/adcd673b-4d3e-11e6-bbbe-d05099c0adce.eli ONLINE 0 0 222K errors: Permanent errors have been detected in the following files: vol1/.system/cores:<0x0> /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/mdnsresponder.log /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/userlog /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/utx.log /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/middlewared.log /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/nginx/access.log /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/samba4/log.nmbd /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/samba4/log.winbindd /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/samba4/log.wb-ORION /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/auth.log /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/cron /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/daemon.log /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/messages /var/db/system/syslog-85defbf1587e4780a923a9999cad858e/log/debug.log vol1/jails/plexmediaserver_1:<0x0> /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Logs/Plex Media Scanner.4.log /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Logs/Plex Media Server.1.log /mnt/vol1/jails/plexmediaserver_1/var/log/cron /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Logs/Plex (anonymous).3.log /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Logs/Plex Media Scanner.3.log /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Logs/Plex (anonymous).log /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Logs/Plex Media Scanner.2.log /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Cache/CloudAccount.dat /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Logs/Plex Media Scanner.1.log /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Logs/Plex Media Scanner.log /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Logs/Plex Media Server.log /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Plug-in Support/Databases/com.plexapp.dlna.db-shm /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Logs/Plex (anonymous).2.log /mnt/vol1/jails/plexmediaserver_1/var/db/plexdata/Plex Media Server/Plug-in Support/Databases/com.plexapp.plugins.library.db-wal /mnt/vol1/jails/plexmediaserver_1/var/log/messages
Code:
[root@orion ~]# glabel status Name Status Components gptid/c352b547-d467-11e6-90ee-d05099c0adce N/A ada0p2 gptid/fdaefe2c-d137-11e6-a886-d05099c0adce N/A ada1p2 gptid/adcd673b-4d3e-11e6-bbbe-d05099c0adce N/A ada2p2 gptid/1efbebd9-88a9-11e6-9446-d05099c0adce N/A ada3p2 gptid/6078220f-d2cc-11e6-8cc5-d05099c0adce N/A ada4p2 gptid/157bddc1-4b5d-11e6-b367-d05099c0adce N/A da0p1 gptid/158de726-4b5d-11e6-b367-d05099c0adce N/A da0p2
Code:
[root@orion ~]# camcontrol devlist <WDC WD30EFRX-68EUZN0 82.00A82> at scbus0 target 0 lun 0 (pass0,ada0) <WDC WD30EFRX-68EUZN0 82.00A82> at scbus1 target 0 lun 0 (pass1,ada1) <TOSHIBA DT01ACA300 MX6OABB0> at scbus2 target 0 lun 0 (pass2,ada2) <WDC WD30EFRX-68EUZN0 82.00A82> at scbus4 target 0 lun 0 (pass3,ada3) <WDC WD30EFRX-68EUZN0 82.00A82> at scbus5 target 0 lun 0 (pass4,ada4) <Marvell Console 1.01> at scbus9 target 0 lun 0 (pass5) <Samsung Flash Drive FIT 1100> at scbus17 target 0 lun 0 (pass6,da0)
Code:
[root@orion ~]# camcontrol identify ada0 | grep ^serial serial number WD-WCC4N3KUL6DL [root@orion ~]# camcontrol identify ada1 | grep ^serial serial number WD-WCC4N7PCS8UN [root@orion ~]# camcontrol identify ada2 | grep ^serial serial number X5DAN58GS [root@orion ~]# camcontrol identify ada3 | grep ^serial serial number WD-WCC4N6XKYX6V [root@orion ~]# camcontrol identify ada4 | grep ^serial serial number WD-WCC4N4HRULNN
{1} - I would have found it very useful to be able to use the storage UI for view-disks and have that show which volume is in the degraded state. After reading around in the forums before building the unit, I labelled the front of each disk with the serial number, but it sounded like the device IDs (adaN) were mutable so I didn’t add those to the labels. It seems like a great feature to add, because when one loses a drive, one doesn't want to first google how to find out which one it was because it's not obvious in the UI.
