Truenas12x - Slow smb browsing !?

[tiberiusQ]

Dear all,

With Truenas12U1 I do experience a very slow browsing performance and Windows 10 clients genarate insanely traffic while simply browsing the smb shares + The explorer crashed quiet often.

Especially for vpn users it makes it nearly impossible to work ;-(

The dataset for my share data is smb share type and the share has default share parameters with ACLs

Should I give these settings a try and is it still safe to use on Truenas12x ?
ea support = no
store dos attributes = no
map archive = no
map hidden = no
map readonly = no
map system = no

Any hints and tips are appreciated !



[tiberiusQ]

Additionally is somebody able to clarify if the default indexing setting on Windows has a bad inpact on performanance as well ?



[Samuel Tai]

I don't have the indexing option available on my Windows 10 20H2 client, and I don't experience this issue in my environment. However, having the desktops index the server is a very bad idea.

Also, with TrueNAS 12.0U1, the proper way to map those DOS attributes is by adding "ixnas:dosattrib_xattr=true" into the share's Auxiliary Parameters, and then restarting the SMB service.



[tiberiusQ]

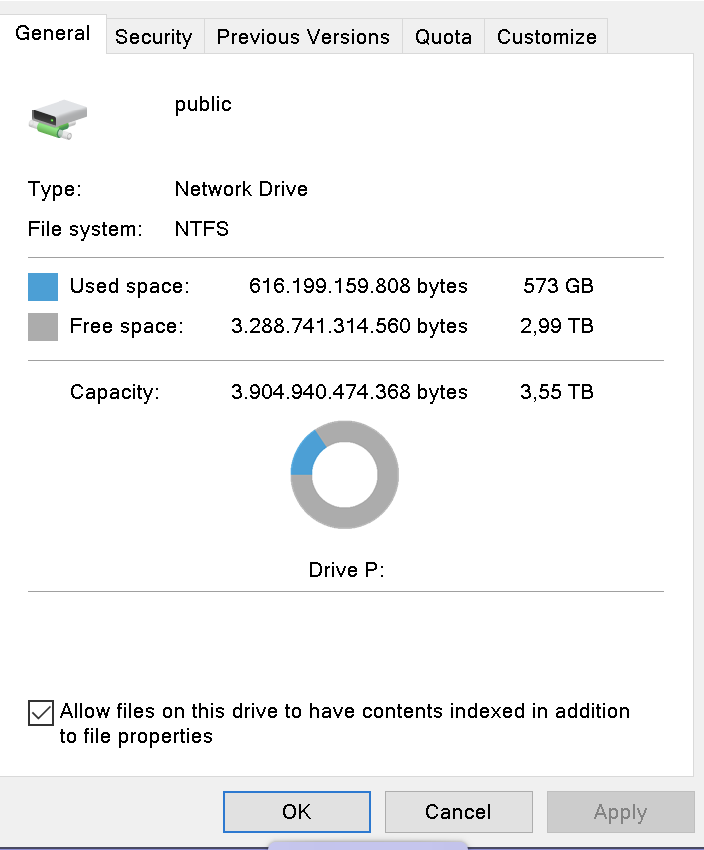

Well, the indexing option seems to be default on windows 10 pro !

To aim browsing performance should'nt it be "ixnas:dosattrib_xattr=false" ?



[Samuel Tai]

Well, the indexing option seems to be default on windows 10 pro !

Interesting. I'm running Pro as well, and I don't see that option. Have you configured the Indexing Options control panel to index network shares?

To aim browsing performance should'nt it be "ixnas:dosattrib_xattr=false" ?

That has nothing to do with browsing performance, only mapping the DOS attributes to Unix file xattrs.



[tiberiusQ]

Just using a clean and untouched windows 10 pro as dummy test client, and simply mapped a bloody share....


Ok. but as the thread title says, I try to tune the browsing speed and as a bonus I am facing a high amount of network traffic which the win client generates while browsing shares or simply entering shares and I try to understand why this occurs and if this is related to Truenas12U1 !?

In ref. to this threads I was asking if these aux settings are still tha shit to boost the browsing performance while running Truenaas12xx

SOLVED - Browsing directories slow

Hello, I do not seem to have a transfer problem as I am getting over 100MBps transfer speeds with the cat5 plugged in direct. A bit slower on wireless but still good. I can play video without any pausing or problems. The problem I am having is browsing directories. It does not matter if it...

www.truenas.com

CIFS directory browsing slow? Try this

This has become a larger and larger problem that has affected more and more users. If your CIFS directory browsing is slow there are multiple ways to resolve the issue. #1: More hardware- You can always have more ARC and/or add an L2ARC (you can never have too much ARC). This caches data in...

www.truenas.com



[Samuel Tai]

There are multiple possibilities for slow browsing, but you've not provided enough information to distinguish which may be the cause.

First, provide the output of testparm -a, which will display the Samba configuration on your TrueNAS installation.
Second, a network diagram would be helpful. Is this just a small flat network, or do we have to worry about master browsers and subnet master browsers with a larger topology?
Third, please describe your build.



[tiberiusQ]

I do run 20+ Free/Truenas servers in a flat network env. Currently all of them patched to version 12U1-1 and all servers are supermicro.
The samba conf. is almost default, trivial workgroups and or workgroups with a jumpcloud setup.
To avoid issues with election I did disabled the Local Master checbox in smb service.

Eg. almost default Testparm -a:
[global]
aio max threads = 2
bind interfaces only = Yes
disable spoolss = Yes
dns proxy = No
enable web service discovery = Yes
kernel change notify = No
load printers = No
logging = file
map to guest = Bad User
max log size = 51200
nsupdate command = /usr/local/bin/samba-nsupdate -g
registry shares = Yes
server role = standalone server
unix extensions = No
username map = /usr/local/etc/smbusername.map
username map cache time = 60
workgroup = workgroup
idmap config *: range = 90000001-100000000
idmap config * : backend = tdb
directory name cache size = 0
dos filemode = Yes

[muc_data]
ea support = No
kernel share modes = No
path = /mnt/pool01/muc_data
posix locking = No

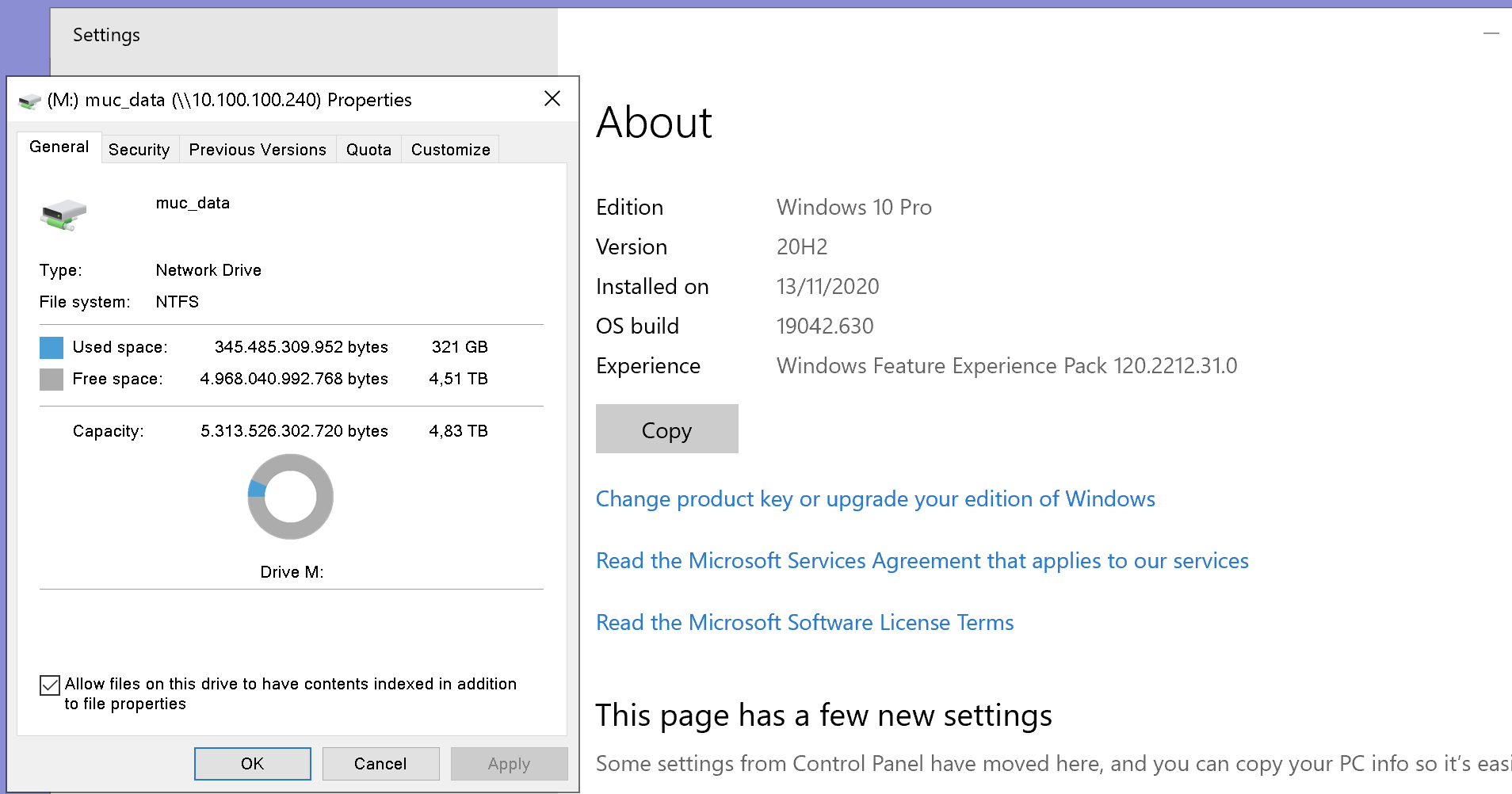

Attached again, pretty strange the indexing option which is on per default on my windows 10 test client.

Further, the ea support option seem to be default since Truenas, right ?

Again, does anybody has experince with these options, regarding to speeding up share browsing performance?

store dos attributes = no
map archive = no
map hidden = no
map readonly = no
map system = no

And is store dos attributes and dos filemode is the same ?
