SOLVED Replaced failed disk, unreadable sectors, smartctl no error

Status
Not open for further replies.
H

Hobbel

Contributor
Joined
Feb 17, 2015
Messages
111
Hey out there,

I've a strange problem. I replaced a failed WD Red 1TB (da3) on wednesday, following the FreeNAS doc (mark offline, replace physical, replace in GUI). After resilvering was completed, I got this alert in the GUI:

I did a
Code:
smartctl -a /dev/da3


and got
Code:
smartctl 6.4 2015-06-04 r4109 [FreeBSD 10.3-RELEASE amd64] (local build)
Copyright (C) 2002-15, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red
Device Model:     WDC WD10EFRX-68FYTN0
Serial Number:    WD-WCC4J1XXXXXX
LU WWN Device Id: 5 0014ee 20c72537f
Firmware Version: 82.00A82
User Capacity:    1,000,204,886,016 bytes [1.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5400 rpm
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Fri Apr  8 11:33:16 2016 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (15360) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 174) minutes.
Conveyance self-test routine
recommended polling time:        (   5) minutes.
SCT capabilities:              (0x303d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   100   253   021    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       1
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   100   253   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   100   100   000    Old_age   Always       -       37
10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       1
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       0
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       1
194 Temperature_Celsius     0x0022   114   112   000    Old_age   Always       -       29
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   100   253   000    Old_age   Offline      -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Conveyance offline  Completed without error       00%        22         -
# 2  Short offline       Completed without error       00%        22         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

also did a short and conveyance SMART test.

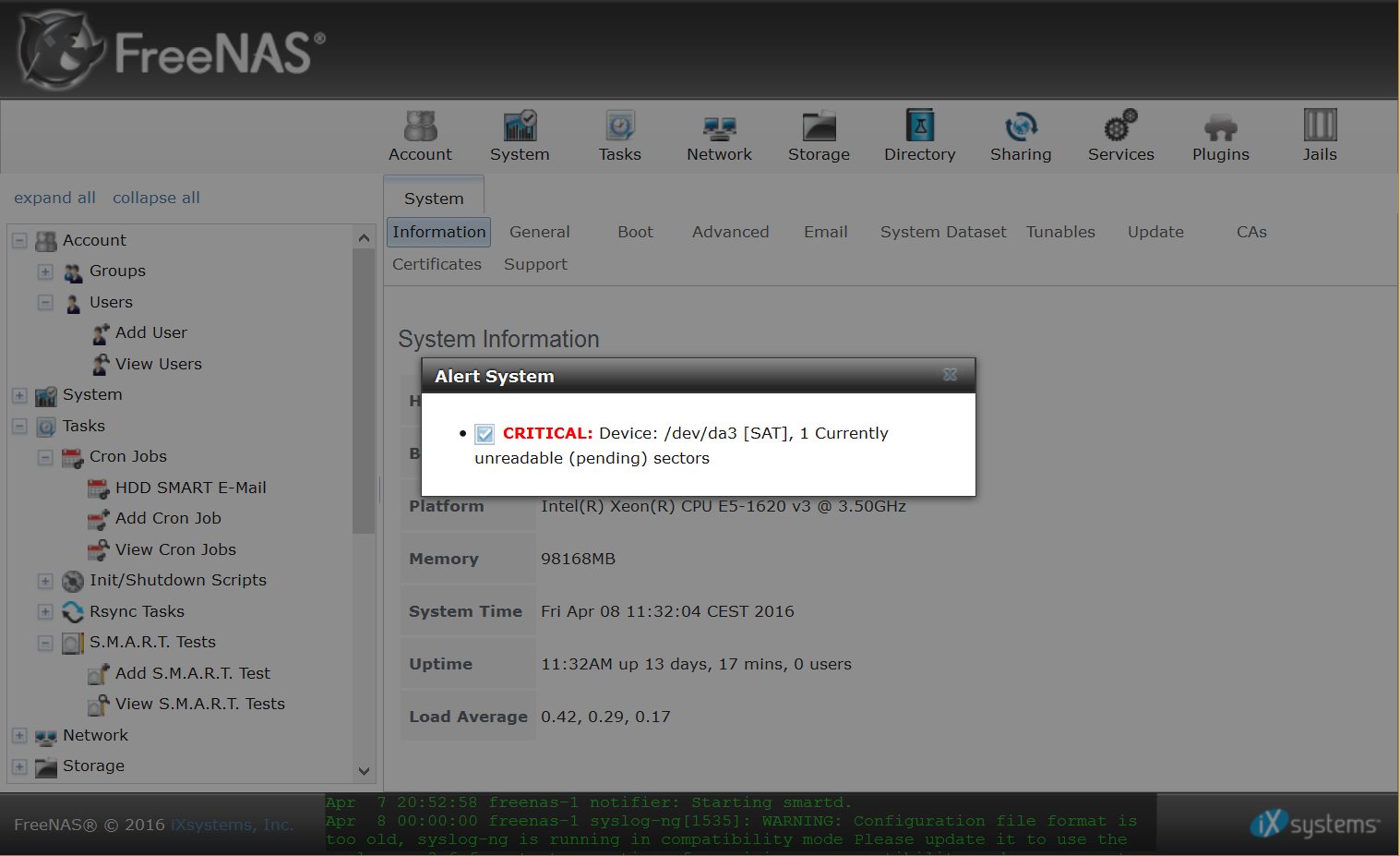

What am I missing? Is there a way to reload the GUI alerts (not a page refresh)?

Thanks in advance

EDIT
FreeNAS-9.10-STABLE-201603252134 (412fb1c)

Bidule0hm

Bidule0hm

Server Electronics Sorcerer
Joined
Aug 5, 2013
Messages
3,710
And/or just reboot, IIRC the alerts are cleared on reboot.

H

Hobbel

Contributor
Joined
Feb 17, 2015
Messages
111
@hugovsky
yeah... of course... I will do so. But why is the GUI alerting, when SMART isn't showing any error? Isn't the GUI alert parsing SMART data?

H

Hobbel

Contributor
Joined
Feb 17, 2015
Messages
111
Bidule0hm

Bidule0hm

Server Electronics Sorcerer
Joined
Aug 5, 2013
Messages
3,710
IIRC it's also cleared each night when the automatic scripts are launched.

H

Hobbel

Contributor
Joined
Feb 17, 2015
Messages
111
long test finished. SMART is not seeing any errors. So why does the GUI?

Code:
smartctl 6.4 2015-06-04 r4109 [FreeBSD 10.3-RELEASE amd64] (local build)
Copyright (C) 2002-15, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red
Device Model:     WDC WD10EFRX-68FYTN0
Serial Number:    WD-WCC4J1XXXXXX
LU WWN Device Id: 5 0014ee 20c72537f
Firmware Version: 82.00A82
User Capacity:    1,000,204,886,016 bytes [1.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5400 rpm
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Fri Apr  8 21:04:26 2016 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (15360) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 174) minutes.
Conveyance self-test routine
recommended polling time:        (   5) minutes.
SCT capabilities:              (0x303d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   100   253   021    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       1
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   100   100   000    Old_age   Always       -       46
10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       1
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       0
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       1
194 Temperature_Celsius     0x0022   114   112   000    Old_age   Always       -       29
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%        46         -
# 2  Conveyance offline  Completed without error       00%        22         -
# 3  Short offline       Completed without error       00%        22         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

Bidule0hm

Bidule0hm

Server Electronics Sorcerer
Joined
Aug 5, 2013
Messages
3,710
Because it displays the error of the old drive, it'll clear it if you wait long enough.

H

Hobbel

Contributor
Joined
Feb 17, 2015
Messages
111
I'm waiting since 46 hrs and 2 "reloads" each night. It would be nice to refresh the alert system of the GUI to see if it's false positive... Like I said, a restart is no option.

C

cyberjock

Inactive Account
Joined
Mar 25, 2012
Messages
19,526
It clears when you delete /tmp/.smartalert. Reboots will not clear the file. :P

H

Hobbel

Contributor
Joined
Feb 17, 2015
Messages
111
cyberjock said:
It clears when you delete /tmp/.smartalert. Reboots will not clear the file. :p
Click to expand...
was inside /tmp before, but only had a look at alert... in this file, the message is written under p14.
deleted /tmp/.smartalert but no change for now. will wait another night, to see if it clears.

as always... thx @cyberjock ;)

EDIT
1 minute after writing this, the alert cleared itself. it' done :)

Bidule0hm

Bidule0hm

Server Electronics Sorcerer
Joined
Aug 5, 2013
Messages
3,710
cyberjock said:
It clears when you delete /tmp/.smartalert. Reboots will not clear the file. :p
Click to expand...

Right, it only clears the scrub errors, I forgot about that...

Status
Not open for further replies.

Similar threads

K
  • Locked
Confused about error: Device: /dev/ada3, 5 Currently unreadable (pending) sectors
Replies
7
Views
2K
danb35
danb35
A
  • Locked
Currently unreadable (pending) sectors
Replies
3
Views
2K
Robert Trevellyan
R
G
  • Locked
smartctl possible problems
Replies
1
Views
1K
peterh
P
marcevan
Disk has 6 currently unreadable (pending) sectors
Replies
14
Views
8K
joeschmuck
joeschmuck
I
2 Currently unreadable sectors on drive?
Replies
5
Views
1K
Jailer
Jailer
Top
