PowerWalker UPS

[Njanja]

Hello
Have a BlueWalker PowerWalker UPS VI 750 R1U, and I am trying to install on my FreeNAS, but is not doing so well. This model I have is not in the list. Tested with other models from PowerWalker and get the same problem: "Communication with UPS is lost".

Does anyone know how to get UPS to work with FreeNAS, or do I have to change to another model?

Best regards,
Njanja



[Samuel Tai]

You're probably out of luck. This UPS doesn't have a driver listed at https://networkupstools.org/stable-hcl.html.



[Samuel Tai]

The datasheet for your UPS says it supports USB HID. You could try the usbhid-ups driver.



[Samuel Tai]

According to this bug report, the usbhid-ups driver allows communications with that model of UPS, but reports incorrect values. You'll have to use a different UPS, unfortunately.



[Njanja]

Hi
Can I install UPS on VM and connect to FreeNAS?



[Samuel Tai]

Not really feasible. See this other forum thread on bhyve USB pass-through. In short, you'd need to compile a custom kernel for FreeNAS. It's easier to get a different UPS.



[danb35]

It's easier to get a different UPS.

Or, I guess, get a Raspberry Pi and set it up as a nut server...



[Samuel Tai]

A Pi wouldn't work. Nut doesn't have a driver for this specific UPS.



[danb35]

Ah, I didn't follow your link for the bug, and had assumed it was a FreeNAS bug rather than a NUT bug. Though I guess a Pi would give an environment more conducive to hacking, so might still be usable that way...



[Njanja]

Hi

A Pi wouldn't work. Nut doesn't have a driver for this specific UPS.

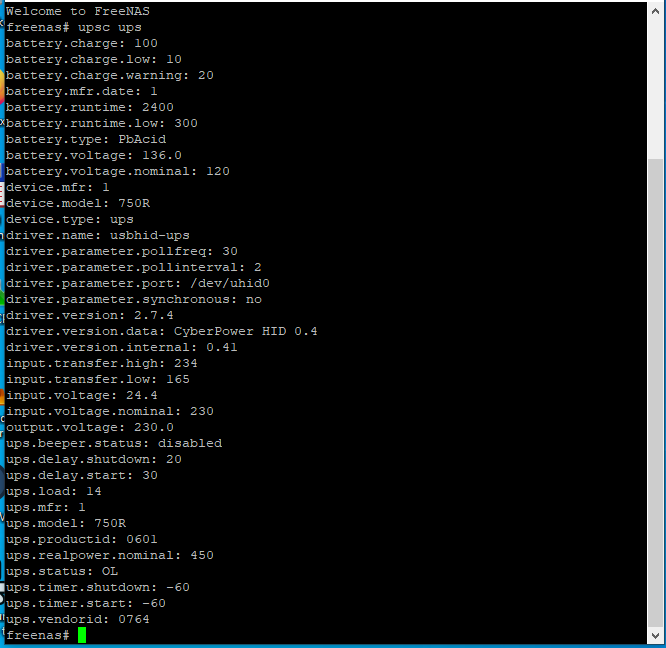

Now works.
