PowerEdge R430 Installation Issues (Core Works/Scale Doesn't)

[throwawawy]

Hello Everyone! I have been having an issue with my R430 server, TrueNas Core is the only ISO I have gotten to successfully install. Slightly off topic but may be some help, I tried installing Proxmox, Truenas Scale, and even Ubuntu Server but no luck at all. Currently I have TrueNas Core installed and working, but I want to install TrueNas Scale. Some things I have tried would include:

• Switching between UEFI and BIOS
• HBA mode and Raid mode
• Different USBs
• Different USB formats using rufus and balena
• Checked if Virtualization was turned on, also tried turning it off but gave me virtualization error
• Turned off secure boot
• Turned off watchdog

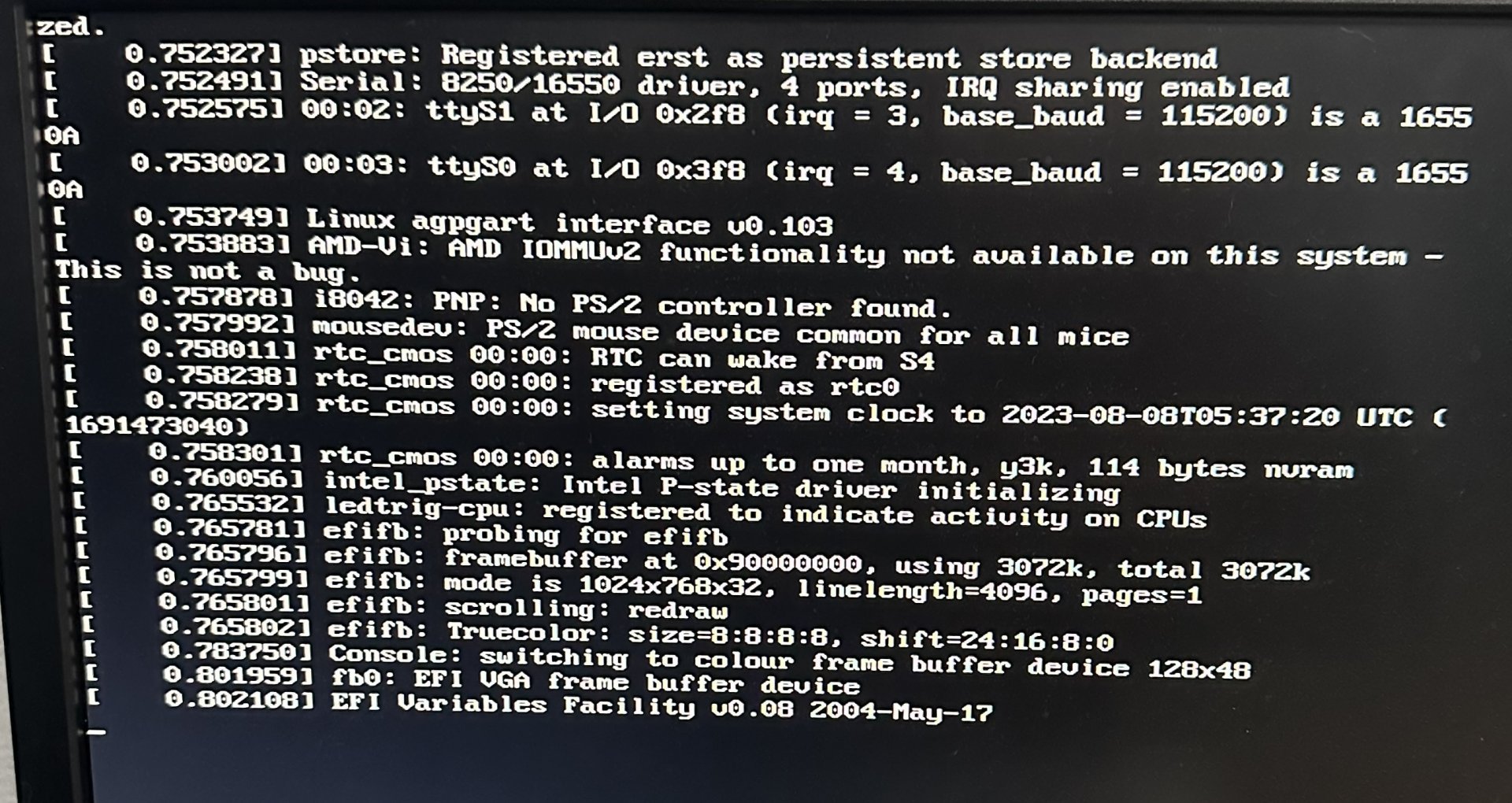

I am honestly not sure what else to do. I have 2 e5-2650 v3 chips, and 32 gb of ecc ram. Below is an attached file of the output when running the installer without the quiet flag.



[sretalla]

I see some references to installed PCIe cards blocking Linux Kernel above v3.x (which all of the failed installs would be)...

Centos 7.2 and PowerEdges R430 | DELL Technologies

Centos 7.2 and PowerEdges R430 Hi there, I'm trying to install Centos...

www.dell.com

Perhaps try removing some PCIe cards until it works.



[throwawawy]

This solved the issue. Thank you so much!
