NMI IOCK error?

[anibol]

Hi, i have installed a fresh Freenas 11.2 with this hardware configuration:

HP DL360 G7 - 64GB RAM ECC - DUAL XEON E5645 6-CORE 2.40GHZ
PMC8003 NETAPP SIERRA Rev5.0
NETAPP DS2246

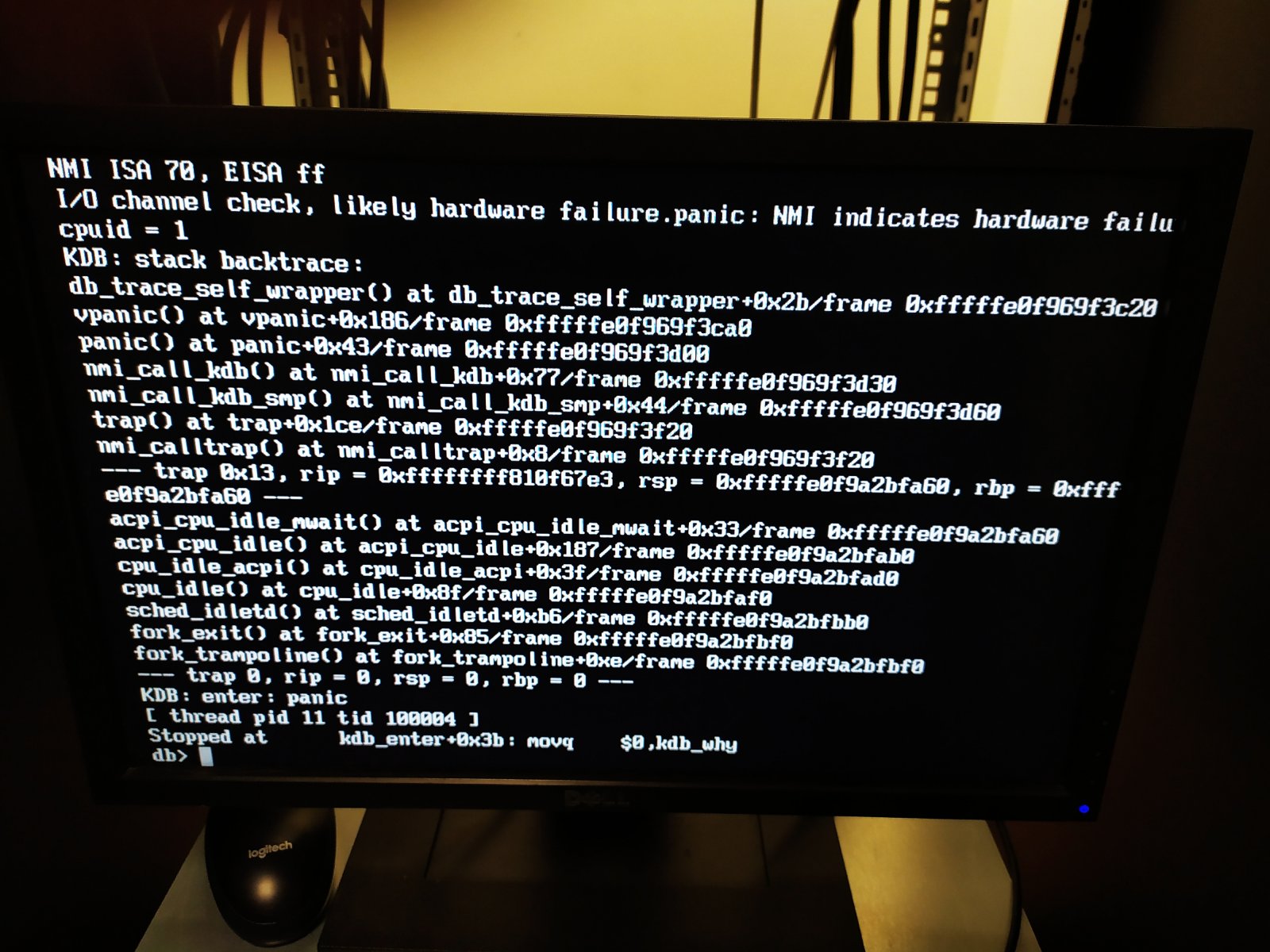

After booting and creating a pool everything seems to work ok, but after a few minutes I get the error you can see on the attached image.
Any idea of what is about?
I have checked memory with memtest86 with no errors.

Thanks in advance



[dlavigne]

Were you able to resolve this?



[anibol]

Hi, yes the problem was that you need the correct version of the PMC8003 card, it needs to be Rev 5.0 and the correct version is 111-00341+F2, mine was 111-00341-F1.
Why I know this? Because I have other setup running for months without a problem and F2 was the version of the PMC card.
I think I'm going the write a tutorial for the perfect setup :)
