Hi everybody,
First of all, I am completely new to the entire TrueNAS experience so please don't judge me to hard on weird settings. I am just trying to get it to work. (Sorry for some spelling mistakes) Over the course of serveral months I have tried to get the OpenVPN to work properly. And I think it is time to ask for some help.
I have a question about OpenVPN. I want to be able to setup open VPN as followed. When I am outside my home (where my truenas server is), I want to be able to access my truenas including its jails (and every other device inside my network). So I can manage and use the server when I am not home. It would also be handy to use the network connection from the server as WAN so I dont have to turn on and off OpenVPN everytime I want to search / browse the web.
This is the current setup I have now. After using some of the forum pages whilst searching the web for the problem which are linked down below:
www.truenas.com
www.truenas.com
TrueNAS server ip: 192.168.1.190
OpenVPN IP: 192.168.2.0
Default Gateway: 192.168.1.1

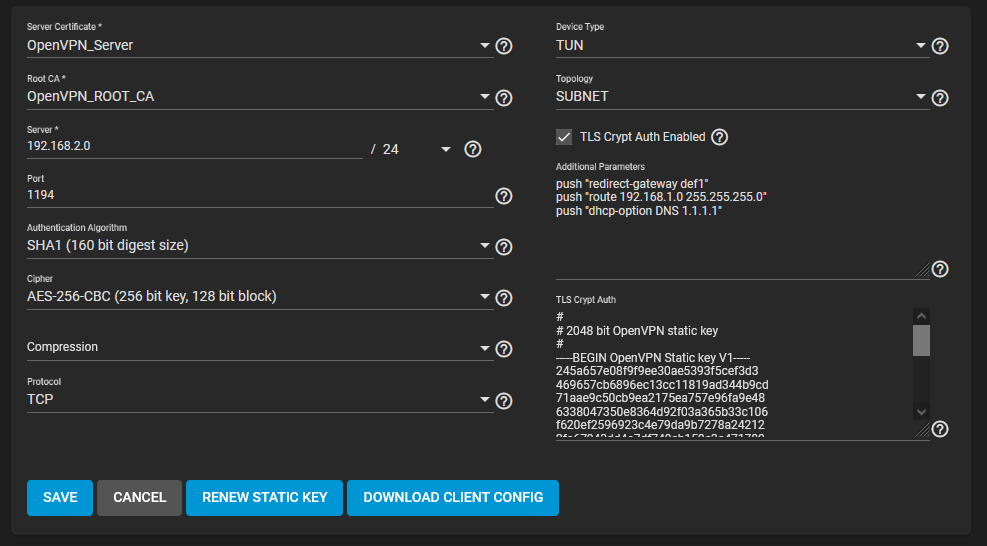

First of all lets see my openvpn server settings:

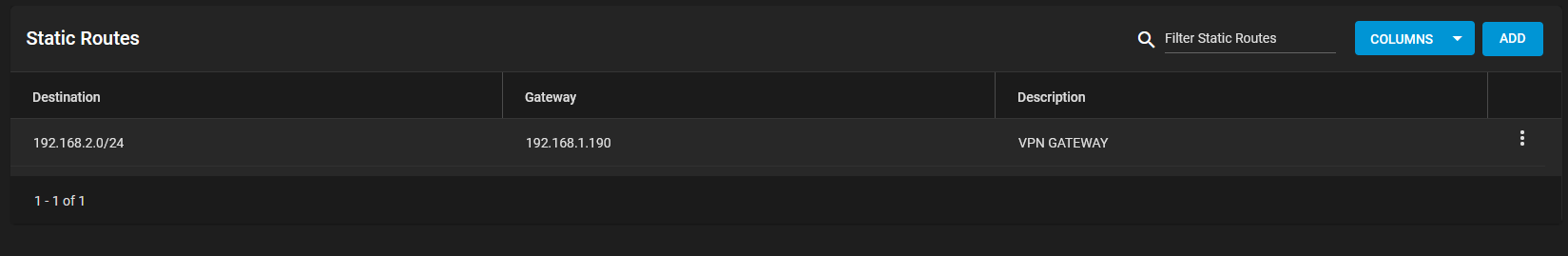

Second of all I want to show the static route:

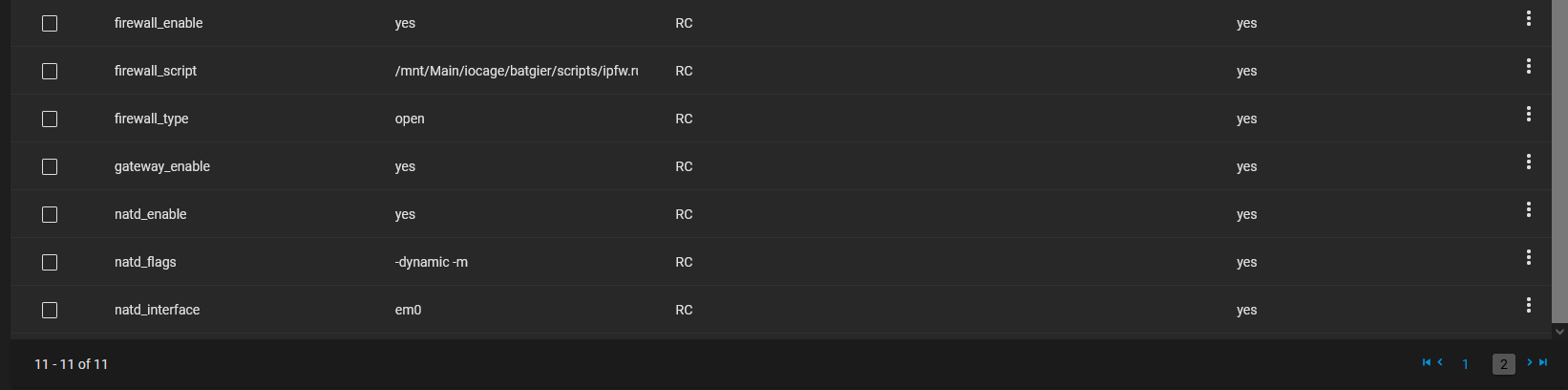

Third the Tunables:

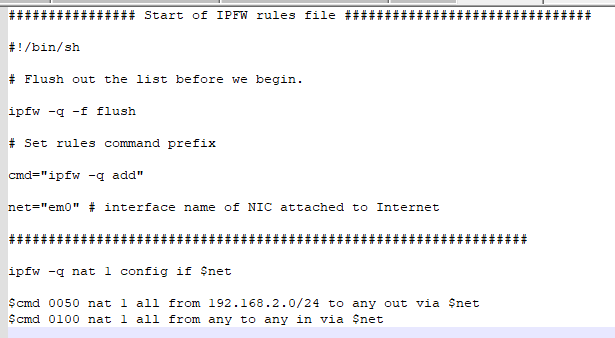

And at last the firewall script:
I use filezilla to upload the ipfw.rules file to the server and have given it 0644 for the right permissions. At least I hope this is correct.
Hope I have provided you guys enough information to help me out.
Looking forward to the provided help. Thanks in advance :)
Greetings, Bart :)
First of all, I am completely new to the entire TrueNAS experience so please don't judge me to hard on weird settings. I am just trying to get it to work. (Sorry for some spelling mistakes) Over the course of serveral months I have tried to get the OpenVPN to work properly. And I think it is time to ask for some help.
I have a question about OpenVPN. I want to be able to setup open VPN as followed. When I am outside my home (where my truenas server is), I want to be able to access my truenas including its jails (and every other device inside my network). So I can manage and use the server when I am not home. It would also be handy to use the network connection from the server as WAN so I dont have to turn on and off OpenVPN everytime I want to search / browse the web.
This is the current setup I have now. After using some of the forum pages whilst searching the web for the problem which are linked down below:
OpenVPN service failing to connect to local subnet
I'm new to both TrueNAS and OpenVPN, so if any wrong conclusion are drawn in this post it's probably due to a lack of experience with either. On my NAS server I run a bunch of services, all occupying a local IP in the subnet 192.168.178.x. These all work fine and can be accessed while connected...
www.truenas.com
TrueNas OpenVPN & Local network access not working complete Noob looking for help
I'm new to both TrueNAS and OpenVPN, so if any wrong conclusion is written in my questions it's probably due to a lack of experience with either. So I built up TrueNas and OpenVPN, everything is working perfect. There is a lot of information over internet. But for my issue I have not find...
www.truenas.com
TrueNAS server ip: 192.168.1.190
OpenVPN IP: 192.168.2.0
Default Gateway: 192.168.1.1
First of all lets see my openvpn server settings:
Second of all I want to show the static route:
Third the Tunables:
And at last the firewall script:
I use filezilla to upload the ipfw.rules file to the server and have given it 0644 for the right permissions. At least I hope this is correct.
Hope I have provided you guys enough information to help me out.
Looking forward to the provided help. Thanks in advance :)
Greetings, Bart :)
