Try mapping to either of the shares in the attachment eg. \\IP\calebnas
-
Important Announcement for the TrueNAS Community.
The TrueNAS Community has now been moved. This forum will now become READ-ONLY for historical purposes. Please feel free to join us on the new TrueNAS Community Forums
Device does not seem to be functioning...?
- Thread starter Chesse
- Start date
That's part of the issue. It won't work, just throws up an error felling me it's invalid.
Basil Hendroff
Wizard
- Joined
- Jan 4, 2014
- Messages
- 1,644
Is your PC a laptop? If it is, does it have an ethernet port? Assuming YES to both these questions, if you plug your PC directly into the router can you then map to the shares?
Basil Hendroff
Wizard
- Joined
- Jan 4, 2014
- Messages
- 1,644
This is a red herring. Hence the nonsense output.
It's a gaming/workstation desktop. I don't have a place to put it upstairs. Also, I did try using a separate router and connecting my PC and server into it, but when the NAS booted, it told me something along the lines of "can't configure network" or something, where the IP of the server would normally be shown (on the console). But it was able to just fine once I brought the NAS upstairs and plugged it in via ethernet to the main router.
Basil Hendroff
Wizard
- Joined
- Jan 4, 2014
- Messages
- 1,644
Well, that would happen if the FreeNAS server cannot get in touch with your DHCP server (usually your DSL modem). For that to work, you need to set the second router up as an access point. Anyway, that's a separate issue.
What is the exact error message you get when you try to map the share calebnas? A screenshot is desirable.
Last edited:
Yeah, that's how I had the server running before. The other router was connected to the main router and configured to be just an AP, then the server was plugged into that. I had no issues that way.
And it just says "the specified path is invalid" when mapping.
Basil Hendroff
Wizard
- Joined
- Jan 4, 2014
- Messages
- 1,644
What's the path you're mapping to? Also check SMB services is running on FreeNAS.
path is \\192.168.1.137\shared. Also tried share, root, CalebNAS, calebnas, mint, root\mnt\shared and combinations of those folders.
Basil Hendroff
Wizard
- Joined
- Jan 4, 2014
- Messages
- 1,644
I think there's some misunderstanding here. Your FreeNAS server is only advertising two SMB shares calebnas and calebnas1. Can you map to either of these shares?
Are SMB services running on your server?
Can you provide a screenshot of your attempt to map to calebnas?
Can you confirm that the IP address of the FreeNAS server is 192.168.1.137? How did you establish it?
Unless I'm misunderstanding something, these points appear to contradict each other.
Last edited:
How do they contradict? Before I moved things around, I had the second router connected via ethernet to the main router upstairs (the one currently connected to the main PC, which is the PC that I CAN grab the files off the server from). I had the second router which was downstairs at the time basically set up as an AP. Then I had him the server plugged into that. The original setup worked that way, I could connect to the main router via my own PC wirelessly, and connect to the server that way.
To answer your questions:
- Nope, neither of those shares work.
- What do you mean by that exactly?
- I already shared a picture of that, on the first page. That's the error I get when attempting any share, even the ones I know are actual shares.

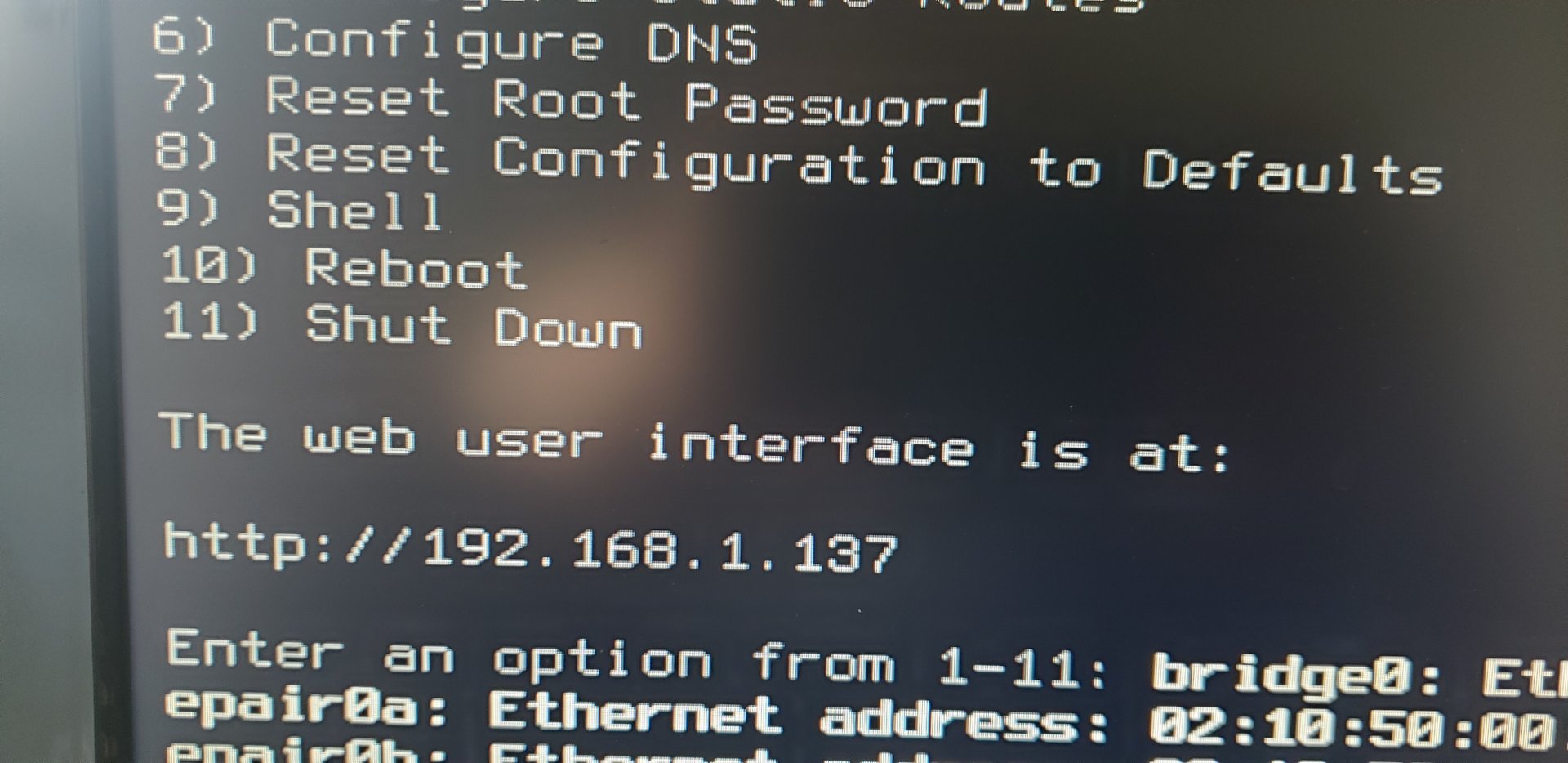

- I can confirm. On the console of the server it shows that's the IP. It set it up by itself when first installing the FREENAS software. It's the same IP as before I reset configs so I am guessing when it set it up again it just used the same IP as before, if you get what I mean? Also, it was the same IP I used when I mapped the share previously about a month ago when I first set everything up (back when it worked before I moved everything.)
I've seemed to figure it out. I guess I didn't try all combinations. I don't know why this one was the path that worked, but the path \\(IP address)\calebnas1\shared worked. Before, even though the share was the same as it is now, I only had to do \\(IP address)\shared and I didn't have to worry about adding in the "calebnas1" in the middle. Maybe I'm wrong, but I don't remember doing it like that before. But hey, it's working now. :)
I do have one more question though. If I brought the server down to my room where my PC is, plugged it into a router, and then connected my PC to the router, could I do that? Or should I just buy a switch and use a switch to save myself the hassle? I want to keep the server as close to my PC as possible, hopefully in the same room. I'd of course just have to run cable for it, I plan on running Cat6 throughout the house. (I do know my fair share of networking and cabling, I work a cabling job. Just not familiar with NAS yet, still learning). I wasn't sure if FreeNAS would be compatible that way or if it had to be directly connected to the main router. (Either way I might just buy a switch.)
Are you on Freenas 11.1 or something?
I have noticed your screenshot show bridges of Ethernet ports. I think those are iocage jails address you assigned, such as OpenVPN and the like.
I suspect one of your jail IP was made the default IP to Freenas causing issues with you Share.
I have noticed your screenshot show bridges of Ethernet ports. I think those are iocage jails address you assigned, such as OpenVPN and the like.
I suspect one of your jail IP was made the default IP to Freenas causing issues with you Share.
Well it's working now, but yes I am on 11.2. Also, I didn't make any jails or OpenVPN, so... I wouldn't know. But it's working now.
