Upgrade to 25GbE (Mellanox ConnectX-4)

[pixelwave]

I am in the market to upgrade my network infrastructure to 25GbE.

Therefore I would like to purchase three PCIe cards (Workstation, Server, Backup Node) and after reading the STH article (https://www.servethehome.com/mellanox-connectx-4-lx-mini-review-ubiquitous-25gbe/) I guess price-wise the Mellanox ConnectX-4 (MCX4121A-ACAT) seems like a good solution.

I used and flashed ConnectX-3 cards in the past and had good results. But it is of course a bit hit and miss with the sellers on ebay.

Are there currently counterfeit ConnectX-4 cards in circulation - is there an (easy) way to identify those? I also see cards "Made in Isreal" and "Made in China". The China ones being the newer dates / revisions (2018 and later)

Any recommendations of sellers shipping to Europe?



[sretalla]

The 10 Gig network primer says to avoid Mellanox...

10 Gig Networking Primer

This document is now available in the Resources section! Use the tabs above to navigate to the document itself. The current version also follows inside the spoiler tag: Also, if you'd like to repost this elsewhere, I'd appreciate it if you would have the courtesy to ask. And to credit the...

www.truenas.com



[pixelwave]

I read that but I guess it is more geared towards FreeBSD and the much older Mellanox ConnectX-2 generation.

I am using Windows and Debian (TrueNAS Scale) and already had good results with the X-3 series myself (https://www.truenas.com/community/t...connectx-3-setup-benchmark-and-tuning.105462/).

Due to some logistics and compatibility related reasons I want to move away from the older QSFP standard and towards SFP28.



[jgreco]

I guess it is more geared towards FreeBSD

You guess wrong. If I want you to think something is geared towards FreeBSD, I will say that it is geared towards FreeBSD. Even if it were geared towards FreeBSD, you should want to maintain compatibility anyways because Linux kinda sucks and in a crisis you might want or need to run CORE; deliberately selecting hardware that doesn't work well with both operating systems is kinda shortsighted. The recommended hardware works swimmingly well with both FreeBSD and Linux, and both Intel and Chelsio have adapters for 25G that use the same drivers as the known-to-work recommended cards, so those are a strong recommendation. Means you can pull your old X710 and drop in an XXV710 and it just works.



[pixelwave]

In a commerical pure TrueNAS production environment sure ... but considering budget, setup and use case I am leaning towards the Mellanox solution. So far has worked well from my own experience and reading other users feedback lead me to believe the sucessors (X-4/5/6) will be no difference.



[pixelwave]

I ordered 3 cards (Mellanox ConnectX-4 MCX4121A-ACAT) - will post / update the results and my experience in my Mellanox thread (https://www.truenas.com/community/t...connectx-3-setup-benchmark-and-tuning.105462/).



[pixelwave]

I installed one Mellanox ConnectX-4 (MCX4121A-ACAT) in my Workstation (W11Pro) and one into my Server (Proxmox with TrueNAS Scale as VM).

Both are connected to a 10G Managed Switch (USW-Aggregation) with SFP+ DAC cables.

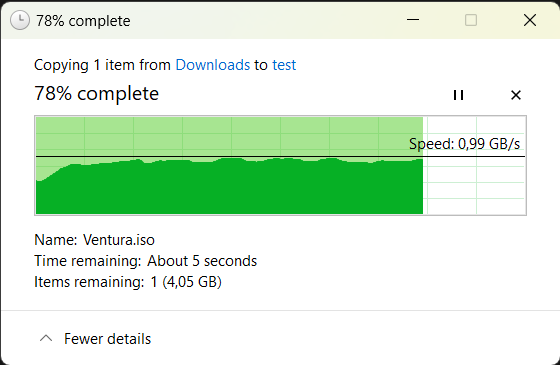

If I upload to my server from the workstation I get the expected 10G speeds:

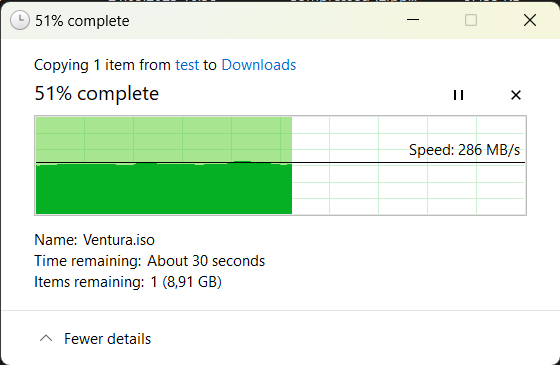

If I download from the server it seems oddly capped at 300 MB/s:

Download from / uploading to the same NVMe SMB share on the TureNAS ... ?!?



[Samuel Tai]

What storage system do you have on the workstation receiving the download? This looks like you're capped by the SATA drive on the desktop. You ideally want to run iperf between RAM drives on both ends to isolate just the network transfer bandwidth.



[pixelwave]

That is the weird thing it is all NVMe on both systems no spinning rust involved at all.

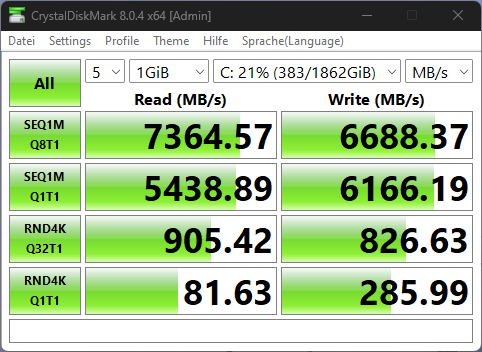

The Workstation's NVMe speed should not be the bottleneck:



[pixelwave]

The switch also show's 10GbE correctly:

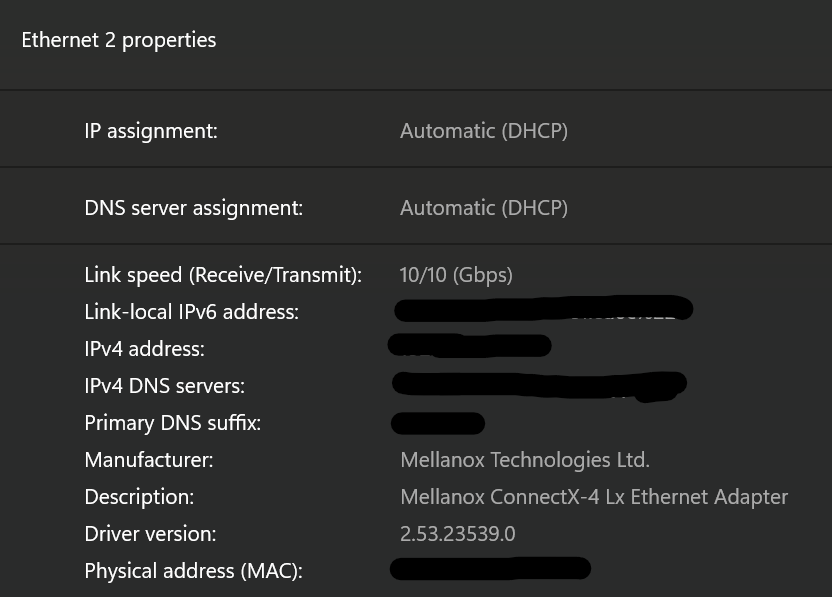

Also the Workstation show 10/10 (Gbps):



[pixelwave]

Iperf3 results:

Workstation in CLIENT-MODE:

Server in CLIENT-MODE:



[NickF]

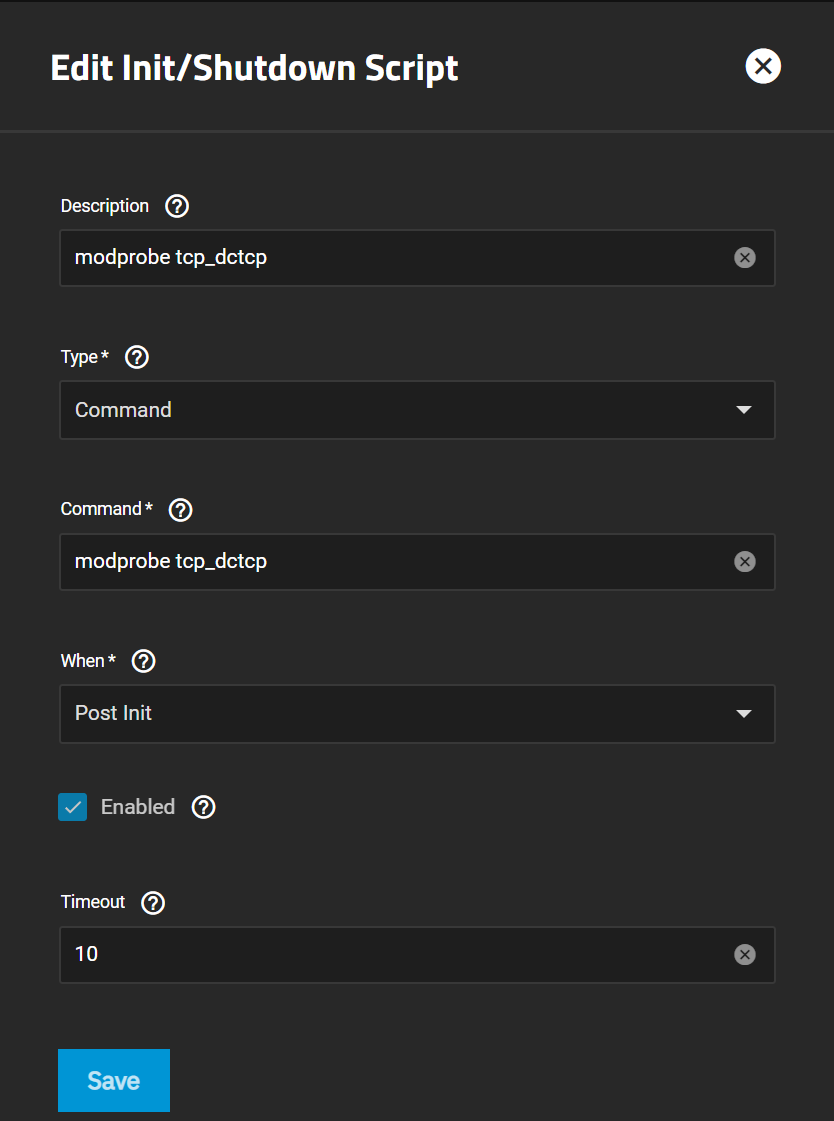

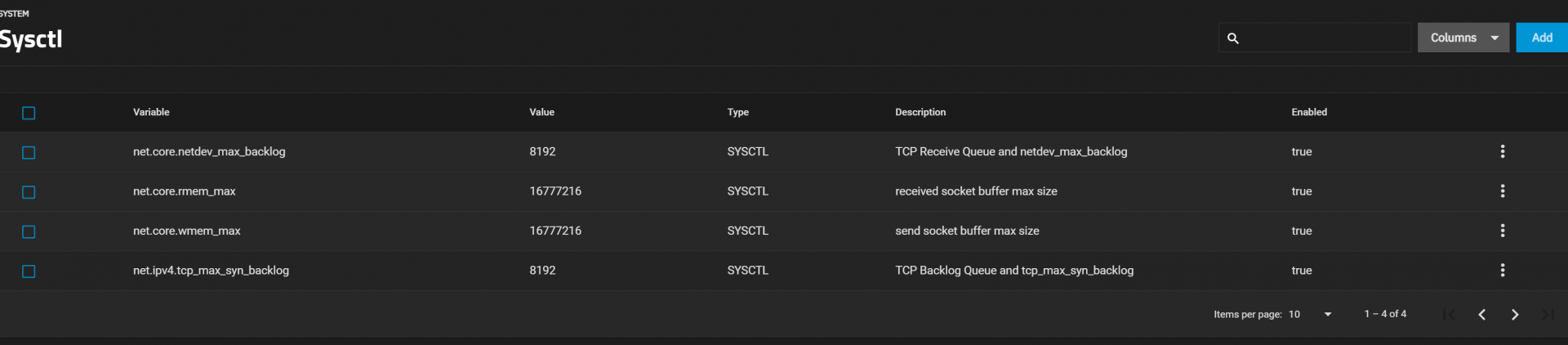

Give this a whirl:



[NickF]

@pixelwave

Did you give those settings a try?



[pixelwave]

I first did some more extensive testing and went one layer up like suggested by @Samuel Tai

So setup-wise 3 physical machines:

• Workstation (Win11-Pro)
• Proxmox (PVE)
• Proxmox (PVE-Backup)

All three machines running NVMe only (no HDD bottleneck), equipped with "Mellanox ConnectX-4 (MCX4121A-ACAT) 25 GbE cards" and all three attached to a "USW-Aggregation" (10G Managed Switch, 8x SFP+) via DAC cables (10Gtek CAB-ZSP, 25G SFP28 passive). No other LAN ports attached.

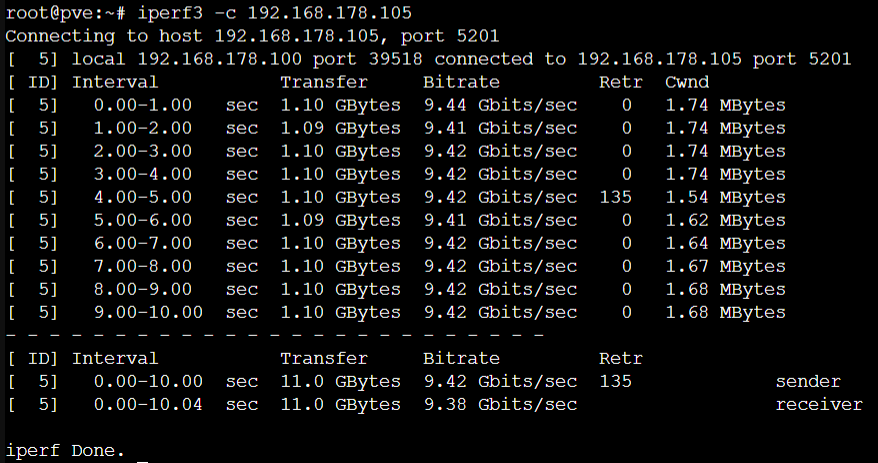

Now speed test with iperf3 directly from CLI Proxmox to Proxmox (pve to pve-backup) shows full speed, I tested both devices in server/client mode:

So speeds between proxmox machines seems as expected -> full 10 GbE both directions.

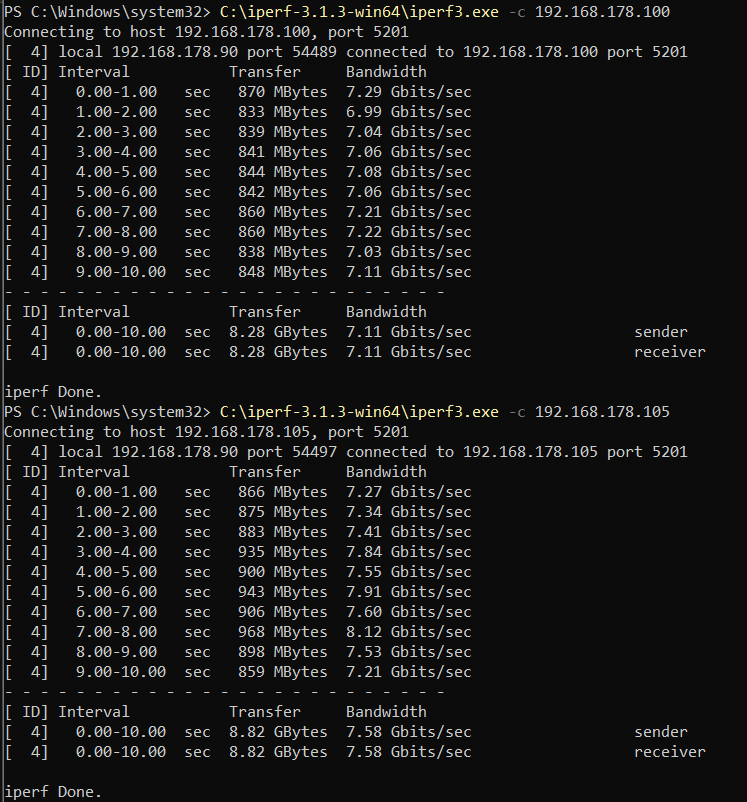

Now running iperf3 on the Windows machine I get the following results (tested with both proxmox machines the same). I even exchanged the Mellanox card in the Windows machine to exclude a hardware fault. But the same behaviour.

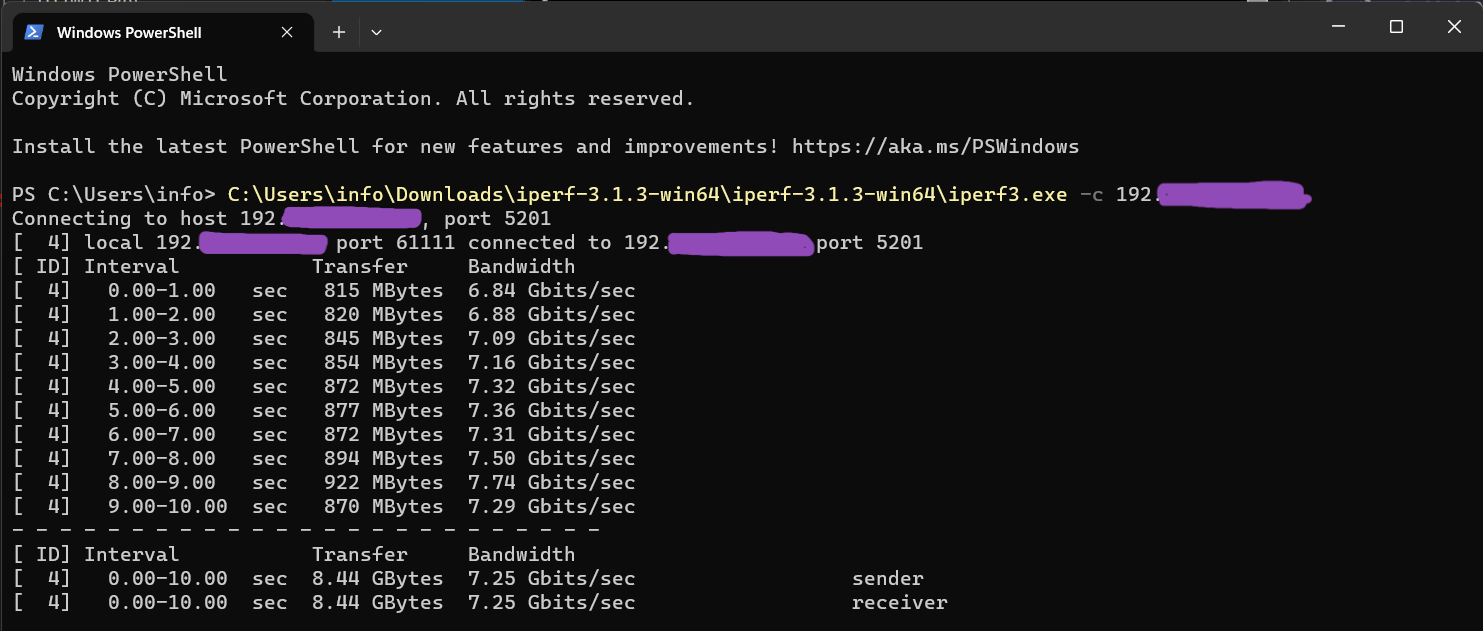

Windows in client mode:

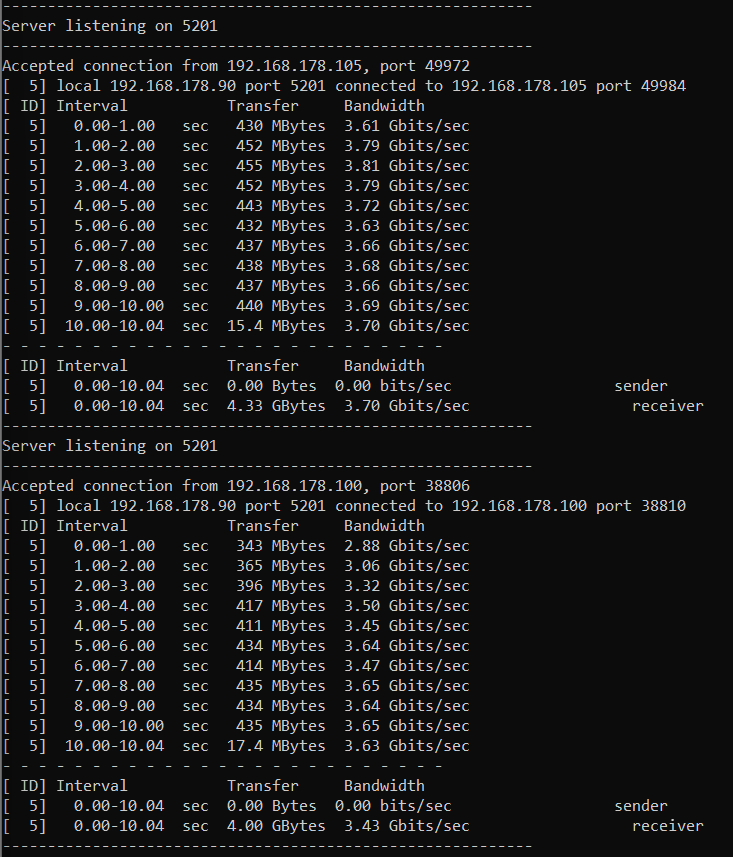

... and Windows machine in server mode:

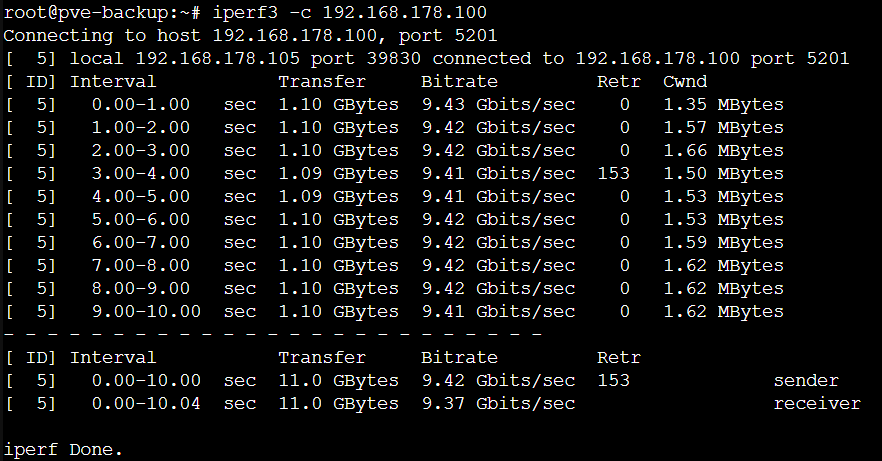

... one more thing, very rarely I encountered a few "Retr" (pve to pve-backup) ... is that concerning?

TO SUMMARIZE:

Proxmox to Proxmox -> full 10 GbE up/down
Windows to Proxmox -> 8 GbE upload / 4 GbE download

So it seems that the issue is somewhere on the Windows Machine side ...?



[sretalla]

the issue is somewhere on the Windows Machine side ...?

Maybe look into card driver/firmware, perhaps a mismatch or older set is present.



[NickF]

What CPU do you have on your windows computer? This testing you are doing is single threaded so IPC matters.



[pixelwave]

Maybe look into card driver/firmware, perhaps a mismatch or older set is present.

Updated yesterday manually to 3.10.51000-LTS WinOF-2 as advertised for Mellanox ConnectX-4 and up (https://network.nvidia.com/products/adapter-software/ethernet/windows/winof-2/).

No improvement. -.-



[pixelwave]

What CPU do you have on your windows computer? This testing you are doing is single threaded so IPC matters.

This should be no issue at all:

• CPU: AMD Ryzen 9 7950X3D, 16C/32T, 4.20-5.70GHz
• RAM: G.Skill Trident Z5 NEO schwarz DIMM Kit 64GB, DDR5-6000, CL32-38-38-96, on-die ECC (F5-6000J3238G32GX2-TZ5N)
• MAINBOARD: ASUS ROG Strix X670E-E Gaming WIFI

I was rather expecting the older Proxmox backup machine to perform worse (see specs in signature, backup node) but as said proxmox <-> proxmox = full 10 GbE speed.



[pixelwave]

Output of the query "mlxconfig -d mt4117_pciconf0 query":
