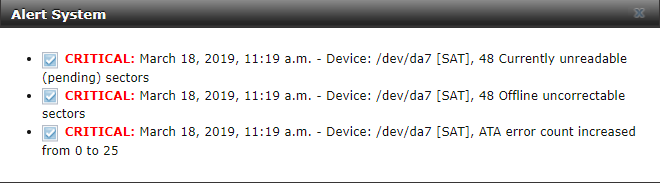

Hello, I got new alert, better exchange the harddrive?
zpool status, seems clear
Code:
smartctl -a /dev/da7
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Seagate Desktop HDD.15
Device Model: ST4000DM000-2AE166
Serial Number: xxxxxx
LU WWN Device Id: 5 000c50 0928ec9a0
Firmware Version: 0001
User Capacity: 4,000,787,030,016 bytes [4.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 5980 rpm
Form Factor: 3.5 inches
Device is: In smartctl database [for details use: -P show]
ATA Version is: ACS-3 T13/2161-D revision 5
SATA Version is: SATA 3.1, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is: Tue Mar 19 11:11:30 2019 -03
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 591) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: ( 633) minutes.
Conveyance self-test routine
recommended polling time: ( 2) minutes.
SCT capabilities: (0x10a5) SCT Status supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x000f 071 062 006 Pre-fail Always - 94367736
3 Spin_Up_Time 0x0003 100 100 000 Pre-fail Always - 0
4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 1
5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 128
7 Seek_Error_Rate 0x000f 086 060 045 Pre-fail Always - 427549635
9 Power_On_Hours 0x0032 081 081 000 Old_age Always - 17222 (252 151 0)
10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0
12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 1
183 Runtime_Bad_Block 0x0032 100 100 000 Old_age Always - 0
184 End-to-End_Error 0x0032 100 100 099 Old_age Always - 0
187 Reported_Uncorrect 0x0032 068 068 000 Old_age Always - 32
188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0 0 0
189 High_Fly_Writes 0x003a 100 100 000 Old_age Always - 0
190 Airflow_Temperature_Cel 0x0022 072 057 040 Old_age Always - 28 (Min/Max 22/43)
191 G-Sense_Error_Rate 0x0032 100 100 000 Old_age Always - 0
192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 715
193 Load_Cycle_Count 0x0032 100 100 000 Old_age Always - 931
194 Temperature_Celsius 0x0022 028 043 000 Old_age Always - 28 (0 22 0 0 0)
197 Current_Pending_Sector 0x0012 099 099 000 Old_age Always - 104
198 Offline_Uncorrectable 0x0010 099 099 000 Old_age Offline - 104
199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0
240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 17141h+57m+56.146s
241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 37940061236
242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 39575597717
SMART Error Log Version: 1
ATA Error Count: 32 (device log contains only the most recent five errors)
CR = Command Register [HEX]
FR = Features Register [HEX]
SC = Sector Count Register [HEX]
SN = Sector Number Register [HEX]
CL = Cylinder Low Register [HEX]
CH = Cylinder High Register [HEX]
DH = Device/Head Register [HEX]
DC = Device Command Register [HEX]
ER = Error register [HEX]
ST = Status register [HEX]
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.
Error 32 occurred at disk power-on lifetime: 17198 hours (716 days + 14 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 00 ff ff ff 0f Error: UNC at LBA = 0x0fffffff = 268435455
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 00 20 ff ff ff 4f 00 20d+16:09:41.514 READ FPDMA QUEUED
60 00 f8 ff ff ff 4f 00 20d+16:09:38.789 READ FPDMA QUEUED
60 00 00 ff ff ff 4f 00 20d+16:09:38.788 READ FPDMA QUEUED
60 00 18 ff ff ff 4f 00 20d+16:09:38.787 READ FPDMA QUEUED
60 00 18 ff ff ff 4f 00 20d+16:09:38.786 READ FPDMA QUEUED
Error 31 occurred at disk power-on lifetime: 17198 hours (716 days + 14 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 00 ff ff ff 0f Error: WP at LBA = 0x0fffffff = 268435455
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
61 00 08 ff ff ff 4f 00 20d+16:09:19.999 WRITE FPDMA QUEUED
60 00 20 ff ff ff 4f 00 20d+16:09:19.999 READ FPDMA QUEUED
60 00 20 ff ff ff 4f 00 20d+16:09:17.295 READ FPDMA QUEUED
60 00 e8 ff ff ff 4f 00 20d+16:09:17.295 READ FPDMA QUEUED
60 00 18 ff ff ff 4f 00 20d+16:09:17.290 READ FPDMA QUEUED
Error 30 occurred at disk power-on lifetime: 17198 hours (716 days + 14 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 00 ff ff ff 0f Error: WP at LBA = 0x0fffffff = 268435455
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
61 00 08 ff ff ff 4f 00 20d+16:09:10.374 WRITE FPDMA QUEUED
60 00 20 ff ff ff 4f 00 20d+16:09:10.374 READ FPDMA QUEUED
60 00 18 ff ff ff 4f 00 20d+16:09:10.374 READ FPDMA QUEUED
60 00 e8 ff ff ff 4f 00 20d+16:09:07.398 READ FPDMA QUEUED
60 00 90 ff ff ff 4f 00 20d+16:09:07.398 READ FPDMA QUEUED
Error 29 occurred at disk power-on lifetime: 17198 hours (716 days + 14 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 00 ff ff ff 0f Error: UNC at LBA = 0x0fffffff = 268435455
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 00 18 ff ff ff 4f 00 20d+16:08:47.847 READ FPDMA QUEUED
60 00 18 ff ff ff 4f 00 20d+16:08:47.847 READ FPDMA QUEUED
60 00 78 ff ff ff 4f 00 20d+16:08:44.559 READ FPDMA QUEUED
60 00 00 ff ff ff 4f 00 20d+16:08:44.559 READ FPDMA QUEUED
60 00 20 ff ff ff 4f 00 20d+16:08:44.558 READ FPDMA QUEUED
Error 28 occurred at disk power-on lifetime: 17198 hours (716 days + 14 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 00 ff ff ff 0f Error: UNC at LBA = 0x0fffffff = 268435455
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 00 20 ff ff ff 4f 00 20d+16:08:36.949 READ FPDMA QUEUED
60 00 20 ff ff ff 4f 00 20d+16:08:36.949 READ FPDMA QUEUED
60 00 18 ff ff ff 4f 00 20d+16:08:36.949 READ FPDMA QUEUED
60 00 b8 ff ff ff 4f 00 20d+16:08:33.939 READ FPDMA QUEUED
60 00 00 ff ff ff 4f 00 20d+16:08:33.939 READ FPDMA QUEUED
SMART Self-test log structure revision number 1
No self-tests have been logged. [To run self-tests, use: smartctl -t]
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
zpool status, seems clear
Code:
zpool status
pool: DATA
state: ONLINE
scan: scrub repaired 0 in 0 days 14:07:19 with 0 errors on Sun Mar 10 14:07:21 2019
config:
NAME STATE READ WRITE CKSUM
DATA ONLINE 0 0 0
raidz3-0 ONLINE 0 0 0
gptid/4ba5b5bd-8495-17c0-fef1-fe7712051e8b ONLINE 0 0 0
gptid/bca8430d-d85c-22cd-e315-e1b4aee1b3f0 ONLINE 0 0 0
gptid/6bfcf742-46a5-4fcf-ee05-d8ca7c7cfde4 ONLINE 0 0 0
gptid/04829298-ffef-f468-9b28-bfe58f512d5d ONLINE 0 0 0
gptid/74c95500-19d3-fd63-e4cf-9167ed2ec61a ONLINE 0 0 0
gptid/8c180379-888b-304d-bc59-a2fcf0e811ee ONLINE 0 0 0
gptid/0d7d96b9-5fe0-68c0-f140-940a9ddb7ff0 ONLINE 0 0 0
gptid/c416dc3e-5858-27c4-c9ee-a1e652679740 ONLINE 0 0 0
gptid/2913eb66-894b-3c69-8ca5-ea1cef04495c ONLINE 0 0 0
gptid/96603dd3-2504-056a-c261-8e3b467e7276 ONLINE 0 0 0
gptid/e450f563-84d2-8667-b9e3-f1134bbc903f ONLINE 0 0 0
gptid/3b6329c1-efd5-cacf-8845-8ee6009e9387 ONLINE 0 0 0
spares
da5p1 AVAIL
errors: No known data errors
pool: freenas-boot
state: ONLINE
scan: scrub repaired 0 in 0 days 00:00:07 with 0 errors on Tue Mar 19 03:45:07 2019
config:
NAME STATE READ WRITE CKSUM
freenas-boot ONLINE 0 0 0
mirror-0 ONLINE 0 0 0
da0p2 ONLINE 0 0 0
da1p2 ONLINE 0 0 0
errors: No known data errors
