TrueNAS-SCALE-23.10.1 - SSD Temps Missing in UI

MikeO3

Cadet
Joined
Oct 21, 2023
Messages
4

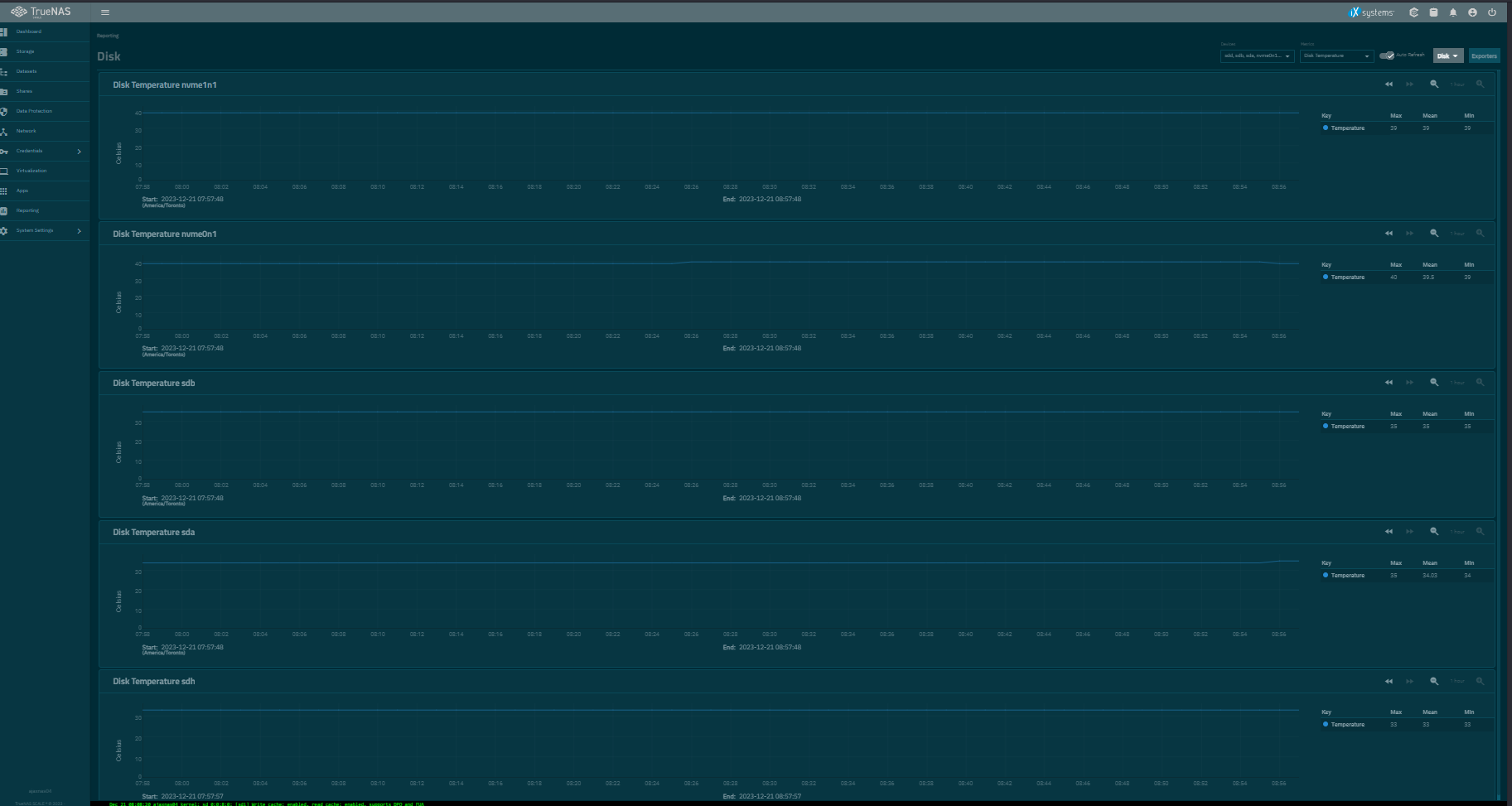

Added some SSD's to my system and there are no temps being reported in the UI.
These disks were not in the system per-update to 23.10.1 so do not know if the upgrade is the issue.
4 previous rust HDD's were reporting temps and the current 3 plus 2 nvme are reporting temps.
There were a few threads about this problem reported when the time zone on system and TrueNAS were different. Both are set the same in BIOS and TrueNAS.
All disks are set to Always On and Adv Power Management disabled.

Created a support ticket but thought I would put out in the community as well.



SSD SMART Status Report Summary
Device
Model
Serial
Number
Capacity
SMART
Status
Temp
Power-On
Time
(ymdh)
Power
Cycle
Count
Realloc
Sectors
Program
Fail
Count
Erase
Fail
Count
Offline
Uncorrectable
Sectors
CRC
Errors
Wear
Leveling
Count
Total
Bytes
Written
Bytes Written
(per Day)
Last Test
Age (days)
Last Test
Type
/dev/sdc​
Samsung SSD 870 QVO 4TB​
S5VYNJ0W906226P​
[4.00 TB]​
PASSED​
25°C​
0y 0m 1d 9h​
4​
0​
0​
0​
0​
0​
100%​
0TB​
0GB​
0​
Short offline​
/dev/sde​
Samsung SSD 870 QVO 4TB​
S5VYNJ0W904833J​
[4.00 TB]​
PASSED​
26°C​
0y 0m 1d 9h​
4​
0​
0​
0​
0​
0​
100%​
0TB​
0GB​
0​
Short offline​
/dev/sdf​
Samsung SSD 870 QVO 4TB​
S5VYNJ0W904827H​
[4.00 TB]​
PASSED​
24°C​
0y 0m 1d 9h​
4​
0​
0​
0​
0​
0​
100%​
0TB​
0GB​
0​
Short offline​
/dev/sdg​
Samsung SSD 870 QVO 4TB​
S5VYNJ0W908174V​
[4.00 TB]​
PASSED​
23°C​
0y 0m 1d 9h​
5​
0​
0​
0​
0​
0​
100%​
0TB​
0GB​
0​
Short offline​
/dev/sdi​
Samsung SSD 870 QVO 4TB​
S5VYNG0R301144J​
[4.00 TB]​
PASSED​
27°C​
2y 0m 26d 6h​
117​
0​
0​
0​
0​
0​
99%​
31.0TB​
40.9GB​
0​
Short offline​
