This morning, I got the following email alert:
The drives have scheduled smart tests. I have read this guide and looked through it: https://www.truenas.com/community/r...bleshooting-guide-all-versions-of-freenas.17/ My google searching hasn't found anything concerning with this alert by itself, but instead with other errors that come with that alert? As far as I can tell, there's no other concerning metrics with this device. I will say, this was a Truenas Core 12.1 system recently migrated to Truenas Scale; I'm wondering if that has an impact on whether I should be concerned with this alert or not.
I hopped on and ran a smart test on the device and all partitions:
All other indicators are healthy.

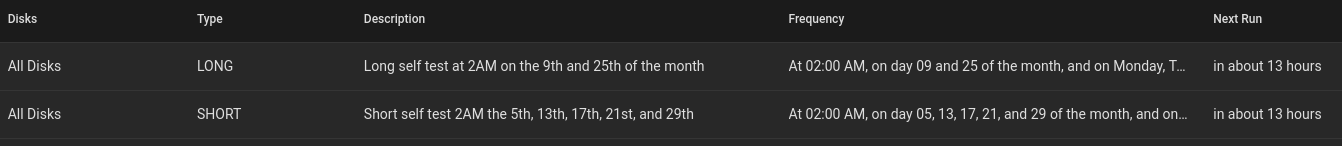

In this image you can see I have short and long tests scheduled and running, all show clean results:
As far as I can tell, this error is just a red herring and nothing I am seeing indicates any real errors? Am I reading this all correct? I just initiated a manual long test with "smartctl –t long /dev/sdd" and will see what the result is.
Device: /dev/sdd [SAT], failed to read SMART Attribute Data.
The drives have scheduled smart tests. I have read this guide and looked through it: https://www.truenas.com/community/r...bleshooting-guide-all-versions-of-freenas.17/ My google searching hasn't found anything concerning with this alert by itself, but instead with other errors that come with that alert? As far as I can tell, there's no other concerning metrics with this device. I will say, this was a Truenas Core 12.1 system recently migrated to Truenas Scale; I'm wondering if that has an impact on whether I should be concerned with this alert or not.
I hopped on and ran a smart test on the device and all partitions:
Code:
# smartctl -a /dev/sdd smartctl 7.2 2020-12-30 r5155 [x86_64-linux-5.10.131+truenas] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red (SMR) Device Model: WDC WD40EFAX-68JH4N1 Serial Number: WD-WX22DA04C3AT LU WWN Device Id: 5 0014ee 2be8306f3 Firmware Version: 83.00A83 User Capacity: 4,000,787,030,016 bytes [4.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches TRIM Command: Available, deterministic, zeroed Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Mon Aug 29 09:45:22 2022 PDT SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x00) Offline data collection activity was never started. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: (38684) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 525) minutes. Conveyance self-test routine recommended polling time: ( 3) minutes. SCT capabilities: (0x3039) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 0 3 Spin_Up_Time 0x0027 200 200 021 Pre-fail Always - 2975 4 Start_Stop_Count 0x0032 100 100 000 Old_age Always - 8 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 200 200 000 Old_age Always - 0 9 Power_On_Hours 0x0032 085 085 000 Old_age Always - 11495 10 Spin_Retry_Count 0x0032 100 253 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 253 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 7 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 5 193 Load_Cycle_Count 0x0032 200 200 000 Old_age Always - 2 194 Temperature_Celsius 0x0022 126 112 000 Old_age Always - 21 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0030 100 253 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 11487 - # 2 Extended offline Completed without error 00% 11406 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. # smartctl -a /dev/sdd1 smartctl 7.2 2020-12-30 r5155 [x86_64-linux-5.10.131+truenas] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red (SMR) Device Model: WDC WD40EFAX-68JH4N1 Serial Number: WD-WX22DA04C3AT LU WWN Device Id: 5 0014ee 2be8306f3 Firmware Version: 83.00A83 User Capacity: 4,000,787,030,016 bytes [4.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches TRIM Command: Available, deterministic, zeroed Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Mon Aug 29 09:59:10 2022 PDT SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x00) Offline data collection activity was never started. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: (38684) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 525) minutes. Conveyance self-test routine recommended polling time: ( 3) minutes. SCT capabilities: (0x3039) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 0 3 Spin_Up_Time 0x0027 200 200 021 Pre-fail Always - 2975 4 Start_Stop_Count 0x0032 100 100 000 Old_age Always - 8 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 200 200 000 Old_age Always - 0 9 Power_On_Hours 0x0032 085 085 000 Old_age Always - 11495 10 Spin_Retry_Count 0x0032 100 253 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 253 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 7 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 5 193 Load_Cycle_Count 0x0032 200 200 000 Old_age Always - 2 194 Temperature_Celsius 0x0022 126 112 000 Old_age Always - 21 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0030 100 253 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 11487 - # 2 Extended offline Completed without error 00% 11406 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. # smartctl -a /dev/sdd2 smartctl 7.2 2020-12-30 r5155 [x86_64-linux-5.10.131+truenas] (local build) Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Red (SMR) Device Model: WDC WD40EFAX-68JH4N1 Serial Number: WD-WX22DA04C3AT LU WWN Device Id: 5 0014ee 2be8306f3 Firmware Version: 83.00A83 User Capacity: 4,000,787,030,016 bytes [4.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5400 rpm Form Factor: 3.5 inches TRIM Command: Available, deterministic, zeroed Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Mon Aug 29 09:59:52 2022 PDT SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x00) Offline data collection activity was never started. Auto Offline Data Collection: Disabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: (38684) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 525) minutes. Conveyance self-test routine recommended polling time: ( 3) minutes. SCT capabilities: (0x3039) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 0 3 Spin_Up_Time 0x0027 200 200 021 Pre-fail Always - 2975 4 Start_Stop_Count 0x0032 100 100 000 Old_age Always - 8 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 200 200 000 Old_age Always - 0 9 Power_On_Hours 0x0032 085 085 000 Old_age Always - 11495 10 Spin_Retry_Count 0x0032 100 253 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 253 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 7 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 5 193 Load_Cycle_Count 0x0032 200 200 000 Old_age Always - 2 194 Temperature_Celsius 0x0022 126 112 000 Old_age Always - 21 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0030 100 253 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 11487 - # 2 Extended offline Completed without error 00% 11406 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay.
All other indicators are healthy.
Code:
# zpool status pool: boot-pool state: ONLINE status: Some supported and requested features are not enabled on the pool. The pool can still be used, but some features are unavailable. action: Enable all features using 'zpool upgrade'. Once this is done, the pool may no longer be accessible by software that does not support the features. See zpool-features(7) for details. scan: scrub repaired 0B in 00:00:05 with 0 errors on Mon Aug 29 03:45:06 2022 config: NAME STATE READ WRITE CKSUM boot-pool ONLINE 0 0 0 mirror-0 ONLINE 0 0 0 sdm ONLINE 0 0 0 sdn ONLINE 0 0 0 errors: No known data errors pool: sr66-nas-v01 state: ONLINE scan: resilvered 1.80T in 08:58:43 with 0 errors on Mon Aug 22 20:02:48 2022 config: NAME STATE READ WRITE CKSUM sr66-nas-v01 ONLINE 0 0 0 raidz2-0 ONLINE 0 0 0 2163cd00-d9f2-11ec-8049-3cecef2b41e8 ONLINE 0 0 0 905647b7-3ca7-11e9-a8f0-8cae4cfe7d0f ONLINE 0 0 0 8e9d48ba-83f4-11e8-8495-b8975a5c2ef9 ONLINE 0 0 0 079dc207-aeeb-11eb-916f-3cecef2b41e8 ONLINE 0 0 0 cef87bc6-2244-11ed-af8a-3cecef2b41e8 ONLINE 0 0 0 cc77e3e8-9b15-11ec-9b4e-3cecef2b41e8 ONLINE 0 0 0 raidz2-1 ONLINE 0 0 0 798b36b5-98f8-11eb-916f-3cecef2b41e8 ONLINE 0 0 0 d90771d8-af7e-11eb-916f-3cecef2b41e8 ONLINE 0 0 0 723e8ef4-98f8-11eb-916f-3cecef2b41e8 ONLINE 0 0 0 8484ff04-fa36-11eb-94bb-3cecef2b41e8 ONLINE 0 0 0 80f8ce97-98f8-11eb-916f-3cecef2b41e8 ONLINE 0 0 0 81d0f180-98f8-11eb-916f-3cecef2b41e8 ONLINE 0 0 0 errors: No known data errors
In this image you can see I have short and long tests scheduled and running, all show clean results:
As far as I can tell, this error is just a red herring and nothing I am seeing indicates any real errors? Am I reading this all correct? I just initiated a manual long test with "smartctl –t long /dev/sdd" and will see what the result is.
