TrueNAS-SCALE-22.02.0 unable bridge setup

[jerr]

Hello, I'm trying to setup bridge and there is no way to do that because setup after 60 sec with no network connection revert to previous state. Is it something that I do incorrect? of course I also tried changes to the web GUI. TrueNAS-SCALE-22.02.0



[jerr]

FIXED - updated to TrueNAS-SCALE-22.02.1 and after bridge change had to wait more than minute.



[camsrv]

I had a very similar issue as above; I had to reboot after. And my domain name changed due to the change in mac-address of the bridge.

This is an example of a DHCP setup; since I wasted alot of time trying to debug this I might as well help the next person who gets stuck here.

Longer instruction link

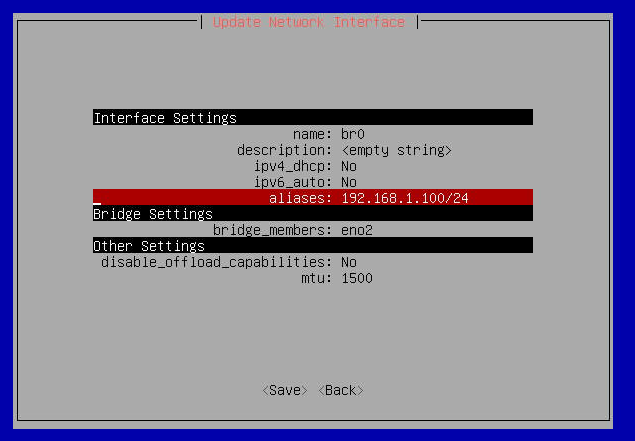

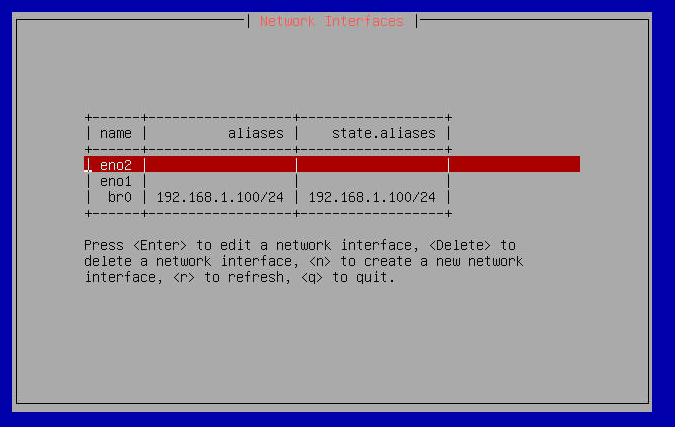

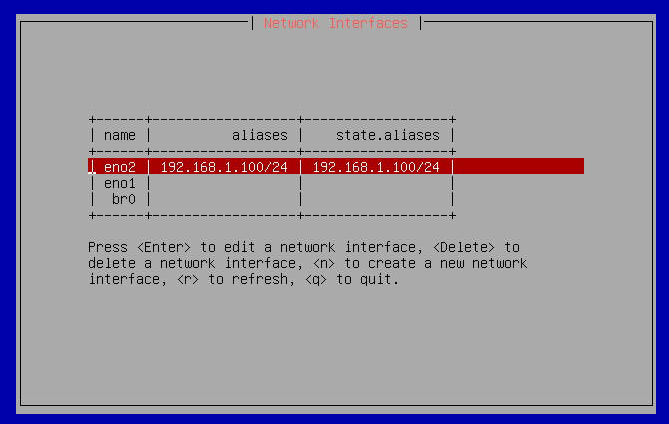

Select (1) Network Interfaces

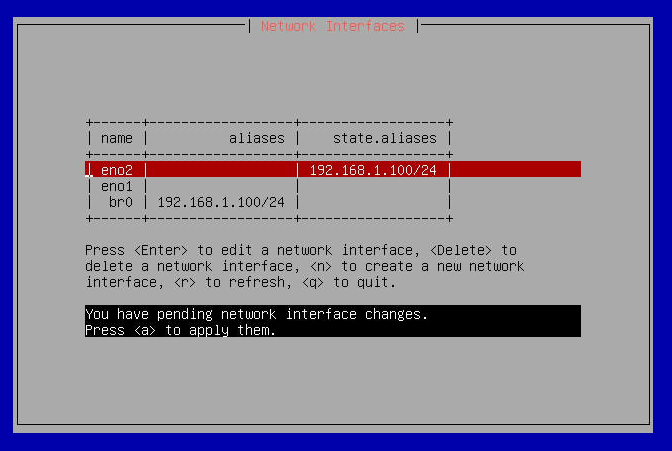

Move the Settings (DHCP / Reserved IPs to the New Bridge)


Since my network uses DHCP I turned ipv4_dhcp to ON on the old interface and made sure the IP Aliases were empty.
