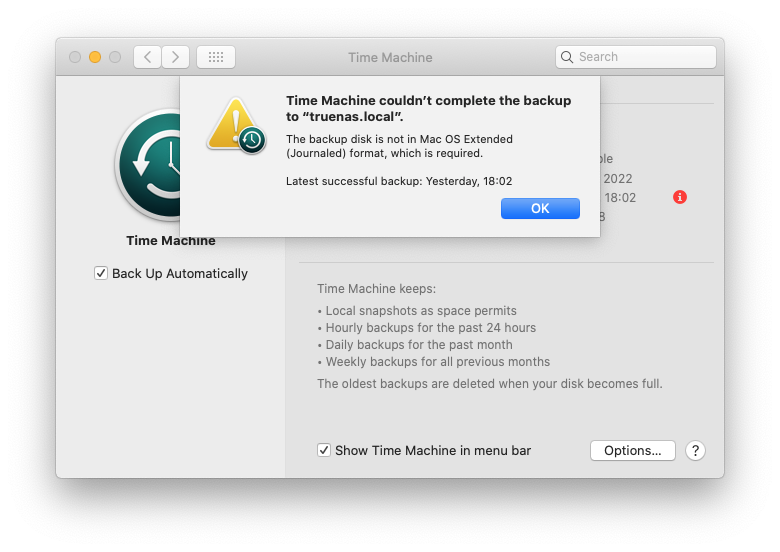

Time Machine couldn't complete the backup. The backup disk is not in Max OS Extended (Journaled) format.

[monoman64]

Hello,

I'm a fairly new and happy TrueNAS user, moving over from Unraid. I'm using my system to backup my Mac using Time Machine. This has worked very well until last night. There's been no software updates in the meantime, only a rare but not uncommon Mac system crash & reboot. I wonder what has happened and how to get my backups up and running again.

TrueNAS-12.0-U7-STABLE running on HPE Gen10 Microserver
macOS Catalina 10.15.7 running on iMac 27" late 2021
Both wired with brand new Cat6 UTP 1Gbps Ethernet to UniFi Dream Machine Pro

testparm -s output:

Code:

root@truenas[~]# testparm -s
Load smb config files from /usr/local/etc/smb4.conf
Loaded services file OK.
Weak crypto is allowed
Server role: ROLE_STANDALONE

# Global parameters
[global]
    aio max threads = 2
    bind interfaces only = Yes
    disable spoolss = Yes
    dns proxy = No
    enable web service discovery = Yes
    kernel change notify = No
    load printers = No
    logging = file
    max log size = 5120
    nsupdate command = /usr/local/bin/samba-nsupdate -g
    registry shares = Yes
    restrict anonymous = 2
    server role = standalone server
    server string = TrueNAS Server
    unix extensions = No
    idmap config *: range = 90000001-100000000
    fruit:nfs_aces = No
    idmap config * : backend = tdb
    directory name cache size = 0
    dos filemode = Yes

[tmimac]
    ea support = No
    kernel share modes = No
    mangled names = no
    path = /mnt/mypool/timemachine/tmimac
    posix locking = No
    read only = No
    vfs objects = fruit streams_xattr
    fruit:locking = none
    fruit:time machine = yes
    fruit:resource = stream
    fruit:metadata = stream
    fruit:encoding = native
    nfs4:chown = true

[cache]
    ea support = No
    kernel share modes = No
    mangled names = no
    path = /mnt/myfastpool/cache
    posix locking = No
    read only = No
    vfs objects = fruit streams_xattr
    fruit:locking = none
    fruit:time machine = yes
    fruit:resource = stream
    fruit:metadata = stream
    fruit:encoding = native
    nfs4:chown = true

I've got plenty of these in /var/log/samba4/log.smdb (192.168.1.1 is my router). They also appear before the last successful backup was taken.

Code:

[2022/01/17 12:25:35.136564,  0] ../../source3/smbd/process.c:344(read_packet_remainder)
[2022/01/17 12:25:35.136564,  0] ../../source3/smbd/process.c:344(read_packet_remainder)
  read_fd_with_timeout failed for client 192.168.1.1 read error = NT_STATUS_END_OF_FILE.
  read_fd_with_timeout failed for client 192.168.1.1 read error = NT_STATUS_END_OF_FILE.

DNS Service Discovery output:

Code:

monoman@iMac ~ % dns-sd -B _adisk._tcp.
Browsing for _adisk._tcp.
DATE: ---Mon 17 Jan 2022---
14:15:41.653  ...STARTING...
Timestamp     A/R    Flags  if Domain               Service Type         Instance Name
14:15:41.653  Add        3   4 local.               _adisk._tcp.         truenas
14:15:41.653  Add        2   5 local.               _adisk._tcp.         truenas
^C
monoman@iMac ~ % dns-sd -L truenas _adisk._tcp.
Lookup truenas._adisk._tcp..local
DATE: ---Mon 17 Jan 2022---
14:15:46.603  ...STARTING...
14:15:46.603  truenas._adisk._tcp.local. can be reached at truenas.local.:9 (interface 4) Flags: 1
 sys=waMa=0,adVF=0x100 dk0=adVN=tmimac,adVF=0x82,adVU=bb007538-9d65-410e-b54e-2f3c993aff9a dk1=adVN=cache,adVF=0x82,adVU=763c2b26-ccbf-43b1-9280-30537b6d78d0
14:15:46.603  truenas._adisk._tcp.local. can be reached at truenas.local.:9 (interface 5)
 sys=waMa=0,adVF=0x100 dk0=adVN=tmimac,adVF=0x82,adVU=bb007538-9d65-410e-b54e-2f3c993aff9a dk1=adVN=cache,adVF=0x82,adVU=763c2b26-ccbf-43b1-9280-30537b6d78d0
^C

I don't have NFS or AFP running but rather suspect some issue on the Mac side. I can see the shares just fine.

Code:

monoman@iMac ~ % smbutil view smb://truenas
Password for truenas:
Share                                           Type    Comments
-------------------------------
IPC$                                            Pipe    IPC Service (TrueNAS Server)
tmimac                                          Disk
cache                                           Disk

3 shares listed

Thank you,
monoman.

Show : My TrueNAS System

HPE ProLiant MicroServer Gen10 Plus
1x Intel Pentium Gold G5420 3.8 GHz 2-Core
2x DDR4 8GB 2666 MHz HPE ECC
1x Samsung PM883 240GB SATA 6Gb/s (boot)
3x WD Red Pro 4TB 3.5" SATA 6Gb/s 7200 rpm (mypool)
StarTech.com Dual M.2 PCIe x8 SSD Adapter Card
2x Samsung 970 EVO Plus 500GB M.2 2280 PCIe x4 NVMe (myfastpool)
TrueNAS-12.0-U7-STABLE

Show : My Unraid System

Dell R630
2x Intel E5-2620v3 2.4 Ghz 12-Core
8x DDR4 16GB 2133 MHz Samsung ECC
1x Samsung Pro Endurance Micro SDXC 64GB (boot)
1x Samsung Samsung SSD 860 EVO 1TB (cache)
4x Seagate 4TB 2.5" SATA 6 Gb/s 5400 RPM (array)
Unraid 6.9.2-STABLE
