SOLVED Strange behavior during hard disk burn-in

Pitfrr

Wizard
Joined
Feb 10, 2014
Messages
1,531
Hello,

Note: This is not related to TrueNAS, even though I ran the test on FreeNAS.
I am facing a surprising (at least to me) behavior from a hard disk during (or rather after) a burn-in test.

Configuration:
System: FreeNAS 11.3-U4.1 running as VM under windows (I needed to have badblocks and I had this VM already configured)
HDD: WD160EDGZ (apparently not SMR), intended as backup (and spare), connected on USB and passed through to the VM

Testing:
I wanted to run burn-in tests on that drive.
So I ran a long SMART and a full pass of badblocks. Went fine, no errors.

Behavior:
What was strange is that as soon as I stopped the tests, the disk started to scratch (for lack of a better word) for about 80 minutes. Not a suspicious noise, it's like a normal HDD working but sustained for 80 minutes although the test was stopped. It was just unexpected.
I don't explain that, since the disk is not mounted on the system, so there is no access on it.

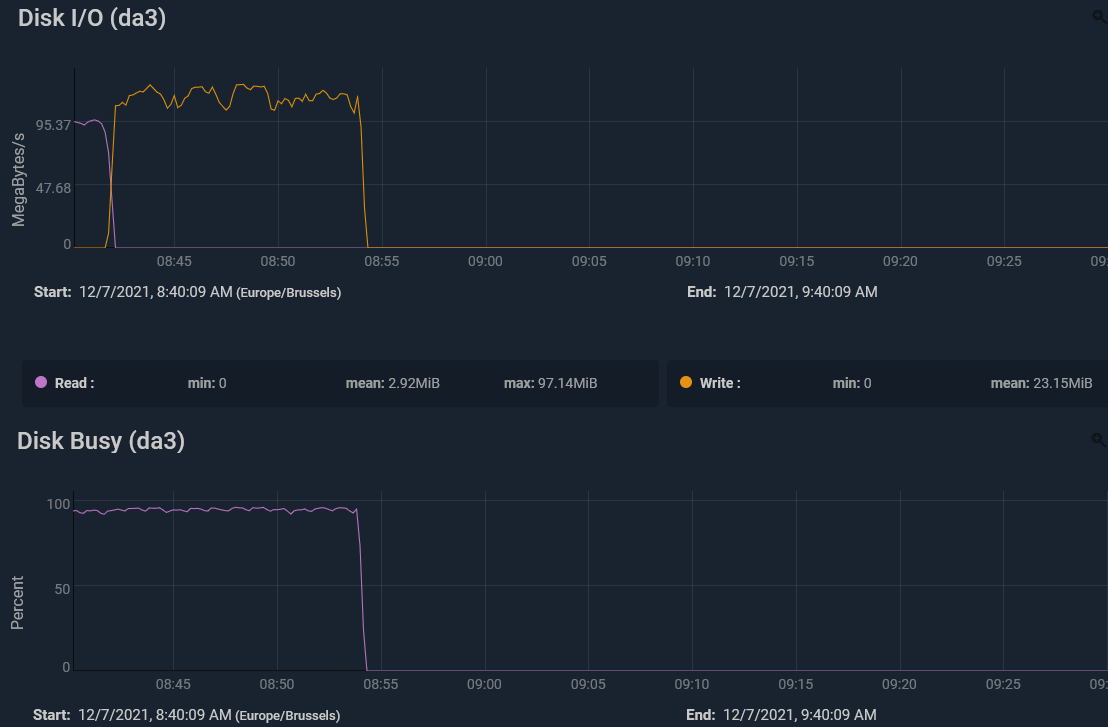

On the system's reporting page in FreeNAS, nothing is visible after 9:00 (when I stopped the badblock, it was starting again with a write pass)


Question:
Any clue on what might have happened?
This might be because of the setup? But I don't have the hardware to test with a direct SATA connection right now...
It gives me the feeling like some operations were buffered somehow and got executed at the end of the badblocks?

Thanks.


Pitfrr

Wizard
Joined
Feb 10, 2014
Messages
1,531
I did a different test which might bring some explanation:

System:
Using an old FreeNAS 9.2 (just to be able to use badblocks) bare metal with a intel i5-650 and the disk connected directly to a SATA connector on the mainboard.

Testing:
Burn-in with badbloks and SMART tests

Behavior:
Unlike the previous test, when I stopped the badblocks, I didn't hear anything (or almost) from the disk (at least no heavy scratching like previously). So my explanation would be: I guess the USB controller added some caching or whatever... (so setting this thread to [solved])
Since I'm going to use this disk as backup and spare, I won't be able to see how it behaves in a pool right away.
