Slow SMB on Mac OSX solved with U1?

[John45622]

Hi,

when 12.0 came out I read a lot of messages here that SMB was very slow with OSX clients and people rolled back to the last FreeNas 11.x release and things went back to normal.
I'd be interested in info if this has been fixed in the recent 12 U1 release? I didn't see anything in the bug fix list. But maybe the problems have been solved?

OSX users, please post your findings with U1.

Thank you!



[tangles]

I didn't notice any slowdown at all when going to from 11 → 12.
I have 3 Macs in the house with Apple's Music and Photos libraries all on TrueNAS. both Datasets > 100GB and things feel the same to me.

I would soon know because I'm running 10Gb/s copper and fibre and so it would stick out like dog's balls!

It sounds to me that you might have client signing still on. It's on by default for the last few versions of macOS.

In terminal with the SMB share connected run: smbutil statshares -a

It will tell you if you do and so I suggest you consider switching it off and retest.

There are also a few other tweaks you might want to consider and test with too.

See how you go.



[Grubster]

I have SMB signing disabled on my Mac and didn't see any speed changes between 11 and 12.

This link shows how to disable SMB signing: http://knowledgebase.45drives.com/kb/kb450219-how-to-disable-smb-signing/



[John45622]

Thanks folks,

I'm still on the latest stable of FreeNAS. I saw a few users posting about much slower speeds after upgrading to the 12.0 release in November and some rolled back to FN. I decided to watch from the side lines.
On my system I typically see about 100-105MB/s for finder transfers and about 70MB/s tops when using Chronosync to an SMB share.
I tired a few tuning tips. Sync never, atime off, fruit on/off etc.etc. no real changes but 100-105 is pretty close to full Gbit so I'm not complaining. I just want to avoid a step down by upgrading to TN 12.x to avoid downtime for a roll-back.

Thanks!



[John45622]

I didn't notice any slowdown at all when going to from 11 → 12.
I have 3 Macs in the house with Apple's Music and Photos libraries all on TrueNAS. both Datasets > 100GB and things feel the same to me.

I would soon know because I'm running 10Gb/s copper and fibre and so it would stick out like dog's balls!

It sounds to me that you might have client signing still on. It's on by default for the last few versions of macOS.

In terminal with the SMB share connected run: smbutil statshares -a

It will tell you if you do and so I suggest you consider switching it off and retest.

There are also a few other tweaks you might want to consider and test with too.

See how you go.

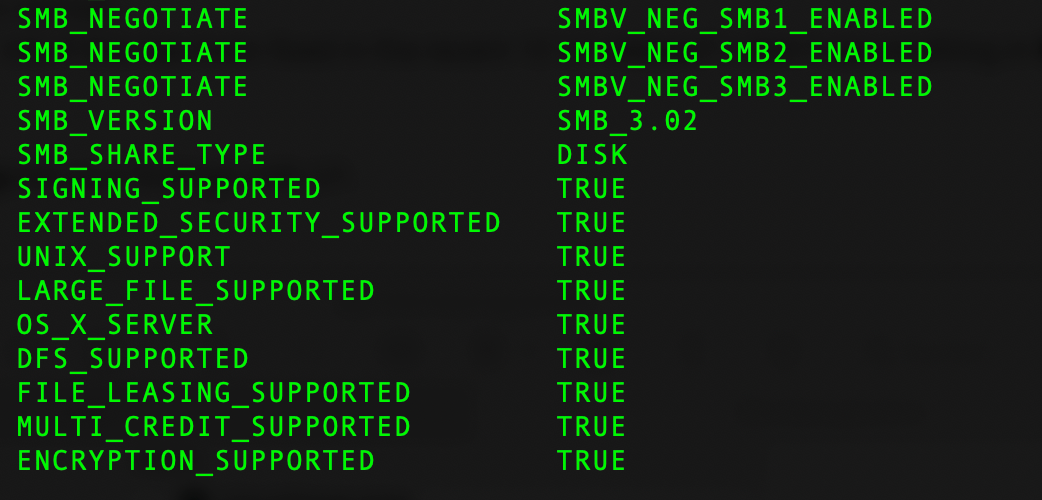

Here's what I get from terminal. This is on Catalina. I guess the signing issues are only older OS versions? Here signing is off.



[John45622]

This the posting I was referring to earlier that kept me from upgrading so far...

TrueNAS 12.0-RELEASE and macOS

Hello I have upgraded a FreeNAS 11.3-U4.1 to TrueNAS 12.0-RELEASE. Everything is working great and on my windows machines life is like normal and my SMB shares are advertised as expected in explorer. But om my Macs life is not as rosy. To get the SMB shares visible in macOS, I have to...

www.truenas.com



[adrianwi]

I've just upgraded from 11.3-U5 to 12.0-U1 and I don't think the SMB performance is any worse, but it's not any better either.

I'm seeing transfer speeds for around 550-600Kb/s from my iMac to FreeNAS when moving large files, which is acceptable although could be a little faster.



[John45622]

Hm.. that's a little more than half Gbit speed. Usually people see 100-115MB/s (920kb), no?



[Dan Tudora]

I'm seeing transfer speeds for around 550-600Kb/s from my iMac to FreeNAS

hello
what is your connection from your MAC to TrueNAS ??
something wireless in that schema ??
or other weird things in connection ??
maybe "guilty" is not the NAS ??



[Dan Tudora]

Hm.. that's a little more than half Gbit speed

HMMM, look like a dial-up modem



[adrianwi]

hello
what is your connection from your MAC to TrueNAS ?? A switch - both plugged into the same switch with CAT6 cables less than 2m long
something wireless in that schema ?? No
or other weird things in connection ?? I don't think so, but I can't say for sure
maybe "guilty" is not the NAS ?? With AFP I was seeing better transfer rates (around the ~900Kb/s range) but SMB was better for non-Apple devices and Time Machine, which never worked well over AFP. It's not been a priority to try and resolve as I'm not usually in any great rush to move things from iMac (which is quite old and running macOS 10.14) to Free/TrueNAS
