PID Fan Control Script with Detailed Logs
Since being inspired by the ideas and facts presented in this thread, especially the tricks that Kevin discovered to control fans, I’ve spent way too much time working on this. My motivation is that the PWM fan control logic in my motherboard is lousy. Much of the time, setting the mode to Standard is inadequate and HeavyIO is overkill. Either way, the temperatures fluctuate a lot, so I don’t see switching between them in a script as an ideal solution.
Instead, adjusting fan duty cycle to maintain a steady temperature seems to be the way to go. There are a couple of problems though:
BMC won’t give up control. It’s hard to develop control logic that works when the BMC independently decides to change duty cycle. This may happen when you set a duty cycle near the upper/lower end, >80% or <30%. Limiting your own settings between those figures doesn’t help much, since the logic also doesn’t work right if you hit a control limit. I’ve taken two approaches to dealing with this:
When setting the duty cycle ≥ 50%, first set the mode to HeavyIO, and when setting <50%, first set mode to Standard. This has nothing to do with regulating temperature, it is just less likely the BMC will feel the need to make adjustments in those ranges.
Control the temperature so well that fans rarely, if ever, will get near the extremes of duty cycle.
Temperature readings are way too coarse for fine control. Using the temperature of the hottest drive (Tmax) is a good strategy in principle, but you only have 1 C resolution. Let’s say your setpoint (SP) is 36 C. You can successfully keep Tmax in the range 35-37, but you will never do better than that, and it will be very hard to keep it from oscillating. The solution I’ve found is using the mean temperature of all drives (Tmean). Even with slight temperature change, chances are that one of the drives will cross the degree threshold and its temperature reading will change. Using Tmean (with at least 1 decimal place) gives you much more and earlier information about temperature trends in your drives.
First, a few basics in case there are any fan newbies. There are two fan settings you can control: mode and duty cycle. You can read those plus RPM.
Mode. There are 3-5 modes, depending on the board. Mine has Standard, HeavyIO, and Full. Full is full speed all the time. Standard and HeavyIO have some degree of speed control based on board temperatures. HeavyIO is a higher speed at a given temperature. The details don’t seem to be well documented.
Duty cycle and RPM. Duty cycle is a percentage of full power applied to the fans. It is correlated with RPM, actual fan speed, but you can’t set RPM directly. And when you read RPM it is rounded to the nearest 100.
I read whatever I could understand on PID control. Turns out, as BiduleOhm said, it doesn’t have to be as complicated as they make it out to be. Here’s how it works. Based on temperature error from your setpoint, you calculate three corrections (P, I, and D) to adjust the duty cycle. Each has a tuning constant: Kp, Ki, and Kd. Note that T (time between control cycles) is sometimes included in the calculation of I and D. It makes it a bit more complicated, but I think then your tuning constants don’t break if you change T. However, I’ve never changed T to see what happens.
First you calculate the current error as ERRc = Tmean – SP. Most sources say to calculate error the other way, SP-Tmean, but it makes more sense to have error be positive when temps are too high and you need to increase fan speed.
P is for proportional. This is a correction proportional to the current error. Just multiply by the tuning constant. So the formula for P is simply Kp * ERRc.
I is for integral. This is a correction for cumulative error. So every cycle, you add the current error (ERRc) * T to cumulative error (ERR), and multiply by a tuning constant. So ERR = ERRc*T + ERR, then I = Ki * ERR. My understanding is this helps correct offset; where the temperature stays a bit below or above SP.
D is for derivative. That is change in current error with respect to time, or basically the slope of the error line. In practice it’s even simpler, you just need to subtract ERRc from the previous error (ERRp), divide by T and multiply by another tuning constant. So D = Kd * ((ERRc – ERRp) / T). This really does two things. When you start a scrub or the sun hits your NAS, you get a large positive error. The bigger the increase in error, the bigger D is. In this case, D and P are additive, aggressively increasing duty cycle. But then when the temps are cooling fast, coming back down to SP, P is still positive and D is negative, so D counters P and puts the brakes on the fans, reducing overshoot and subsequent oscillation.
Most of what I’ve read says, in the great majority of cases, D is not needed, and you can just use PI. So I worked with PI for a long time, trying all kinds of tuning, and always had oscillation. By then I was using Tmean instead of Tmax, and I put the derivative term in and it was MUCH more stable. On the other hand, I have not seen any sign of offset, and I does more harm than good, so I ended up setting Ki to 0.
Here are a few graphs showing some preliminary trials. First using Tmax as the process variable, SP is 36. Kp is too high.
View attachment 11763

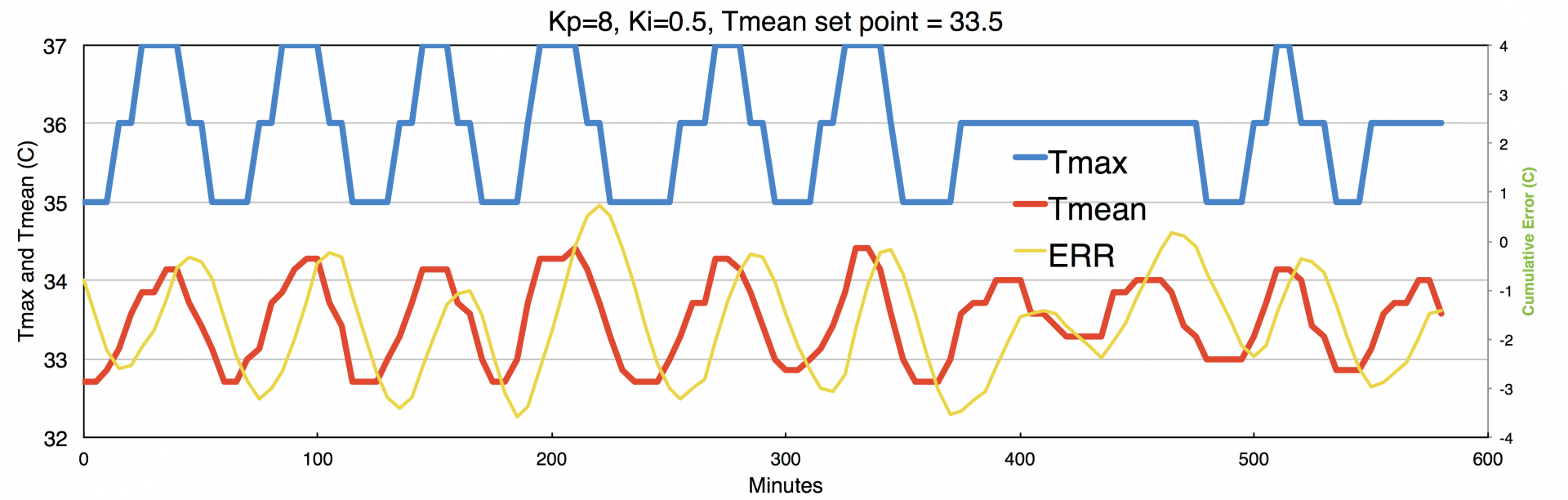

Tried adding the I term. Many experiments I won't bore you with. This one using Tmean, still bad oscillation. This shows cumulative error too. No improvement
View attachment 11764

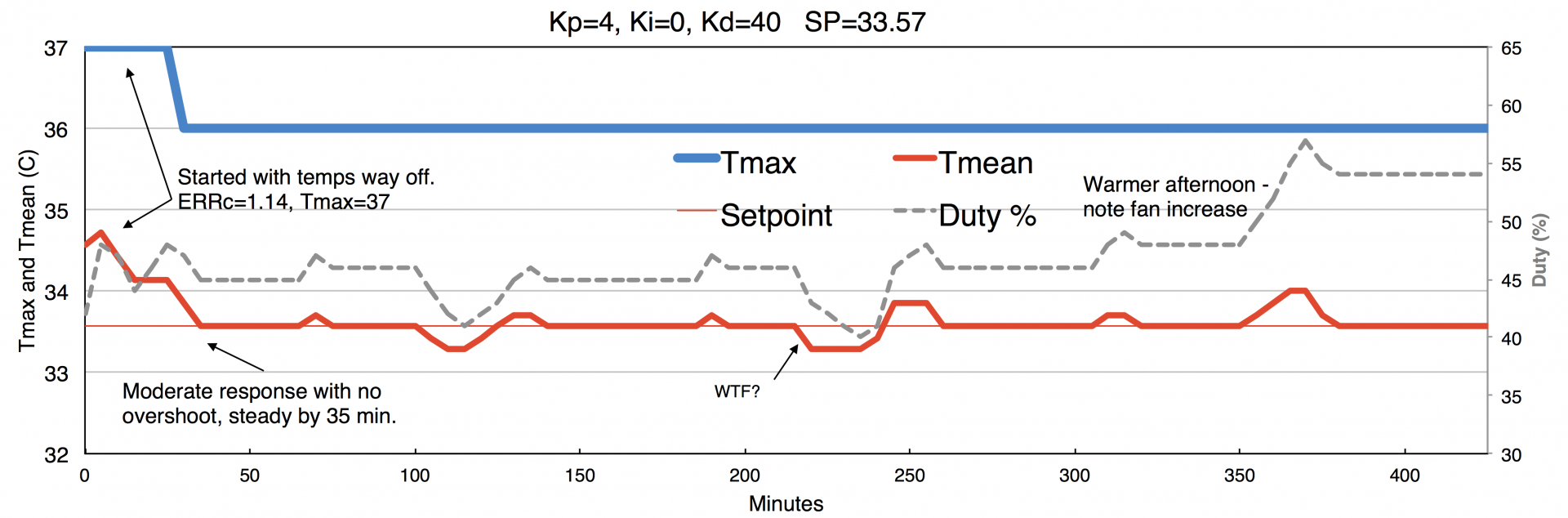

And the script and tuning I ended up with, showing Tmax, Tmean, and duty cycle.. As a test, this starts with a large error. See how Tmean comes down to SP without overshooting. Then there are minor corrections through the day, and you can see the fans increase as the sun comes in in the afternoon.
View attachment 11765
Here is what the log looks like. The stuff on the right (starting with ERRc) can be turned off; I just use it for diagnosis and tuning. This log begins with starting the script. It gets equilibrated about 30 minutes in.
Code:
Saturday, May 14
da0 da1 da2 da3 ada0 ada1 ada2 Tmax Tmean RPM MODE Fan% Curr/New
15:01:03 Spin 35 Spin 35 Spin 36 Spin 35 Spin 31 Spin 32 Spin 32 ^36 33.71 800 Standard 49/51 ERRc= 0.14; P= 0.58; I= 0.00; D= 1.15
15:06:05 Spin 35 Spin 35 Spin 36 Spin 36 Spin 31 Spin 32 Spin 32 ^36 33.86 800 HeavyIO 51/53 ERRc= 0.29; P= 1.15; I= 0.00; D= 1.14
15:11:06 Spin 35 Spin 35 Spin 36 Spin 36 Spin 32 Spin 33 Spin 32 ^36 34.14 800 HeavyIO 53/58 ERRc= 0.57; P= 2.29; I= 0.00; D= 2.28
15:16:07 Spin 35 Spin 35 Spin 36 Spin 36 Spin 32 Spin 33 Spin 32 ^36 34.14 900 HeavyIO 58/60 ERRc= 0.57; P= 2.29; I= 0.00; D= 0.00
15:21:08 Spin 35 Spin 35 Spin 36 Spin 36 Spin 32 Spin 33 Spin 32 ^36 34.14 900 HeavyIO 60/62 ERRc= 0.57; P= 2.29; I= 0.00; D= 0.00
15:26:09 Spin 35 Spin 35 Spin 36 Spin 35 Spin 32 Spin 33 Spin 32 ^36 34.00 900 HeavyIO 62/63 ERRc= 0.43; P= 1.72; I= 0.00; D= -1.13
15:31:10 Spin 35 Spin 34 Spin 36 Spin 35 Spin 32 Spin 32 Spin 32 ^36 33.71 1000 HeavyIO 63/61 ERRc= 0.14; P= 0.58; I= 0.00; D= -2.28
15:36:12 Spin 35 Spin 34 Spin 36 Spin 35 Spin 31 Spin 32 Spin 32 ^36 33.57 900 HeavyIO 61/60 ERRc= 0.00; P= 0.00; I= 0.00; D= -1.14
15:41:13 Spin 35 Spin 34 Spin 36 Spin 35 Spin 31 Spin 32 Spin 32 ^36 33.57 900 HeavyIO 60/60 ERRc= 0.00; P= 0.00; I= 0.00; D= 0.00
15:46:14 Spin 35 Spin 34 Spin 36 Spin 35 Spin 31 Spin 32 Spin 32 ^36 33.57 900 HeavyIO 60/60 ERRc= 0.00; P= 0.00; I= 0.00; D= 0.00
15:51:15 Spin 35 Spin 34 Spin 36 Spin 35 Spin 31 Spin 32 Spin 32 ^36 33.57 900 HeavyIO 60/60 ERRc= 0.00; P= 0.00; I= 0.00; D= 0.00
15:56:16 Spin 35 Spin 34 Spin 36 Spin 35 Spin 31 Spin 32 Spin 32 ^36 33.57 900 HeavyIO 60/60 ERRc= 0.00; P= 0.00; I= 0.00; D= 0.00
This is MUCH better than the control built into the boards. Tmean normally stays within 0.3 C of SP unless there is a disturbance, then within 0.5 C. It is damn near perfect. I guess SuperMicro doesn’t do something like this because (a) they’re more interested in protecting the board than the drives, and the board is less sensitive to temperature variation, (b) accessing drive temperatures depends on the OS, and (c) it requires tuning.
Tuning
PID tuning advice on the internet generally does not work well for controlling drive temperatures in my experience.
First run the script spincheck.sh (logs detailed data only, no control) and get familiar with your temperature and fan variations without any intervention.
Now in the settings of spinpid.sh, choose a setpoint that is an actual observed Tmean, given the number of drives you have. It should be the Tmean associated with the Tmax that you want.
Set Ki=0 and leave it there. You probably will never need it.
Start with Kp low. Use a value that results in a rounded correction=1 when error is the lowest value you observe other than 0 (i.e., when ERRc is minimal, Kp ~= 1 / ERRc). However, if you have few drives and thus coarser temperature monitoring, you may need a larger Kp. I would not go below 4.
Set Kd at about Kp*10
Get Tmean within ~0.3 degree of SP before starting script. At this stage you don’t want to test a large error, you want an equilibrated system.
Start script and run for a few hours or so. If Tmean oscillates (best to graph it), you probably need to reduce Kd. If no oscillation but response is too slow, raise Kd.
Stop script and get Tmean at least 1 C off SP. Restart. If there is overshoot and it goes through some cycles, you may need to reduce Kd.
If you have problems, examine P and D in the log and see which is messing you up. Most likely Kd needs tuning. You can try raising Kp, though too high and changes become too aggressive and you get overshoot and oscillation. You can even try using Ki. If you use Ki, make it small, ~ 0.1 or less.
Scripts
There are two bash scripts. spincheck.sh logs data only, it does not control anything. spinpid.sh logs and controls. Both scripts log:
disk status (spinning or standby)
disk temperature (Celsius) if spinning
max and mean disk temperature
fan rpm and mode
current fan duty cycle (plus new one for spinpid.sh)
optional diagnostic variables
The scripts include disks on motherboard as well as on an HBA. They get a list of devices from camcontrol devlist. I edit that to delete my SanDisk flash drives from the list; you may have to change that for your system. Suggestions in the script.
The mode code is primarily based on my board. If you have different modes you may need to make some minor tweaks. I have no idea if any of this is applicable to non-Supermicro boards.
As usual, you are responsible for anything you do on your system. This works for me, but for all I know it could make your box catch fire or cause a zombie apocalypse. I suggest you monitor closely at first.
After testing, if you decide to use it, you can run it as a post-init script (Tasks in the GUI) so it starts automatically after booting. In this case, to avoid ‘windup’ (a large error when starting with possibly cold drives), I suggest you add a ‘sleep 1200’ before the main loop. Then it will wait 20 minutes for the drives to warm up before doing anything.
spincheck.sh
Code:
#!/usr/local/bin/bash
# spincheck.sh version 2016-05-13. Run as superuser. See notes at end.
# Creates logfile and sends all stdout and stderr to the log, leaving the previous contents in place. If you want to append to existing log, add '-a' to the tee command.
LOG=spincheck.log
exec > >(tee -i $LOG) 2>&1
SP=33.57 # Setpoint mean temperature, for information only
function get_disk_name {
# The awk statement works by taking the $LINE as input,
# setting ',' as a _F_ield separator and taking the second field it separates
# (ie after the separator), passing that to another awk that uses
# ')' as a separator, and taking the first field (ie before the separator).
# In other words, everything between ',' and ')' is kept.
DEVID=$(echo $LINE | awk -F ',' '{print $2}' | awk -F ')' '{print$1}')
}
function print_header {
i=0 # counting number of drives
# Header is printed when script starts and each new day
DATE=$(date +"%A, %b %d")
echo $DATE
echo -n " "
while read LINE ; do
get_disk_name
let "i += 1"
printf "%-8s" $DEVID
done <<< "$DEVLIST" # while statement works on DEVLIST
printf "%4s %5s %4s %-8s %s \n" "Tmax" "Tmean" "RPM" "MODE" "Fan%"
}
function data {
Tmean=$(echo "scale=2; $Tsum / $i" | bc)
ERRc=$(echo "scale=2; $Tmean - $SP" | bc)
# Read duty cycle and mode, convert to decimal
DUTY=$(ipmitool raw 0x30 0x70 0x66 0 0) # in hex
DUTY=$(printf "0x%s" $DUTY) # adds Ox in front
DUTY=`echo $(($DUTY))` # converts to decimal
MODE=$(ipmitool raw 0x30 0x45 0)
MODE=$(printf "0x%s" $MODE)
MODE=`echo $(($MODE))`
# Text for mode
case $MODE in
0) MODEt="Standard" ;;
4) MODEt="HeavyIO" ;;
2) MODEt="Optimal" ;;
1) MODEt="Full" ;;
esac
# Get reported fan speed in RPM, assume all the same
# Takes the line with FAN1, then 2nd through the 5th
# digit if there are that many
RPM=$(ipmitool sdr | grep "FAN1" | grep -Eo '[0-9]{2,5}')
# print current Tmax, speed, mode, and duty
printf "^%-3d %5.2f %4d %-8s %2d" $Tmax $Tmean $RPM $MODEt $DUTY
printf " ERRc= %5.2f\n" $ERRc
}
echo "How many minutes do you want between spin checks?"
read T
SEC=$(bc <<< "$T*60") # bc is a calculator
# Get list of drives; remove SanDisk
DEVLIST1=$(camcontrol devlist)
DEVLIST="$(echo "$DEVLIST1"|sed '/SanDisk/d' )"
print_header
# Main loop
while [ 1 ] ; do
# Print header every quarter day. Expression removes any
# leading 0 so it is not seen as octal
HM=$(date +%k%M); HM=`expr $HM + 0`
R=$(( HM % 600 )) # remainder after dividing by 6 hours
if (( $R < $T )); then print_header; fi
# print time on each line
TIME=$(date "+%H:%M:%S"); echo -n "$TIME "
Tmax=0; Tsum=0 # initialize drive temps for new loop through drives
while read LINE ; do
get_disk_name
TEMP=$(smartctl -a -n standby "/dev/$DEVID" | grep "Temp" | grep -o "..$")
smartctl -n standby "/dev/$DEVID" > /var/tempfile
RETURN=$? # need to preserve because $? changes with each if comparison
if [[ $RETURN == "0" ]] ; then
STATE="Spin"
elif [[ $RETURN == "2" ]] ; then
STATE="STANDBY"
else
STATE="UNKNOWN"
fi
printf "%-8s" $STATE" "$TEMP
# Update temperatures each drive
let Tsum=$Tsum+$TEMP
if [[ $TEMP > $Tmax ]]; then Tmax=$TEMP; fi
done <<< "$DEVLIST"
data # manage data
sleep $(($T*60)) # seconds between runs
done
# Logs:
# - disk status (spinning or standby)
# - disk temperature (Celsius) if spinning
# - max and mean disk temperature
# - fan rpm and mode
# - current and new fan duty cycle
# - optional diagnostic variables
# Includes disks on motherboard and on HBA.
# Uses joeschmuck's smartctl method (returns 0 if spinning, 2 in standby)
# https://forums.freenas.org/index.php?threads/how-to-find-out-if-a-drive-is-spinning-down-properly.2068/#post-28451
# Other method (camcontrol cmd -a) doesn't work with HBA
# See "DEVLIST=". Currently set to drop SanDisk flash drives from the camcontrol device list.
# You may need some other strategy, e.g., find something in the camcontrol devlist
# output that is unique to the drives you want to test, for instance only WDC drives:
# if [[ $LINE != *"WDC"* ]] . . .
spinpid.sh
Code:
#!/usr/local/bin/bash
# spinpid.sh version 2016-05-13. Run as superuser. See notes at end.
# Settings:
SP=33.57 # Setpoint mean temperature
T=5 # Time interval in minutes
Kp=4 # Proportional tunable constant
Ki=0 # Integral tunable constant
Kd=40 # Derivative tunable constant
LOG=spinpid.log
# Creates logfile and sends all stdout and stderr to the log, leaving the previous contents in place.
# If you want to append to existing log, add '-a' to the tee command.
exec > >(tee -i $LOG) 2>&1
function get_disk_name {
# The awk statement works by taking $LINE as input,
# setting ',' as a _F_ield separator and taking the second field it separates
# (ie after the separator), passing that to another awk that uses
# ')' as a separator, and taking the first field (ie before the separator).
# In other words, everything between ',' and ')' is kept.
DEVID=$(echo $LINE | awk -F ',' '{print $2}' | awk -F ')' '{print$1}')
}
# Header is printed when script starts and each quarter day
function print_header {
i=0 # counting number of drives
DATE=$(date +"%A, %b %d")
echo $DATE
echo -n " "
while read LINE ; do
get_disk_name
let "i += 1"
printf "%-8s" $DEVID
done <<< "$DEVLIST" # while statement works on DEVLIST
printf "%4s %5s %4s %-8s %s \n" "Tmax" "Tmean" "RPM" "MODE" "Fan% Curr/New"
}
function data {
Tmean=$(echo "scale=3; $Tsum / $i" | bc)
ERRp=$ERRc
ERRc=$(echo "scale=2; $Tmean - $SP" | bc)
ERR=$(echo "scale=2; $ERRc * $T + $I" | bc)
P=$(echo "scale=2; $Kp * $ERRc" | bc)
I=$(echo "scale=2; $Ki * $ERR" | bc)
D=$(echo "scale=2; $Kd * ($ERRc - $ERRp) / $T" | bc)
PID=$(echo "scale=2; $P + $I + $D" | bc) # add 3 corrections
PID=$(printf %0.f $PID) # round
PID=$( printf "0x%x" $PID ) # fully hexify with '0x' in front
# Read duty cycle and mode, convert to decimal
DUTY=$(ipmitool raw 0x30 0x70 0x66 0 0) # in hex
DUTY=$(printf "0x%s" $DUTY) # adds Ox in front
DUTY=`echo $(($DUTY))` # converts to decimal
MODE=$(ipmitool raw 0x30 0x45 0)
MODE=$(printf "0x%s" $MODE)
MODE=`echo $(($MODE))`
# Text for mode
case $MODE in
0) MODEt="Standard" ;;
4) MODEt="HeavyIO" ;;
2) MODEt="Optimal" ;;
1) MODEt="Full" ;;
esac
# Get reported fan speed in RPM.
# Takes the line with FAN1, then 2nd through the 5th
# digit if there are that many.
RPM=$(ipmitool sdr | grep "FAN1" | grep -Eo '[0-9]{2,5}')
# print current Tmax, speed, mode, and duty
printf "^%-3d %5.2f %4d %-8s %2d/" $Tmax $Tmean $RPM $MODEt $DUTY
}
function adjust_fans {
# Calculates correction and sets duty cycle, also optional diagnostic printout
# Reset BMC if fans seem stuck: cool and >80% OR warm and <30%
# if [[ $Tmax<$(($SP - 1)) && $DUTY>0x50 ]] || [[ $Tmax>$(($SP + 5)) && $DUTY<0x1E ]]; then
# ipmitool bmc reset warm; fi
# Add DUTY + correction
DUTY=$( printf "0x%x" $(($DUTY+$PID)) )
# Attempt to avoid BMC changing DUTY. If new DUTY<50,
# set mode to Standard, if >50, HighIO
# But this inserts extra newline, removed with echo -n
if (( $DUTY >= 50 )); then MODE2=4
else MODE2=0; fi
if (( $MODE != $MODE2 )); then
echo -n $(ipmitool raw 0x30 0x45 1 $MODE2); sleep 1
fi
# Don't allow duty cycle beyond min/max (20/90%)
if [[ $DUTY -gt 90 ]]; then DUTY=90; fi
if [[ $DUTY -lt 25 ]]; then DUTY=25; fi
printf "%d" $DUTY # print new duty cycle as decimal integer
# Uncomment for troubleshooting or just more info:
printf " ERRc=%5.2f; P=%6.2f; I=%5.2f; D=%6.2f" $ERRc $P $I $D
# Set new duty cycle. This inserts a newline ending the log line
ipmitool raw 0x30 0x70 0x66 1 0 $DUTY
}
I=0; ERRc=0 # Initialize errors to 0
# Get list of drives; remove SanDisk
DEVLIST1=$(camcontrol devlist)
DEVLIST="$(echo "$DEVLIST1"|sed '/SanDisk/d' )"
print_header
# Main loop
while [ 1 ] ; do
# Print header every quarter day. Expression removes any
# leading 0 so it is not seen as octal
HM=$(date +%k%M); HM=`expr $HM + 0`
R=$(( HM % 600 )) # remainder after dividing by 6 hours
if (( $R < $T )); then print_header; fi
# print time on each line
TIME=$(date "+%H:%M:%S"); echo -n "$TIME "
Tmax=0; Tsum=0 # initialize drive temps for new loop through drives
while read LINE ; do
get_disk_name
TEMP=$(smartctl -a -n standby "/dev/$DEVID" | grep "Temp" | grep -o "..$")
smartctl -n standby "/dev/$DEVID" > /var/tempfile
RETURN=$? # need to preserve because $? changes with each if comparison
if [[ $RETURN == "0" ]] ; then
STATE="Spin"
elif [[ $RETURN == "2" ]] ; then
STATE="STANDBY"
else
STATE="UNKNOWN"
fi
printf "%-8s" $STATE" "$TEMP
# Update temperatures each drive
let Tsum=$Tsum+$TEMP
if [[ $TEMP > $Tmax ]]; then Tmax=$TEMP; fi
done <<< "$DEVLIST"
data # manage data
adjust_fans
sleep $(($T*60)) # seconds between runs
done
# Adjusts fan with PID control to maintain mean drive temp near set point
# Logs:
# - disk status (spinning or standby)
# - disk temperature (Celsius) if spinning
# - max and mean disk temperature
# - fan rpm and mode
# - current and new fan duty cycle
# - optional diagnostic variables
# Includes disks on motherboard and on HBA.
# Relation between percent duty cycle, hex value of that number,
# and RPMs for my fans. RPM will vary among fans, is not
# precisely related to duty cycle, and does not matter to the script.
#
# Percent Hex RPM
# 10 A 300
# 20 14 400
# 30 1E 500
# 40 28 600/700
# 50 32 800
# 60 3C 900
# 70 46 1000/1100
# 80 50 1100/1200
# 90 5A 1200/1300
# 100 64 1300
# Tuning suggestions
# PID tuning advice on the internet generally does not work well in this application.
# First run the script spincheck.sh and get familiar with your temperature and fan variations without any intervention.
# Choose a setpoint that is an actual observed Tmean, given the number of drives you have. It should be the Tmean associated with the Tmax that you want.
# Set Ki=0 and leave it there. You probably will never need it.
# Start with Kp low. Use a value that results in a rounded correction=1 when error is the lowest value you observe other than 0 (i.e., when ERRc is minimal, Kp ~= 1 / ERRc)
# Set Kd at about Kp*10
# Get Tmean within ~0.3 degree of SP before starting script.

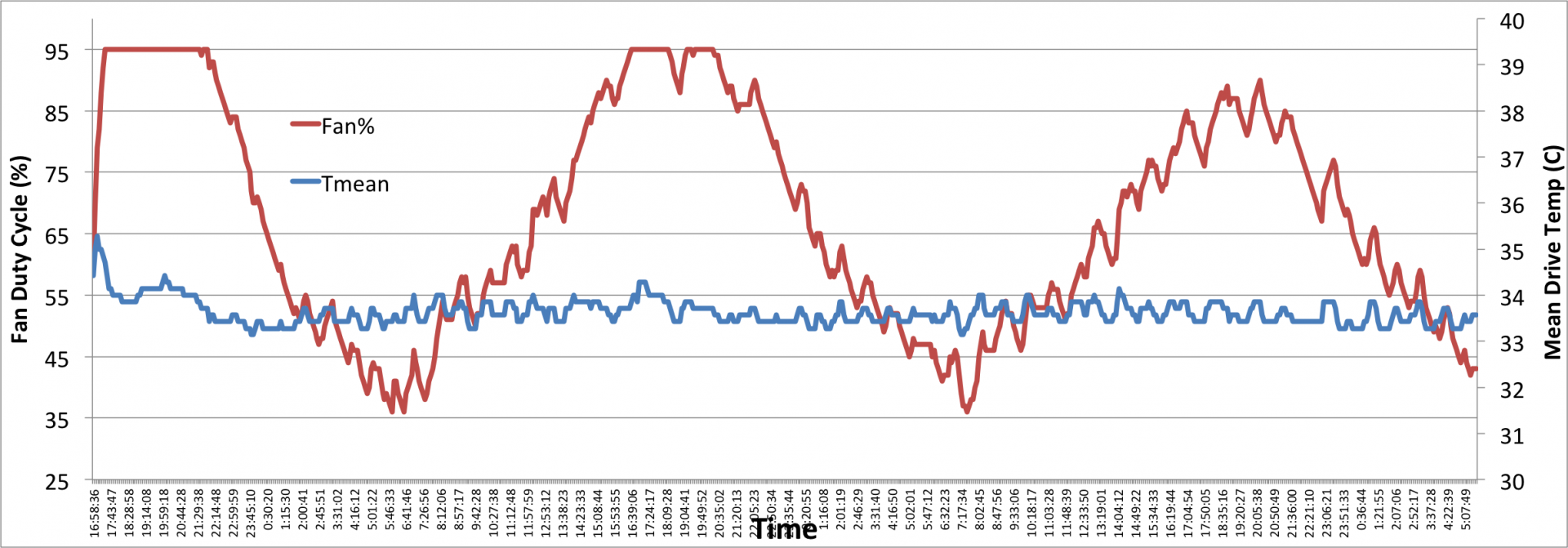

# Start script and run for a few hours or so. If Tmean oscillates (best to graph it), you probably need to reduce Kd. If no oscillation but response is too slow, raise Kd.
# Stop script and get Tmean at least 1 C off SP. Restart. If there is overshoot and it goes through some cycles, you may need to reduce Kd.
# If you have problems, examine PK and PD in the log and see which is messing you up. If all else fails you can try Ki. If you use Ki, make it small, ~ 0.1 or less.
# Uses joeschmuck's smartctl method (returns 0 if spinning, 2 in standby)
# https://forums.freenas.org/index.php?threads/how-to-find-out-if-a-drive-is-spinning-down-properly.2068/#post-28451
# Other method (camcontrol cmd -a) doesn't work with HBA
# See "DEVLIST=". Currently set to drop SanDisk flash drives from the camcontrol device list.
# You may need some other strategy, e.g., find something in the camcontrol devlist
# output that is unique to the drives you want to test, for instance only WDC drives:
# if [[ $LINE != *"WDC"* ]] . . .
