Problem with FreeNAS transfers

Status
Not open for further replies.
Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32
Hello FreeNAS members,

for the past few weeks I have been trying to setup my personal FreeNAS home-server. Even though I can install it and set it up all fine, as soon as I try to make a file transfer from or to my windows desktop, the server halts and soon after it crashes. I have tried to freshly install it again and again and looked online, but without any luck. All help is greatly appreciated.

Hardware
Mobo: Supermicro X8SIE
CPU: intel x3430
RAM: 16gb (4x4gb) ECC registered
Boot device: 8gb usb 2.0 SanDisk Cruzer Blade 1.26
HDD: 5x 5tb TOSHIBA MD04ACA500 + 1x 5tb TOSHIBA HDWE150 -- The drives are configured in ZFS Z2

I also have gotten an LSI 9210i-8i hoping to fix the issue, but since it did not make any difference I have currently plugged all the disks directly on the motherboard.

The NAS is connected to a switch (where my computer is also connected) and from there it is connected to the router.

Thanks in advance

Last edited by a moderator:
nojohnny101

nojohnny101

Wizard
Joined
Dec 3, 2015
Messages
1,478
Do you see anything in the logs indicating what happened?

What is your PSU? What version of FreeNAS are you running?

Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32
My PSU is a 550watt seasonic 80+ so it should be good I think. I am currently running FreeNAS-9.10.2-U1.

I remember it said something on boot about gpt partition table being corrupt or invalid then it is using the secondary instead.

Where can I find the actual logs to post them?

bigphil

bigphil

Patron
Joined
Jan 30, 2014
Messages
486
For starters, I'd run a full pass of memtest86+ on the server to make sure it comes back ok. http://www.memtest.org/

Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32
I have checked the memory in the past, I run memtest from a live linux usb for 3 days without any errors. So I think I am safe from that point.

bigphil

bigphil

Patron
Joined
Jan 30, 2014
Messages
486
check /var/crash and /var/log/messages and /var/log/dmesg

SweetAndLow

SweetAndLow

Sweet'NASty
Joined
Nov 6, 2013
Messages
6,421
Can you write data to the server without it crashing? Try just copying a file locally on the server.

Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32
About the logs, I know where to find them in the shell, my problem is how do I get the files to post them, or at least display them on the shell so I can copy them.

I can do local writes to the array through the shell and sometimes I can even copy files from the windows computer, but if I try to copy a lot at once it will 99% crash. Sometimes it crashes even with smaller files, but generally anything in the tens of GB's will almost certainly cause it to crash.

Thanks for the help

bigphil

bigphil

Patron
Joined
Jan 30, 2014
Messages
486
If you have SSH enabled, putty into the box and you can copy that way, or run WinSCP and connect via SFTP and get the files.

Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32
thanks for explaining all the steps and such, I am quite a newbie.. Anyways here are the file you asked for:

I could not find any file named dmesg

the file from crash only had the value of "2048" inside it.

and here is the messages file under the /var/log directory:
Code:
Jan 19 00:00:00 freenas newsyslog[13930]: logfile turned over due to size>100K
Jan 19 00:00:00 freenas syslog-ng[1489]: Configuration reload request received, reloading configuration;
Jan 19 00:50:53 freenas kernel: epair0a: link state changed to DOWN
Jan 19 00:50:53 freenas kernel: epair0a: link state changed to DOWN
Jan 19 00:50:53 freenas kernel: epair0b: link state changed to DOWN
Jan 19 00:50:53 freenas kernel: epair0b: link state changed to DOWN
Jan 19 00:50:59 freenas notifier: Performing sanity check on nginx configuration:
Jan 19 00:50:59 freenas notifier: nginx: the configuration file /usr/local/etc/nginx/nginx.conf syntax is ok
Jan 19 00:50:59 freenas notifier: nginx: configuration file /usr/local/etc/nginx/nginx.conf test is successful
Jan 19 00:51:35 freenas kernel: ifa_del_loopback_route: deletion failed: 48
Jan 19 00:51:35 freenas Freed UMA keg (udp_inpcb) was not empty (120 items).  Lost 12 pages of memory.
Jan 19 00:51:35 freenas Freed UMA keg (udpcb) was not empty (1169 items).  Lost 7 pages of memory.
Jan 19 00:51:35 freenas Freed UMA keg (tcptw) was not empty (405 items).  Lost 9 pages of memory.
Jan 19 00:51:35 freenas Freed UMA keg (tcp_inpcb) was not empty (120 items).  Lost 12 pages of memory.
Jan 19 00:51:35 freenas Freed UMA keg (tcpcb) was not empty (36 items).  Lost 12 pages of memory.
Jan 19 00:51:35 freenas hhook_vnet_uninit: hhook_head type=1, id=1 cleanup required
Jan 19 00:51:35 freenas hhook_vnet_uninit: hhook_head type=1, id=0 cleanup required
Jan 19 00:53:35 freenas notifier: shutdown: [pid 28633]
Jan 19 00:53:35 freenas notifier: Shutdown NOW!
Jan 19 00:53:36 freenas syslog-ng[29256]: syslog-ng starting up; version='3.6.4'
Jan 19 00:53:36 freenas kernel: pid 1489 (syslog-ng), uid 0: exited on signal 6 (core dumped)
Jan 19 00:53:36 freenas kernel: epair1a: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: epair1a: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: epair1b: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: epair1b: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: em1: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: em1: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: em1: promiscuous mode disabled
Jan 19 00:53:36 freenas kernel: bridge0: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: bridge0: link state changed to DOWN
Jan 19 00:53:37 freenas smbd: dnssd_clientstub DNSServiceProcessResult called with DNSServiceRef with no ProcessReply function
Jan 19 00:53:38 freenas ntpd[1930]: ntpd exiting on signal 15 (Terminated)
Jan 19 00:53:38 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:53:39 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:53:40 freenas dhclient: New IP Address (em1): 192.168.1.135
Jan 19 00:53:40 freenas dhclient: New Subnet Mask (em1): 255.255.255.0
Jan 19 00:53:40 freenas dhclient: New Broadcast Address (em1): 192.168.1.255
Jan 19 00:53:40 freenas dhclient: New Routers (em1): 192.168.1.1
Jan 19 00:53:40 freenas kernel: em1: link state changed to UP
Jan 19 00:53:40 freenas kernel: em1: link state changed to UP
Jan 19 00:53:40 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:53:41 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:53:43 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:53:44 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:53:45 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:53:46 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:53:47 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:53:48 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:53:49 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:53:50 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:53:51 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:53:52 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:53:53 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:53:54 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:53:55 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:53:56 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:53:57 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:53:58 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:53:59 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:54:01 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:54:02 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:54:03 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:54:04 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:54:05 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:54:05 freenas syslog-ng[29256]: syslog-ng shutting down; version='3.6.4'
Jan 19 10:12:03 freenas syslog-ng[1464]: syslog-ng starting up; version='3.6.4'
Jan 19 10:12:03 freenas Copyright (c) 1992-2016 The FreeBSD Project.
Jan 19 10:12:03 freenas Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
Jan 19 10:12:03 freenas     The Regents of the University of California. All rights reserved.
Jan 19 10:12:03 freenas FreeBSD is a registered trademark of The FreeBSD Foundation.
Jan 19 10:12:03 freenas FreeBSD 10.3-STABLE #0 r295946+1805185(9.10.2-STABLE): Wed Jan 11 17:12:42 UTC 2017
Jan 19 10:12:03 freenas root@gauntlet:/freenas-9.10-releng/_BE/objs/freenas-9.10-releng/_BE/os/sys/FreeNAS.amd64 amd64
Jan 19 10:12:03 freenas FreeBSD clang version 3.4.1 (tags/RELEASE_34/dot1-final 208032) 20140512
Jan 19 10:12:03 freenas CPU: Intel(R) Xeon(R) CPU           X3430  @ 2.40GHz (2400.05-MHz K8-class CPU)
Jan 19 10:12:03 freenas Origin="GenuineIntel"  Id=0x106e5  Family=0x6  Model=0x1e  Stepping=5
Jan 19 10:12:03 freenas Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
Jan 19 10:12:03 freenas Features2=0x98e3fd<SSE3,DTES64,MON,DS_CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT>
Jan 19 10:12:03 freenas AMD Features=0x28100800<SYSCALL,NX,RDTSCP,LM>
Jan 19 10:12:03 freenas AMD Features2=0x1<LAHF>
Jan 19 10:12:03 freenas VT-x: PAT,HLT,MTF,PAUSE,EPT,VPID
Jan 19 10:12:03 freenas TSC: P-state invariant, performance statistics
Jan 19 10:12:03 freenas real memory  = 18253611008 (17408 MB)
Jan 19 10:12:03 freenas avail memory = 16570359808 (15802 MB)
Jan 19 10:12:03 freenas Event timer "LAPIC" quality 400
Jan 19 10:12:03 freenas ACPI APIC Table: <052710 APIC1452>
Jan 19 10:12:03 freenas FreeBSD/SMP: Multiprocessor System Detected: 4 CPUs
Jan 19 10:12:03 freenas FreeBSD/SMP: 1 package(s) x 4 core(s)
Jan 19 10:12:03 freenas cpu0 (BSP): APIC ID:  0
Jan 19 10:12:03 freenas cpu1 (AP): APIC ID:  2
Jan 19 10:12:03 freenas cpu2 (AP): APIC ID:  4
Jan 19 10:12:03 freenas cpu3 (AP): APIC ID:  6
Jan 19 10:12:03 freenas random: <Software, Yarrow> initialized
Jan 19 10:12:03 freenas WARNING: VIMAGE (virtualized network stack) is a highly experimental feature.
Jan 19 10:12:03 freenas ACPI BIOS Warning (bug): 32/64X length mismatch in FADT/Gpe0Block: 128/64 (20160527/tbfadt-650)
Jan 19 10:12:03 freenas ioapic0: Changing APIC ID to 7
Jan 19 10:12:03 freenas ioapic0 <Version 2.0> irqs 0-23 on motherboard
Jan 19 10:12:03 freenas kbd1 at kbdmux0
Jan 19 10:12:03 freenas aesni0: No AESNI support.
Jan 19 10:12:03 freenas padlock0: No ACE support.
Jan 19 10:12:03 freenas cryptosoft0: <software crypto> on motherboard
Jan 19 10:12:03 freenas acpi0: <SMCI > on motherboard
Jan 19 10:12:03 freenas acpi0: Power Button (fixed)
Jan 19 10:12:03 freenas cpu0: <ACPI CPU> on acpi0
Jan 19 10:12:03 freenas cpu1: <ACPI CPU> on acpi0
Jan 19 10:12:03 freenas cpu2: <ACPI CPU> on acpi0
Jan 19 10:12:03 freenas cpu3: <ACPI CPU> on acpi0
Jan 19 10:12:03 freenas attimer0: <AT timer> port 0x40-0x43 irq 0 on acpi0
Jan 19 10:12:03 freenas Timecounter "i8254" frequency 1193182 Hz quality 0
Jan 19 10:12:03 freenas Event timer "i8254" frequency 1193182 Hz quality 100
Jan 19 10:12:03 freenas atrtc0: <AT realtime clock> port 0x70-0x71 irq 8 on acpi0
Jan 19 10:12:03 freenas Event timer "RTC" frequency 32768 Hz quality 0
Jan 19 10:12:03 freenas hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Jan 19 10:12:03 freenas Timecounter "HPET" frequency 14318180 Hz quality 950
Jan 19 10:12:03 freenas Event timer "HPET" frequency 14318180 Hz quality 550
Jan 19 10:12:03 freenas Event timer "HPET1" frequency 14318180 Hz quality 440
Jan 19 10:12:03 freenas Event timer "HPET2" frequency 14318180 Hz quality 440
Jan 19 10:12:03 freenas Event timer "HPET3" frequency 14318180 Hz quality 440
Jan 19 10:12:03 freenas Event timer "HPET4" frequency 14318180 Hz quality 440
Jan 19 10:12:03 freenas Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
Jan 19 10:12:03 freenas acpi_timer0: <24-bit timer at 3.579545MHz> port 0x808-0x80b on acpi0
Jan 19 10:12:03 freenas pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
Jan 19 10:12:03 freenas pci0: <ACPI PCI bus> on pcib0
Jan 19 10:12:03 freenas pcib1: <ACPI PCI-PCI bridge> irq 16 at device 3.0 on pci0
Jan 19 10:12:03 freenas pci1: <ACPI PCI bus> on pcib1
Jan 19 10:12:03 freenas ehci0: <Intel PCH USB 2.0 controller USB-B> mem 0xfb3fc000-0xfb3fc3ff irq 21 at device 26.0 on pci0
Jan 19 10:12:03 freenas usbus0: EHCI version 1.0
Jan 19 10:12:03 freenas usbus0 on ehci0
Jan 19 10:12:03 freenas pcib2: <ACPI PCI-PCI bridge> irq 17 at device 28.0 on pci0
Jan 19 10:12:03 freenas pci2: <ACPI PCI bus> on pcib2
Jan 19 10:12:03 freenas mps0: <Avago Technologies (LSI) SAS2008> port 0xc000-0xc0ff mem 0xfb43c000-0xfb43ffff,0xfb440000-0xfb47ffff irq 16 at device 0.0 on pci2
Jan 19 10:12:03 freenas mps0: Firmware: 11.00.00.00, Driver: 21.01.00.00-fbsd
Jan 19 10:12:03 freenas mps0: IOCCapabilities: 185c<ScsiTaskFull,DiagTrace,SnapBuf,EEDP,TransRetry,IR>
Jan 19 10:12:03 freenas pcib3: <ACPI PCI-PCI bridge> irq 17 at device 28.4 on pci0
Jan 19 10:12:03 freenas pci3: <ACPI PCI bus> on pcib3
Jan 19 10:12:03 freenas em0: <Intel(R) PRO/1000 Network Connection 7.6.1-k> port 0xdc00-0xdc1f mem 0xfb5e0000-0xfb5fffff,0xfb5dc000-0xfb5dffff irq 16 at device 0.0 on pci3
Jan 19 10:12:03 freenas em0: Using MSIX interrupts with 3 vectors
Jan 19 10:12:03 freenas em0: Ethernet address: 00:25:90:0d:57:36
Jan 19 10:12:03 freenas pcib4: <ACPI PCI-PCI bridge> irq 16 at device 28.5 on pci0
Jan 19 10:12:03 freenas pci4: <ACPI PCI bus> on pcib4
Jan 19 10:12:03 freenas em1: <Intel(R) PRO/1000 Network Connection 7.6.1-k> port 0xec00-0xec1f mem 0xfb6e0000-0xfb6fffff,0xfb6dc000-0xfb6dffff irq 17 at device 0.0 on pci4
Jan 19 10:12:03 freenas em1: Using MSIX interrupts with 3 vectors
Jan 19 10:12:03 freenas em1: Ethernet address: 00:25:90:0d:57:37
Jan 19 10:12:03 freenas ehci1: <Intel PCH USB 2.0 controller USB-A> mem 0xfb3fa000-0xfb3fa3ff irq 23 at device 29.0 on pci0
Jan 19 10:12:03 freenas usbus1: EHCI version 1.0
Jan 19 10:12:03 freenas usbus1 on ehci1
Jan 19 10:12:03 freenas pcib5: <ACPI PCI-PCI bridge> at device 30.0 on pci0
Jan 19 10:12:03 freenas pci5: <ACPI PCI bus> on pcib5
Jan 19 10:12:03 freenas vgapci0: <VGA-compatible display> mem 0xfa000000-0xfaffffff,0xfb7fc000-0xfb7fffff,0xfb800000-0xfbffffff irq 23 at device 3.0 on pci5
Jan 19 10:12:03 freenas vgapci0: Boot video device
Jan 19 10:12:03 freenas isab0: <PCI-ISA bridge> at device 31.0 on pci0
Jan 19 10:12:03 freenas isa0: <ISA bus> on isab0
Jan 19 10:12:03 freenas atapci0: <Intel 5 Series/3400 Series PCH SATA300 controller> port 0xbc00-0xbc07,0xb880-0xb883,0xb800-0xb807,0xb480-0xb483,0xb400-0xb40f,0xb080-0xb08f irq 19 at device 31.2 on pci0
Jan 19 10:12:03 freenas ata2: <ATA channel> at channel 0 on atapci0
Jan 19 10:12:03 freenas ata3: <ATA channel> at channel 1 on atapci0
Jan 19 10:12:03 freenas atapci1: <Intel 5 Series/3400 Series PCH SATA300 controller> port 0xac00-0xac07,0xa880-0xa883,0xa800-0xa807,0xa480-0xa483,0xa400-0xa40f,0xa080-0xa08f irq 19 at device 31.5 on pci0
Jan 19 10:12:03 freenas ata4: <ATA channel> at channel 0 on atapci1
Jan 19 10:12:03 freenas ata5: <ATA channel> at channel 1 on atapci1
Jan 19 10:12:03 freenas acpi_button0: <Power Button> on acpi0
Jan 19 10:12:03 freenas uart0: <16550 or compatible> port 0x3f8-0x3ff irq 4 flags 0x10 on acpi0
Jan 19 10:12:03 freenas uart1: <16550 or compatible> port 0x2f8-0x2ff irq 3 on acpi0
Jan 19 10:12:03 freenas ichwd0: <Intel 3420 watchdog timer> on isa0
Jan 19 10:12:03 freenas wbwd0: <Winbond 83627DHG (0xa0/0x25) Watchdog Timer> at port 0x2e-0x2f on isa0
Jan 19 10:12:03 freenas orm0: <ISA Option ROMs> at iomem 0xc0000-0xc7fff,0xc8000-0xc87ff on isa0
Jan 19 10:12:03 freenas sc0: <System console> at flags 0x100 on isa0
Jan 19 10:12:03 freenas sc0: VGA <16 virtual consoles, flags=0x300>
Jan 19 10:12:03 freenas vga0: <Generic ISA VGA> at port 0x3c0-0x3df iomem 0xa0000-0xbffff on isa0
Jan 19 10:12:03 freenas atkbdc0: <Keyboard controller (i8042)> at port 0x60,0x64 on isa0
Jan 19 10:12:03 freenas atkbd0: <AT Keyboard> irq 1 on atkbdc0
Jan 19 10:12:03 freenas kbd0 at atkbd0
Jan 19 10:12:03 freenas atkbd0: [GIANT-LOCKED]
Jan 19 10:12:03 freenas coretemp0: <CPU On-Die Thermal Sensors> on cpu0
Jan 19 10:12:03 freenas est0: <Enhanced SpeedStep Frequency Control> on cpu0
Jan 19 10:12:03 freenas coretemp1: <CPU On-Die Thermal Sensors> on cpu1
Jan 19 10:12:03 freenas est1: <Enhanced SpeedStep Frequency Control> on cpu1
Jan 19 10:12:03 freenas coretemp2: <CPU On-Die Thermal Sensors> on cpu2
Jan 19 10:12:03 freenas est2: <Enhanced SpeedStep Frequency Control> on cpu2
Jan 19 10:12:03 freenas coretemp3: <CPU On-Die Thermal Sensors> on cpu3
Jan 19 10:12:03 freenas est3: <Enhanced SpeedStep Frequency Control> on cpu3
Jan 19 10:12:03 freenas random: unblocking device.
Jan 19 10:12:03 freenas usbus0: 480Mbps High Speed USB v2.0
Jan 19 10:12:03 freenas usbus1: 480Mbps High Speed USB v2.0
Jan 19 10:12:03 freenas ZFS filesystem version: 5
Jan 19 10:12:03 freenas ZFS storage pool version: features support (5000)
Jan 19 10:12:03 freenas Timecounters tick every 1.000 msec
Jan 19 10:12:03 freenas ipfw2 (+ipv6) initialized, divert enabled, nat enabled, default to accept, logging disabled
Jan 19 10:12:03 freenas ugen1.1: <Intel> at usbus1
Jan 19 10:12:03 freenas ugen0.1: <Intel> at usbus0
Jan 19 10:12:03 freenas uhub0: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus0
Jan 19 10:12:03 freenas uhub1: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus1
Jan 19 10:12:03 freenas uhub0: 2 ports with 2 removable, self powered
Jan 19 10:12:03 freenas uhub1: 2 ports with 2 removable, self powered
Jan 19 10:12:03 freenas ugen0.2: <vendor 0x8087> at usbus0
Jan 19 10:12:03 freenas uhub2: <vendor 0x8087 product 0x0020, class 9/0, rev 2.00/0.00, addr 2> on usbus0
Jan 19 10:12:03 freenas ugen1.2: <vendor 0x8087> at usbus1
Jan 19 10:12:03 freenas uhub3: <vendor 0x8087 product 0x0020, class 9/0, rev 2.00/0.00, addr 2> on usbus1
Jan 19 10:12:03 freenas uhub3: 6 ports with 6 removable, self powered
Jan 19 10:12:03 freenas uhub2: 6 ports with 6 removable, self powered
Jan 19 10:12:03 freenas ugen1.3: <SanDisk> at usbus1
Jan 19 10:12:03 freenas umass0: <SanDisk Cruzer Blade, class 0/0, rev 2.00/1.26, addr 3> on usbus1
Jan 19 10:12:03 freenas umass0:  SCSI over Bulk-Only; quirks = 0x8100
Jan 19 10:12:03 freenas umass0:6:0:-1: Attached to scbus6
Jan 19 10:12:03 freenas ada0 at ata2 bus 0 scbus1 target 0 lun 0
Jan 19 10:12:03 freenas ada0: <TOSHIBA MD04ACA500 FP2A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada0: Serial Number Y4MHK5CHFS9A
Jan 19 10:12:03 freenas ada0: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada0: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada0: Previously was known as ad4
Jan 19 10:12:03 freenas ada1 at ata2 bus 0 scbus1 target 1 lun 0
Jan 19 10:12:03 freenas ada1: <TOSHIBA MD04ACA500 FP2A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada1: Serial Number 65O2KBB0FS9A
Jan 19 10:12:03 freenas ada1: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada1: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada1: Previously was known as ad5
Jan 19 10:12:03 freenas ada2 at ata3 bus 0 scbus2 target 0 lun 0
Jan 19 10:12:03 freenas ada2: <TOSHIBA MD04ACA500 FP2A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada2: Serial Number 35DDK6OXFS9A
Jan 19 10:12:03 freenas ada2: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada2: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada2: Previously was known as ad6
Jan 19 10:12:03 freenas ada3 at ata3 bus 0 scbus2 target 1 lun 0
Jan 19 10:12:03 freenas ada3: <TOSHIBA MD04ACA500 FP1A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada3: Serial Number 64AGK2VVFS9A
Jan 19 10:12:03 freenas ada3: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada3: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada3: Previously was known as ad7
Jan 19 10:12:03 freenas ada4 at ata4 bus 0 scbus3 target 0 lun 0
Jan 19 10:12:03 freenas ada4: <TOSHIBA MD04ACA500 FP2A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada4: Serial Number Y4MDK5OKFS9A
Jan 19 10:12:03 freenas ada4: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada4: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada4: Previously was known as ad8
Jan 19 10:12:03 freenas ada5 at ata5 bus 0 scbus4 target 0 lun 0
Jan 19 10:12:03 freenas ada5: <TOSHIBA HDWE150 FP2A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada5: Serial Number 66E7KBP0F57D
Jan 19 10:12:03 freenas ada5: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada5: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada5: Previously was known as ad10
Jan 19 10:12:03 freenas da0 at umass-sim0 bus 0 scbus6 target 0 lun 0
Jan 19 10:12:03 freenas da0: <SanDisk Cruzer Blade 1.26> Removable Direct Access SPC-4 SCSI device
Jan 19 10:12:03 freenas da0: Serial Number 2004351421029DC30E2C
Jan 19 10:12:03 freenas da0: 40.000MB/s transfers
Jan 19 10:12:03 freenas da0: 7633MB (15633408 512 byte sectors)
Jan 19 10:12:03 freenas da0: quirks=0x2<NO_6_BYTE>
Jan 19 10:12:03 freenas SMP: AP CPU #1 Launched!
Jan 19 10:12:03 freenas SMP: AP CPU #3 Launched!
Jan 19 10:12:03 freenas SMP: AP CPU #2 Launched!
Jan 19 10:12:03 freenas Timecounter "TSC-low" frequency 1200023562 Hz quality 1000
Jan 19 10:12:03 freenas Trying to mount root from zfs:freenas-boot/ROOT/default []...
Jan 19 10:12:03 freenas GEOM_RAID5: Module loaded, version 1.3.20140711.62 (rev f91e28e40bf7)
Jan 19 10:12:03 freenas ipmi0: <IPMI System Interface> on isa0
Jan 19 10:12:03 freenas ipmi0: KCS mode found at mem 0xca2 alignment 0x1 on isa
Jan 19 10:12:03 freenas ipmi0: couldn't configure I/O resource
Jan 19 10:12:03 freenas device_attach: ipmi0 attach returned 6
Jan 19 10:12:03 freenas hwpmc: SOFT/16/64/0x67<INT,USR,SYS,REA,WRI> TSC/1/64/0x20<REA> IAP/4/48/0x3ff<INT,USR,SYS,EDG,THR,REA,WRI,INV,QUA,PRC> IAF/3/48/0x67<INT,USR,SYS,REA,WRI> UCP/8/48/0x3f8<EDG,THR,REA,WRI,INV,QUA,PRC> UCF/1/48/0x60<REA,WRI>
Jan 19 10:12:03 freenas kernel: em1: link state changed to UP
Jan 19 10:12:03 freenas kernel: em1: link state changed to UP
Jan 19 10:12:04 freenas GEOM_ELI: Device ada0p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI:     Crypto: software
Jan 19 10:12:04 freenas GEOM_ELI: Device ada1p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI:     Crypto: software
Jan 19 10:12:04 freenas GEOM_ELI: Device ada2p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI:     Crypto: software
Jan 19 10:12:04 freenas GEOM_ELI: Device ada3p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI:     Crypto: software
Jan 19 10:12:04 freenas GEOM_ELI: Device ada4p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI:     Crypto: software
Jan 19 10:12:04 freenas GEOM_ELI: Device ada5p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI:     Crypto: software
Jan 19 10:12:04 freenas ntpd[1904]: ntpd 4.2.8p9-a (1): Starting

Last edited by a moderator:
Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32
Hi would anyone be able to help me please, I am sitting on quite a bit of hardware that I really need to put online and utilize. Thanks

ccssid

ccssid

Explorer
Joined
Dec 12, 2016
Messages
86
Jonnhy said:
Hi would anyone be able to help me please, I am sitting on quite a bit of hardware that I really need to put online and utilize. Thanks
Click to expand...

Not exactly sure where you are at with your setup or the exact issues you are encountering .......but......

Jonnhy, go to these sites and filter through them and it may help you sort things out. you can effectively do a basic set up without the need for any script.

https://www.youtube.com/watch?v=1K96wY1NH5A


https://www.youtube.com/watch?v=2xO9MxlEaYg


https://forums.freenas.org/index.ph...guration-for-small-freenas-deployments.27062/


https://www.youtube.com/watch?v=3DnUWTliaOY

and this may help you out with the lsi card:

https://forums.freenas.org/index.php?threads/lsi-9211-8i-latest-firmware.40795/#post-279018

good luck !

Last edited:
Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32
Hi

Thanks for all the links. I have already done quite a bit of research both for setting up my FreeNAS machine and for trying to figure out a solution to my problem. Unfortunately I cannot seem to find anything and this is why I have turned to the forums where the members, in my opinion have a much greater knowledge. I have watched all the videos that you posted and walked through the guides, thank you though for pointing them out.

Ericloewe

Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,194
Jonnhy said:
thanks for explaining all the steps and such, I am quite a newbie.. Anyways here are the file you asked for:

I could not find any file named dmesg

the file from crash only had the value of "2048" inside it.

and here is the messages file under the /var/log directory:


Jan 19 00:00:00 freenas newsyslog[13930]: logfile turned over due to size>100K
Jan 19 00:00:00 freenas syslog-ng[1489]: Configuration reload request received, reloading configuration;
Jan 19 00:50:53 freenas kernel: epair0a: link state changed to DOWN
Jan 19 00:50:53 freenas kernel: epair0a: link state changed to DOWN
Jan 19 00:50:53 freenas kernel: epair0b: link state changed to DOWN
Jan 19 00:50:53 freenas kernel: epair0b: link state changed to DOWN
Jan 19 00:50:59 freenas notifier: Performing sanity check on nginx configuration:
Jan 19 00:50:59 freenas notifier: nginx: the configuration file /usr/local/etc/nginx/nginx.conf syntax is ok
Jan 19 00:50:59 freenas notifier: nginx: configuration file /usr/local/etc/nginx/nginx.conf test is successful
Jan 19 00:51:35 freenas kernel: ifa_del_loopback_route: deletion failed: 48
Jan 19 00:51:35 freenas Freed UMA keg (udp_inpcb) was not empty (120 items). Lost 12 pages of memory.
Jan 19 00:51:35 freenas Freed UMA keg (udpcb) was not empty (1169 items). Lost 7 pages of memory.
Jan 19 00:51:35 freenas Freed UMA keg (tcptw) was not empty (405 items). Lost 9 pages of memory.
Jan 19 00:51:35 freenas Freed UMA keg (tcp_inpcb) was not empty (120 items). Lost 12 pages of memory.
Jan 19 00:51:35 freenas Freed UMA keg (tcpcb) was not empty (36 items). Lost 12 pages of memory.
Jan 19 00:51:35 freenas hhook_vnet_uninit: hhook_head type=1, id=1 cleanup required
Jan 19 00:51:35 freenas hhook_vnet_uninit: hhook_head type=1, id=0 cleanup required
Jan 19 00:53:35 freenas notifier: shutdown: [pid 28633]
Jan 19 00:53:35 freenas notifier: Shutdown NOW!
Jan 19 00:53:36 freenas syslog-ng[29256]: syslog-ng starting up; version='3.6.4'
Jan 19 00:53:36 freenas kernel: pid 1489 (syslog-ng), uid 0: exited on signal 6 (core dumped)
Jan 19 00:53:36 freenas kernel: epair1a: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: epair1a: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: epair1b: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: epair1b: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: em1: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: em1: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: em1: promiscuous mode disabled
Jan 19 00:53:36 freenas kernel: bridge0: link state changed to DOWN
Jan 19 00:53:36 freenas kernel: bridge0: link state changed to DOWN
Jan 19 00:53:37 freenas smbd: dnssd_clientstub DNSServiceProcessResult called with DNSServiceRef with no ProcessReply function
Jan 19 00:53:38 freenas ntpd[1930]: ntpd exiting on signal 15 (Terminated)
Jan 19 00:53:38 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:53:39 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:53:40 freenas dhclient: New IP Address (em1): 192.168.1.135
Jan 19 00:53:40 freenas dhclient: New Subnet Mask (em1): 255.255.255.0
Jan 19 00:53:40 freenas dhclient: New Broadcast Address (em1): 192.168.1.255
Jan 19 00:53:40 freenas dhclient: New Routers (em1): 192.168.1.1
Jan 19 00:53:40 freenas kernel: em1: link state changed to UP
Jan 19 00:53:40 freenas kernel: em1: link state changed to UP
Jan 19 00:53:40 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:53:41 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:53:43 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:53:44 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:53:45 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:53:46 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:53:47 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:53:48 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:53:49 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:53:50 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:53:51 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:53:52 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:53:53 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:53:54 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:53:55 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:53:56 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:53:57 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:53:58 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:53:59 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:54:01 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:54:02 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 3
Jan 19 00:54:03 freenas python: dnssd_clientstub ConnectToServer: connect() failed path:/var/run/mdnsd Socket:4 Err:-1 Errno:61 Connection refused
Jan 19 00:54:04 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 1
Jan 19 00:54:05 freenas python: dnssd_clientstub ConnectToServer: connect()-> No of tries: 2
Jan 19 00:54:05 freenas syslog-ng[29256]: syslog-ng shutting down; version='3.6.4'
Jan 19 10:12:03 freenas syslog-ng[1464]: syslog-ng starting up; version='3.6.4'
Jan 19 10:12:03 freenas Copyright (c) 1992-2016 The FreeBSD Project.
Jan 19 10:12:03 freenas Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
Jan 19 10:12:03 freenas The Regents of the University of California. All rights reserved.
Jan 19 10:12:03 freenas FreeBSD is a registered trademark of The FreeBSD Foundation.
Jan 19 10:12:03 freenas FreeBSD 10.3-STABLE #0 r295946+1805185(9.10.2-STABLE): Wed Jan 11 17:12:42 UTC 2017
Jan 19 10:12:03 freenas root@gauntlet:/freenas-9.10-releng/_BE/objs/freenas-9.10-releng/_BE/os/sys/FreeNAS.amd64 amd64
Jan 19 10:12:03 freenas FreeBSD clang version 3.4.1 (tags/RELEASE_34/dot1-final 208032) 20140512
Jan 19 10:12:03 freenas CPU: Intel(R) Xeon(R) CPU X3430 @ 2.40GHz (2400.05-MHz K8-class CPU)
Jan 19 10:12:03 freenas Origin="GenuineIntel" Id=0x106e5 Family=0x6 Model=0x1e Stepping=5
Jan 19 10:12:03 freenas Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
Jan 19 10:12:03 freenas Features2=0x98e3fd<SSE3,DTES64,MON,DS_CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT>
Jan 19 10:12:03 freenas AMD Features=0x28100800<SYSCALL,NX,RDTSCP,LM>
Jan 19 10:12:03 freenas AMD Features2=0x1<LAHF>
Jan 19 10:12:03 freenas VT-x: PAT,HLT,MTF,PAUSE,EPT,VPID
Jan 19 10:12:03 freenas TSC: P-state invariant, performance statistics
Jan 19 10:12:03 freenas real memory = 18253611008 (17408 MB)
Jan 19 10:12:03 freenas avail memory = 16570359808 (15802 MB)
Jan 19 10:12:03 freenas Event timer "LAPIC" quality 400
Jan 19 10:12:03 freenas ACPI APIC Table: <052710 APIC1452>
Jan 19 10:12:03 freenas FreeBSD/SMP: Multiprocessor System Detected: 4 CPUs
Jan 19 10:12:03 freenas FreeBSD/SMP: 1 package(s) x 4 core(s)
Jan 19 10:12:03 freenas cpu0 (BSP): APIC ID: 0
Jan 19 10:12:03 freenas cpu1 (AP): APIC ID: 2
Jan 19 10:12:03 freenas cpu2 (AP): APIC ID: 4
Jan 19 10:12:03 freenas cpu3 (AP): APIC ID: 6
Jan 19 10:12:03 freenas random: <Software, Yarrow> initialized
Jan 19 10:12:03 freenas WARNING: VIMAGE (virtualized network stack) is a highly experimental feature.
Jan 19 10:12:03 freenas ACPI BIOS Warning (bug): 32/64X length mismatch in FADT/Gpe0Block: 128/64 (20160527/tbfadt-650)
Jan 19 10:12:03 freenas ioapic0: Changing APIC ID to 7
Jan 19 10:12:03 freenas ioapic0 <Version 2.0> irqs 0-23 on motherboard
Jan 19 10:12:03 freenas kbd1 at kbdmux0
Jan 19 10:12:03 freenas aesni0: No AESNI support.
Jan 19 10:12:03 freenas padlock0: No ACE support.
Jan 19 10:12:03 freenas cryptosoft0: <software crypto> on motherboard
Jan 19 10:12:03 freenas acpi0: <SMCI > on motherboard
Jan 19 10:12:03 freenas acpi0: Power Button (fixed)
Jan 19 10:12:03 freenas cpu0: <ACPI CPU> on acpi0
Jan 19 10:12:03 freenas cpu1: <ACPI CPU> on acpi0
Jan 19 10:12:03 freenas cpu2: <ACPI CPU> on acpi0
Jan 19 10:12:03 freenas cpu3: <ACPI CPU> on acpi0
Jan 19 10:12:03 freenas attimer0: <AT timer> port 0x40-0x43 irq 0 on acpi0
Jan 19 10:12:03 freenas Timecounter "i8254" frequency 1193182 Hz quality 0
Jan 19 10:12:03 freenas Event timer "i8254" frequency 1193182 Hz quality 100
Jan 19 10:12:03 freenas atrtc0: <AT realtime clock> port 0x70-0x71 irq 8 on acpi0
Jan 19 10:12:03 freenas Event timer "RTC" frequency 32768 Hz quality 0
Jan 19 10:12:03 freenas hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Jan 19 10:12:03 freenas Timecounter "HPET" frequency 14318180 Hz quality 950
Jan 19 10:12:03 freenas Event timer "HPET" frequency 14318180 Hz quality 550
Jan 19 10:12:03 freenas Event timer "HPET1" frequency 14318180 Hz quality 440
Jan 19 10:12:03 freenas Event timer "HPET2" frequency 14318180 Hz quality 440
Jan 19 10:12:03 freenas Event timer "HPET3" frequency 14318180 Hz quality 440
Jan 19 10:12:03 freenas Event timer "HPET4" frequency 14318180 Hz quality 440
Jan 19 10:12:03 freenas Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
Jan 19 10:12:03 freenas acpi_timer0: <24-bit timer at 3.579545MHz> port 0x808-0x80b on acpi0
Jan 19 10:12:03 freenas pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
Jan 19 10:12:03 freenas pci0: <ACPI PCI bus> on pcib0
Jan 19 10:12:03 freenas pcib1: <ACPI PCI-PCI bridge> irq 16 at device 3.0 on pci0
Jan 19 10:12:03 freenas pci1: <ACPI PCI bus> on pcib1
Jan 19 10:12:03 freenas ehci0: <Intel PCH USB 2.0 controller USB-B> mem 0xfb3fc000-0xfb3fc3ff irq 21 at device 26.0 on pci0
Jan 19 10:12:03 freenas usbus0: EHCI version 1.0
Jan 19 10:12:03 freenas usbus0 on ehci0
Jan 19 10:12:03 freenas pcib2: <ACPI PCI-PCI bridge> irq 17 at device 28.0 on pci0
Jan 19 10:12:03 freenas pci2: <ACPI PCI bus> on pcib2
Jan 19 10:12:03 freenas mps0: <Avago Technologies (LSI) SAS2008> port 0xc000-0xc0ff mem 0xfb43c000-0xfb43ffff,0xfb440000-0xfb47ffff irq 16 at device 0.0 on pci2
Jan 19 10:12:03 freenas mps0: Firmware: 11.00.00.00, Driver: 21.01.00.00-fbsd
Jan 19 10:12:03 freenas mps0: IOCCapabilities: 185c<ScsiTaskFull,DiagTrace,SnapBuf,EEDP,TransRetry,IR>
Jan 19 10:12:03 freenas pcib3: <ACPI PCI-PCI bridge> irq 17 at device 28.4 on pci0
Jan 19 10:12:03 freenas pci3: <ACPI PCI bus> on pcib3
Jan 19 10:12:03 freenas em0: <Intel(R) PRO/1000 Network Connection 7.6.1-k> port 0xdc00-0xdc1f mem 0xfb5e0000-0xfb5fffff,0xfb5dc000-0xfb5dffff irq 16 at device 0.0 on pci3
Jan 19 10:12:03 freenas em0: Using MSIX interrupts with 3 vectors
Jan 19 10:12:03 freenas em0: Ethernet address: 00:25:90:0d:57:36
Jan 19 10:12:03 freenas pcib4: <ACPI PCI-PCI bridge> irq 16 at device 28.5 on pci0
Jan 19 10:12:03 freenas pci4: <ACPI PCI bus> on pcib4
Jan 19 10:12:03 freenas em1: <Intel(R) PRO/1000 Network Connection 7.6.1-k> port 0xec00-0xec1f mem 0xfb6e0000-0xfb6fffff,0xfb6dc000-0xfb6dffff irq 17 at device 0.0 on pci4
Jan 19 10:12:03 freenas em1: Using MSIX interrupts with 3 vectors
Jan 19 10:12:03 freenas em1: Ethernet address: 00:25:90:0d:57:37
Jan 19 10:12:03 freenas ehci1: <Intel PCH USB 2.0 controller USB-A> mem 0xfb3fa000-0xfb3fa3ff irq 23 at device 29.0 on pci0
Jan 19 10:12:03 freenas usbus1: EHCI version 1.0
Jan 19 10:12:03 freenas usbus1 on ehci1
Jan 19 10:12:03 freenas pcib5: <ACPI PCI-PCI bridge> at device 30.0 on pci0
Jan 19 10:12:03 freenas pci5: <ACPI PCI bus> on pcib5
Jan 19 10:12:03 freenas vgapci0: <VGA-compatible display> mem 0xfa000000-0xfaffffff,0xfb7fc000-0xfb7fffff,0xfb800000-0xfbffffff irq 23 at device 3.0 on pci5
Jan 19 10:12:03 freenas vgapci0: Boot video device
Jan 19 10:12:03 freenas isab0: <PCI-ISA bridge> at device 31.0 on pci0
Jan 19 10:12:03 freenas isa0: <ISA bus> on isab0
Jan 19 10:12:03 freenas atapci0: <Intel 5 Series/3400 Series PCH SATA300 controller> port 0xbc00-0xbc07,0xb880-0xb883,0xb800-0xb807,0xb480-0xb483,0xb400-0xb40f,0xb080-0xb08f irq 19 at device 31.2 on pci0
Jan 19 10:12:03 freenas ata2: <ATA channel> at channel 0 on atapci0
Jan 19 10:12:03 freenas ata3: <ATA channel> at channel 1 on atapci0
Jan 19 10:12:03 freenas atapci1: <Intel 5 Series/3400 Series PCH SATA300 controller> port 0xac00-0xac07,0xa880-0xa883,0xa800-0xa807,0xa480-0xa483,0xa400-0xa40f,0xa080-0xa08f irq 19 at device 31.5 on pci0
Jan 19 10:12:03 freenas ata4: <ATA channel> at channel 0 on atapci1
Jan 19 10:12:03 freenas ata5: <ATA channel> at channel 1 on atapci1
Jan 19 10:12:03 freenas acpi_button0: <Power Button> on acpi0
Jan 19 10:12:03 freenas uart0: <16550 or compatible> port 0x3f8-0x3ff irq 4 flags 0x10 on acpi0
Jan 19 10:12:03 freenas uart1: <16550 or compatible> port 0x2f8-0x2ff irq 3 on acpi0
Jan 19 10:12:03 freenas ichwd0: <Intel 3420 watchdog timer> on isa0
Jan 19 10:12:03 freenas wbwd0: <Winbond 83627DHG (0xa0/0x25) Watchdog Timer> at port 0x2e-0x2f on isa0
Jan 19 10:12:03 freenas orm0: <ISA Option ROMs> at iomem 0xc0000-0xc7fff,0xc8000-0xc87ff on isa0
Jan 19 10:12:03 freenas sc0: <System console> at flags 0x100 on isa0
Jan 19 10:12:03 freenas sc0: VGA <16 virtual consoles, flags=0x300>
Jan 19 10:12:03 freenas vga0: <Generic ISA VGA> at port 0x3c0-0x3df iomem 0xa0000-0xbffff on isa0
Jan 19 10:12:03 freenas atkbdc0: <Keyboard controller (i8042)> at port 0x60,0x64 on isa0
Jan 19 10:12:03 freenas atkbd0: <AT Keyboard> irq 1 on atkbdc0
Jan 19 10:12:03 freenas kbd0 at atkbd0
Jan 19 10:12:03 freenas atkbd0: [GIANT-LOCKED]
Jan 19 10:12:03 freenas coretemp0: <CPU On-Die Thermal Sensors> on cpu0
Jan 19 10:12:03 freenas est0: <Enhanced SpeedStep Frequency Control> on cpu0
Jan 19 10:12:03 freenas coretemp1: <CPU On-Die Thermal Sensors> on cpu1
Jan 19 10:12:03 freenas est1: <Enhanced SpeedStep Frequency Control> on cpu1
Jan 19 10:12:03 freenas coretemp2: <CPU On-Die Thermal Sensors> on cpu2
Jan 19 10:12:03 freenas est2: <Enhanced SpeedStep Frequency Control> on cpu2
Jan 19 10:12:03 freenas coretemp3: <CPU On-Die Thermal Sensors> on cpu3
Jan 19 10:12:03 freenas est3: <Enhanced SpeedStep Frequency Control> on cpu3
Jan 19 10:12:03 freenas random: unblocking device.
Jan 19 10:12:03 freenas usbus0: 480Mbps High Speed USB v2.0
Jan 19 10:12:03 freenas usbus1: 480Mbps High Speed USB v2.0
Jan 19 10:12:03 freenas ZFS filesystem version: 5
Jan 19 10:12:03 freenas ZFS storage pool version: features support (5000)
Jan 19 10:12:03 freenas Timecounters tick every 1.000 msec
Jan 19 10:12:03 freenas ipfw2 (+ipv6) initialized, divert enabled, nat enabled, default to accept, logging disabled
Jan 19 10:12:03 freenas ugen1.1: <Intel> at usbus1
Jan 19 10:12:03 freenas ugen0.1: <Intel> at usbus0
Jan 19 10:12:03 freenas uhub0: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus0
Jan 19 10:12:03 freenas uhub1: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus1
Jan 19 10:12:03 freenas uhub0: 2 ports with 2 removable, self powered
Jan 19 10:12:03 freenas uhub1: 2 ports with 2 removable, self powered
Jan 19 10:12:03 freenas ugen0.2: <vendor 0x8087> at usbus0
Jan 19 10:12:03 freenas uhub2: <vendor 0x8087 product 0x0020, class 9/0, rev 2.00/0.00, addr 2> on usbus0
Jan 19 10:12:03 freenas ugen1.2: <vendor 0x8087> at usbus1
Jan 19 10:12:03 freenas uhub3: <vendor 0x8087 product 0x0020, class 9/0, rev 2.00/0.00, addr 2> on usbus1
Jan 19 10:12:03 freenas uhub3: 6 ports with 6 removable, self powered
Jan 19 10:12:03 freenas uhub2: 6 ports with 6 removable, self powered
Jan 19 10:12:03 freenas ugen1.3: <SanDisk> at usbus1
Jan 19 10:12:03 freenas umass0: <SanDisk Cruzer Blade, class 0/0, rev 2.00/1.26, addr 3> on usbus1
Jan 19 10:12:03 freenas umass0: SCSI over Bulk-Only; quirks = 0x8100
Jan 19 10:12:03 freenas umass0:6:0:-1: Attached to scbus6
Jan 19 10:12:03 freenas ada0 at ata2 bus 0 scbus1 target 0 lun 0
Jan 19 10:12:03 freenas ada0: <TOSHIBA MD04ACA500 FP2A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada0: Serial Number Y4MHK5CHFS9A
Jan 19 10:12:03 freenas ada0: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada0: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada0: Previously was known as ad4
Jan 19 10:12:03 freenas ada1 at ata2 bus 0 scbus1 target 1 lun 0
Jan 19 10:12:03 freenas ada1: <TOSHIBA MD04ACA500 FP2A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada1: Serial Number 65O2KBB0FS9A
Jan 19 10:12:03 freenas ada1: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada1: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada1: Previously was known as ad5
Jan 19 10:12:03 freenas ada2 at ata3 bus 0 scbus2 target 0 lun 0
Jan 19 10:12:03 freenas ada2: <TOSHIBA MD04ACA500 FP2A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada2: Serial Number 35DDK6OXFS9A
Jan 19 10:12:03 freenas ada2: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada2: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada2: Previously was known as ad6
Jan 19 10:12:03 freenas ada3 at ata3 bus 0 scbus2 target 1 lun 0
Jan 19 10:12:03 freenas ada3: <TOSHIBA MD04ACA500 FP1A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada3: Serial Number 64AGK2VVFS9A
Jan 19 10:12:03 freenas ada3: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada3: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada3: Previously was known as ad7
Jan 19 10:12:03 freenas ada4 at ata4 bus 0 scbus3 target 0 lun 0
Jan 19 10:12:03 freenas ada4: <TOSHIBA MD04ACA500 FP2A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada4: Serial Number Y4MDK5OKFS9A
Jan 19 10:12:03 freenas ada4: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada4: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada4: Previously was known as ad8
Jan 19 10:12:03 freenas ada5 at ata5 bus 0 scbus4 target 0 lun 0
Jan 19 10:12:03 freenas ada5: <TOSHIBA HDWE150 FP2A> ATA8-ACS SATA 3.x device
Jan 19 10:12:03 freenas ada5: Serial Number 66E7KBP0F57D
Jan 19 10:12:03 freenas ada5: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)
Jan 19 10:12:03 freenas ada5: 4769307MB (9767541168 512 byte sectors)
Jan 19 10:12:03 freenas ada5: Previously was known as ad10
Jan 19 10:12:03 freenas da0 at umass-sim0 bus 0 scbus6 target 0 lun 0
Jan 19 10:12:03 freenas da0: <SanDisk Cruzer Blade 1.26> Removable Direct Access SPC-4 SCSI device
Jan 19 10:12:03 freenas da0: Serial Number 2004351421029DC30E2C
Jan 19 10:12:03 freenas da0: 40.000MB/s transfers
Jan 19 10:12:03 freenas da0: 7633MB (15633408 512 byte sectors)
Jan 19 10:12:03 freenas da0: quirks=0x2<NO_6_BYTE>
Jan 19 10:12:03 freenas SMP: AP CPU #1 Launched!
Jan 19 10:12:03 freenas SMP: AP CPU #3 Launched!
Jan 19 10:12:03 freenas SMP: AP CPU #2 Launched!
Jan 19 10:12:03 freenas Timecounter "TSC-low" frequency 1200023562 Hz quality 1000
Jan 19 10:12:03 freenas Trying to mount root from zfs:freenas-boot/ROOT/default []...
Jan 19 10:12:03 freenas GEOM_RAID5: Module loaded, version 1.3.20140711.62 (rev f91e28e40bf7)
Jan 19 10:12:03 freenas ipmi0: <IPMI System Interface> on isa0
Jan 19 10:12:03 freenas ipmi0: KCS mode found at mem 0xca2 alignment 0x1 on isa
Jan 19 10:12:03 freenas ipmi0: couldn't configure I/O resource
Jan 19 10:12:03 freenas device_attach: ipmi0 attach returned 6
Jan 19 10:12:03 freenas hwpmc: SOFT/16/64/0x67<INT,USR,SYS,REA,WRI> TSC/1/64/0x20<REA> IAP/4/48/0x3ff<INT,USR,SYS,EDG,THR,REA,WRI,INV,QUA,PRC> IAF/3/48/0x67<INT,USR,SYS,REA,WRI> UCP/8/48/0x3f8<EDG,THR,REA,WRI,INV,QUA,PRC> UCF/1/48/0x60<REA,WRI>
Jan 19 10:12:03 freenas kernel: em1: link state changed to UP
Jan 19 10:12:03 freenas kernel: em1: link state changed to UP
Jan 19 10:12:04 freenas GEOM_ELI: Device ada0p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI: Crypto: software
Jan 19 10:12:04 freenas GEOM_ELI: Device ada1p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI: Crypto: software
Jan 19 10:12:04 freenas GEOM_ELI: Device ada2p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI: Crypto: software
Jan 19 10:12:04 freenas GEOM_ELI: Device ada3p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI: Crypto: software
Jan 19 10:12:04 freenas GEOM_ELI: Device ada4p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI: Crypto: software
Jan 19 10:12:04 freenas GEOM_ELI: Device ada5p1.eli created.
Jan 19 10:12:04 freenas GEOM_ELI: Encryption: AES-XTS 128
Jan 19 10:12:04 freenas GEOM_ELI: Crypto: software
Jan 19 10:12:04 freenas ntpd[1904]: ntpd 4.2.8p9-a (1): Starting
Click to expand...
Please use [CODE][/CODE] tags whenever pasting console output.

Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32
Hello again. So it has been a long time since I posted in this thread. Unfortunately my problems have not been solved yet. I have tried so many things. Baught a LAN card to make sure it was not the motherboard NIC's issue. The main reason I believe it is a hardware problem is because I am getting the exact same error/problem of shutting down even if I do not use FreeNAS. So I tried installing ubuntu-gnome and zfs on top and I was getting the exact same problem. So at this point I believe it is either a problem with ZFS, or a hardware problem on my side. Hardware that is checked to be working.

RAM: I have run memtest for about 50 hours straight, without any errors, so I think its safe to say memory is good.
HDD: I have reformatted the hard drives multiple times and they are all working fine.
LAN: I have used both the motherboard and a PCI-X ethernet nic's and they both work the same.
Cooling: I have an intel x3430 95w tdp with a hyper 212 evo cooler.
SATA: I have tried both the onboard sata connectors and an LSI-9210i-8i with the exact same results.

I have tried zfs both under ubuntu and freenas.

I saw some older posts that raid z2 used to have problems and I am wondering if that could be the issue.

Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32

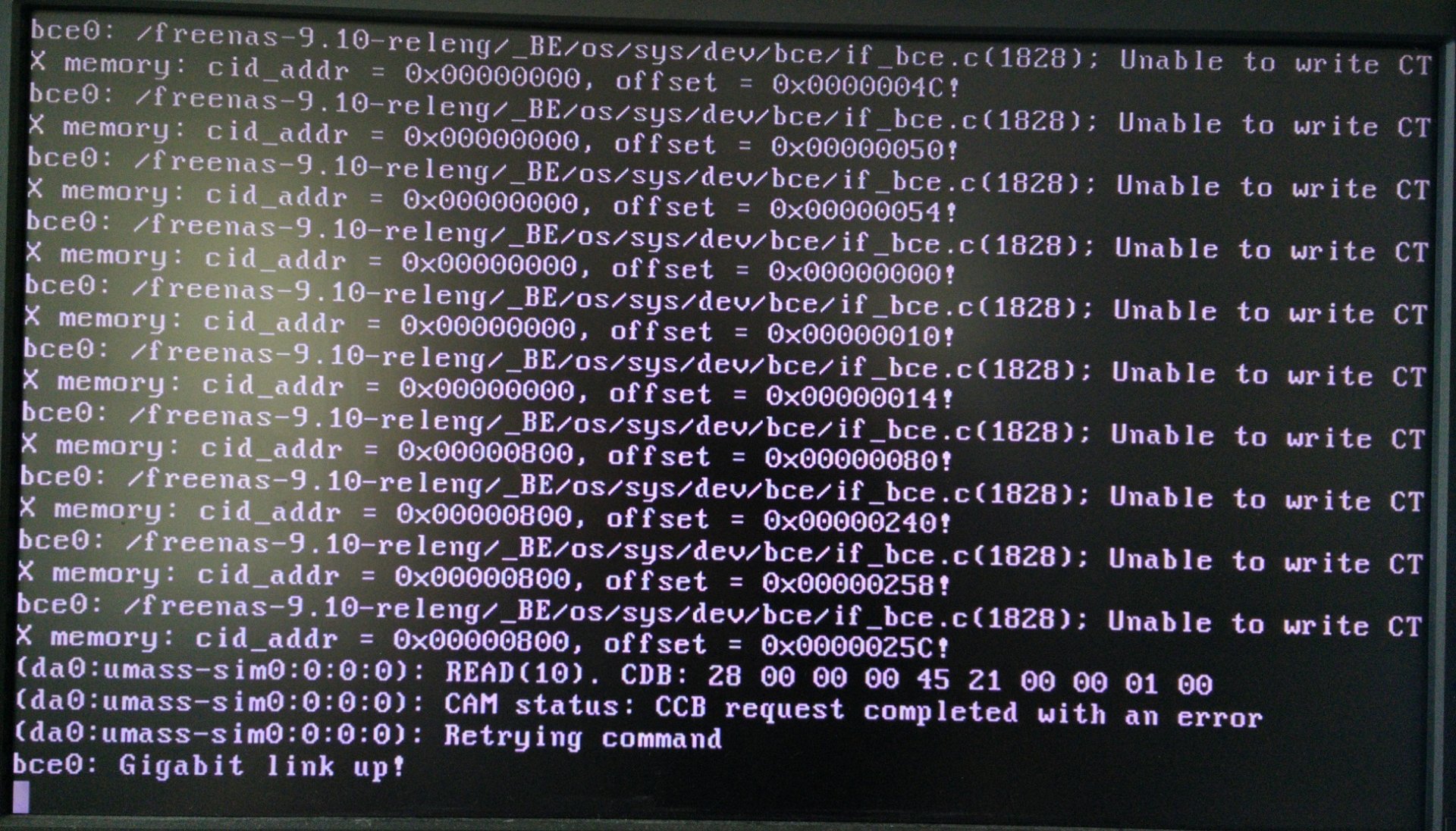

ok so I took another screenshot of my monitor from the console when the system hang again. I tried to search it online and apparently the error I am getting is regarding the ethernet port hanging, which makes no sense. Is there anyone who might know how to solve this, or who might be able to figure out what the actual problem is?

Thanks in advance.

Ericloewe

Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,194
Disable the Broadcom NIC and try again.

Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32

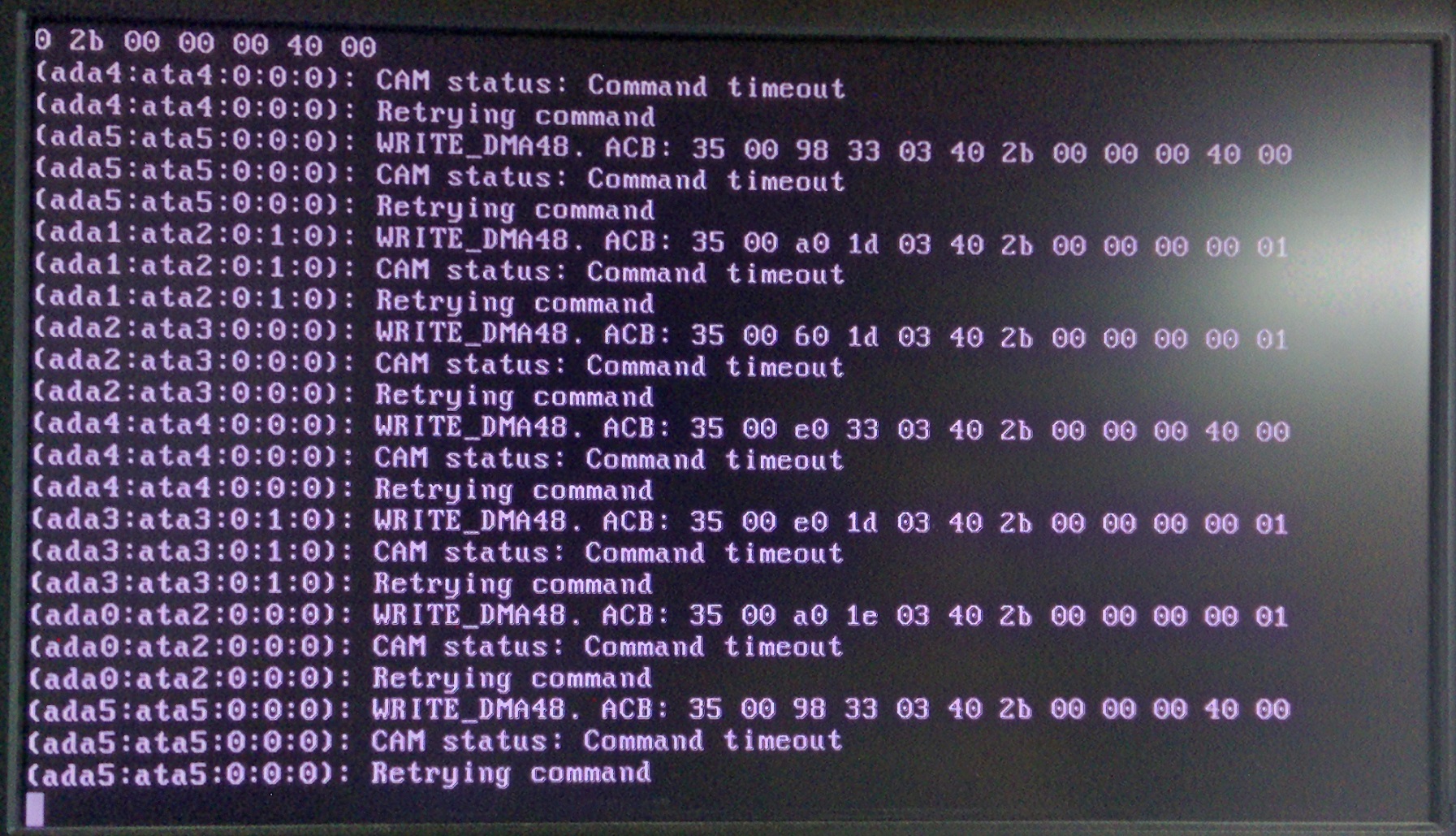

ok so I disconnected the pci-x network card and tried using the onboard intel NIC. I still got an error and the entire system hang during the first file transfer of media (about 40gb). This is a screenshot of the console output.

Thanks for the help


Ericloewe

Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,194
Clearly, your storage is acting up. Big-time.

Jonnhy

Jonnhy

Dabbler
Joined
Jan 19, 2017
Messages
32
So would that be the hard drives? Could it be the raid z2? I read that in older versions it was quite buggy

Status
Not open for further replies.

Similar threads

E
  • Locked
Problems aligning pool as 4k
Replies
2
Views
698
eroji
E
K
  • Locked
Very slow CIFS file transfers
Replies
11
Views
24K
gpsguy
gpsguy
T
  • Locked
Freezing after heavy transfers
Replies
8
Views
2K
cyberjock
C
H
  • Locked
GNOME3 ports taking forever to install
Replies
7
Views
1K
Jailer
Jailer
N
  • Locked
Help an idiot setup FreeNAS (wizard stuff) for Windows and Linux
Replies
8
Views
2K
Vito Reiter
Vito Reiter
Top
