Plex Server on Freenas not working after IP Change

Status
Not open for further replies.

SimonMdot

Dabbler
Joined
May 17, 2018
Messages
15
Hy Guys,

this questions and its answer is somewhere out there and has been asked 1000 times i guess, but i cannot find the solution.

I have a freenas box running (FreeNAS-11.1-U2) and Plex Media server (1.12.2.4929) installed on it via the plugins.
Everything worked like charm BUT after changing my ip adresses internally in my network, the server is not reachable any more.
I also enabled port forwarding to 32400.

I changed the Ip adresses to static in my router as well as well i have reinstalled the plugin and tried to set it up newly. Neither of those approaches worked and the server does not appear when i go to: http://"IPADRESSE:32400/web/index.html

Also do the server settings not appear and therefore i cannot do anything there.

My assumption is that the somewhere in a config file or something, the old server settings are still present and plex is trying to find the server there somehow.

Do you have any clue where to look or what to do?

Your help is highly appreciated

regards,
Simon


sretalla

Powered by Neutrality
Moderator
Joined
Jan 1, 2016
Messages
9,702
You would probably find a bunch of articles talking about iocage jail network issues specifically on 11.1-U2... consider going to U4 and look at some articles which talk about "ifconfig bridge0 addm igb0 up" (if you're using the new UI and therefore iocage for jails)

If you're using the old UI and therefore have a warden jail, look at the plugins list and see if Plex is set to "ON" there.


SimonMdot

Dabbler
Joined
May 17, 2018
Messages
15
Im running the old UI on 11.1-U4, due to error messages.
This is th output of my ifconfig:

re0: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 9000
options=82098<VLAN_MTU,VLAN_HWTAGGING,VLAN_HWCSUM,WOL_MAGIC,LINKSTATE>
ether 20:cf:30:f4:0f:41
hwaddr 20:cf:30:f4:0f:41
inet6 fe80::22cf:30ff:fef4:f41%re0 prefixlen 64 scopeid 0x1
inet 1.0.0.198 netmask 0xffffff00 broadcast 1.0.0.255
nd6 options=23<PERFORMNUD,ACCEPT_RTADV,AUTO_LINKLOCAL>
media: Ethernet autoselect (1000baseT <full-duplex>)
status: active
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
inet6 ::1 prefixlen 128
inet6 fe80::1%lo0 prefixlen 64 scopeid 0x2
inet 127.0.0.1 netmask 0xff000000
nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
groups: lo
bridge0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 9000
ether 02:41:6a:a1:b6:00
nd6 options=1<PERFORMNUD>
groups: bridge
id 00:00:00:00:00:00 priority 32768 hellotime 2 fwddelay 15
maxage 20 holdcnt 6 proto rstp maxaddr 2000 timeout 1200
root id 00:00:00:00:00:00 priority 32768 ifcost 0 port 0
member: epair0a flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
ifmaxaddr 0 port 4 priority 128 path cost 2000
member: re0 flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
ifmaxaddr 0 port 1 priority 128 path cost 20000
epair0a: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 9000
options=8<VLAN_MTU>
ether 02:51:90:00:04:0a
hwaddr 02:51:90:00:04:0a
nd6 options=1<PERFORMNUD>
media: Ethernet 10Gbase-T (10Gbase-T <full-duplex>)
status: active
groups: epair


I'm quite new to this stuff so I don't know where to look at.

The Plex plugin i have restartet, reinstalled severall times.

A funny issue I noticed is the fact that when I reinstall the Plugin. The jail get automatically reinstalled and receives my OLD ip adress which I used before.
Is there some old stuff floating around that causes such troubles?

Help is much appreciated.

Thanks


Jailer

Not strong, but bad
Joined
Sep 12, 2014
Messages
4,975
You need to change the settings in the configuration tab for your jails to match your current network. Click on the "Advanced Mode" button and you can make the changes there.


SimonMdot

Dabbler
Joined
May 17, 2018
Messages
15
This is done of course.

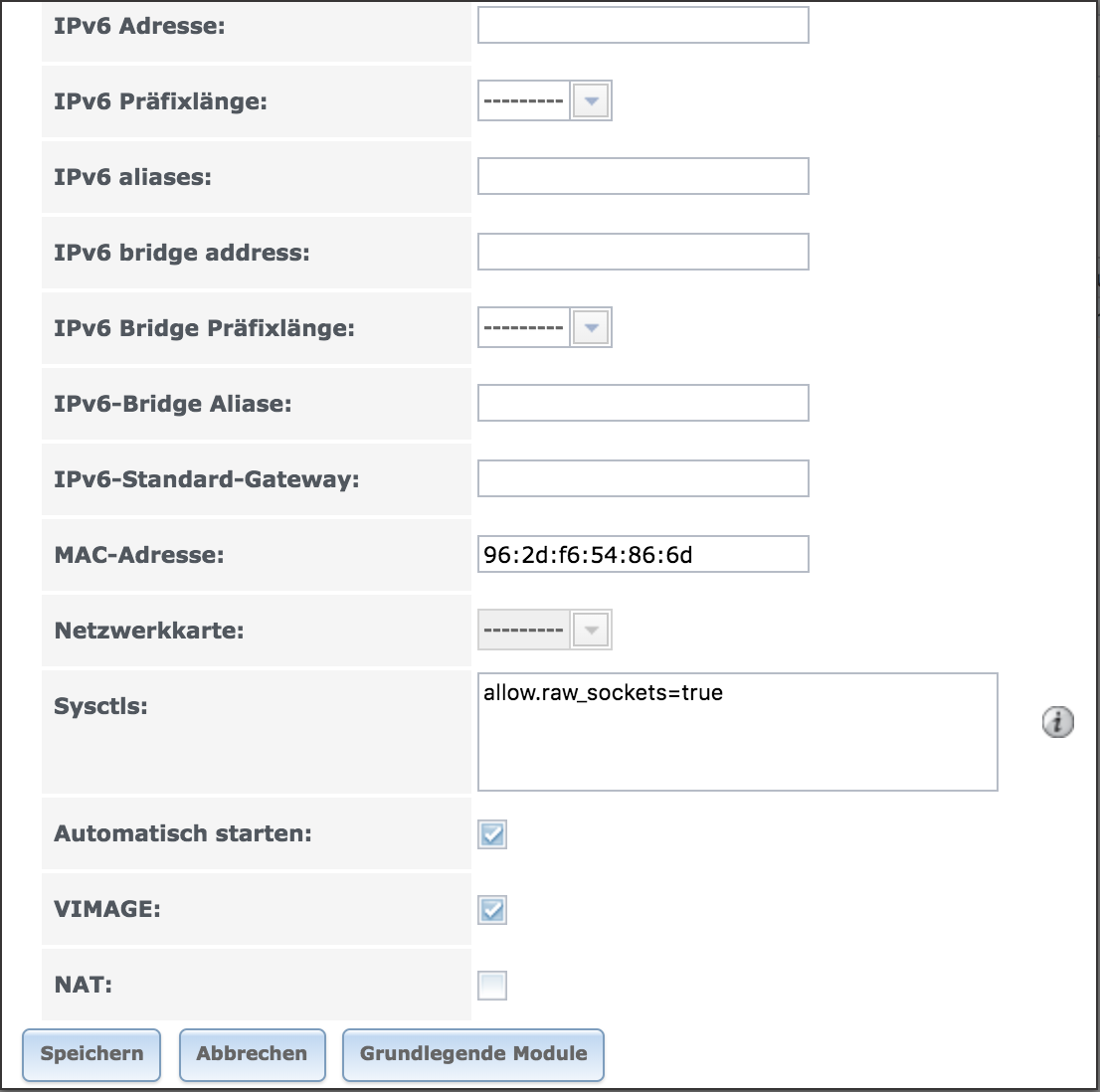

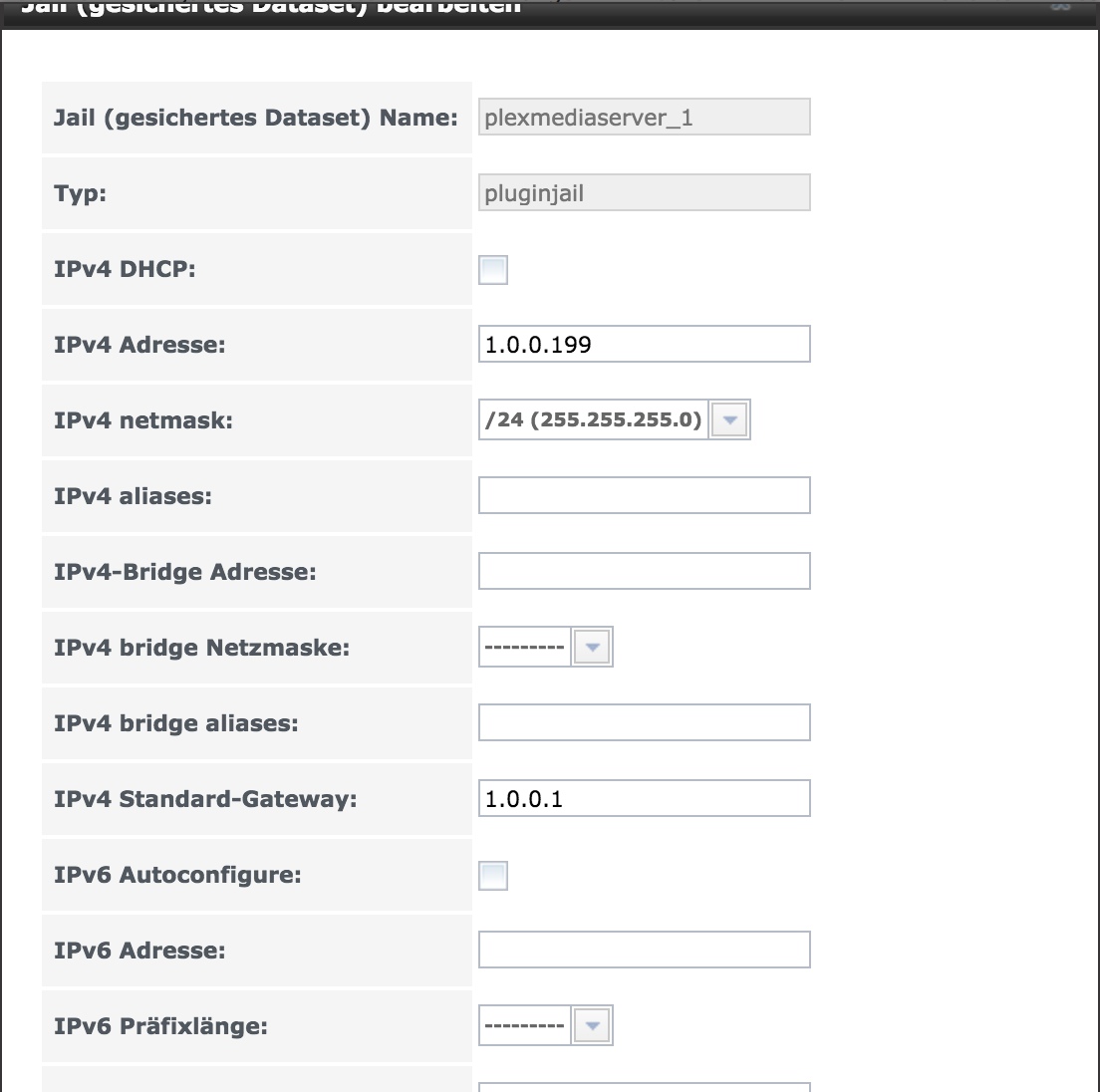

see attached screenshots


Attachments

  • Schnappschuss (2018-05-19 09.45.16).png
    Schnappschuss (2018-05-19 09.45.16).png
    118 KB · Views: 973
  • Schnappschuss (2018-05-19 09.45.05).png
    Schnappschuss (2018-05-19 09.45.05).png
    114.9 KB · Views: 964

sretalla

Powered by Neutrality
Moderator
Joined
Jan 1, 2016
Messages
9,702
This is done of course.

see attached screenshots
Could it be that you intended to use 10.0.0.1?

It seems like you are using the public address of 1.0.0.x instead.


Sent from my iPhone using Tapatalk


SimonMdot

Dabbler
Joined
May 17, 2018
Messages
15
My Router is on 1.0.0.1, my Network adress Range is 1.0.0.2-.199

My intention is to have my freenas on 198 and my plex server on 199


danb35

Hall of Famer
Joined
Aug 16, 2011
Messages
15,466
My Router is on 1.0.0.1, my Network address Range is 1.0.0.2-.199
Those are not valid private IP addresses; they belong to ARIN.


SimonMdot

Dabbler
Joined
May 17, 2018
Messages
15
stupid me.

Thanks for the hint. It's a possible reason. I will check asap and let you know.


Jailer

Not strong, but bad
Joined
Sep 12, 2014
Messages
4,975
Make sure they are set to RFC1918 address space.


SimonMdot

Dabbler
Joined
May 17, 2018
Messages
15
Guys,

You saved me. Now it works.

Why my router and Freenas let me assign wrong ips is another question.

Anyways, thank you.
