No SpinDown of HDD

Status
Not open for further replies.

s25a

Explorer
Joined
Jan 16, 2016
Messages
76
Hi,

this topic has been discussed several times however after 2 Hours of reading I did niot find a solution. Maybe I missed something.

Goal is to send my HDDs in standby (Spin-Down) after 1 hour of no usage.

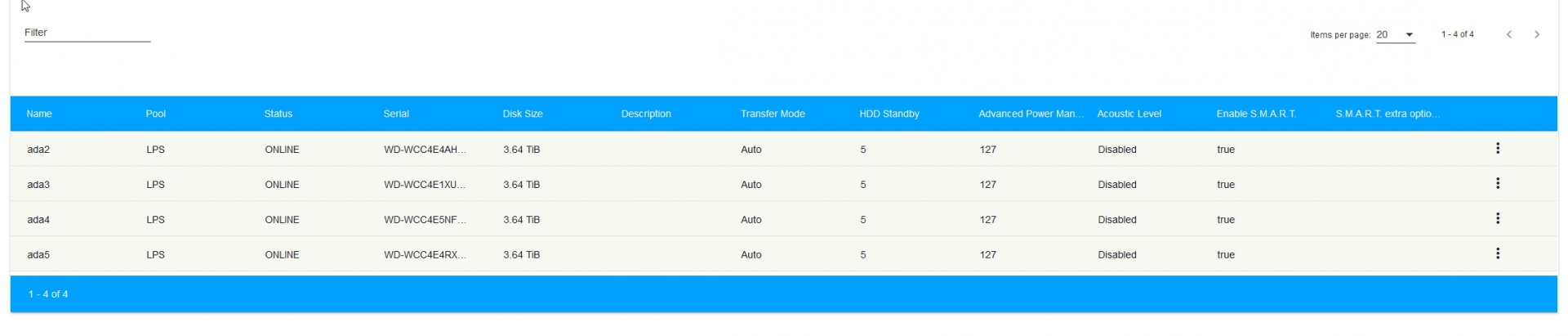

Here's the screenshot for it (It's 5 Minutes just for testing purpose)

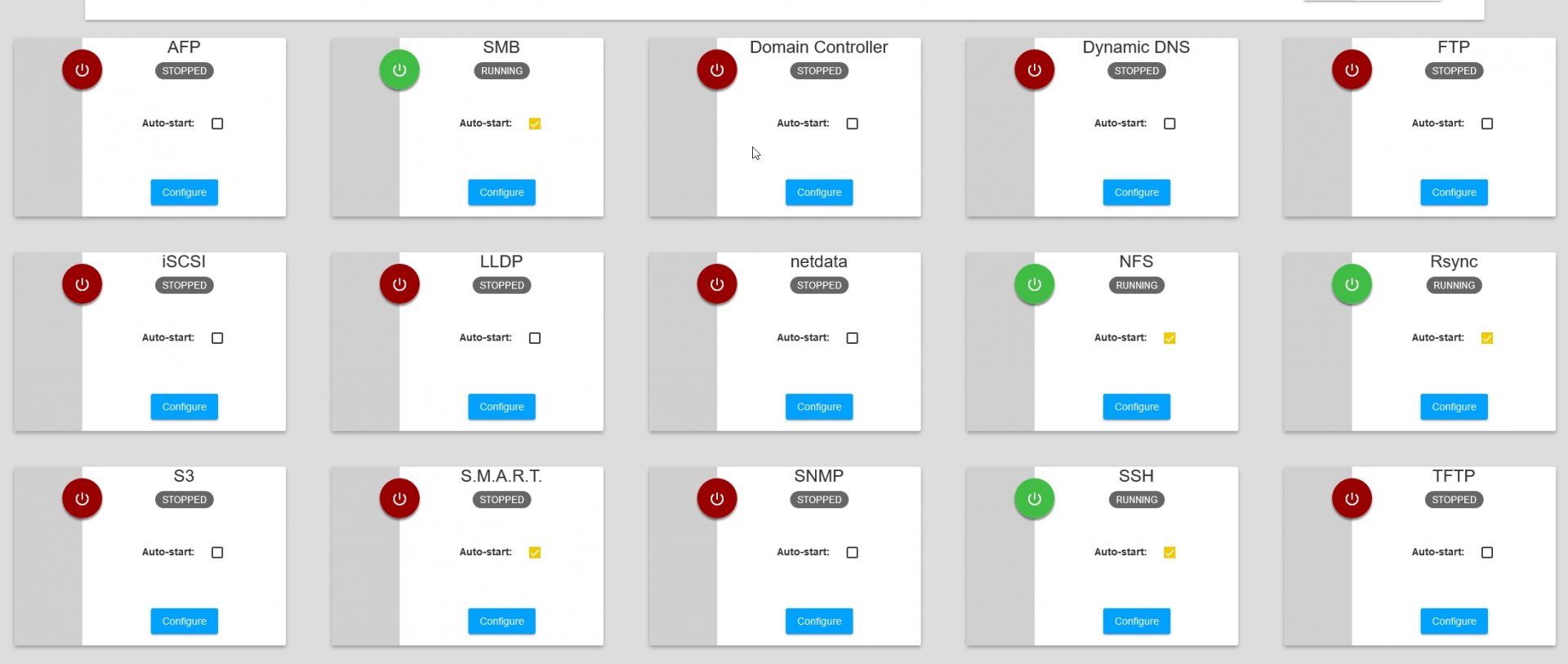

I also deactivated most of bthe services (Just for testing)

Unfortunately the HHDs do not spin Down and Standby. There's definitely no PC accessing (Shut down everything). So I wonder what could be missing.

Thanks

S


sretalla

Powered by Neutrality
Moderator
Joined
Jan 1, 2016
Messages
9,703
Where is your system dataset?

Also what is your system configuration (according to the forum rules, you should supply that when you ask a question to help others see the context)?


s25a

Explorer
Joined
Jan 16, 2016
Messages
76
Hi,

thank you very much for your quick answer and sorry for my late one. My system Dataset is on a different POOL - I checked it again to be really sure.

Code:
OS Version:
FreeNAS-11.2-BETA1
(Build Date: Jul 6, 2018 22:29)

Processor: Intel(R) Xeon(R) CPU E3-1235L v5 @ 2.00GHz (4 cores)
Memory: 16 GB


Thanks S


sretalla

Powered by Neutrality
Moderator
Joined
Jan 1, 2016
Messages
9,703
To borrow from a post from @Elliot Dierksen , you could try:
lsof | egrep '^COMMAND|/mnt/poolname'

To see which files are holding the drive spinning, maybe this will give you a clue to work with.


s25a

Explorer
Joined
Jan 16, 2016
Messages
76
Hi,

thanks a lot for this information

Code:
nas# lsof | egrep '^COMMAND|/mnt/LPS'
lsof: WARNING: compiled for FreeBSD release 11.0-RELEASE; this is 11.1-STABLE.
COMMAND	PID	   USER   FD	 TYPE			 DEVICE		   SIZE/OFF   NODE NAME
smbd	  3680	   root	9r	VDIR	  117,357695584				 10	  4 /mnt/LPS/ShareLps
smbd	  3680	   root   34r	VDIR	 118,2276720645				  8	  4 /mnt/LPS/Videos
smbd	  3680	   root   35r	VDIR	  117,357695584				 10	  4 /mnt/LPS/ShareLps
smbd	  3680	   root   39r	VDIR	 118,2276720645				  8	  4 /mnt/LPS/Videos
smbd	  3680	   root   43r	VDIR	  117,357695584				 10	  4 /mnt/LPS/ShareLps
smbd	  3766	   root  cwd	 VDIR	 118,2276720645				  8	  4 /mnt/LPS/Videos


So what I see here is only the Samba Service right? If this would block the drives from spinning down this would really confuse me. I have used Freenas over years and there have been no problems with the Spin Down as far as I remeber.
(Of course I did not test every feature in every release)
However after a clean & Fresh install of the the actual Beta no Spin Down. Maybe the Beta causes the Problem if so I would just wait until the next stable.

If you need any Debug Files or so please let me know and I will provide.

Thanks S


s25a

Explorer
Joined
Jan 16, 2016
Messages
76
Hi,

any further ideas? I also stopped the SMB Service but still no spindown.

Thanks S


s25a

Explorer
Joined
Jan 16, 2016
Messages
76
Hi Again,

I just upgraded to latest Version. But still no way to sent the HDDS to Standby.

Code:
OS Version:
FreeNAS-11.2-BETA3

(Build Date: Sep 10, 2018 1:18)


Processor:
Intel(R) Xeon(R) CPU E3-1235L v5 @ 2.00GHz (4 cores)



Memory:
16 GiB



Is it possible that there's a bug? It worked with the smae Hardware on older Freenas Version (FN 11.1) without any issue.
Any idea?

Attached find my settings

According to: https://forums.freenas.org/index.ph...ut-if-a-drive-is-spinning-down-properly.2068/
Code:
root@nas[~]# ./standby_check
ADA2: 50 00 00 F0 00 00 00 00 00 FF 00 -- ADA3: 50 00 00 F0 00 00 00 00 00 FF 00
ADA4: 50 00 00 F0 00 00 00 00 00 FF 00 -- ADA5: 50 00 00 F0 00 00 00 00 00 FF 00

Result after 30 Minutes - Still Up



sretalla

Powered by Neutrality
Moderator
Joined
Jan 1, 2016
Messages
9,703
I see you're showing Advanced Power Management as disabled for all drives... ?


s25a

Explorer
Joined
Jan 16, 2016
Messages
76
Hi,

thanks for your reply. I thought it would not be necessary to configure the Advanced options for the spindown. Anyway I set to Level 1 but it didn't change anything - still no spindown.

Any ideas?

Thanks S
