Missing Advanced Kernel Options

[dasunsrule32]

I upgraded from TrueNAS 13 to TrueNAS Scale 22 and the manual shows that there should be Kernel options under the Advanced options. When I go there, it doesn't exist. I'd like to enable the autotune function, but the option doesn't exist. Any ideas?

Kernel Advanced Options



[indivision]

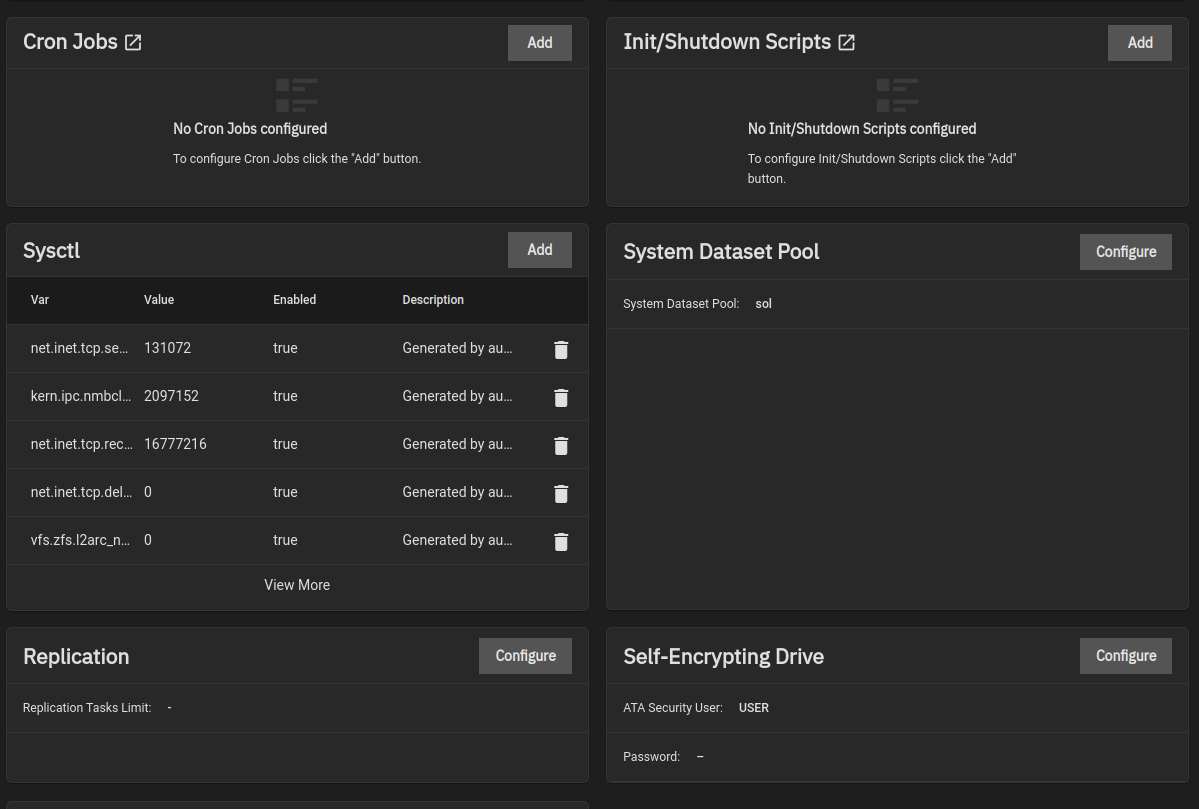

Hm. Good question. I don't have the Kernel panel either. I also don't have any entries in Sysctl from an autotune...

Maybe it's not needed in Scale, was removed from GUI and documentation is outdated?



[dasunsrule32]

Hm. Good question. I don't have the Kernel panel either. I also don't have any entries in Sysctl from an autotune...

Maybe it's not needed in Scale, was removed from GUI and documentation is outdated?

I think it still exists, maybe it's because it has the old entries from when it was Core and it's disabling it because of that? But at the same time, your box doesn't show either, so that might not make sense. I looked through the issues and didn't see anything related.



[indivision]

Hm. Yeah. At some point, I did a clean install of Scale. So, I don't think it is due to migration. I think it's deliberately not there right now.

Could be that they removed it temporarily until they expand it's functionality in a later version?

[I think they would clarify more quickly if you open a ticket about it being different than the documentation.]



[dasunsrule32]

Hm. Yeah. At some point, I did a clean install of Scale. So, I don't think it is due to migration. I think it's deliberately not there right now.

Could be that they removed it temporarily until they expand it's functionality in a later version?

I'm trying to look through the filesystem for the scripts to see where they might be located. I don't recall where they were originally.



[indivision]

Google is failing me to find anything meaningful about it. Other than confirmation that it definitely was there at some point: https://www.truenas.com/community/threads/to-autotune-or-not-to-autotune-that-is-the-question.95343/



[dasunsrule32]

Google is failing me to find anything meaningful about it. Other than confirmation that it definitely was there at some point: https://www.truenas.com/community/threads/to-autotune-or-not-to-autotune-that-is-the-question.95343/

I looked through everything I can think of. I see some references to autotune in grep: /bin/minio: binary file matches and the database files, but not really anywhere else. It's using sysctl values, which are being pulled from the database.



[dasunsrule32]

I opened a ticket up with IX through the TrueSCALE UI. Not sure if actually worked or not, because I couldn't access the URL it generated, but anyway, we'll see... I referenced this forum post.



[dasunsrule32]

Meh, it errored out last time on the last ticket I filed. I filed it again and this time it went through.



[dasunsrule32]

Yeah, so I just got my ticket closed out and my question never truly answered. Very rude too. How unfortunate. I used to have a lot more respect for IX, at my old job I was the System Architect and built around their hardware and software... :(



[Samuel Tai]

iX sometimes hides options in the interest of protecting users against themselves. The advanced kernel options are still available via the API:

• midclt call system.advanced.update '{ "autotune": true }'
• midclt call system.advanced.update '{ "debugkernel": true }'
• midclt call system.advanced.update '{ "kernel_extra_options": "<additional kernel options>" }'



[Redcoat]

Yeah, so I just got my ticket closed out

What was yout ticket number?



[Samuel Tai]

Yeah, so I just got my ticket closed out and my question never truly answered.

This might be because of the transition of the Jira ticketing system to the cloud. Try submitting manually at https://ixsystems.atlassian.net/jira/projects



[dasunsrule32]

iX sometimes hides options in the interest of protecting users against themselves. The advanced kernel options are still available via the API:

• midclt call system.advanced.update '{ "autotune": true }'
• midclt call system.advanced.update '{ "debugkernel": true }'
• midclt call system.advanced.update '{ "kernel_extra_options": "<additional kernel options>" }'

Yeah, the docs are out of date, which I suggested updating them.



[dasunsrule32]

What was yout ticket number?

This is the link to the issue: https://ixsystems.atlassian.net/browse/NAS-117300
