LSI 9300-xx Firmware Update 16.00.12.00

Western Digital Drives - The Preferred Drives of FreeNAS and TrueNAS CORE

JoshDW19

Community Moderator
Administrator
Moderator
iXsystems
Joined
May 16, 2016
Messages
967
JoshDW19 submitted a new resource:

LSI 9300-xx Firmware Update - Fixes a controller reset issue in LSI 9300-xx HBA cards

Hey Community,

If you are using an LSI 9300 HBA with FreeNAS or the soon-to-be TrueNAS CORE, you may experience some performance issues causing the controller to reset. After working with Broadcom, we’ve come up with a firmware update that is not available on their website that should resolve these controller reset issues. To resolve this issue for FreeNAS systems affected in the field, here are the instructions for updating the firmware to version 16.00.12.00.

Please note this *Only...

Read more about this resource...


seanm

Senior Member
Joined
Jun 11, 2018
Messages
522
I have an LSI 9300-8E (from iX). I'm not aware of any "performance issues causing the controller to reset", what would that look like to end users? Also, how can one determine the current version of its firmware? Thanks.


JoshDW19

Community Moderator
Administrator
Moderator
iXsystems
Joined
May 16, 2016
Messages
967
I have an LSI 9300-8E (from iX). I'm not aware of any "performance issues causing the controller to reset", what would that look like to end users? Also, how can one determine the current version of its firmware? Thanks.

It would look like a random reset most likely. Looks like Fredda already gave you the command. :smile:


seanm

Senior Member
Joined
Jun 11, 2018
Messages
522
Is the update recommended or discouraged if one is not apparently experiencing these problems? i.e. is the chance of regressions low?


kspare

Senior Member
Joined
Feb 19, 2015
Messages
470
It depends if you had issues. I downgraded to 14.00 because I had so many issues. Now I’m perfectly stable. if you aren’t having issues read all the release notes and make a decision.


sretalla

Wizened Sage
Joined
Jan 1, 2016
Messages
5,198
I'm also not seeing resets, but am on a super-old firmware and with a card not in the list from the .12 firmware download... I have a SAS9305-24i and can only find the .11 online from LSI... any chance there's a version for me?


WaltR

Neophyte
Joined
Jul 30, 2019
Messages
4
I'm also not seeing resets, but am on a super-old firmware and with a card not in the list from the .12 firmware download... I have a SAS9305-24i and can only find the .11 online from LSI... any chance there's a version for me?
I've got the same HBA. This firmware does not apply to the SAS9305-16i or 24i. The Broadcom firmware for the SAS9305-xx is SAS9305_16_IT__P.bin and the date and file size for .11 don't match between the two, so not even trying.

I was directed here by engineering because of debug I sent about random reboots indicated HBA problems.


meeza_me

Neophyte
Joined
Aug 12, 2020
Messages
7
HI, i am having random reboot on my freenas insall aswell, my system have Avago SAS SAS3224(A1) LSI 9305-16i. more ever watchdog timer reboot the system when it get freeze, but root cause is still not found. i am interested to know perhaps LSI9305 have same issue as LSI9300.

complete detail is listed here


Regards
Meeza


Stilez

Senior Member
Joined
Apr 8, 2016
Messages
511
@JoshDW19

I've got a 9305-24i. The zip file only contains firmwares for 9300 cards and only up to 16 ports.
  • Is this patch applicable to 9305 cards or just 9300?
  • If applicable to 9305 cards, does Broadcom happen to have a variant of this for my 9305-24i that you can add to the zip?


mrcpu

Neophyte
Joined
Mar 10, 2020
Messages
5
Tried to flash it, didn't work:

root@[...]# sas3flash -list
Avago Technologies SAS3 Flash Utility
Version 16.00.00.00 (2017.05.02)
Copyright 2008-2017 Avago Technologies. All rights reserved.

Adapter Selected is a Avago SAS: SAS3008(C0)

Controller Number : 0
Controller : SAS3008(C0)
PCI Address : 00:03:00:00
SAS Address : 500605b-0-0486-6d80
NVDATA Version (Default) : 0e.00.00.08
NVDATA Version (Persistent) : 0e.00.00.08
Firmware Product ID : 0x2221 (IT)
Firmware Version : 14.00.00.00
NVDATA Vendor : LSI
NVDATA Product ID : SAS9300-8e
BIOS Version : 08.11.00.00
UEFI BSD Version : N/A
FCODE Version : N/A
Board Name : SAS9300-8e
Board Assembly : N/A
Board Tracer Number : N/A

Finished Processing Commands Successfully.
Exiting SAS3Flash.

So flash the 9300_8e:

root@freenas[...hase16.0-16.00.12.00_Firmware/9300-8e]# sas3flash -o -f SAS9300_8e_IT.bin
Avago Technologies SAS3 Flash Utility
Version 16.00.00.00 (2017.05.02)
Copyright 2008-2017 Avago Technologies. All rights reserved.

Advanced Mode Set

Adapter Selected is a Avago SAS: SAS3008(C0)

Executing Operation: Flash Firmware Image

Firmware Image has a Valid Checksum.
Firmware Version 16.00.12.00
Firmware Image compatible with Controller.

Valid NVDATA Image found.
NVDATA Major Version 0e.01
Checking for a compatible NVData image...

NVDATA Device ID and Chip Revision match verified.
NVDATA SubSystem Vendor and SubSystem Device ID match verified.
NVDATA Versions Compatible.
Valid Initialization Image verified.
Valid BootLoader Image verified.

Beginning Firmware Download...
Firmware Download Successful.

Verifying Download...

ERROR: Downloaded Image corrupt.
Firmware Flash FAILED!

Due to error remaining commands will not be executed.
Unable to Process Commands.
Exiting SAS3Flash.

Out of curiosity, what is the IT_acm file in the folder?


Stilez

Senior Member
Joined
Apr 8, 2016
Messages
511

mgittelman

Senior Member
Joined
Dec 8, 2017
Messages
409
Anxiously waiting updated firmware for my 9305-24i, which is experiencing random resets and reboots
@ajgnet The resets started happening after you upgraded to TrueNAS 12?


ajgnet

Member
Joined
Jun 16, 2020
Messages
56
Not sure if this happens on 11.3. I put the new controller in at the same time I upgraded to 12.0.


ajgnet

Member
Joined
Jun 16, 2020
Messages
56

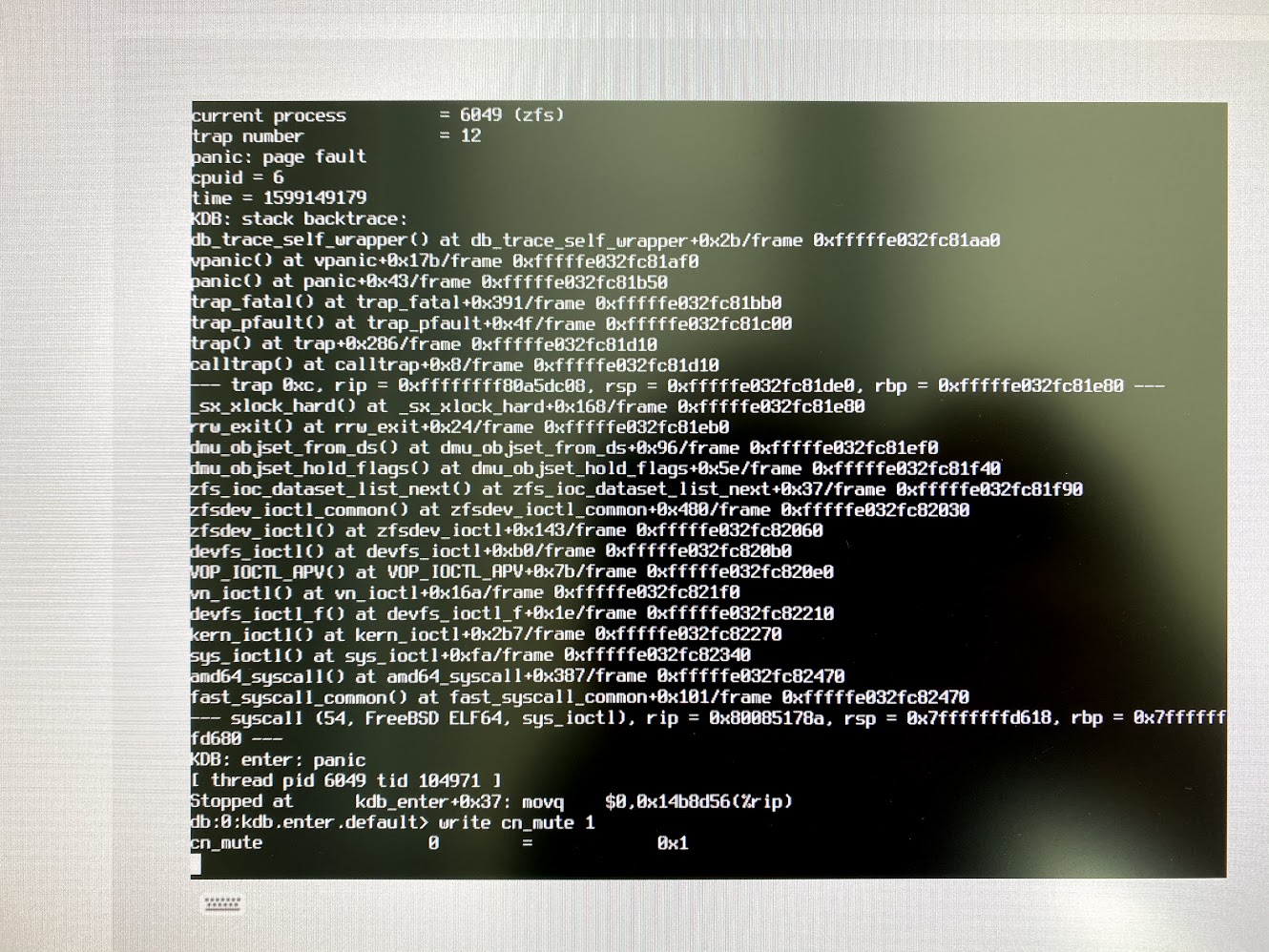

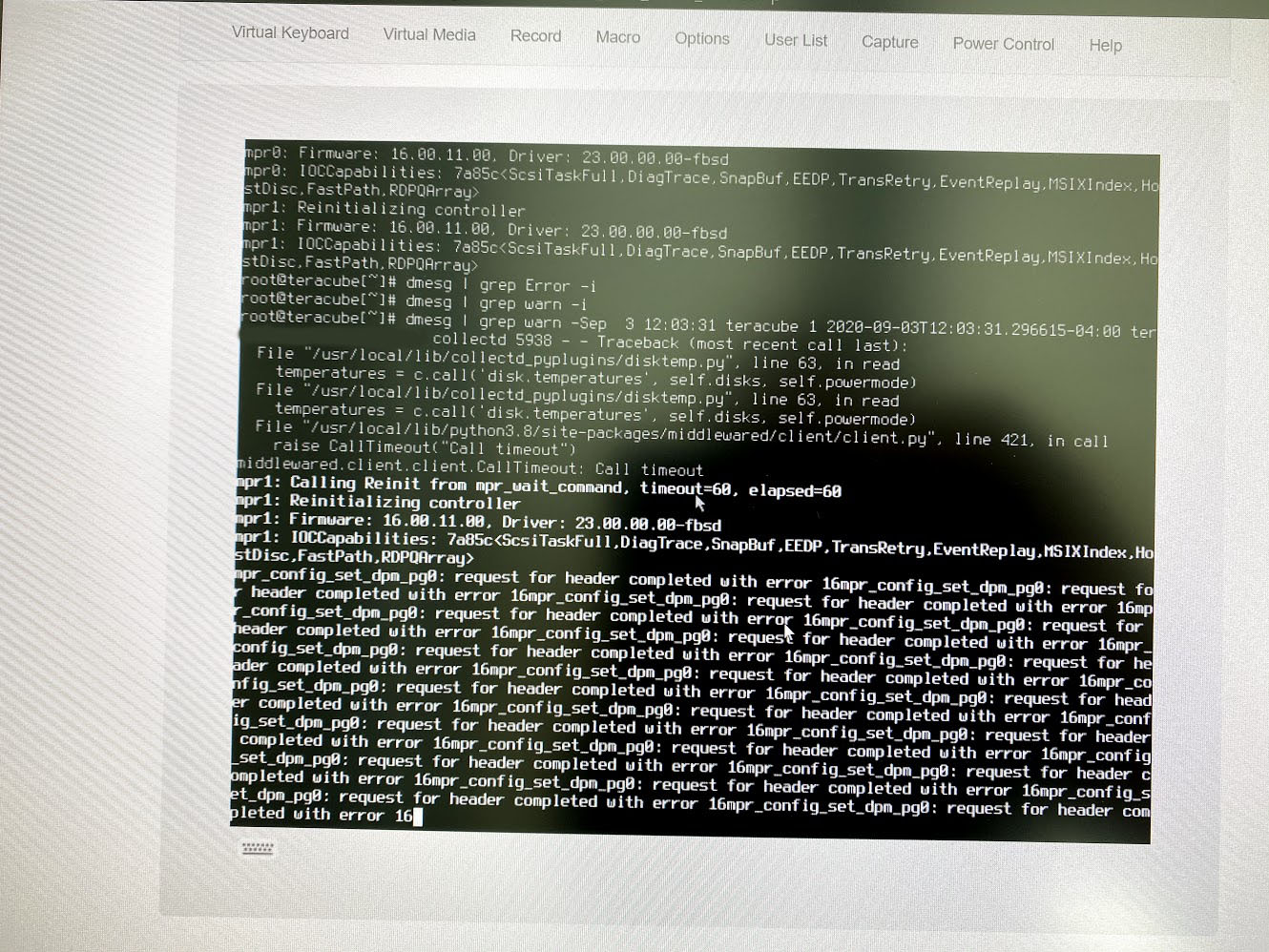

Tried different 9305-24i controllers, also a different motherboard. I was able to catch the error before a reboot.


Attachments

  • IMG_2370.jpg
    362.7 KB · Views: 230
  • IMG_2372.jpg
    378.6 KB · Views: 240

Yorick

Dedicated Sage
Joined
Nov 4, 2018
Messages
1,849
Flashed a 9302-8i/ServeRAID N2215 without issue. The 9300-8i firmware seems to apply to it.


Remoter

Neophyte
Joined
Mar 11, 2021
Messages
6
On the Broadcom website only version 16.0.10.0 is listed for sas-9300-8i:


I'm just curious what happened to 16.0.11.0, and moreover whether 16.0.12.0 is recommended only for Truenas / ZFS ?


dash144

Newbie
Joined
Dec 2, 2021
Messages
1
Hi, I have a 9300-16i card which has 2 controller on board. Followed the instruction and FW upgrade was successful. But after I check the bios, looks like only one controller got the upgrade, the 2nd controller still has the old FW. Is that correct or do I miss any step?
