Hyper-V: FreeNAS Won`t Boot When Adding Processors

[fNasNoob]

Hello All,

I am currently experiencing an issue when adding more than one processor to FreeNAS VM on Hype-v. I am using Hyper V Server 2016 (Standalone) as my HyperVisor, and whenever I add more than one processor, FreeNAS starts to boot but midway through the boot it starts this boot-loop where it shows what looks like Stack traces. Then it gets stuck here and does not boot any further (See Image 1 & 2). I have tried several configurations, but the only way that FreeNAS is able to boot is with one processor only (Image 3). I would like the configuration to be similar to that of Image 3, but instead of 1 I would like 4 processors.

My Hardware Configuration for the Host:

Processor: Intel Dual Xeon E5-2670 --> Intel Specs
Motherboard: Intel S2600CP2J Motherboard --> Intel
Ram: 128 GB PC3

FreeNAS Version: FreeNAS-11.0-U4

Image 1: Before the BootLoop starts
Image 2: During BootLoop (several variations of this screen flash by)

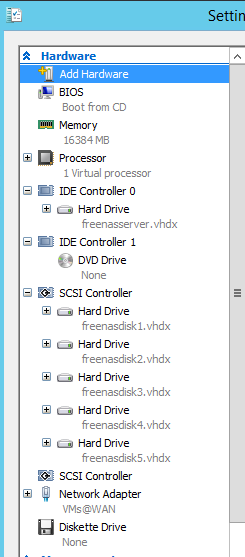

Image 3: Shows pic of current VM config, but rather than 1 processor I would like 4.

Does the community have an ideas as to why adding more than one processor to the VM can cause it to not boot?

Thanks.



[dlavigne]

Were you able to find an answer for this?



[fNasNoob]

Were you able to find an answer for this?

No I haven`t



[nijave]

Having the same issue. Captured this boot log https://pastebin.com/se2279jx

My disks are direct attached instead of attaching virtual disks



[dlavigne]

Having the same issue. Captured this boot log https://pastebin.com/se2279jx

My disks are direct attached instead of attaching virtual disks

Please create a report at bugs.freenas.org and post the issue number here.



[nijave]

Please create a report at bugs.freenas.org and post the issue number here.

#26798
