FreeNAS transfer with 355 KB/s !! HELP

[Raphael]

Heyy

I had build a NAS with FreeNAS 9.2.1.1 and creat a CIFS Fiel Share. If I trie to copy some data it will go with 355 KB/s over an Kat 5 cable.

Hier some information to my NAS:

AMD A4-5300 APU, 3.4GHz
Gigabyte GA-F2A88XN-WIFI
GeIL Dragon (2x, 4GB, DDR3-1333 (PC3-10666))
3* WD Caviar Green, 64MB, 1TB, SATA-3
1* WD Caviar Black, 64MB 150GB Sata-3


Thanks for your help

Raphi



[krikboh]

Neither the AMD A series chips or that Realtek NIC play well with FreeNAS.



[joeschmuck]

Try to upgrade to 9.2.1.2 first, there were huge CIFS fixes, although I've heard the AMD A series is not good with FreeNAS. If that doesn't fix it maybe you should try a different NAS software package. Not sure if NAS4Free will work any better with the CPU.



[Raphael]

That makes no sense.

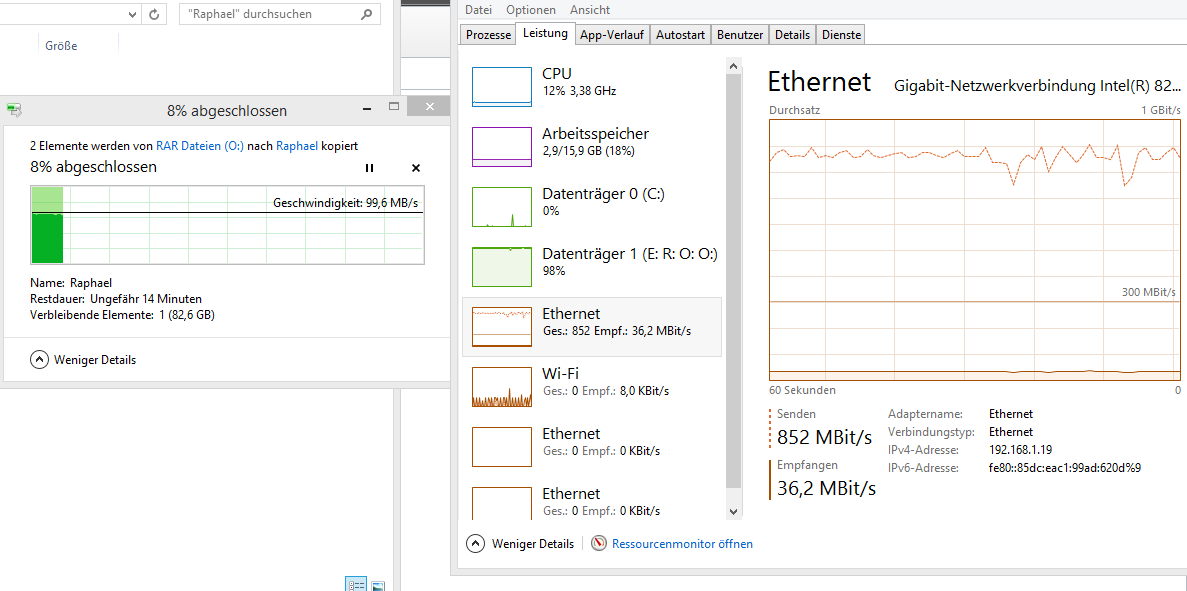

I hope you can see the picture.



[gpsguy]

As joeschuck said, upgrade to the latest version of FreeNAS.

Try connecting your computer directly to your server and test the transfer with a large file. Replace the cable with a new one.



[Raphael]

I doesn't found the FreeNAS software 9.2.1.2 x64 in a .ISO only in .img and that woudn't work :(.

But I will try to connecting the server directly.

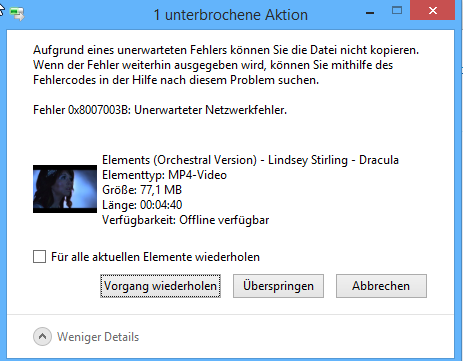

And what does mean this fault?



[Yatti420]

Are you using ZFS with 4gb ram? (My Mistake 8gb ram) That's not very good idea.. What are the full hardware specs / network setup?

Thanks,



[gpsguy]

You can find the download here: http://download.freenas.org/9.2.1.2/RELEASE/x64/



[joeschmuck]

I looked at the attached screen capture and it looks like you are transferring over wireless. Is that true?

EDIT: I'm not implying your NAS is connected wirelessly but you are transferring a file and it's path goes over wireless.



[Raphael]

@Yatti420 I had bought all the component by https://www.digitec.ch/ . What does you mean with the network setup?

@gpsguy Thx. I will try it.

@joeschmuck Yes, I am conectet to a accssespoint and ther to a switch and then to the routher wehr the NAS is.

Update to NAS: I use a Intel Nwtworkcard CT Desktop 1GB/s. Same Problem.



[Raphael]

And by the way sorry for my english. The language is not my strength.



[joeschmuck]

So just to be clear, you are using a complete hardline from point to point? I would recommend you physically connect the NAS to the desktop PC with a single Ethernet cable and try to transfer again and report it. This will ensure it's not some other component.



[pirateghost]

He was asking about your network layout.

As for your slow speed, your first problem is using wireless. What sort of speeds do you expect from wireless?

Sent from my Nexus 5



[Raphael]

I will try it now. =)



[Raphael]

The connection type is 802.11N. But my Adapter ist AC ready.


Over an direct conection I was realy surprised how quick he had eating the firmware update. Now he is restarting.



[Raphael]

Also the problem is in the network.
My HDD is a little bit slow.

I will try it agan with my SSD.



[Raphael]

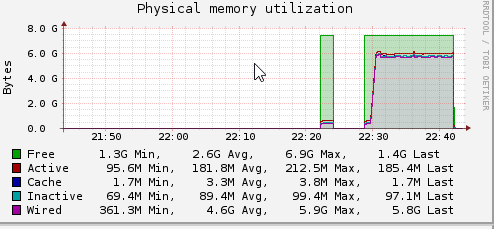

So yet I know why 8GB Ram is recomendet



[joeschmuck]

So yet I know why 8GB Ram is recomendet

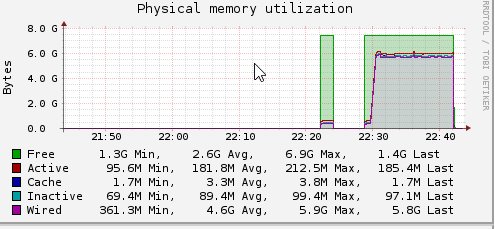

View attachment 3746

FreeBSD will allocate all the RAM is can and does not release it very quickly so if FreeNAS only needed a large amount of RAM for 1 second, the system will hang on to it until it feels like releasing it. This doesn't mean thee RAM isn't available for use by other applications, it is. FreeBSD is just odd that way.



[gardenman]

I tried to use freenas over a wireless N network and it was pretty slow.



[Yatti420]

The problem is wireless.. As for the greens make sure the idle timers are set to 300 or disabled.. Then use freenas if you want to sleep drives etc..
