So, I've made a new FreeNAS white box build, (since my old build decided to kick the bucket (again) with a second C2550d4i motherboard dying in six months -Still salty about that).
Build:
Proc: Dual Intel E5-2670
Mobo: ASRock EP2C602-4L/D16
Mem: 4 Samsung 16GB ECC RDIMM DDR3
HDD: 7, 6Tb WD Red Pro Drives (Currently one on RMA)
HDD: 1, 2TB Seagate Scratch disk
Case: SuperMicro 3U CSE-826TQ-R800B

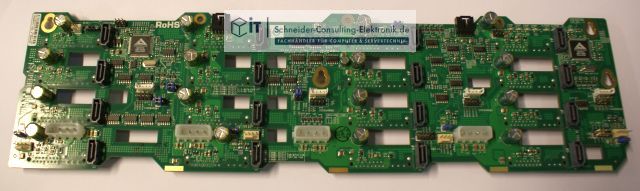

Backplane: Direct Attached BPN-SAS-836TQ
PSU: Dual 800 Watt (66amp on 12v rail)
I ran about 25 hours of prime95, about 36 hours of memtest v5.01 - both without an issue, ran dd on WD Red Pro drives, then a SMART long without any issues as well.
Fast forward about two weeks (had a drive die in-between then and now, resilvered just fine with no issues), and now issues are starting to popup. Just received an email today "The volume Mass_Storage (ZFS) state is ONLINE: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected." So I ssh into my box and do a
After I see that, just for kicks and giggles, I check out
http://pastebin.com/ZpxfHnjp
^-- This actually goes on for a few hours
And then check the Drive SMART data (which is the same output for ada0,1,2,6)
ada0 (gptid eb2f8951) is on ahcich0 (Marvell)
ada1 (gptid 53da7962) is on ahcich1 (Marvell)
ada2 (gptid 54686234) is on ahcich2 (Marvell)
ada6 (gptid 5317ca1e) is on ahcich12 (Intel)
I am honestly unsure where to go from here. Are my drives failing, or do I have some other strange/abnormal errors, or, is Marvell that bad of a SATA chipset? I do have a backup of important data, but I'd rather not have to do all the transferring again if at all possible.
Thank you all for your help in advance!
If I'm missing any info please let me know!
Build:
Proc: Dual Intel E5-2670
Mobo: ASRock EP2C602-4L/D16
Mem: 4 Samsung 16GB ECC RDIMM DDR3
HDD: 7, 6Tb WD Red Pro Drives (Currently one on RMA)
HDD: 1, 2TB Seagate Scratch disk
Case: SuperMicro 3U CSE-826TQ-R800B
Backplane: Direct Attached BPN-SAS-836TQ
PSU: Dual 800 Watt (66amp on 12v rail)
# uname -a
FreeBSD meinkampf.NAS 10.3-STABLE FreeBSD 10.3-STABLE #0 1a8180b(9.10-STABLE): Tue Jun 7 13:16:10 PDT 2016 root@build.ixsystems.com:/tank/home/nightlies/build-freenas9/_BE/objs/tank/home/nightlies/build-freenas9/_BE/trueos/sys/FreeNAS.amd64 amd64
I ran about 25 hours of prime95, about 36 hours of memtest v5.01 - both without an issue, ran dd on WD Red Pro drives, then a SMART long without any issues as well.
Fast forward about two weeks (had a drive die in-between then and now, resilvered just fine with no issues), and now issues are starting to popup. Just received an email today "The volume Mass_Storage (ZFS) state is ONLINE: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected." So I ssh into my box and do a
# zpool status Mass_Storage
and these are the results:Code:
pool: Mass_Storage state: ONLINE status: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected. action: Determine if the device needs to be replaced, and clear the errors using 'zpool clear' or replace the device with 'zpool replace'. see: http://illumos.org/msg/ZFS-8000-9P scan: resilvered 2.34T in 6h3m with 0 errors on Sat Sep 24 18:19:04 2016 config: NAME STATE READ WRITE CKSUM Mass_Storage ONLINE 0 0 0 raidz2-0 ONLINE 0 0 1 gptid/51a4339e-01bd-11e6-beec-d05099c06d62 ONLINE 0 0 0 gptid/52615aa9-01bd-11e6-beec-d05099c06d62 ONLINE 0 0 0 gptid/5317ca1e-01bd-11e6-beec-d05099c06d62 ONLINE 0 0 0 gptid/53da7962-01bd-11e6-beec-d05099c06d62 ONLINE 0 0 6 gptid/54686234-01bd-11e6-beec-d05099c06d62 ONLINE 0 0 3 gptid/eb2f8951-0cdc-11e6-835c-d05099c06d62 ONLINE 0 0 14
After I see that, just for kicks and giggles, I check out
# tail -n 50 /var/log/messages
and get this: http://pastebin.com/ZpxfHnjp
^-- This actually goes on for a few hours
SATA Controllers:
ahci0: <Marvell 88SE9230 AHCI SATA controller> port 0x7050-0x7057,0x7040-0x7043,0x7030-0x7037,0x7020-0x7023,0x7000-0x701f mem 0xdf910000-0xdf9107ff irq 16 at device 0.0 on pci10
ahci1: <Intel Patsburg AHCI SATA controller> port 0xb070-0xb077,0xb060-0xb063,0xb050-0xb057,0xb040-0xb043,0xb020-0xb03f mem 0xdfa01000-0xdfa017ff irq 19 at device 31.2 on pci0
And then check the Drive SMART data (which is the same output for ada0,1,2,6)
ada0 (gptid eb2f8951) is on ahcich0 (Marvell)
ada1 (gptid 53da7962) is on ahcich1 (Marvell)
ada2 (gptid 54686234) is on ahcich2 (Marvell)
ada6 (gptid 5317ca1e) is on ahcich12 (Intel)
Code:
# smartctl -q noserial -a /dev/ada0 smartctl 6.5 2016-05-07 r4318 [FreeBSD 10.3-STABLE amd64] (local build) Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Device Model: WDC WD6001FFWX-68Z39N0 Firmware Version: 81.00A81 User Capacity: 6,001,175,126,016 bytes [6.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 7200 rpm Form Factor: 3.5 inches Device is: Not in smartctl database [for details use: -P showall] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Tue Sep 27 20:48:51 2016 CDT SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x84) Offline data collection activity was suspended by an interrupting command from host. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 90) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off supp ort. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 582) minutes. Conveyance self-test routine recommended polling time: ( 6) minutes. SCT capabilities: (0x003d) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_ FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 200 100 051 Pre-fail Always - 0 3 Spin_Up_Time 0x0027 185 100 021 Pre-fail Always - 9725 4 Start_Stop_Count 0x0032 100 100 000 Old_age Always - 17 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 200 100 000 Old_age Always - 0 9 Power_On_Hours 0x0032 096 096 000 Old_age Always - 3599 10 Spin_Retry_Count 0x0032 100 100 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 100 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 14 16 Unknown_Attribute 0x0022 001 199 000 Old_age Always - 30956395011 183 Runtime_Bad_Block 0x0032 100 100 000 Old_age Always - 0 192 Power-Off_Retract_Count 0x0032 200 100 000 Old_age Always - 4 193 Load_Cycle_Count 0x0032 200 100 000 Old_age Always - 90 194 Temperature_Celsius 0x0022 121 113 000 Old_age Always - 31 196 Reallocated_Event_Count 0x0032 200 100 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 200 100 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0030 200 100 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 100 000 Old_age Offline - 0 SMART Error Log Version: 1 ATA Error Count: 200 (device log contains only the most recent five errors) CR = Command Register [HEX] FR = Features Register [HEX] SC = Sector Count Register [HEX] SN = Sector Number Register [HEX] CL = Cylinder Low Register [HEX] CH = Cylinder High Register [HEX] DH = Device/Head Register [HEX] DC = Device Command Register [HEX] ER = Error register [HEX] ST = Status register [HEX] Powered_Up_Time is measured from power on, and printed as DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes, SS=sec, and sss=millisec. It "wraps" after 49.710 days. Error 200 occurred at disk power-on lifetime: 3594 hours (149 days + 18 hours) When the command that caused the error occurred, the device was in an unknown state. After command completion occurred, registers were: ER ST SC SN CL CH DH -- -- -- -- -- -- -- 40 41 08 70 22 49 40 Error: Commands leading to the command that caused the error were: CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name -- -- -- -- -- -- -- -- ---------------- -------------------- Error 199 occurred at disk power-on lifetime: 3594 hours (149 days + 18 hours) When the command that caused the error occurred, the device was in an unknown state. After command completion occurred, registers were: ER ST SC SN CL CH DH -- -- -- -- -- -- -- 10 41 08 e8 03 40 40 Error: Commands leading to the command that caused the error were: CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name -- -- -- -- -- -- -- -- ---------------- -------------------- Error 198 occurred at disk power-on lifetime: 3594 hours (149 days + 18 hours) When the command that caused the error occurred, the device was in an unknown state. After command completion occurred, registers were: ER ST SC SN CL CH DH -- -- -- -- -- -- -- 10 41 08 08 db 75 40 Error: Commands leading to the command that caused the error were: CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name -- -- -- -- -- -- -- -- ---------------- -------------------- Error 197 occurred at disk power-on lifetime: 3594 hours (149 days + 18 hours) When the command that caused the error occurred, the device was in an unknown state. After command completion occurred, registers were: ER ST SC SN CL CH DH -- -- -- -- -- -- -- 10 41 08 e0 d3 75 40 Error: Commands leading to the command that caused the error were: CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name -- -- -- -- -- -- -- -- ---------------- -------------------- Error 196 occurred at disk power-on lifetime: 3594 hours (149 days + 18 hours) When the command that caused the error occurred, the device was in an unknown state. After command completion occurred, registers were: ER ST SC SN CL CH DH -- -- -- -- -- -- -- 10 41 08 58 d0 75 40 Error: Commands leading to the command that caused the error were: CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name -- -- -- -- -- -- -- -- ---------------- -------------------- SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA _of_first_error # 1 Short offline Completed without error 00% 3572 - # 2 Extended offline Completed without error 00% 3251 - # 3 Extended offline Completed without error 00% 303 - # 4 Short offline Completed without error 00% 20 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay.
I am honestly unsure where to go from here. Are my drives failing, or do I have some other strange/abnormal errors, or, is Marvell that bad of a SATA chipset? I do have a backup of important data, but I'd rather not have to do all the transferring again if at all possible.
Thank you all for your help in advance!
If I'm missing any info please let me know!
