Can't seem to get SED drives password protected...

hnmcclain

Cadet
Joined
Apr 19, 2019
Messages
3
All,

Have (20) Seagate EXOS 12TB SATA drives installed in an 11.2-U2 install. At the shell, when conducting a scan for SED capable drives, we're getting NO for all drives listed. Any idea why? This particularly install needs H/W level encryption.

regards,
HN McClain


hnmcclain

Cadet
Joined
Apr 19, 2019
Messages
3
HoneyBadger cares a little bit!!! Thanks. See, the output below:

smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model: ST12000NM0007-2A1101
Serial Number: ZCH0EBEE
LU WWN Device Id: 5 000c50 0b4bf2f9c
Firmware Version: SN02
User Capacity: 12,000,138,625,024 bytes [12.0 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: Not in smartctl database [for details use: -P showall]
ATA Version is: ACS-3 T13/2161-D revision 5
SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Mon Apr 22 13:53:00 2019 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 567) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: (1112) minutes.
Conveyance self-test routine
recommended polling time: ( 2) minutes.
SCT capabilities: (0x70bd) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x000f 078 064 044 Pre-fail Always - 63806101
3 Spin_Up_Time 0x0003 089 089 000 Pre-fail Always - 0
4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 24
5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0
7 Seek_Error_Rate 0x000f 065 060 045 Pre-fail Always - 3463280
9 Power_On_Hours 0x0032 100 100 000 Old_age Always - 773
10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0
12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 24
187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0
188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0
190 Airflow_Temperature_Cel 0x0022 078 074 040 Old_age Always - 22 (Min/Max 21/24)
192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 25
193 Load_Cycle_Count 0x0032 098 098 000 Old_age Always - 4629
194 Temperature_Celsius 0x0022 022 040 000 Old_age Always - 22 (0 20 0 0 0)
195 Hardware_ECC_Recovered 0x001a 024 021 000 Old_age Always - 63806101
197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0
198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0
199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0
200 Multi_Zone_Error_Rate 0x0023 100 100 001 Pre-fail Always - 0
240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 370 (87 113 0)
241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 474821475
242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 77266094

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Conveyance offline Completed without error 00% 311 -

SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.


HoneyBadger

actually does care
Administrator
Moderator
iXsystems
Joined
Feb 6, 2014
Messages
5,112
HoneyBadger cares a little bit!!! Thanks. See, the output below:

HoneyBadger cares about data integrity. ;)

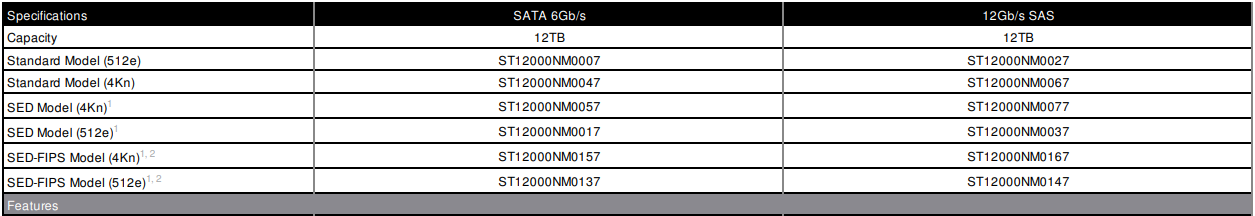

Device Model: ST12000NM0007-2A1101

Well, I hate to be the bearer (badgerer?) of bad news but those are not SEDs - that model identifies it as the regular 512e version.



https://www.seagate.com/www-content...cap-3-5-hdd-12tb-v7DS1925-1M-1703US-en_US.pdf


hnmcclain

Cadet
Joined
Apr 19, 2019
Messages
3
HoneyBadger cares about data integrity. ;)



Well, I hate to be the bearer (badgerer?) of bad news but those are not SEDs - that model identifies it as the regular 512e version.

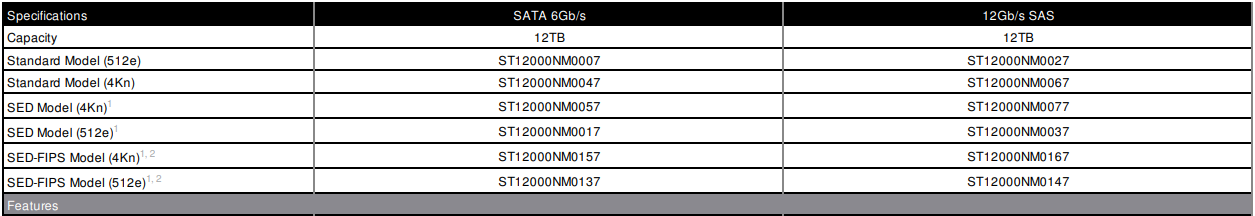

View attachment 30275

https://www.seagate.com/www-content...cap-3-5-hdd-12tb-v7DS1925-1M-1703US-en_US.pdf

Literally, came to the same conclusion after some digging over the weekend. Purchase order has them listed as SED but they clearly are not. Thanks so much for helping me confirm and keeping my sanity.
