ZFS pool went crazy after improper drive replacement

Status
Not open for further replies.
W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
Hello.

Recently I had 1 drive dead in my pool. In addition to dead drive - wrong drive had been pulled from live storage. Then good drive had been pushed back and bad drive replaced.
Although - pool now can't reconstruct itself.
But, luckily (hopefully) - it is a mirrored RAID10 and all those drives were in same part of mirror, so I suppose that data is intact. But zfs can't rebuild itself. May I manually recreate part of mirror? If yes - how?

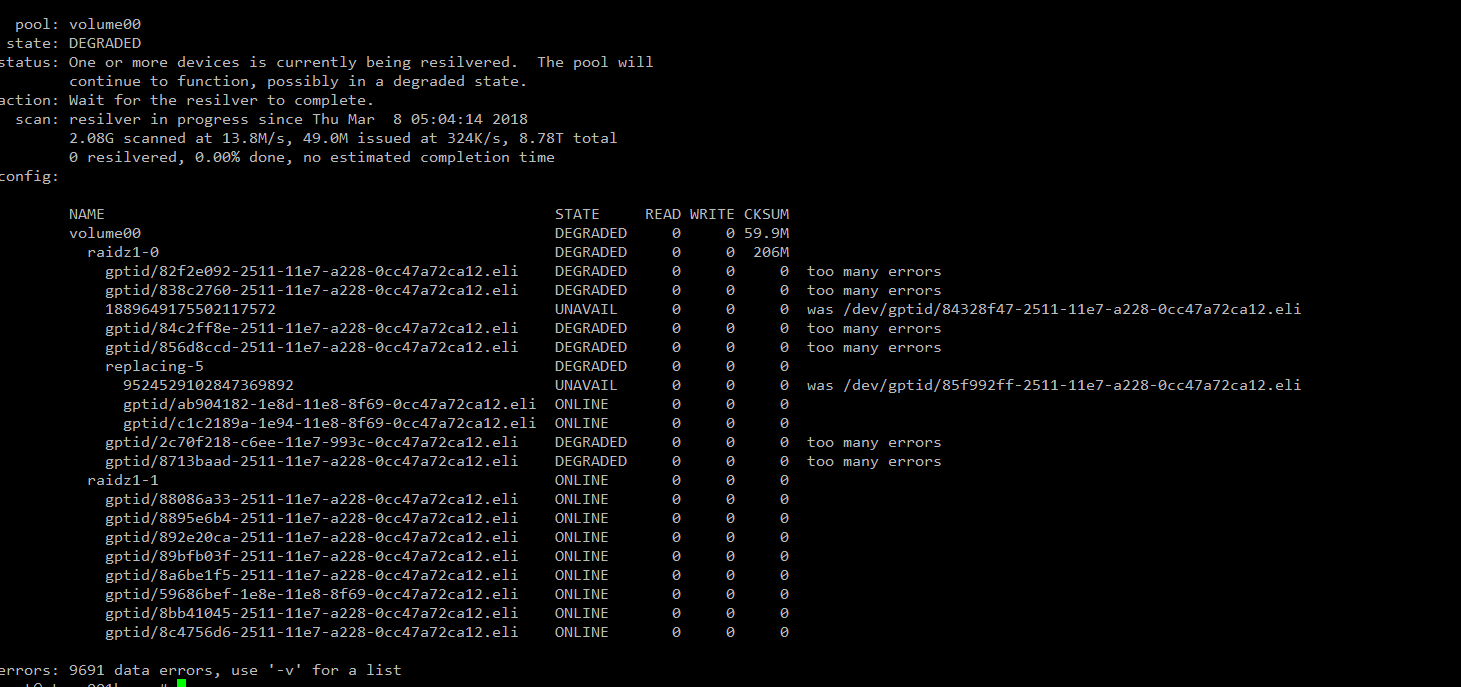

Screenshot of current status attached.


Attachments

  • zfs00.PNG
    61.5 KB · Views: 445
Last edited by a moderator:
garm

garm

Wizard
Joined
Aug 19, 2017
Messages
1,556
It’s not a “RAID10”-like schema. You have two RAIDZ1 vdevs. One of which have 2 unavailable drives. A dual RAIDZ1 vdev pool is closer to something like RAID50. But it’s best to not use the “RAID” terminology altogether.

You are in a very bad situation and hopefully someone will be able to guide you. I will not however due to the risk of data loss with every action from now on.

Also, when you have sorted this out you should consider another topography. Running RAIDZ1 is not adequate redundancy.

W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
But if its a raid 50 - this mean that there 2 "big volumes" , where system should be able to live if one of half is dead, no ?

I kinda said good bye to data already, we have a backup of all of this ... but restoring procedure could be very long, thus trying to save this if possible.

Bidule0hm

Bidule0hm

Server Electronics Sorcerer
Joined
Aug 5, 2013
Messages
3,710
warpik said:
But if its a raid 50 - this mean that there 2 "big volumes" , where system should be able to live if one of half is dead, no ?
Click to expand...

No, it's like a RAID 50, not a RAID 51, so if you lose one part the whole volume is lost.

warpik said:
I kinda said good bye to data already, we have a backup of all of this ... but restoring procedure could be very long, thus trying to save this if possible.
Click to expand...

You are losing sectors on the drives (that's why it's very slow) faster than you can rebuild the data so to me this pool is lost, be ready to restore from backup. And before restoring I recommend you to destroy and rebuild the pool as two RAID-Z2 vdevs of 8 drives instead of RAID-Z1.

Also, do you have SMART tests correctly configured?

And what's the output of smartctl -a /dev/adaX for each drive (please use the code tags to make it readable)?

Last edited by a moderator:
W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
Um... Could you please reexplain in more simple words what is RAID-Z2? Or where i can read about these RAID levels?
Smart is proper, at least in GUI I see all reports per each drive without issues.

/dev/ada is a SSD-on-a-stick device, in SATA port.
All rest of drives using HBA and marked as daX

Code:
root@store001hw:~ # smartctl -a /dev/da
da0%	da1%	da10p2% da11p2% da12p2% da13p2% da14p2% da15p2% da2%	da3%	da4%	da5%	da6%	da7%	da8%	da9%
da0p1%  da10%   da11%   da12%   da13%   da14%   da15%   da1p1%  da2p1%  da3p1%  da4p1%  da5p1%  da6p1%  da7p1%  da8p1%  da9p1%
da0p2%  da10p1% da11p1% da12p1% da13p1% da14p1% da15p1% da1p2%  da2p2%  da3p2%  da4p2%  da5p2%  da6p2%  da7p2%  da8p2%  da9p2%
root@store001hw:~ # smartctl -a /dev/da5
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28SAM
LU WWN Device Id: 5 000c50 066c8dd42
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 07:33:35 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 253) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   083   063   044	Pre-fail  Always	   -	   218230036
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   36
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2201036203
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27639
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   32
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   099   099   000	Old_age   Always	   -	   1
190 Airflow_Temperature_Cel 0x0022   070   051   045	Old_age   Always	   -	   30 (Min/Max 26/30)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   31
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1183
194 Temperature_Celsius	 0x0022   030   049   000	Old_age   Always	   -	   30 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   060   011   000	Old_age   Always	   -	   218230036
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

Last edited by a moderator:
Bidule0hm

Bidule0hm

Server Electronics Sorcerer
Joined
Aug 5, 2013
Messages
3,710
W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
I'm using 9207-8i of Broadcom (2308 LSI), based on SuperMicro chassis with Intel(R) Xeon(R) CPU E5-1620 v2 and 16Gb of RAM

For each drive? It will be long post =)

# for i in 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15; do echo drive $i ; echo "CODE]" ; /usr/local/sbin/smartctl -a /dev/da$i; echo "/CODE]"; done

drive 0
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QEC
LU WWN Device Id: 5 000c50 066c919c1
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:53:59 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 246) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   078   063   044	Pre-fail  Always	   -	   60309905
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   259
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   090   060   030	Pre-fail  Always	   -	   1209193902
  9 Power_On_Hours		  0x0032   070   070   000	Old_age   Always	   -	   26962
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   32
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   067   048   045	Old_age   Always	   -	   33 (Min/Max 29/33)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   26
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   804
194 Temperature_Celsius	 0x0022   033   052   000	Old_age   Always	   -	   33 (0 17 0 0 0)
195 Hardware_ECC_Recovered  0x001a   060   009   000	Old_age   Always	   -	   60309905
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 1
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QC3
LU WWN Device Id: 5 000c50 066c91c37
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:53:59 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 247) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   083   063   044	Pre-fail  Always	   -	   224820172
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   36
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2107089060
  9 Power_On_Hours		  0x0032   070   070   000	Old_age   Always	   -	   27137
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   31
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   098   098   000	Old_age   Always	   -	   2
190 Airflow_Temperature_Cel 0x0022   069   050   045	Old_age   Always	   -	   31 (Min/Max 28/32)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   30
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1162
194 Temperature_Celsius	 0x0022   031   050   000	Old_age   Always	   -	   31 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   059   010   000	Old_age   Always	   -	   224820172
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 2
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QQG
LU WWN Device Id: 5 000c50 066c8f7f0
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:00 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  584) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 240) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   079   063   044	Pre-fail  Always	   -	   91493440
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   266
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   090   060   030	Pre-fail  Always	   -	   1207109482
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27290
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   39
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   070   051   045	Old_age   Always	   -	   30 (Min/Max 27/32)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   33
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   824
194 Temperature_Celsius	 0x0022   030   049   000	Old_age   Always	   -	   30 (0 17 0 0 0)
195 Hardware_ECC_Recovered  0x001a   060   009   000	Old_age   Always	   -	   91493440
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 3
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QNJ
LU WWN Device Id: 5 000c50 066c901f3
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:00 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 252) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   078   063   044	Pre-fail  Always	   -	   62956247
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   35
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2187376922
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27643
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   31
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   099   099   000	Old_age   Always	   -	   1
190 Airflow_Temperature_Cel 0x0022   068   052   045	Old_age   Always	   -	   32 (Min/Max 29/33)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   30
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1184
194 Temperature_Celsius	 0x0022   032   048   000	Old_age   Always	   -	   32 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   060   011   000	Old_age   Always	   -	   62956247
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 4
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QHW
LU WWN Device Id: 5 000c50 066c9092f
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:01 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  584) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 243) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   082   063   044	Pre-fail  Always	   -	   181607829
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   36
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2017712010
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27643
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   32
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   098   098   000	Old_age   Always	   -	   2
190 Airflow_Temperature_Cel 0x0022   070   046   045	Old_age   Always	   -	   30 (Min/Max 26/33)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   31
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1183
194 Temperature_Celsius	 0x0022   030   054   000	Old_age   Always	   -	   30 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   022   011   000	Old_age   Always	   -	   181607829
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 5
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28SAM
LU WWN Device Id: 5 000c50 066c8dd42
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:01 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 253) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   076   063   044	Pre-fail  Always	   -	   45748067
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   36
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2202324998
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27641
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   32
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   099   099   000	Old_age   Always	   -	   1
190 Airflow_Temperature_Cel 0x0022   072   051   045	Old_age   Always	   -	   28 (Min/Max 26/30)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   31
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1183
194 Temperature_Celsius	 0x0022   028   049   000	Old_age   Always	   -	   28 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   060   011   000	Old_age   Always	   -	   45748067
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
drive 6
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QCW
LU WWN Device Id: 5 000c50 066c91b00
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:01 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 248) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   083   063   044	Pre-fail  Always	   -	   205405904
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   30
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2056181137
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27630
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   27
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   068   047   045	Old_age   Always	   -	   32 (Min/Max 30/35)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   26
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1176
194 Temperature_Celsius	 0x0022   032   053   000	Old_age   Always	   -	   32 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   054   010   000	Old_age   Always	   -	   205405904
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 7
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28TD0
LU WWN Device Id: 5 000c50 066c882e0
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:02 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  584) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 248) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   077   063   044	Pre-fail  Always	   -	   50423509
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   30
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2062295341
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27631
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   27
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   070   048   045	Old_age   Always	   -	   30 (Min/Max 28/34)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   26
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1176
194 Temperature_Celsius	 0x0022   030   052   000	Old_age   Always	   -	   30 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   048   009   000	Old_age   Always	   -	   50423509
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 8
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X27F15
LU WWN Device Id: 5 000c50 066bb65da
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:02 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 245) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   081   063   044	Pre-fail  Always	   -	   154757952
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   29
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2029565788
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27631
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   26
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   099   000	Old_age   Always	   -	   1
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   071   046   045	Old_age   Always	   -	   29 (Min/Max 27/33)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   25
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1175
194 Temperature_Celsius	 0x0022   029   054   000	Old_age   Always	   -	   29 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   052   009   000	Old_age   Always	   -	   154757952
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 9
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28YP6
LU WWN Device Id: 5 000c50 066c76f41
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:02 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 250) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   079   063   044	Pre-fail  Always	   -	   93702423
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   30
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2077111239
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27628
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   27
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   072   051   045	Old_age   Always	   -	   28 (Min/Max 27/32)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   26
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1176
194 Temperature_Celsius	 0x0022   028   049   000	Old_age   Always	   -	   28 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   050   009   000	Old_age   Always	   -	   93702423
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 10
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28RLL
LU WWN Device Id: 5 000c50 066c8df1a
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:02 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 265) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   081   063   044	Pre-fail  Always	   -	   154646727
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   33
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2201685095
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27631
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   29
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   066   049   045	Old_age   Always	   -	   34 (Min/Max 31/37)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   28
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1180
194 Temperature_Celsius	 0x0022   034   051   000	Old_age   Always	   -	   34 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   052   010   000	Old_age   Always	   -	   154646727
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
drive 11
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28SXR
LU WWN Device Id: 5 000c50 066c8ab17
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:02 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 243) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   082   063   044	Pre-fail  Always	   -	   189441636
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   33
  5 Reallocated_Sector_Ct   0x0033   097   097   010	Pre-fail  Always	   -	   611
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2013715177
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27629
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   29
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   099   000	Old_age   Always	   -	   4295032833
189 High_Fly_Writes		 0x003a   098   098   000	Old_age   Always	   -	   2
190 Airflow_Temperature_Cel 0x0022   066   046   045	Old_age   Always	   -	   34 (Min/Max 30/36)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   28
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1178
194 Temperature_Celsius	 0x0022   034   054   000	Old_age   Always	   -	   34 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   038   010   000	Old_age   Always	   -	   189441636
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 12
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28TC9
LU WWN Device Id: 5 000c50 066c8823e
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:02 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 245) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   082   063   044	Pre-fail  Always	   -	   192010591
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   32
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2033876819
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27631
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   28
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   099   099   000	Old_age   Always	   -	   1
190 Airflow_Temperature_Cel 0x0022   067   046   045	Old_age   Always	   -	   33 (Min/Max 30/36)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   27
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1178
194 Temperature_Celsius	 0x0022   033   054   000	Old_age   Always	   -	   33 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   050   009   000	Old_age   Always	   -	   192010591
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 13
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QBW
LU WWN Device Id: 5 000c50 066c91cb3
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:03 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 249) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   082   063   044	Pre-fail  Always	   -	   171998543
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   32
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2065308686
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27629
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   28
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   068   051   045	Old_age   Always	   -	   32 (Min/Max 28/34)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   27
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1179
194 Temperature_Celsius	 0x0022   032   049   000	Old_age   Always	   -	   32 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   052   003   000	Old_age   Always	   -	   171998543
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 14
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X0YPZC
LU WWN Device Id: 5 000c50 05d1c28e0
Firmware Version: SN04
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:03 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 241) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   081   064   044	Pre-fail  Always	   -	   128612145
  3 Spin_Up_Time			0x0003   100   100   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   1
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   081   060   030	Pre-fail  Always	   -	   135668545
  9 Power_On_Hours		  0x0032   097   097   000	Old_age   Always	   -	   2807
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   1
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   071   069   045	Old_age   Always	   -	   29 (Min/Max 22/31)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   0
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   118
194 Temperature_Celsius	 0x0022   029   040   000	Old_age   Always	   -	   29 (0 22 0 0 0)
195 Hardware_ECC_Recovered  0x001a   060   026   000	Old_age   Always	   -	   128612145
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 15
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X33VWE
LU WWN Device Id: 5 000c50 079382375
Firmware Version: SN06
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Thu Mar  8 08:54:03 2018 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 247) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   081   063   044	Pre-fail  Always	   -	   162243797
  3 Spin_Up_Time			0x0003   099   099   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   3
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   080   060   045	Pre-fail  Always	   -	   108156774
  9 Power_On_Hours		  0x0032   100   100   000	Old_age   Always	   -	   131
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   3
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   070   068   040	Old_age   Always	   -	   30 (Min/Max 24/32)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   2
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   9
194 Temperature_Celsius	 0x0022   030   040   000	Old_age   Always	   -	   30 (0 22 0 0 0)
195 Hardware_ECC_Recovered  0x001a   059   030   000	Old_age   Always	   -	   162243797
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

Bidule0hm

Bidule0hm

Server Electronics Sorcerer
Joined
Aug 5, 2013
Messages
3,710
Earlier I asked if you have the SMART tests correctly configured but as none of the drives has ever had a SMART tests I guess they aren't. The problem is that without tests they may be some bad sectors that are undetected. So I'll list after this sentence what I see that can be a concern but you'll need to execute a long test ( smartctl -t long /dev/daX) for each drive and repost the outputs of smartctl once the tests are finished (about 4 hours on your drives) to have up to date data we can analyse.

da0 OK
da1 OK
da2 OK
da3 OK
da4 OK
da5 OK
da6 OK
da7 OK
da8 one command timeout, but that's nothing to worry so OK
da9 OK
da10 OK
da11 611 reallocated sectors: this drive is dying. And more than 4 billions command timeouts; it's the drive or the cable (but as it has a lot of bad sectors and the UDMA CRC error count is 0 I guess it's because of the drive, not the cable)
da12 OK
da13 OK
da14 OK
da15 OK

W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
I see.
I thought that FreeNAS have this practice (test scheduled) at default and should be shoot a warning ...
I agree with you that da11 probably need to replace proactively, btw =)

Also, this extended test might be run on all drives at same or need to be done one by one ?

Redcoat

Redcoat

MVP
Joined
Feb 18, 2014
Messages
2,925
You can run it on all drives simultaneously.

For the SMART tests, you must define the tests you want and the frequency - see the manual at Section 6.5 http://doc.freenas.org/11/tasks.html#s-m-a-r-t-tests

Also, you have set FreeNAS up correctly to "shoot a warning". I suggest that you read the manual from end-to-end and also study the Resources section here - look for the post for the scripts by @Spearfoot that will deal with "shooting warnings" - included in that is a link to a series of scripts by your contributor @Bidule0hm that you will likely find helpful, too.

W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
Testing has begun.
Please wait 247 minutes for test to complete.

I do read those manual, but still - its too much of data , can't remember everything. Especially if not working with this on daily basis =)

Thanks for info to read! Will look into this .

W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
drive 0
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QEC
LU WWN Device Id: 5 000c50 066c919c1
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:26 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  ( 249) Self-test routine in progress...
										90% of test remaining.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 246) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   081   063   044	Pre-fail  Always	   -	   131159457
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   259
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   090   060   030	Pre-fail  Always	   -	   1299941453
  9 Power_On_Hours		  0x0032   070   070   000	Old_age   Always	   -	   27054
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   32
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   068   048   045	Old_age   Always	   -	   32 (Min/Max 29/33)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   26
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   808
194 Temperature_Celsius	 0x0022   032   052   000	Old_age   Always	   -	   32 (0 17 0 0 0)
195 Hardware_ECC_Recovered  0x001a   059   009   000	Old_age   Always	   -	   131159457
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Self-test routine in progress 90%	 27054		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 1
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QC3
LU WWN Device Id: 5 000c50 066c91c37
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:26 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  ( 249) Self-test routine in progress...
										90% of test remaining.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 247) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   082   063   044	Pre-fail  Always	   -	   188421685
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   36
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2197724123
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27229
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   31
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   098   098   000	Old_age   Always	   -	   2
190 Airflow_Temperature_Cel 0x0022   069   050   045	Old_age   Always	   -	   31 (Min/Max 28/32)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   30
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1166
194 Temperature_Celsius	 0x0022   031   050   000	Old_age   Always	   -	   31 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   058   010   000	Old_age   Always	   -	   188421685
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Self-test routine in progress 90%	 27229		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 2
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QQG
LU WWN Device Id: 5 000c50 066c8f7f0
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:27 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  ( 249) Self-test routine in progress...
										90% of test remaining.
Total time to complete Offline
data collection:				(  584) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 240) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   084   063   044	Pre-fail  Always	   -	   242533278
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   266
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   090   060   030	Pre-fail  Always	   -	   1297853263
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27382
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   39
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   071   051   045	Old_age   Always	   -	   29 (Min/Max 27/32)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   33
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   827
194 Temperature_Celsius	 0x0022   029   049   000	Old_age   Always	   -	   29 (0 17 0 0 0)
195 Hardware_ECC_Recovered  0x001a   059   009   000	Old_age   Always	   -	   242533278
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Self-test routine in progress 90%	 27382		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 3
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QNJ
LU WWN Device Id: 5 000c50 066c901f3
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:27 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  ( 249) Self-test routine in progress...
										90% of test remaining.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 252) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   083   063   044	Pre-fail  Always	   -	   230985896
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   35
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2278537565
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27735
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   31
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   099   099   000	Old_age   Always	   -	   1
190 Airflow_Temperature_Cel 0x0022   069   052   045	Old_age   Always	   -	   31 (Min/Max 29/33)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   30
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1188
194 Temperature_Celsius	 0x0022   031   048   000	Old_age   Always	   -	   31 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   059   011   000	Old_age   Always	   -	   230985896
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Self-test routine in progress 90%	 27735		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 4
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QHW
LU WWN Device Id: 5 000c50 066c9092f
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:28 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  584) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 243) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   083   063   044	Pre-fail  Always	   -	   219720839
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   36
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2026287871
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27735
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   32
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   098   098   000	Old_age   Always	   -	   2
190 Airflow_Temperature_Cel 0x0022   071   046   045	Old_age   Always	   -	   29 (Min/Max 26/33)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   31
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1187
194 Temperature_Celsius	 0x0022   029   054   000	Old_age   Always	   -	   29 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   023   011   000	Old_age   Always	   -	   219720839
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Completed without error	   00%	 27718		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 5
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28SAM
LU WWN Device Id: 5 000c50 066c8dd42
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:28 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  ( 249) Self-test routine in progress...
										90% of test remaining.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 253) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   076   063   044	Pre-fail  Always	   -	   42399916
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   36
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2293012430
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27732
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   32
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   099   099   000	Old_age   Always	   -	   1
190 Airflow_Temperature_Cel 0x0022   073   051   045	Old_age   Always	   -	   27 (Min/Max 26/30)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   31
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1187
194 Temperature_Celsius	 0x0022   027   049   000	Old_age   Always	   -	   27 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   058   011   000	Old_age   Always	   -	   42399916
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Self-test routine in progress 90%	 27732		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
drive 6
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QCW
LU WWN Device Id: 5 000c50 066c91b00
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:28 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 248) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   078   063   044	Pre-fail  Always	   -	   59973648
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   30
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2064891571
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27722
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   27
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   068   047   045	Old_age   Always	   -	   32 (Min/Max 30/35)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   26
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1180
194 Temperature_Celsius	 0x0022   032   053   000	Old_age   Always	   -	   32 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   063   010   000	Old_age   Always	   -	   59973648
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Completed without error	   00%	 27705		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 7
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28TD0
LU WWN Device Id: 5 000c50 066c882e0
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:28 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  584) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 248) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   081   063   044	Pre-fail  Always	   -	   140557890
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   30
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2070876203
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27722
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   27
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   070   048   045	Old_age   Always	   -	   30 (Min/Max 28/34)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   26
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1180
194 Temperature_Celsius	 0x0022   030   052   000	Old_age   Always	   -	   30 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   031   009   000	Old_age   Always	   -	   140557890
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Completed without error	   00%	 27705		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 8
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X27F15
LU WWN Device Id: 5 000c50 066bb65da
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:29 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 245) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   070   063   044	Pre-fail  Always	   -	   10819025
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   29
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2038156779
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27722
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   26
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   099   000	Old_age   Always	   -	   1
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   071   046   045	Old_age   Always	   -	   29 (Min/Max 27/33)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   25
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1179
194 Temperature_Celsius	 0x0022   029   054   000	Old_age   Always	   -	   29 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   062   009   000	Old_age   Always	   -	   10819025
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Completed without error	   00%	 27705		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 9
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28YP6
LU WWN Device Id: 5 000c50 066c76f41
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:29 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 250) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   082   063   044	Pre-fail  Always	   -	   187045024
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   30
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2085752915
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27720
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   27
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   072   051   045	Old_age   Always	   -	   28 (Min/Max 27/32)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   26
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1179
194 Temperature_Celsius	 0x0022   028   049   000	Old_age   Always	   -	   28 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   051   009   000	Old_age   Always	   -	   187045024
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Completed without error	   00%	 27703		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 10
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28RLL
LU WWN Device Id: 5 000c50 066c8df1a
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:29 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 265) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   066   063   044	Pre-fail  Always	   -	   4973571
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   33
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2210985052
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27723
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   29
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   066   049   045	Old_age   Always	   -	   34 (Min/Max 31/37)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   28
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1184
194 Temperature_Celsius	 0x0022   034   051   000	Old_age   Always	   -	   34 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   059   010   000	Old_age   Always	   -	   4973571
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Completed without error	   00%	 27706		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
drive 11
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28SXR
LU WWN Device Id: 5 000c50 066c8ab17
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:29 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 243) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   083   063   044	Pre-fail  Always	   -	   229636610
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   33
  5 Reallocated_Sector_Ct   0x0033   097   097   010	Pre-fail  Always	   -	   611
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2022814941
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27721
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   29
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   099   000	Old_age   Always	   -	   4295032833
189 High_Fly_Writes		 0x003a   098   098   000	Old_age   Always	   -	   2
190 Airflow_Temperature_Cel 0x0022   067   046   045	Old_age   Always	   -	   33 (Min/Max 30/36)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   28
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1183
194 Temperature_Celsius	 0x0022   033   054   000	Old_age   Always	   -	   33 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   023   010   000	Old_age   Always	   -	   229636610
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Completed without error	   00%	 27704		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 12
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28TC9
LU WWN Device Id: 5 000c50 066c8823e
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:29 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 245) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   076   063   044	Pre-fail  Always	   -	   47705206
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   32
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2042497645
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27723
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   28
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   098   098   000	Old_age   Always	   -	   2
190 Airflow_Temperature_Cel 0x0022   067   046   045	Old_age   Always	   -	   33 (Min/Max 30/36)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   27
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1182
194 Temperature_Celsius	 0x0022   033   054   000	Old_age   Always	   -	   33 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   062   009   000	Old_age   Always	   -	   47705206
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Completed without error	   00%	 27706		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 13
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X28QBW
LU WWN Device Id: 5 000c50 066c91cb3
Firmware Version: SN03
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:29 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  (   0) The previous self-test routine completed
										without error or no self-test has ever
										been run.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 249) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   073   063   044	Pre-fail  Always	   -	   23026904
  3 Spin_Up_Time			0x0003   095   095   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   32
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   093   060   030	Pre-fail  Always	   -	   2073899401
  9 Power_On_Hours		  0x0032   069   069   000	Old_age   Always	   -	   27720
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   28
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   069   051   045	Old_age   Always	   -	   31 (Min/Max 28/34)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   27
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   1182
194 Temperature_Celsius	 0x0022   031   049   000	Old_age   Always	   -	   31 (0 21 0 0 0)
195 Hardware_ECC_Recovered  0x001a   061   003   000	Old_age   Always	   -	   23026904
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Completed without error	   00%	 27703		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 14
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X0YPZC
LU WWN Device Id: 5 000c50 05d1c28e0
Firmware Version: SN04
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:30 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  ( 249) Self-test routine in progress...
										90% of test remaining.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 241) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   083   064   044	Pre-fail  Always	   -	   223467376
  3 Spin_Up_Time			0x0003   100   100   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   1
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   083   060   030	Pre-fail  Always	   -	   226272584
  9 Power_On_Hours		  0x0032   097   097   000	Old_age   Always	   -	   2899
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   1
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   071   069   045	Old_age   Always	   -	   29 (Min/Max 22/31)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   0
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   121
194 Temperature_Celsius	 0x0022   029   040   000	Old_age   Always	   -	   29 (0 22 0 0 0)
195 Hardware_ECC_Recovered  0x001a   059   026   000	Old_age   Always	   -	   223467376
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Self-test routine in progress 90%	  2899		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

drive 15
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:	 Seagate Constellation ES.3
Device Model:	 ST2000NM0033-9ZM175
Serial Number:	Z1X33VWE
LU WWN Device Id: 5 000c50 079382375
Firmware Version: SN06
User Capacity:	2,000,398,934,016 bytes [2.00 TB]
Sector Size:	  512 bytes logical/physical
Rotation Rate:	7200 rpm
Form Factor:	  3.5 inches
Device is:		In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:	Mon Mar 12 05:30:30 2018 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
										was completed without error.
										Auto Offline Data Collection: Enabled.
Self-test execution status:	  ( 249) Self-test routine in progress...
										90% of test remaining.
Total time to complete Offline
data collection:				(  592) seconds.
Offline data collection
capabilities:					(0x7b) SMART execute Offline immediate.
										Auto Offline data collection on/off support.
										Suspend Offline collection upon new
										command.
										Offline surface scan supported.
										Self-test supported.
										Conveyance Self-test supported.
										Selective Self-test supported.
SMART capabilities:			(0x0003) Saves SMART data before entering
										power-saving mode.
										Supports SMART auto save timer.
Error logging capability:		(0x01) Error logging supported.
										General Purpose Logging supported.
Short self-test routine
recommended polling time:		(   1) minutes.
Extended self-test routine
recommended polling time:		( 247) minutes.
Conveyance self-test routine
recommended polling time:		(   2) minutes.
SCT capabilities:			  (0x50bd) SCT Status supported.
										SCT Error Recovery Control supported.
										SCT Feature Control supported.
										SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME		  FLAG	 VALUE WORST THRESH TYPE	  UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate	 0x000f   084   063   044	Pre-fail  Always	   -	   241861683
  3 Spin_Up_Time			0x0003   099   099   000	Pre-fail  Always	   -	   0
  4 Start_Stop_Count		0x0032   100   100   020	Old_age   Always	   -	   3
  5 Reallocated_Sector_Ct   0x0033   100   100   010	Pre-fail  Always	   -	   0
  7 Seek_Error_Rate		 0x000f   082   060   045	Pre-fail  Always	   -	   198919751
  9 Power_On_Hours		  0x0032   100   100   000	Old_age   Always	   -	   222
 10 Spin_Retry_Count		0x0013   100   100   097	Pre-fail  Always	   -	   0
 12 Power_Cycle_Count	   0x0032   100   100   020	Old_age   Always	   -	   3
184 End-to-End_Error		0x0032   100   100   099	Old_age   Always	   -	   0
187 Reported_Uncorrect	  0x0032   100   100   000	Old_age   Always	   -	   0
188 Command_Timeout		 0x0032   100   100   000	Old_age   Always	   -	   0
189 High_Fly_Writes		 0x003a   100   100   000	Old_age   Always	   -	   0
190 Airflow_Temperature_Cel 0x0022   071   068   040	Old_age   Always	   -	   29 (Min/Max 24/32)
191 G-Sense_Error_Rate	  0x0032   100   100   000	Old_age   Always	   -	   0
192 Power-Off_Retract_Count 0x0032   100   100   000	Old_age   Always	   -	   2
193 Load_Cycle_Count		0x0032   100   100   000	Old_age   Always	   -	   12
194 Temperature_Celsius	 0x0022   029   040   000	Old_age   Always	   -	   29 (0 22 0 0 0)
195 Hardware_ECC_Recovered  0x001a   059   030   000	Old_age   Always	   -	   241861683
197 Current_Pending_Sector  0x0012   100   100   000	Old_age   Always	   -	   0
198 Offline_Uncorrectable   0x0010   100   100   000	Old_age   Offline	  -	   0
199 UDMA_CRC_Error_Count	0x003e   200   200   000	Old_age   Always	   -	   0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description	Status				  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline	Self-test routine in progress 90%	   222		 -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
	1		0		0  Not_testing
	2		0		0  Not_testing
	3		0		0  Not_testing
	4		0		0  Not_testing
	5		0		0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
Couple of drives still testing (after 24 hours =\ )
But it looks like only single drive in warning with large reallocated sectors count - and those that not completed yet - i believe everything ok.

W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
Bidule0hm said:
No, it's like a RAID 50, not a RAID 51, so if you lose one part the whole volume is lost.



You are losing sectors on the drives (that's why it's very slow) faster than you can rebuild the data so to me this pool is lost, be ready to restore from backup. And before restoring I recommend you to destroy and rebuild the pool as two RAID-Z2 vdevs of 8 drives instead of RAID-Z1.

Also, do you have SMART tests correctly configured?

And what's the output of smartctl -a /dev/adaX for each drive (please use the code tags to make it readable)?
Click to expand...


Hmm, what is benefit of making 2 RAID-Z2 vdevs ? To be able sustainability of 4 drive in total (2 maximum in each of Vdevs?), right ?

Bidule0hm

Bidule0hm

Server Electronics Sorcerer
Joined
Aug 5, 2013
Messages
3,710
Ok, so:

da0 test still in progress
da1 test still in progress
da2 test still in progress
da3 test still in progress
da4 OK
da5 test still in progress
da6 OK
da7 OK
da8 OK
da9 OK
da10 OK
da11 failing now, same as before
da12 OK
da13 OK
da14 test still in progress
da15 test still in progress

I can't say anything for the drives who are still in progress.

warpik said:
Hmm, what is benefit of making 2 RAID-Z2 vdevs ? To be able sustainability of 4 drive in total (2 maximum in each of Vdevs?), right ?
Click to expand...

Yes, it would have avoided your situation where a second failing drive create corruption while you're resilvering a first failed drive, we recommend RAID-Z2 over RAID-Z1 exactly for this reason.

But I can guess this drive is failing since a few weeks if not months and the real problem is that you didn't setup the SMART tests and/or the FreeNAS alerts correctly so you didn't receive the warning emails you should have received.

Last edited:
W

warpik

Dabbler
Joined
Mar 2, 2018
Messages
17
So, all discs passed SMART tests


for i in 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15; do echo drive $i ; echo "
Code:
" ; /usr/local/sbin/smartctl -a /dev/da$i | grep Extended ; echo "
"; done
drive 0
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27063		 -

drive 1
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27238		 -

drive 2
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27391		 -

drive 3
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27744		 -

drive 4
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27718		 -

drive 5
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27741		 -

drive 6
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27705		 -

drive 7
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27705		 -

drive 8
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27705		 -

drive 9
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27703		 -

drive 10
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27706		 -

drive 11
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27704		 -

drive 12
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27706		 -

drive 13
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	 27703		 -

drive 14
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	  2908		 -

drive 15
Code:
Extended self-test routine
# 1  Extended offline	Completed without error	   00%	   231		 -

Status
Not open for further replies.

Important Announcement for the TrueNAS Community.

The TrueNAS Community has now been moved. This forum will now become READ-ONLY for historical purposes. Please feel free to join us on the new TrueNAS Community Forums.

Related topics on forums.truenas.com for thread: "ZFS pool went crazy after improper drive replacement"

Similar threads

toadman
  • Locked
zfs hanging on attempted drive replacement
2
Replies
27
Views
6K
toadman
toadman
leenux_tux
  • Locked
Add a new hard drive to an existing ZFS RAIDZ system
Replies
4
Views
39K
survive
survive
G
  • Locked
ZFS Pool Resilvered, Upon Reboot forgets new drive
2
Replies
25
Views
10K
GregSC2
G
J
  • Locked
ZFS dead drive, confused about pool status
Replies
4
Views
2K
jrodder
J
T
SOLVED Reading damaged USB boot drive - dd to a file, help reading zpool
Replies
2
Views
3K
talz13
T
Top
