Why can't I view files in my Time Machine share?

[theflyiingdutchman]

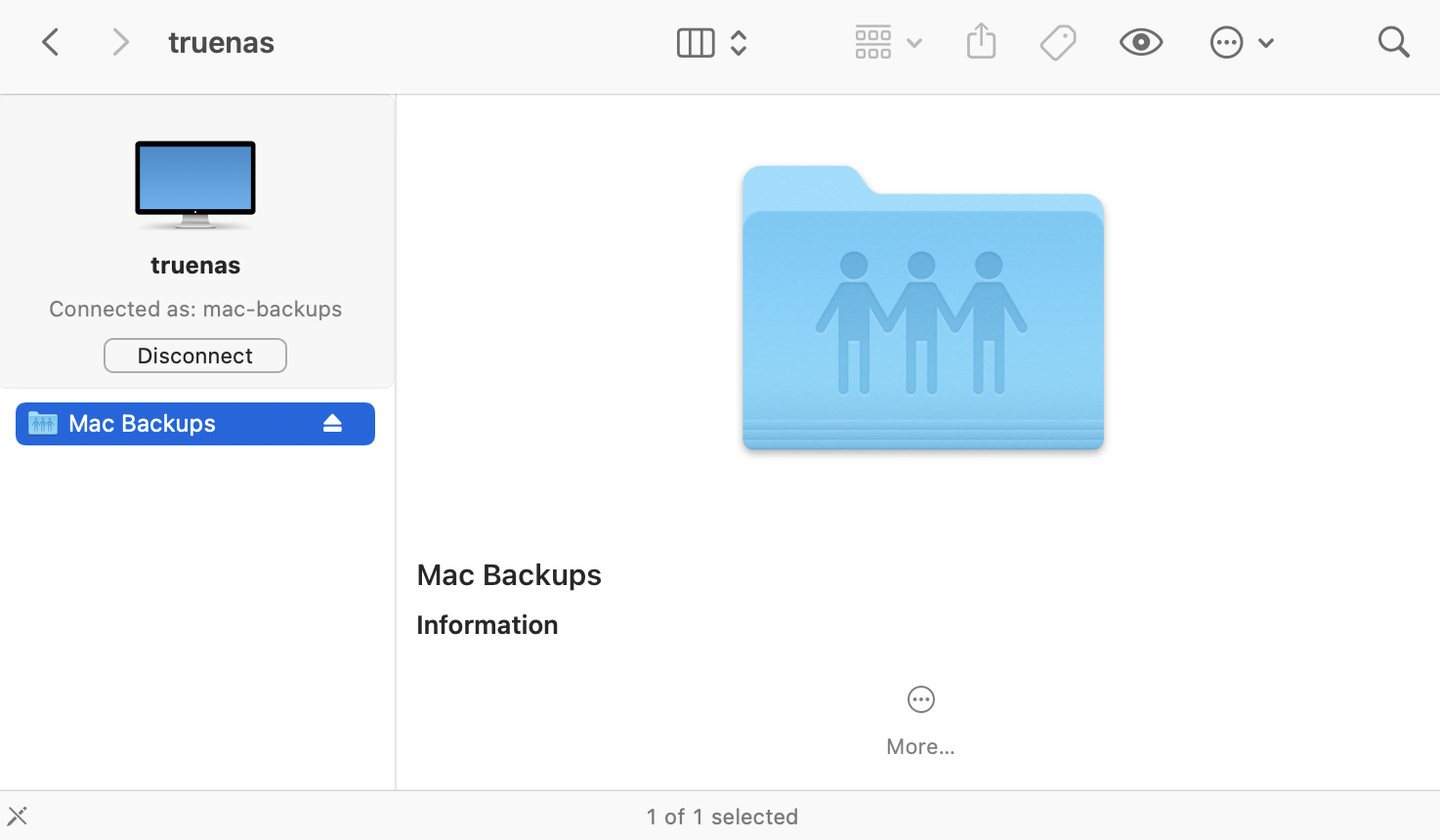

I've set up a dataset which is shared witth SMB with the Time Machine box checked. I can backup my Mac, but for some reason I can't view the files on the share. I just get a picture of a folder. What am I doing wrong?

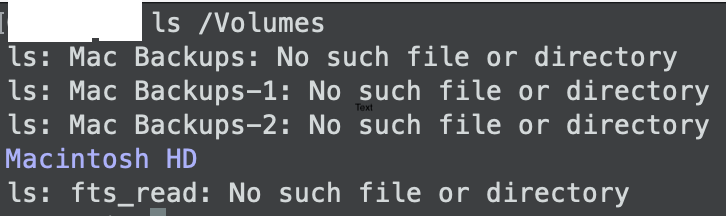

If it helps, I am also seeing errors when I try to list /Volumes. Screenshot attached.

q



[anodos]

Are you using the same credentials for the time machine backup as you are for accessing the share?



[theflyiingdutchman]

@anodos Yep



[theflyiingdutchman]

also occurs when I do not have time machine configured yet. Wondering if I'm misunderstanding something with the relationship between the file system and the samba share..



[Samuel Tai]

Get rid of the spaces in your share definition and the dataset.



[theflyiingdutchman]

Thanks for the suggestions. Tried them, but still broken. When I connect as a guest I get the same view, so it doesn't seem like a permissions thing(?). Not sure what else it could be.



[Samuel Tai]

Please provide the output of testparm -s and zfs list.



[theflyiingdutchman]

Code:

root@truenas[~]# testparm -s
Load smb config files from /usr/local/etc/smb4.conf
Loaded services file OK.
Weak crypto is allowed

Server role: ROLE_STANDALONE

# Global parameters
[global]
    aio max threads = 2
    bind interfaces only = Yes
    disable spoolss = Yes
    dns proxy = No
    enable web service discovery = Yes
    kernel change notify = No
    load printers = No
    logging = file
    map to guest = Bad User
    max log size = 5120
    nsupdate command = /usr/local/bin/samba-nsupdate -g
    registry shares = Yes
    server multi channel support = No
    server role = standalone server
    server string = TrueNAS Server
    unix extensions = No
    idmap config *: range = 90000001-100000000
    fruit:nfs_aces = No
    idmap config * : backend = tdb
    directory name cache size = 0
    dos filemode = Yes


[MacBackups]
    ea support = No
    guest ok = Yes
    kernel share modes = No
    path = /mnt/TwoSketchyDisks/MacBackup/%U
    posix locking = No
    read only = No
    smbd max xattr size = 2097152
    vfs objects = fruit streams_xattr shadow_copy_zfs ixnas zfs_core aio_fbsd
    fruit:resource = stream
    fruit:metadata = stream
    nfs4:chown = true

Code:

root@truenas[~]# zfs list
NAME                                                         USED  AVAIL     REFER  MOUNTPOINT
TwoSketchyDisks                                             1.27M  1.76T       96K  /mnt/TwoSketchyDisks
TwoSketchyDisks/MacBackup                                     96K  1.76T       96K  /mnt/TwoSketchyDisks/MacBackup
boot-pool                                                   1.29G  27.3G       24K  none
boot-pool/.system                                           2.36M  27.3G       26K  legacy
boot-pool/.system/configs-81963fc7279b4cf49c43e5a8cbe36cdb    24K  27.3G       24K  legacy
boot-pool/.system/cores                                       24K  1024M       24K  legacy
boot-pool/.system/rrd-81963fc7279b4cf49c43e5a8cbe36cdb      2.06M  27.3G     2.06M  legacy
boot-pool/.system/samba4                                      92K  27.3G     65.5K  legacy
boot-pool/.system/services                                    24K  27.3G       24K  legacy
boot-pool/.system/syslog-81963fc7279b4cf49c43e5a8cbe36cdb   99.5K  27.3G     99.5K  legacy
boot-pool/.system/webui                                       24K  27.3G       24K  legacy
boot-pool/ROOT                                              1.29G  27.3G       24K  none
boot-pool/ROOT/Initial-Install                                 1K  27.3G     1.29G  legacy
boot-pool/ROOT/default                                      1.29G  27.3G     1.29G  legacy



[anodos]

You probably have a path suffix still applied (%U) from when you had this with the special preset. It's an advanced SMB share option.
