Volume size is not showing correct

[holtec]

Hi Team,

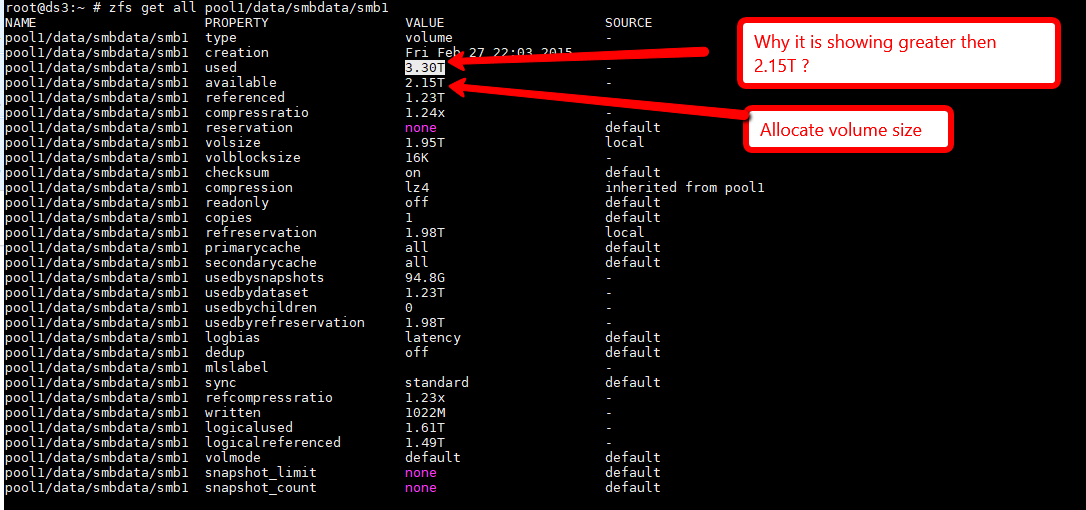

I have few queries regarding FreeNAS Storage. The volume we allocate in the pool is not showing the correct value. I have attached the screenshot in the attachment. Also, find the detail of the zpool list and zfs list. It also full all space. please suggest.

=================
zpool list
root@ds3:~ # zpool list
NAME SIZE ALLOC FREE EXPANDSZ FRAG CAP DEDUP HEALTH ALTROOT
freenas-boot 222G 1.09G 221G - - 0% 1.00x ONLINE -
pool1 14.5T 6.24T 8.26T - 34% 43% 1.00x ONLINE /mnt

==================
zfs list
root@ds3:~ # zfs list
NAME USED AVAIL REFER MOUNTPOINT
freenas-boot 1.09G 214G 176K none
freenas-boot/ROOT 1.09G 214G 136K none
freenas-boot/ROOT/Initial-Install 8K 214G 1.08G legacy
freenas-boot/ROOT/default 1.09G 214G 1.08G legacy
freenas-boot/grub 7.82M 214G 7.82M legacy
pool1 13.9T 173G 96K /mnt/pool1
pool1/.system 97.7M 173G 96K legacy
pool1/.system/configs-839d4bf50898424ab2b76c72b7c93def 42.6M 173G 42.6M legacy
pool1/.system/cores 2.20M 173G 2.20M legacy
pool1/.system/rrd-839d4bf50898424ab2b76c72b7c93def 50.2M 173G 50.2M legacy
pool1/.system/samba4 156K 173G 156K legacy
pool1/.system/syslog-839d4bf50898424ab2b76c72b7c93def 2.47M 173G 2.47M legacy
pool1/backup 1.55T 173G 88K /mnt/pool1/backup
pool1/backup/ds4 1.55T 173G 88K /mnt/pool1/backup/ds4
pool1/backup/ds4/data 125G 173G 88K /mnt/pool1/backup/ds4/data
pool1/backup/ds4/data/zimbradata 125G 173G 88K /mnt/pool1/backup/ds4/data/zimbradata
pool1/backup/ds4/data/zimbradata/zimbradata1 125G 173G 110G -
pool1/backup/ds4/data/zimbradata6 88K 173G 88K /mnt/pool1/backup/ds4/data/zimbradata6
pool1/backup/ds4/testzvol 56K 173G 56K -
pool1/backup/ds4/vmimages 1.43T 173G 88K /mnt/pool1/backup/ds4/vmimages
pool1/backup/ds4/vmimages/vm-WinAppserver1 13.5G 173G 11.9G -
pool1/backup/ds4/vmimages/vm-WinAppserver2 14.5G 173G 9.59G -
pool1/backup/ds4/vmimages/vm-WinAppserver3 41.2G 173G 26.1G -
pool1/backup/ds4/vmimages/vm-WinAppserver4 145G 275G 41.1G -
pool1/backup/ds4/vmimages/vm-aceeq 29.5G 173G 20.7G -
pool1/backup/ds4/vmimages/vm-adminserver1 5.32G 173G 4.07G -
pool1/backup/ds4/vmimages/vm-bluestar 64.4G 173G 49.3G -
pool1/backup/ds4/vmimages/vm-cci-cmcl 22.6G 173G 17.7G -
pool1/backup/ds4/vmimages/vm-cci-cmcl-ho-gui 26.3G 173G 20.0G -
pool1/backup/ds4/vmimages/vm-cci-jk-ho 337G 234G 51.6G -
pool1/backup/ds4/vmimages/vm-cci-jk-ho-gui 65.4G 224G 12.5G -
pool1/backup/ds4/vmimages/vm-cci-test-ho 40.4G 173G 40.4G -
pool1/backup/ds4/vmimages/vm-cci-test-ho-gui 29.0G 173G 20.7G -
pool1/backup/ds4/vmimages/vm-ftp 5.97G 173G 5.95G -
pool1/backup/ds4/vmimages/vm-intranet 6.57G 173G 3.92G -
pool1/backup/ds4/vmimages/vm-ldap1 3.89G 173G 2.65G -
pool1/backup/ds4/vmimages/vm-licserver1 56.1G 173G 39.5G -
pool1/backup/ds4/vmimages/vm-lime 16.9G 173G 12.0G -
pool1/backup/ds4/vmimages/vm-msproject 8.35G 173G 7.58G -
pool1/backup/ds4/vmimages/vm-nagios 13.8G 184G 2.24G -
pool1/backup/ds4/vmimages/vm-opaweb2 9.89G 173G 9.88G -
pool1/backup/ds4/vmimages/vm-oracle-pv 66.2G 214G 25.2G -
pool1/backup/ds4/vmimages/vm-oracle-pvssc 31.0G 173G 31.0G -
pool1/backup/ds4/vmimages/vm-oracledb 7.73G 173G 6.11G -
pool1/backup/ds4/vmimages/vm-primaveraL 7.68G 173G 6.10G -
pool1/backup/ds4/vmimages/vm-pv-bi 91.9G 224G 41.2G -
pool1/backup/ds4/vmimages/vm-pvcm 25.3G 173G 20.8G -
pool1/backup/ds4/vmimages/vm-pvp6 7.32G 173G 6.19G -
pool1/backup/ds4/vmimages/vm-redmine 3.05G 173G 2.80G -
pool1/backup/ds4/vmimages/vm-smb1 12.5G 173G 6.54G -
pool1/backup/ds4/vmimages/vm-smb1-rscan 4.48G 173G 4.48G -
pool1/backup/ds4/vmimages/vm-swtest5 24.5G 173G 21.7G -
pool1/backup/ds4/vmimages/vm-swtest6 19.3G 173G 14.0G -
pool1/backup/ds4/vmimages/vm-ubuntu-test1 65.6G 224G 14.9G -
pool1/backup/ds4/vmimages/vm-ubuntu-test2 57.1G 224G 6.32G -
pool1/backup/ds4/vmimages/vm-ubuntu-test3 18.5G 173G 18.5G -
pool1/backup/ds4/vmimages/vm-webmail 25.2G 189G 9.88G -
pool1/backup/ds4/vmimages/vm-win8-payroll 29.6G 173G 22.8G -
pool1/backup/ds4/vmimages/vm-zenoss1 9.85G 173G 6.04G -
pool1/data 12.3T 173G 88K /mnt/pool1/data
pool1/data/intranetdata 118G 275G 16.1G -
pool1/data/smb 203G 173G 88K /mnt/pool1/data/smb
pool1/data/smb/fs1-temp 102G 247G 27.8G -
pool1/data/smb/smb-test 102G 275G 56K -
pool1/data/smbdata 11.2T 173G 88K /mnt/pool1/data/smbdata
pool1/data/smbdata/smb1 3.30T 2.15T 1.23T -
pool1/data/smbdata/smb2 3.24T 2.15T 1.24T -
pool1/data/smbdata/smb3 3.10T 2.15T 1.11T -
pool1/data/smbdata/smb4 1.58T 1.16T 605G -
pool1/data/zimbradata6 779G 173G 88K /mnt/pool1/data/zimbradata6
pool1/data/zimbradata6/zimbradata1 287G 173G 177G -
pool1/data/zimbradata6/zimbradata2 464G 173G 361G -
pool1/data/zimbradata6/zimbradata3 28.1G 173G 17.4G -
pool1/jails 88K 173G 88K /mnt/pool1/jails
pool1/vmimages 31.6G 173G 88K /mnt/pool1/vmimages
pool1/vmimages/vm-adminserver 4.05G 173G 4.05G -
pool1/vmimages/vm-zimbra1 9.64G 173G 4.92G -
pool1/vmimages/vm-zimbra2 11.8G 173G 6.88G -
pool1/vmimages/vm-zimbra3 6.16G 173G 3.60G -
root@ds3:~ #
==================


Could you please have a look and help me to find out why it is not showing the correct value.



[holtec]

Still wating for response from your side.



[devnullius]

Just a long-shot: compression? Some data could be compressed really well, so you can store more than you actually have? Could that be it? :)



[danb35]

Could you please have a look and help me to find out why it is not showing the correct value.

Where do you think the discrepancy is? Because the output of zfs list and the screen shot you're posting are entirely consistent.



[holtec]

Hey Dev,

Thanks for your reply !!..

I have created a volume, size is around 2 TB. But why it is showing used space is 3.30TB.



[garm]

What is a “Volume”? Why do you think it’s 2 TB?
