Very Slow Pool performance. 49MB/s Write on 2x RAIDZ1 with 4 4tb N300s per Vdev - Please help!

djkay2637

Cadet
Joined
Sep 21, 2022
Messages
6
Thanks for reading my post. To start with. :smile:

My system
SuperMicro with 2x Xeon(R) CPU E5-2640 v3 and 96GB RAM running ESXi 7.0.
VM with 8 cores, 32GB RAM (locked), SAS2008 PCI-Express Fusion-MPT SAS-2 HBA card passed through
8 x Toshiba N300 4TB, 2x RAIDZ1 Vdevs with 4 X HDD per Vdev. 75% capacity used.

My issue
It has been running for over a year but now the write performance is very slow and appears to be the huge bottleneck. I have run the following Code and it would appear that the Pool performance is the bottleneck. The pool is set to Standard Sync, and LZ4 compression.

Code:
fio --name=test --size=5g --rw=write --ioengine=posixaio --direct=1 --bs=1m


fio --name=test --size=5g --rw=write --ioengine=posixaio --direct=1 --bs=1m
test: (g=0): rw=write, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-                                                                                        1024KiB, ioengine=posixaio, iodepth=1
fio-3.27
Starting 1 process
Jobs: 1 (f=1): [W(1)][98.2%][eta 00m:02s]
test: (groupid=0, jobs=1): err= 0: pid=55519: Wed Sep 21 10:32:10 2022
  write: IOPS=46, BW=46.8MiB/s (49.1MB/s)(5120MiB/109424msec); 0 zone resets
    slat (nsec): min=14626, max=80450, avg=32511.15, stdev=6826.22
    clat (usec): min=271, max=4594.8k, avg=21338.39, stdev=289557.43
     lat (usec): min=290, max=4594.9k, avg=21370.90, stdev=289557.10
    clat percentiles (usec):
     |  1.00th=[    281],  5.00th=[    293], 10.00th=[    306],
     | 20.00th=[    330], 30.00th=[    338], 40.00th=[    347],
     | 50.00th=[    359], 60.00th=[    367], 70.00th=[    375],
     | 80.00th=[    396], 90.00th=[    408], 95.00th=[    424],
     | 99.00th=[    449], 99.50th=[3170894], 99.90th=[4278191],
     | 99.95th=[4529849], 99.99th=[4596958]
   bw (  KiB/s): min=53067, max=405928, per=100.00%, avg=321392.74, stdev=92992.36, samples=31
   iops        : min=   51, max=  396, avg=313.39, stdev=90.92, samples=31
  lat (usec)   : 500=99.47%
  lat (msec)   : >=2000=0.53%
  cpu          : usr=0.11%, sys=0.07%, ctx=5122, majf=0, minf=1
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=0,5120,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1


Run status group 0 (all jobs):
  WRITE: bw=46.8MiB/s (49.1MB/s), 46.8MiB/s-46.8MiB/s (49.1MB/s-49.1MB/s), io=5120MiB (5369MB), run=109424-109424msec
root@truenas[~]#



I have a basic-intermediate knowledge at best and am really keen to learn further and looking for some wisdom from the community. Is there any extra troubleshooting tips or next steps?

Many thanks,
Dan.


c77dk

Patron
Joined
Nov 27, 2019
Messages
418
I've got no experience running TN through ESXi, but those IOPS looks quite low in my eye.
I assume you haven't enabled deduplication? (a sure killer). When you run the test, how busy are the disks ? Can be seen using gstat, and also which version of TN are you using?


djkay2637

Cadet
Joined
Sep 21, 2022
Messages
6
Thank you for your reply. I have run gstat whilst running another test and i can see one disk is getting battered but the rest are not. Ddup is off too.


Code:
  1     42      0      0    0.0     42  36508   23.0   97.4| da0
    0      2      0      0    0.0      1     19    0.4    0.8| da1
    0      0      0      0    0.0      0      0    0.0    0.0| da2
    0      0      0      0    0.0      0      0    0.0    0.0| da3
    0      2      0      0    0.0      1     23    0.2    0.3| da4
    0      0      0      0    0.0      0      0    0.0    0.0| da5
    0      0      0      0    0.0      0      0    0.0    0.0| da6
    0      0      0      0    0.0      0      0    0.0    0.0| da7
    0      2      0      0    0.0      1     23    0.2    0.3| da8
    0      2      0      0    0.0      1     23    0.2    0.5| da9
    0      0      0      0    0.0      0      0    0.0    0.0| cd0
    0      0      0      0    0.0      0      0    0.0    0.0| da0p1
    1     42      0      0    0.0     42  36508   23.0   97.4| da0p2
    0      0      0      0    0.0      0      0    0.0    0.0| gptid/539dd184-97ea-11eb-96e7-000c2923f789
    0      0      0      0    0.0      0      0    0.0    0.0| da1p1
    0      2      0      0    0.0      1     19    0.4    0.8| da1p2
    0      0      0      0    0.0      0      0    0.0    0.0| da3p1
    0      0      0      0    0.0      0      0    0.0    0.0| da3p2
    0      0      0      0    0.0      0      0    0.0    0.0| da4p1
    0      2      0      0    0.0      1     23    0.2    0.3| da4p2
    0      0      0      0    0.0      0      0    0.0    0.0| da5p1
    0      0      0      0    0.0      0      0    0.0    0.0| da5p2
    0      0      0      0    0.0      0      0    0.0    0.0| da6p1
    0      0      0      0    0.0      0      0    0.0    0.0| da6p2
    0      0      0      0    0.0      0      0    0.0    0.0| da7p1
    0      0      0      0    0.0      0      0    0.0    0.0| da7p2
    0      0      0      0    0.0      0      0    0.0    0.0| da8p1
    0      2      0      0    0.0      1     23    0.2    0.3| da8p2
    0      0      0      0    0.0      0      0    0.0    0.0| da9p1
    0      2      0      0    0.0      1     23    0.2    0.5| da9p2
    0      0      0      0    0.0      0      0    0.0    0.0| mirror/swap1
    0      0      0      0    0.0      0      0    0.0    0.0| iso9660/TRUENAS
    0      0      0      0    0.0      0      0    0.0    0.0| mirror/swap0.eli
    0      2      0      0    0.0      1     19    0.4    0.8| gptid/389e6c83-1c7b-11ec-a764-000c2923f789
    0      0      0      0    0.0      0      0    0.0    0.0| gptid/b8c17be1-1590-11ec-84b4-000c2923f789
    0      2      0      0    0.0      1     23    0.2    0.3| gptid/3f4a02b0-1c7b-11ec-a764-000c2923f789
    0      0      0      0    0.0      0      0    0.0    0.0| mirror/swap3
    0      0      0      0    0.0      0      0    0.0    0.0| gptid/ce2fb270-1590-11ec-84b4-000c2923f789
    0      0      0      0    0.0      0      0    0.0    0.0| mirror/swap2


djkay2637

Cadet
Joined
Sep 21, 2022
Messages
6
da0 is my boot drive for TrueNas. I am using TrueNAS-12.0-U7. I was using the command
Code:
fio --name=test --size=5g --rw=write --ioengine=posixaio --direct=1 --bs=1m
to run the test however, i have to be honest, I don't understand what all the parameters are doing.


djkay2637

Cadet
Joined
Sep 21, 2022
Messages
6

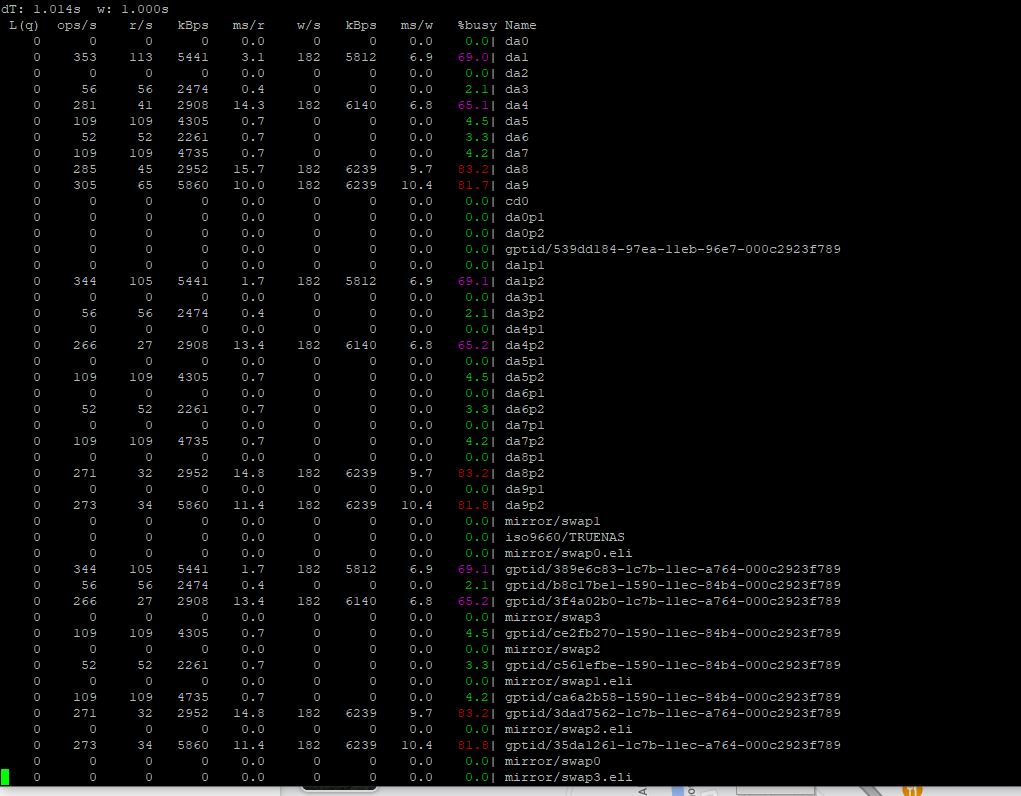

This is what gstat looks like when transfering a 16GB file from one network share to another ( on the same VDEV) It is moving at 10MB/s.


Tony-1971

Contributor
Joined
Oct 1, 2016
Messages
105
Hello,
Before running fio command you must change directory (not /root but something under /mnt)
Berst Regards,
Antonio


djkay2637

Cadet
Joined
Sep 21, 2022
Messages
6
Thank you for your replies so far.

Code:
root@truenas[/mnt/NewPoolToshNas]# cd NFSShare
root@truenas[/mnt/NewPoolToshNas/NFSShare]# ls
root@truenas[/mnt/NewPoolToshNas/NFSShare]# fio --name=test --size=5g --rw=write --ioengine=posixaio --direct=1 --bs=1m
test: (g=0): rw=write, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-1024KiB, ioengine=posixaio, iodepth=1
fio-3.27
Starting 1 process
test: Laying out IO file (1 file / 5120MiB)
Jobs: 1 (f=1): [W(1)][100.0%][w=386MiB/s][w=386 IOPS][eta 00m:00s]
test: (groupid=0, jobs=1): err= 0: pid=59886: Wed Sep 21 17:10:01 2022
  write: IOPS=658, BW=659MiB/s (691MB/s)(5120MiB/7770msec); 0 zone resets
    slat (usec): min=10, max=1564, avg=55.12, stdev=80.76
    clat (nsec): min=1247, max=32859k, avg=1460864.32, stdev=1680683.91
     lat (usec): min=253, max=32885, avg=1515.99, stdev=1662.84
    clat percentiles (nsec):
     |  1.00th=[    1432],  5.00th=[    1800], 10.00th=[  158720],
     | 20.00th=[  254976], 30.00th=[  259072], 40.00th=[  276480],
     | 50.00th=[  618496], 60.00th=[ 2113536], 70.00th=[ 2506752],
     | 80.00th=[ 2637824], 90.00th=[ 2899968], 95.00th=[ 3031040],
     | 99.00th=[ 3457024], 99.50th=[11075584], 99.90th=[21889024],
     | 99.95th=[22151168], 99.99th=[32899072]
   bw (  KiB/s): min=331776, max=3433051, per=100.00%, avg=685124.60, stdev=833843.77, samples=15
   iops        : min=  324, max= 3352, avg=668.73, stdev=814.24, samples=15
  lat (usec)   : 2=5.59%, 4=1.50%, 10=0.14%, 20=0.16%, 50=0.51%
  lat (usec)   : 100=0.70%, 250=4.55%, 500=35.20%, 750=2.03%, 1000=0.06%
  lat (msec)   : 2=6.27%, 4=42.40%, 10=0.10%, 20=0.64%, 50=0.16%
  cpu          : usr=1.72%, sys=0.60%, ctx=5863, majf=0, minf=1
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=0,5120,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
  WRITE: bw=659MiB/s (691MB/s), 659MiB/s-659MiB/s (691MB/s-691MB/s), io=5120MiB (5369MB), run=7770-7770msec


These results are much better and showing the speed I would expect form this pool. Now my journey continues to find out why file transfers from one network share to another is 10MB/s.

To add further detail to my setup - the NFS share tested above is one of my ESXI's DataStore. Inside of this datastore is the virtual disk for one of my VMS. This is all inside the same physical server so not traversing the rest of my network.

What tests would you do next?

Thank you all for reading and commenting so far.
