Unreadable Sector: Different disks same slot...Coincidence?

[thepixelgeek]

A few months ago I got a critical alert for unreadable sectors. I swapped the old Ironwolf for a WD, and I was on my way. No issues until today...

I received another critical alert for the new drive that's in the same slot as the old one.

Is this coincidence or something else?



[Chris Moore]

I received another critical alert for the new drive that's in the same slot as the old one.

Is this coincidence or something else?

It could be something else. I have a rack server at work that has a bay that repeatedly kills drives. I can't figure out why, but the drives develop bad sectors. All the other drives in the system are original, but this one slot has killed three drives in the past six years.

Can you give more details about the kind of error you are seeing?



[thepixelgeek]

@Chris Moore
Here's what I see under dashboard/alerts unless there are more details found elsewhere?
"Device: /dev/ada7, 16 Currently unreadable (pending) sectors."



[Chris Moore]

You might want to look through this guide:

Hard Drive Troubleshooting Guide (All Versions of FreeNAS)
https://www.ixsystems.com/community...bleshooting-guide-all-versions-of-freenas.17/

You might find some tips but I would replace a drive that was giving that error. Some folks would try to reformat it to see if it clears the error.
If it is still under warranty, they will replace it.



[joeschmuck]

Since the issues appear to remain with the given drive location, here are a few things off the top of my head that I'd look into:
1) Maximum Drive Temp (use smartctl -x /dev/adax to hopefully view this) The reason I ask is because maybe this location does not get enough cooling.
2) In your original troubleshooting did you only swap drive locations and nothing else? I ask because it could be a power issue, even a data cable although not likely.
3) How often do you run a SMART Long/Extended test? I recommend once a week and then a Short test daily.

Post the output of your SMART results.

If it is still under warranty, they will replace it.

Agreed! RMA it if possible.



[thepixelgeek]

Now I have a "faulted" drive, after resilvering, in a different spot and a different hard drive. it's another WD drive. Ugh.

Code:

Pool Media state is DEGRADED: One or more devices are faulted in response to persistent errors. Sufficient replicas exist for the pool to continue functioning in a degraded state.
The following devices are not healthy:
Disk 11629615934624269482 is FAULTED
2020-12-21 19:38:05 (America/New_York)

@joeschmuck I replaced the drive before reading your post. Yes, only changed the drive...hot-swapped. I have not done any SMART tests.



[thepixelgeek]

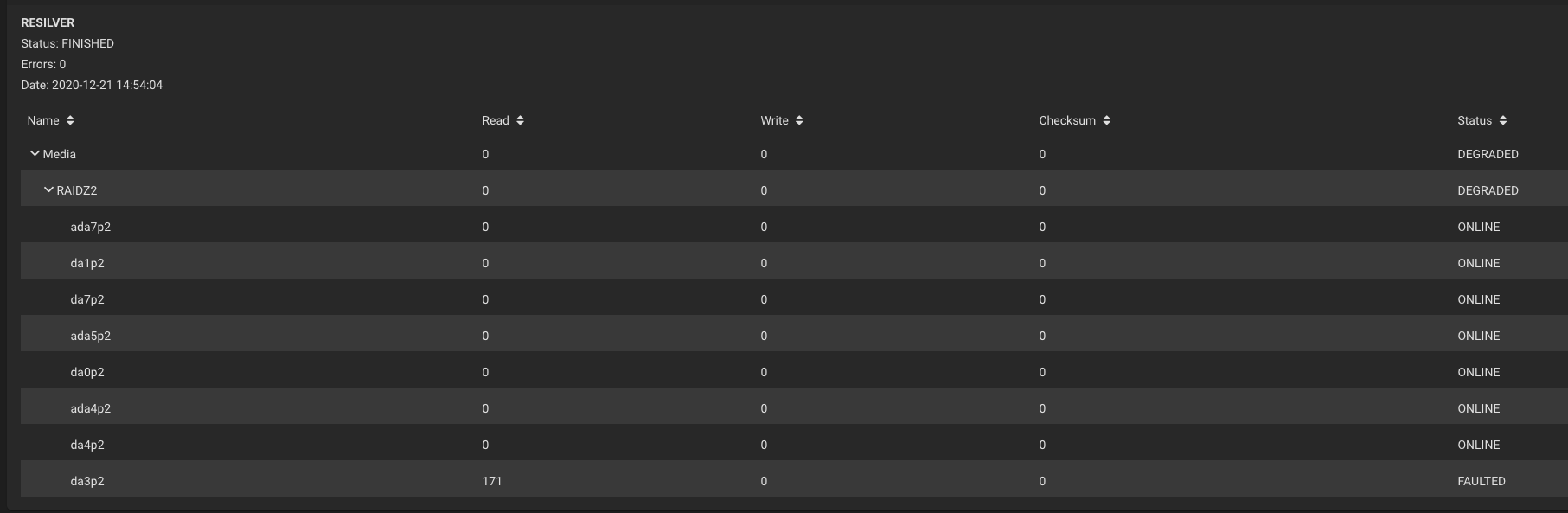

Is it odd that only one drive has read values? Here's the output for the faulted drive, da3:

Code:

freenas# smartctl -x /dev/da3
smartctl 7.1 2019-12-30 r5022 [FreeBSD 12.2-RELEASE-p2 amd64] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red
Device Model:     WDC WD40EFRX-68WT0N0
Serial Number:    WD-WCC4E7ZD84ZZ
LU WWN Device Id: 5 0014ee 262e63b61
Firmware Version: 82.00A82
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5400 rpm
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Tue Dec 22 13:29:35 2020 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is:   Unavailable
APM feature is:   Unavailable
Rd look-ahead is: Enabled
Write cache is:   Enabled
DSN feature is:   Unavailable
ATA Security is:  Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00)    Offline data collection activity
                    was never started.
                    Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0)    The previous self-test routine completed
                    without error or no self-test has ever
                    been run.
Total time to complete Offline
data collection:         (51720) seconds.
Offline data collection
capabilities:              (0x7b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   2) minutes.
Extended self-test routine
recommended polling time:      ( 517) minutes.
Conveyance self-test routine
recommended polling time:      (   5) minutes.
SCT capabilities:            (0x703d)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAGS    VALUE WORST THRESH FAIL RAW_VALUE
  1 Raw_Read_Error_Rate     POSR-K   200   200   051    -    38
  3 Spin_Up_Time            POS--K   190   178   021    -    7491
  4 Start_Stop_Count        -O--CK   100   100   000    -    47
  5 Reallocated_Sector_Ct   PO--CK   200   200   140    -    0
  7 Seek_Error_Rate         -OSR-K   100   253   000    -    0
  9 Power_On_Hours          -O--CK   091   091   000    -    6587
10 Spin_Retry_Count        -O--CK   100   253   000    -    0
11 Calibration_Retry_Count -O--CK   100   253   000    -    0
12 Power_Cycle_Count       -O--CK   100   100   000    -    47
192 Power-Off_Retract_Count -O--CK   200   200   000    -    45
193 Load_Cycle_Count        -O--CK   200   200   000    -    118
194 Temperature_Celsius     -O---K   119   115   000    -    33
196 Reallocated_Event_Count -O--CK   200   200   000    -    0
197 Current_Pending_Sector  -O--CK   200   200   000    -    0
198 Offline_Uncorrectable   ----CK   100   253   000    -    0
199 UDMA_CRC_Error_Count    -O--CK   200   200   000    -    0
200 Multi_Zone_Error_Rate   ---R--   100   253   000    -    0
                            ||||||_ K auto-keep
                            |||||__ C event count
                            ||||___ R error rate
                            |||____ S speed/performance
                            ||_____ O updated online
                            |______ P prefailure warning

General Purpose Log Directory Version 1
SMART           Log Directory Version 1 [multi-sector log support]
Address    Access  R/W   Size  Description
0x00       GPL,SL  R/O      1  Log Directory
0x01           SL  R/O      1  Summary SMART error log
0x02           SL  R/O      5  Comprehensive SMART error log
0x03       GPL     R/O      6  Ext. Comprehensive SMART error log
0x06           SL  R/O      1  SMART self-test log
0x07       GPL     R/O      1  Extended self-test log
0x09           SL  R/W      1  Selective self-test log
0x10       GPL     R/O      1  NCQ Command Error log
0x11       GPL     R/O      1  SATA Phy Event Counters log
0x21       GPL     R/O      1  Write stream error log
0x22       GPL     R/O      1  Read stream error log
0x80-0x9f  GPL,SL  R/W     16  Host vendor specific log
0xa0-0xa7  GPL,SL  VS      16  Device vendor specific log
0xa8-0xb6  GPL,SL  VS       1  Device vendor specific log
0xb7       GPL,SL  VS      39  Device vendor specific log
0xbd       GPL,SL  VS       1  Device vendor specific log
0xc0       GPL,SL  VS       1  Device vendor specific log
0xc1       GPL     VS      93  Device vendor specific log
0xe0       GPL,SL  R/W      1  SCT Command/Status
0xe1       GPL,SL  R/W      1  SCT Data Transfer

SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
Device Error Count: 4
    CR     = Command Register
    FEATR  = Features Register
    COUNT  = Count (was: Sector Count) Register
    LBA_48 = Upper bytes of LBA High/Mid/Low Registers ]  ATA-8
    LH     = LBA High (was: Cylinder High) Register    ]   LBA
    LM     = LBA Mid (was: Cylinder Low) Register      ] Register
    LL     = LBA Low (was: Sector Number) Register     ]
    DV     = Device (was: Device/Head) Register
    DC     = Device Control Register
    ER     = Error register
    ST     = Status register
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.

Error 4 [3] occurred at disk power-on lifetime: 6568 hours (273 days + 16 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 07 1f 04 c0 40 00  Error: UNC at LBA = 0x071f04c0 = 119473344

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  60 07 e8 00 08 00 00 07 1f 0c 30 40 00     08:19:10.504  READ FPDMA QUEUED
  60 07 e8 00 00 00 00 07 1f 04 48 40 00     08:19:10.498  READ FPDMA QUEUED
  60 07 e8 00 08 00 00 07 1e fc 60 40 00     08:19:10.380  READ FPDMA QUEUED
  60 07 e8 00 00 00 00 07 1e f4 78 40 00     08:19:10.375  READ FPDMA QUEUED
  60 07 e8 00 10 00 00 07 1e ec 90 40 00     08:19:09.907  READ FPDMA QUEUED

Error 3 [2] occurred at disk power-on lifetime: 6568 hours (273 days + 16 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 07 1e ba d8 40 00  Error: UNC at LBA = 0x071ebad8 = 119454424

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  60 05 98 00 00 00 00 07 1e b7 50 40 00     08:19:02.095  READ FPDMA QUEUED
  60 07 e8 00 00 00 00 07 1e af 60 40 00     08:19:02.001  READ FPDMA QUEUED
  60 07 e8 00 00 00 00 07 1e a7 78 40 00     08:19:00.251  READ FPDMA QUEUED
  61 00 28 00 00 00 00 07 1e 8f c0 40 00     08:19:00.168  WRITE FPDMA QUEUED
  61 01 60 00 00 00 00 07 1e 9e 00 40 00     08:19:00.168  WRITE FPDMA QUEUED

Error 2 [1] occurred at disk power-on lifetime: 6568 hours (273 days + 16 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 07 1e 9b c0 40 00  Error: WP at LBA = 0x071e9bc0 = 119446464

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 00 10 00 00 00 00 00 40 02 90 40 00     08:18:56.751  WRITE FPDMA QUEUED
  60 00 10 00 20 00 01 d1 c0 bc 90 40 00     08:18:56.731  READ FPDMA QUEUED
  60 00 10 00 18 00 01 d1 c0 ba 90 40 00     08:18:56.731  READ FPDMA QUEUED
  60 00 10 00 10 00 00 00 40 02 90 40 00     08:18:56.731  READ FPDMA QUEUED
  60 07 e8 00 08 00 00 07 1e 97 a8 40 00     08:18:56.731  READ FPDMA QUEUED

Error 1 [0] occurred at disk power-on lifetime: 6568 hours (273 days + 16 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  40 -- 51 00 00 00 00 07 1e 90 50 40 00  Error: UNC at LBA = 0x071e9050 = 119443536

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  60 00 08 00 00 00 00 1c 42 6a c8 40 00     08:18:53.366  READ FPDMA QUEUED
  60 07 e8 00 10 00 00 07 1e 8f c0 40 00     08:18:51.829  READ FPDMA QUEUED
  60 07 e8 00 08 00 00 07 1e 87 d8 40 00     08:18:51.829  READ FPDMA QUEUED
  60 07 e8 00 00 00 00 07 1e 7f f0 40 00     08:18:51.829  READ FPDMA QUEUED
  60 07 e8 00 00 00 00 07 1e 78 08 40 00     08:18:51.433  READ FPDMA QUEUED

SMART Extended Self-test Log Version: 1 (1 sectors)
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

SCT Status Version:                  3
SCT Version (vendor specific):       258 (0x0102)
Device State:                        Active (0)
Current Temperature:                    33 Celsius
Power Cycle Min/Max Temperature:     29/35 Celsius
Lifetime    Min/Max Temperature:      3/37 Celsius
Under/Over Temperature Limit Count:   0/0
Vendor specific:
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SCT Temperature History Version:     2
Temperature Sampling Period:         1 minute
Temperature Logging Interval:        1 minute
Min/Max recommended Temperature:      0/60 Celsius
Min/Max Temperature Limit:           -41/85 Celsius
Temperature History Size (Index):    478 (143)

Index    Estimated Time   Temperature Celsius
144    2020-12-22 05:32    34  ***************
...    ..(  5 skipped).    ..  ***************
150    2020-12-22 05:38    34  ***************
151    2020-12-22 05:39    33  **************
...    ..(  5 skipped).    ..  **************
157    2020-12-22 05:45    33  **************
158    2020-12-22 05:46    34  ***************
...    ..(112 skipped).    ..  ***************
271    2020-12-22 07:39    34  ***************
272    2020-12-22 07:40    33  **************
...    ..( 14 skipped).    ..  **************
287    2020-12-22 07:55    33  **************
288    2020-12-22 07:56    34  ***************
...    ..( 40 skipped).    ..  ***************
329    2020-12-22 08:37    34  ***************
330    2020-12-22 08:38    33  **************
...    ..( 25 skipped).    ..  **************
356    2020-12-22 09:04    33  **************
357    2020-12-22 09:05    34  ***************
...    ..( 17 skipped).    ..  ***************
375    2020-12-22 09:23    34  ***************
376    2020-12-22 09:24    33  **************
...    ..( 14 skipped).    ..  **************
391    2020-12-22 09:39    33  **************
392    2020-12-22 09:40    34  ***************
...    ..( 17 skipped).    ..  ***************
410    2020-12-22 09:58    34  ***************
411    2020-12-22 09:59    33  **************
...    ..( 15 skipped).    ..  **************
427    2020-12-22 10:15    33  **************
428    2020-12-22 10:16    34  ***************
...    ..(  9 skipped).    ..  ***************
438    2020-12-22 10:26    34  ***************
439    2020-12-22 10:27    33  **************
...    ..(  3 skipped).    ..  **************
443    2020-12-22 10:31    33  **************
444    2020-12-22 10:32    34  ***************
...    ..(110 skipped).    ..  ***************
  77    2020-12-22 12:23    34  ***************
  78    2020-12-22 12:24    33  **************
...    ..( 10 skipped).    ..  **************
  89    2020-12-22 12:35    33  **************
  90    2020-12-22 12:36    34  ***************
...    ..( 52 skipped).    ..  ***************
143    2020-12-22 13:29    34  ***************

SCT Error Recovery Control:
           Read:     70 (7.0 seconds)
          Write:     70 (7.0 seconds)

Device Statistics (GP/SMART Log 0x04) not supported

Pending Defects log (GP Log 0x0c) not supported

SATA Phy Event Counters (GP Log 0x11)
ID      Size     Value  Description
0x0001  2            0  Command failed due to ICRC error
0x0002  2            0  R_ERR response for data FIS
0x0003  2            0  R_ERR response for device-to-host data FIS
0x0004  2            0  R_ERR response for host-to-device data FIS
0x0005  2            0  R_ERR response for non-data FIS
0x0006  2            0  R_ERR response for device-to-host non-data FIS
0x0007  2            0  R_ERR response for host-to-device non-data FIS
0x0008  2            0  Device-to-host non-data FIS retries
0x0009  2            5  Transition from drive PhyRdy to drive PhyNRdy
0x000a  2            6  Device-to-host register FISes sent due to a COMRESET
0x000b  2            0  CRC errors within host-to-device FIS
0x000f  2            0  R_ERR response for host-to-device data FIS, CRC
0x0012  2            0  R_ERR response for host-to-device non-data FIS, CRC
0x8000  4        96133  Vendor specific



[joeschmuck]

Drive da3 (S/N:WCC4E7ZD84ZZ) has not had a SMART Long/Extended test run on it. Run this test on all of your drives, you can do this for all the drives, just issue the command smartctl -t long /dev/ada0 and change "ada0" to each drive, do not add "p2". When you start each test there will be a message indicating how long it will take to complete this test, make sure you let it complete before cycling power to the drives. If you use the NAS then that will add time to the test. For example your drive above would take 517 minutes (Over 8.6 hours) if the NAS was just sitting idle, but if you used the NAS then you could expect to add time, how much depends on how busy the NAS is. For your drive I would let it run overnight. When you check the drive status again it will tell you when the drive performed the last test (recorded in power on hour time) and if it passed or not.

Is it odd that only one drive has read values?

I don't understand what you are saying. Try again and be very descriptive with your words, you do not want me to make assumptions as that could easily lead us down the wrong path. If other SMART results look odd to you, then post them all so we can tell you if it's okay or not. Right now I'm assuming that you have never tested or rarely test your hard drives and just wait for them to fail and then hope someone can dig you out of a deep hole.

I hope things go well for you.



[thepixelgeek]

don't understand what you are saying. Try again and be very descriptive with your words, you do not want me to make assumptions as that could easily lead us down the wrong path. If other SMART results look odd to you, then post them all so we can tell you if it's okay or not. Right now I'm assuming that you have never tested or rarely test your hard drives and just wait for them to fail and then hope someone can dig you out of a deep hole.

I posted an image with that comment. Guessing you don't see it? I went to storage > disks. The table shows read, write, checksum values...all my drives say "0" except da3 drive which states "171" under the Read column. Hope that helps.



[thepixelgeek]

Run this test on all of your drives, you can do this for all the drives, just issue the command smartctl -t long /dev/ada0 and change "ada0" to each drive, do not add "p2".

Running it now, and I will report back in about 700 minutes.



[joeschmuck]

EDIT: I see you are running the long test now, make sure you do this for all your drives, you do not need to wait until thei one drive completes to start testing the other drives. These tests are all built into the hard drive, you are just telling the test to start.

I understand what you are saying now. I would highly recommend to you that you setup what I recommend for SMART tests, which is daily run a SMART Short Test on all hard drives, and weekly run a SMART Long Test on all hard drives. I run my SMART Short tests at I think 12:10 AM every day of the week, those tests generally take 2 minutes to complete and they will be done well before a Long test starts. Then at 12:20 AM on Sundays I start the SMART Long tests for all the hard drives. These are the low usage hours but you can choose whatever you desire.

Once you have completed a SMART Long test on all hard drives, check the SMART data for anything of concern.

After all that is done and the results are looking good, I'd recommend running another Scrub, see if things are all cleared up after that.



[thepixelgeek]

you do not need to wait until thei one drive completes to start testing the other drives

Added all drives to the test. Assuming my terminal will display results when completed? If so, I'll post the readout. I doubt I'll know what to look for since this is my first time. And I haven't researched it enough yet.

I would highly recommend to you that you setup what I recommend for SMART tests, which is daily run a SMART Short Test on all hard drives, and weekly run a SMART Long Test on all hard drives.

Smart! I'll do the same.



[joeschmuck]

Please understand that these are just my recommendations, you may change this to whatever you feel comfortable with. If you power off your system often then you need to take this into consideration because that will abort the test. It won't cause a failure or data corruption, it's just a simple abort, but yo will want to schedule the long tests have the ability to complete the test. You can also run one Long test per drive a day and this will allow your system to operate well while the testing occurs. So that would be drive 1 on Monday, drive 2 on Tuesday, etc. I can afford to test all mine at once because of how I use my system, others will find it difficult if they have a very active system.



[thepixelgeek]

@joeschmuck

Ada7:

Code:

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red
Device Model:     WDC WD40EFRX-68WT0N0
Serial Number:    WD-WCC4E0CPLJFH
LU WWN Device Id: 5 0014ee 20bb39f7c
Firmware Version: 82.00A82
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5400 rpm
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Wed Dec 23 15:34:55 2020 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00)    Offline data collection activity
                    was never started.
                    Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0)    The previous self-test routine completed
                    without error or no self-test has ever
                    been run.
Total time to complete Offline
data collection:         (52980) seconds.
Offline data collection
capabilities:              (0x7b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   2) minutes.
Extended self-test routine
recommended polling time:      ( 530) minutes.
Conveyance self-test routine
recommended polling time:      (   5) minutes.
SCT capabilities:            (0x703d)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   174   170   021    Pre-fail  Always       -       8258
  4 Start_Stop_Count        0x0032   070   070   000    Old_age   Always       -       30428
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   084   084   000    Old_age   Always       -       12314
10 Spin_Retry_Count        0x0032   100   100   000    Old_age   Always       -       0
11 Calibration_Retry_Count 0x0032   100   100   000    Old_age   Always       -       0
12 Power_Cycle_Count       0x0032   070   070   000    Old_age   Always       -       30426
192 Power-Off_Retract_Count 0x0032   162   162   000    Old_age   Always       -       29092
193 Load_Cycle_Count        0x0032   189   189   000    Old_age   Always       -       34205
194 Temperature_Celsius     0x0022   118   098   000    Old_age   Always       -       34
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%     12300         -
# 2  Short offline       Completed without error       00%         0         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

Ada5:

Code:

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST4000VN008-2DR166
Serial Number:    WDH15H10
LU WWN Device Id: 5 000c50 09d9f2bf6
Firmware Version: SC60
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5980 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Wed Dec 23 15:36:50 2020 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82)    Offline data collection activity
                    was completed without error.
                    Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0)    The previous self-test routine completed
                    without error or no self-test has ever
                    been run.
Total time to complete Offline
data collection:         (  581) seconds.
Offline data collection
capabilities:              (0x7b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   1) minutes.
Extended self-test routine
recommended polling time:      ( 636) minutes.
Conveyance self-test routine
recommended polling time:      (   2) minutes.
SCT capabilities:            (0x50bd)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   082   064   044    Pre-fail  Always       -       155598552
  3 Spin_Up_Time            0x0003   094   093   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       46
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   085   060   045    Pre-fail  Always       -       318127579
  9 Power_On_Hours          0x0032   093   093   000    Old_age   Always       -       6620 (169 58 0)
10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       46
184 End-to-End_Error        0x0032   100   100   099    Old_age   Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
189 High_Fly_Writes         0x003a   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   069   066   040    Old_age   Always       -       31 (Min/Max 25/33)
191 G-Sense_Error_Rate      0x0032   100   100   000    Old_age   Always       -       0
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       23
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       195
194 Temperature_Celsius     0x0022   031   040   000    Old_age   Always       -       31 (0 19 0 0 0)
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       6619 (46 209 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       12567324223
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       18600892335

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%      6603         -
# 2  Short offline       Completed without error       00%        40         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

ada4:

Code:

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST4000VN008-2DR166
Serial Number:    ZGY0323V
LU WWN Device Id: 5 000c50 0a2f2ba1b
Firmware Version: SC60
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5980 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Wed Dec 23 15:38:17 2020 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82)    Offline data collection activity
                    was completed without error.
                    Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0)    The previous self-test routine completed
                    without error or no self-test has ever
                    been run.
Total time to complete Offline
data collection:         (  591) seconds.
Offline data collection
capabilities:              (0x7b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   1) minutes.
Extended self-test routine
recommended polling time:      ( 664) minutes.
Conveyance self-test routine
recommended polling time:      (   2) minutes.
SCT capabilities:            (0x50bd)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   083   064   044    Pre-fail  Always       -       223416224
  3 Spin_Up_Time            0x0003   094   093   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       46
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   085   060   045    Pre-fail  Always       -       306855590
  9 Power_On_Hours          0x0032   093   093   000    Old_age   Always       -       6620 (96 193 0)
10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       46
184 End-to-End_Error        0x0032   100   100   099    Old_age   Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
189 High_Fly_Writes         0x003a   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   070   066   040    Old_age   Always       -       30 (Min/Max 26/32)
191 G-Sense_Error_Rate      0x0032   100   100   000    Old_age   Always       -       0
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       23
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       196
194 Temperature_Celsius     0x0022   030   040   000    Old_age   Always       -       30 (0 20 0 0 0)
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       6619 (5 173 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       12593595183
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       18616761923

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%      6604         -
# 2  Short offline       Completed without error       00%        40         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

da1:

Code:

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red
Device Model:     WDC WD40EFRX-68WT0N0
Serial Number:    WD-WCC4E3PP705E
LU WWN Device Id: 5 0014ee 20d911f11
Firmware Version: 82.00A82
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5400 rpm
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Wed Dec 23 15:38:45 2020 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00)    Offline data collection activity
                    was never started.
                    Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0)    The previous self-test routine completed
                    without error or no self-test has ever
                    been run.
Total time to complete Offline
data collection:         (52380) seconds.
Offline data collection
capabilities:              (0x7b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   2) minutes.
Extended self-test routine
recommended polling time:      ( 524) minutes.
Conveyance self-test routine
recommended polling time:      (   5) minutes.
SCT capabilities:            (0x703d)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       4
  3 Spin_Up_Time            0x0027   191   177   021    Pre-fail  Always       -       7450
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       47
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   091   091   000    Old_age   Always       -       6613
10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       47
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       45
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       118
194 Temperature_Celsius     0x0022   118   113   000    Old_age   Always       -       34
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%      6598         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

da7:

Code:

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red
Device Model:     WDC WD40EFRX-68N32N0
Serial Number:    WD-WCC7K0XLVXPN
LU WWN Device Id: 5 0014ee 210dcb7bf
Firmware Version: 82.00A82
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5400 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Wed Dec 23 15:39:09 2020 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00)    Offline data collection activity
                    was never started.
                    Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0)    The previous self-test routine completed
                    without error or no self-test has ever
                    been run.
Total time to complete Offline
data collection:         (42600) seconds.
Offline data collection
capabilities:              (0x7b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   2) minutes.
Extended self-test routine
recommended polling time:      ( 452) minutes.
Conveyance self-test routine
recommended polling time:      (   5) minutes.
SCT capabilities:            (0x303d)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   202   171   021    Pre-fail  Always       -       4883
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       47
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   091   091   000    Old_age   Always       -       6612
10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       47
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       45
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       9
194 Temperature_Celsius     0x0022   119   116   000    Old_age   Always       -       31
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%      6596         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.



[thepixelgeek]

da0:

Code:

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red
Device Model:     WDC WD40EFRX-68N32N0
Serial Number:    WD-WCC7K2AAVSKC
LU WWN Device Id: 5 0014ee 2b95821c4
Firmware Version: 82.00A82
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5400 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Wed Dec 23 15:39:34 2020 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00)    Offline data collection activity
                    was never started.
                    Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0)    The previous self-test routine completed
                    without error or no self-test has ever
                    been run.
Total time to complete Offline
data collection:         (45600) seconds.
Offline data collection
capabilities:              (0x7b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   2) minutes.
Extended self-test routine
recommended polling time:      ( 483) minutes.
Conveyance self-test routine
recommended polling time:      (   5) minutes.
SCT capabilities:            (0x303d)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   197   166   021    Pre-fail  Always       -       5116
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       47
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   091   091   000    Old_age   Always       -       6612
 10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       47
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       45
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       9
194 Temperature_Celsius     0x0022   118   115   000    Old_age   Always       -       32
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%      6596         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

da4:

Code:

=== START OF INFORMATION SECTION ===
Device Model:     HITACHI HUS724040ALE640
Serial Number:    PAJKJG8S
LU WWN Device Id: 5 000cca 22be4271b
Firmware Version: MJAONS04
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   ATA8-ACS T13/1699-D revision 4
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Wed Dec 23 15:40:09 2020 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00)    Offline data collection activity
                    was never started.
                    Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0)    The previous self-test routine completed
                    without error or no self-test has ever
                    been run.
Total time to complete Offline
data collection:         (34219) seconds.
Offline data collection
capabilities:              (0x5b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    No Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   1) minutes.
Extended self-test routine
recommended polling time:      ( 571) minutes.
SCT capabilities:            (0x003d)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000b   100   100   016    Pre-fail  Always       -       0
  2 Throughput_Performance  0x0005   100   100   054    Pre-fail  Offline      -       0
  3 Spin_Up_Time            0x0007   129   129   024    Pre-fail  Always       -       588 (Average 607)
  4 Start_Stop_Count        0x0012   100   100   000    Old_age   Always       -       47
  5 Reallocated_Sector_Ct   0x0033   100   100   005    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000b   100   100   067    Pre-fail  Always       -       0
  8 Seek_Time_Performance   0x0005   100   100   020    Pre-fail  Offline      -       0
  9 Power_On_Hours          0x0012   100   100   000    Old_age   Always       -       6619
 10 Spin_Retry_Count        0x0013   100   100   060    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       47
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       322
193 Load_Cycle_Count        0x0012   100   100   000    Old_age   Always       -       322
194 Temperature_Celsius     0x0002   157   157   000    Old_age   Always       -       38 (Min/Max 20/43)
196 Reallocated_Event_Count 0x0032   100   100   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0022   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0008   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x000a   200   200   000    Old_age   Always       -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%      6604         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

da3:

Code:

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red
Device Model:     WDC WD40EFRX-68WT0N0
Serial Number:    WD-WCC4E7ZD84ZZ
LU WWN Device Id: 5 0014ee 262e63b61
Firmware Version: 82.00A82
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5400 rpm
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Wed Dec 23 15:40:34 2020 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00)    Offline data collection activity
                    was never started.
                    Auto Offline Data Collection: Disabled.
Self-test execution status:      ( 121)    The previous self-test completed having
                    the read element of the test failed.
Total time to complete Offline
data collection:         (51720) seconds.
Offline data collection
capabilities:              (0x7b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   2) minutes.
Extended self-test routine
recommended polling time:      ( 517) minutes.
Conveyance self-test routine
recommended polling time:      (   5) minutes.
SCT capabilities:            (0x703d)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       38
  3 Spin_Up_Time            0x0027   190   178   021    Pre-fail  Always       -       7491
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       47
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   100   253   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   091   091   000    Old_age   Always       -       6613
 10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       47
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       45
193 Load_Cycle_Count        0x0032   200   200   000    Old_age   Always       -       118
194 Temperature_Celsius     0x0022   118   115   000    Old_age   Always       -       34
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       29

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed: read failure       90%      6588         119447200

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.



[thepixelgeek]

After reading the HD guide it appears that da3 is not looking good.

# 1 Extended offline Completed: read failure 90% 6588 119447200
200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 29

Edit: And it has a new alert on my TrueNas dashboard > alerts:
Device: /dev/da3 [SAT], Self-Test Log error count increased from 0 to 1.



[joeschmuck]

I agree, drive S/N: WCC4E7ZD84ZZ is faulty.

Also drive S/N: WCC4E0CPLJFH

12 Power_Cycle_Count 0x0032 070 070 000 Old_age Always - 30426
192 Power-Off_Retract_Count 0x0032 162 162 000 Old_age Always - 29092
193 Load_Cycle_Count 0x0032 189 189 000 Old_age Always - 34205

This drive obviously was powered on and off 30,426 times. This makes me think you grabbed an old drive that you abused (maybe a strong word but you get my point) for several years, well I hope it was over a long period of time and not over a month or something like that. Hard drives (spinning rust) like to run and will typically live longer if you keep them cool and leave them spinning.

Your other drives all look good. Make sure that you have automatic SMART tests set to run and periodically verify each drive to ensure that short and long tests are actually happening.

Good Luck!



[joeschmuck]

Edit: And it has a new alert on my TrueNas dashboard > alerts:
Device: /dev/da3 [SAT], Self-Test Log error count increased from 0 to 1.

If not already done, make sure you are setup for email notification on failure. It's in the FreeNAS/TrueNAS User Guide.



[thepixelgeek]

I'm now set up to do long SMART tests for all disks weekly, and short tests daily. Based on my usage this will be fine, for now.

I updated my email settings and I'm now receiving alerts. I had it configured incorrectly.

What settings do you recommend for SMART service options? Was reading the guide but not sure if I should change anything.



[thepixelgeek]

This makes me think you grabbed an old drive that you abused (maybe a strong word but you get my point) for several years, well I hope it was over a long period of time and not over a month or something like that.

Yes, super old drives. I have two new drives coming this weekend to replace the bad drives.

Thank you for the help @joeschmuck. Much appreciated.
