No RAID card. Well there is a BOSS-S1 card for ESXi and TrueNAS OS storage. Idea is to use the ZFS RAIDz for storage for the ESXi datastore via iSCSI on 40Gb NICs + QSFP+ connectors. w/ 2 identical R7525 servers, double everything, NICs, switches all of it.
Disclaimer1: I have read every one of the posts/threads about VM and Free/TrueNAS. And searched for threads on AMD, EPYC, NVMe, ESXi. Happy to read anything else too.
Disclaimer2: This is hypothetical idea from my boss about how to best use this R7525 with light speeds as an ESXi host for ALL our production server VMs probably in HA. He has NOT read any of the forum posts. We are open to other ideas if this isn't going to work. Just seems like it'd be cool and fast af.
So far, installed ESXi7.0u2 on a BOSS-S1 card with two Micron NVMe cards in a RAID1 for OS. All good. Created a VM, gave it a bunch of resources, reserved, etc. Installed TrueNAS 12.0u8. All good so far.
Went into Hardware > Manage PCI Devices > and found the 5 Intel/Dell Express Flash NVMe P4610 3.2TB SFF devices and enabled Pass-Through.
Things started getting a little hairy about here.

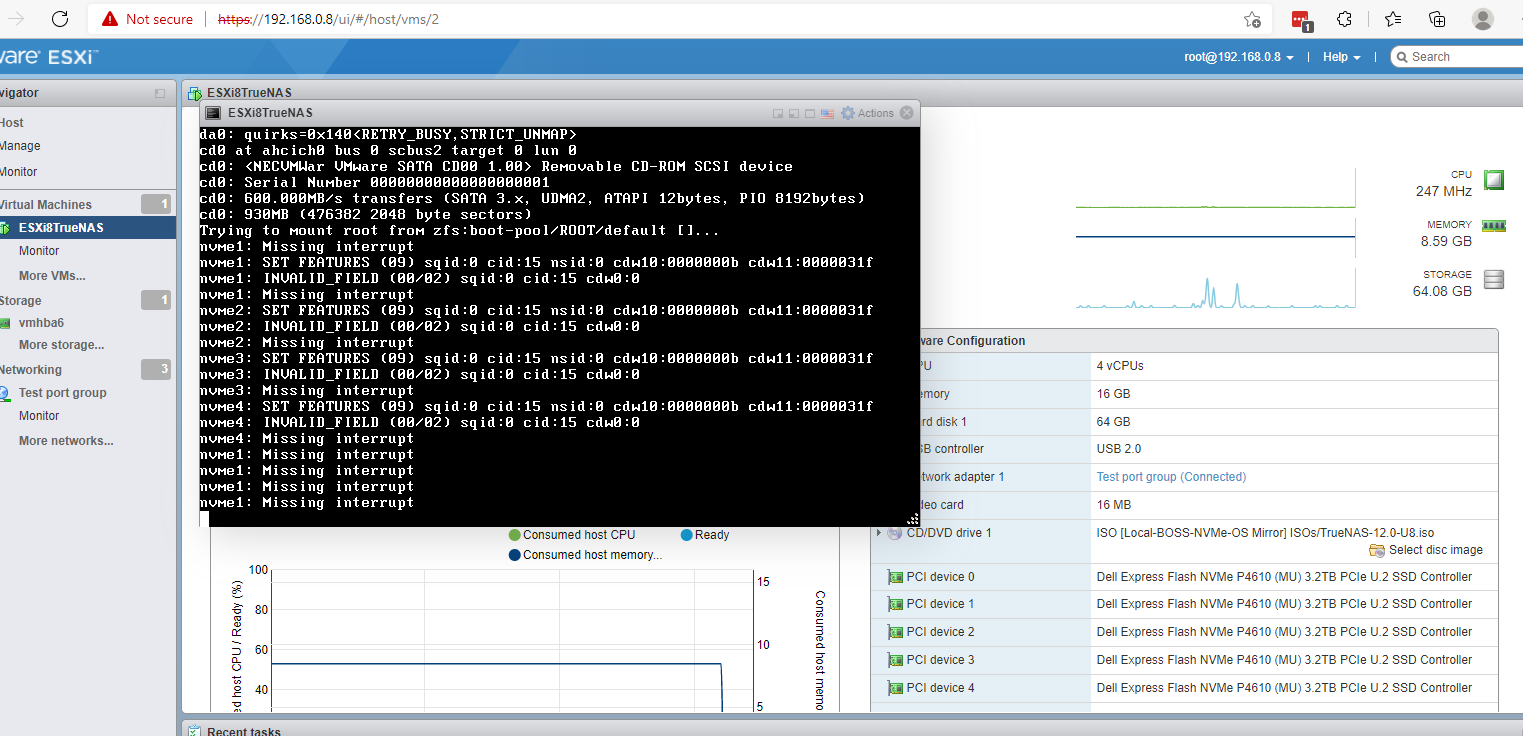

The console started posting repeated "Missing Interrupt" messages over the top of the normal console choose options screen output. And alternating "SET FEATURES" and "Invalid Field" stuff with sqid's and cid's (see attached screenshot).
Restarted the TrueNAS server at this point.
Same things after reboot.

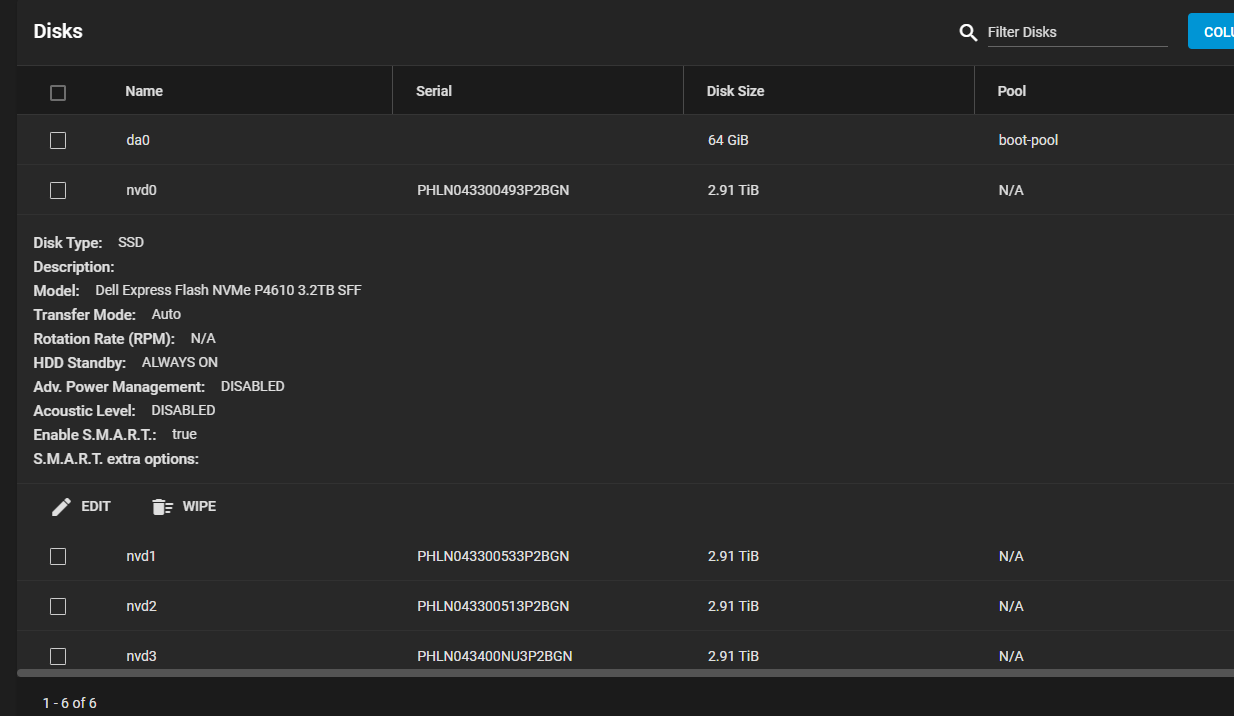

In the TrueNAS UI disks see the 5 NVMe drives nvd0-4. See the serial numbers, S.M.A.R.T. (see attached screenshot).

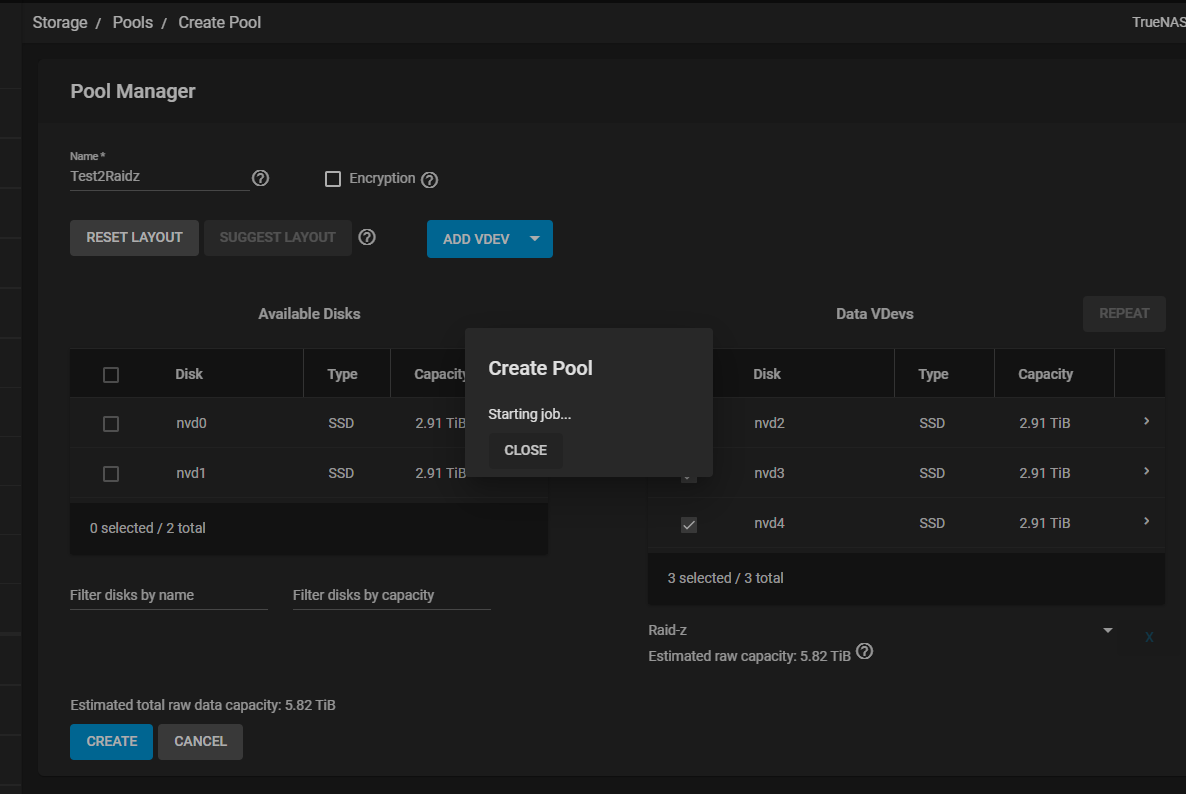

But will not create Pool. just sits there creating pool for long time. Hours.
Did I miss something?
Is this a fool's errand?
Happy to buy tech support from iXsystems. Probably need to do that anyway for our file share and replicants.
Happy St. Patrick's Day good people of the forum!!
Jeff
